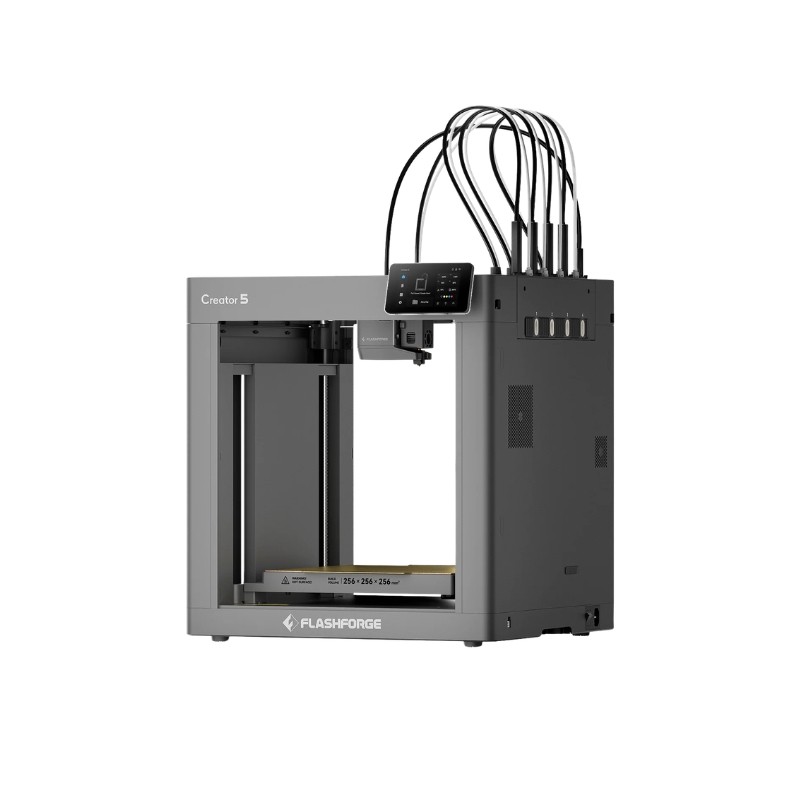

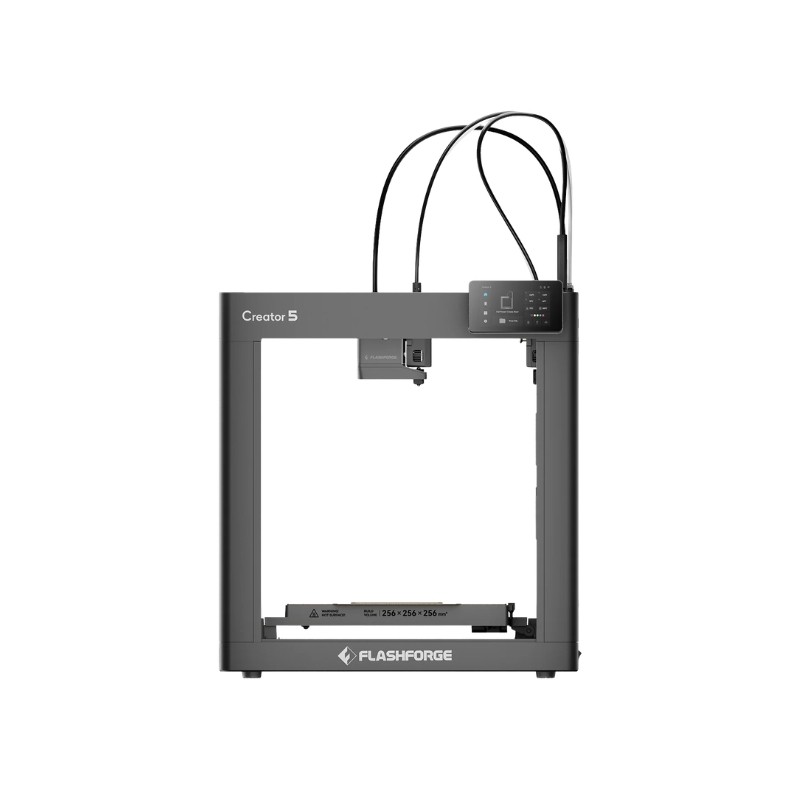

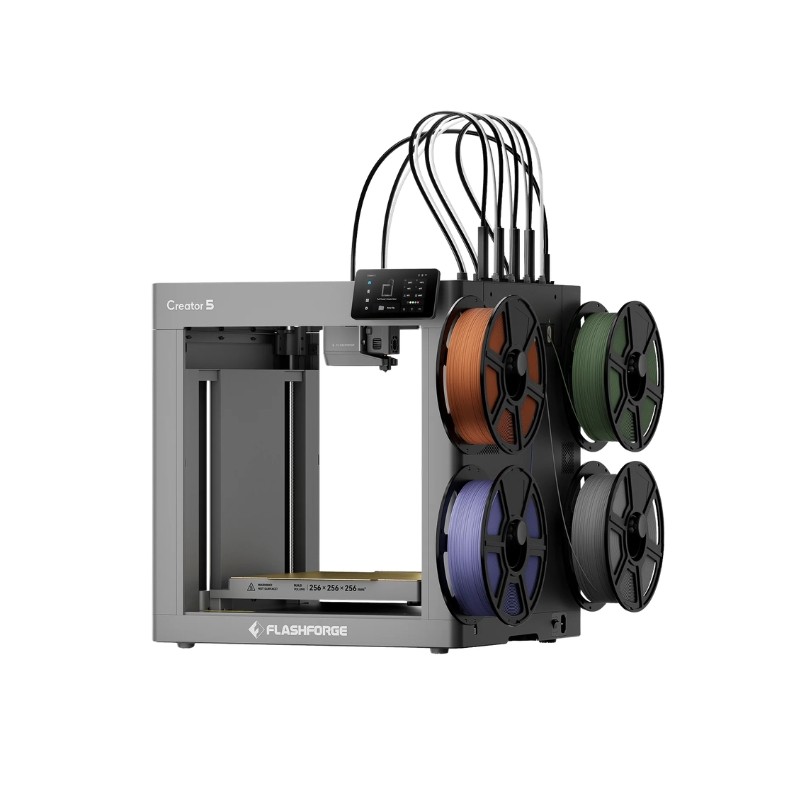

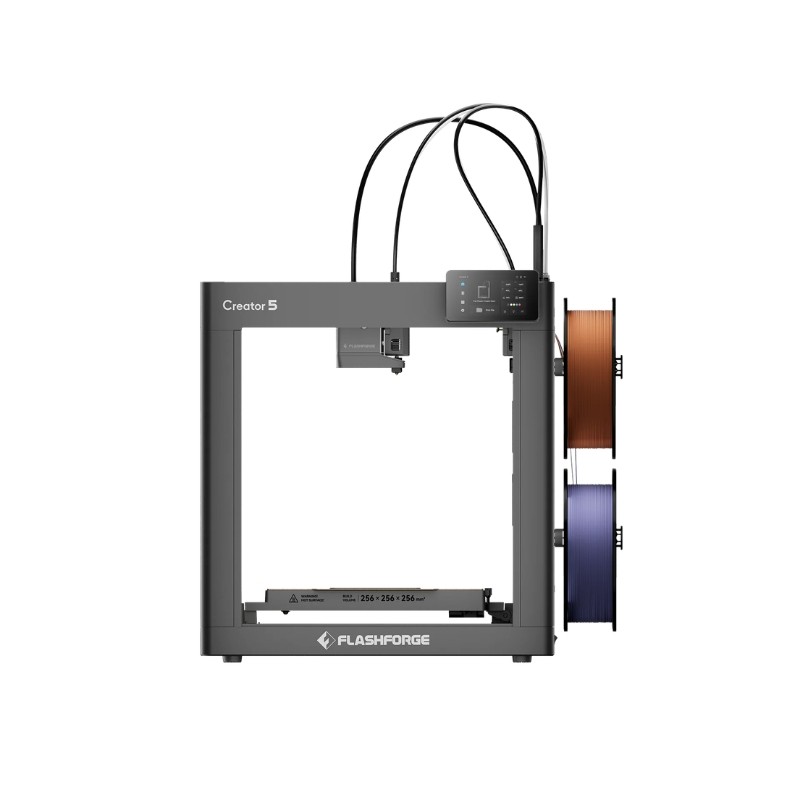

Flashforge Creator 5 3D Printer

The Flashforge Creator 5 is a 4-toolhead FDM 3D printer designed for multi-color and multi-material printing. Instead of changing colors through a single nozzle, it uses four independent toolheads, allowing each toolhead to hold a separate filament for faster switching and cleaner workflow.

With a 256 × 256 × 256mm build volume, automatic leveling, dynamic flow calibration, high-speed motion, and removable nozzle system, the Creator 5 is suitable for makers, schools, studios, print farms, and businesses that need flexible desktop 3D printing.

The open-frame design makes it practical for everyday materials such as PLA, PETG, TPU, PLA-CF, PETG-CF, Silk, PVA, and BVOH. For materials such as ABS, ASA, HIPS, PA-CF, PET-CF, PAHT-CF, PPA-CF, and PPS-CF, an enclosure is recommended for better temperature control.

Key Features

• 4 independent toolheads for multi-color and multi-material printing

• 256 × 256 × 256mm build volume

• Up to 320°C extruder temperature

• Up to 120°C heated bed temperature

• Maximum travel speed up to 600mm/s

• Maximum print speed up to 300mm/s

• Automatic bed leveling and dynamic flow calibration

• Built-in camera for remote monitoring

4 Independent Toolheads

The Creator 5 uses four separate toolheads, allowing users to load different colors or compatible materials into each toolhead. This makes it useful for multi-color models, support material printing, and special material combinations where each filament benefits from its own nozzle.

Because each toolhead has its own filament path, the printer can reduce the waste and time commonly caused by frequent purging in single-nozzle color systems.

Multi-Color and Multi-Material Printing

The 4-toolhead design is suitable for colorful models, logos, teaching models, display parts, product samples, and custom items. It also supports multi-material workflows, such as combining standard filament with support material or using different material properties in one model.

Material combinations should be selected carefully based on nozzle temperature, bed temperature, shrinkage, layer bonding, and support removal requirements.

Automatic Calibration and Leveling

Automatic leveling helps simplify setup and improve first-layer reliability. Dynamic flow calibration and multi-toolhead calibration features help improve consistency when switching between toolheads.

This is especially important for multi-color prints, where clean alignment between colors affects the final appearance of the model.

High-Speed Printing Performance

The Creator 5 supports fast travel speed, high acceleration, and a maximum print speed of up to 300mm/s. This helps reduce print time for suitable models while maintaining stable motion performance.

Actual print speed and final quality depend on the model, material, nozzle size, layer height, slicer settings, and calibration.

Removable Nozzle System

The printer uses a removable nozzle design with a standard 0.4mm nozzle and optional 0.25mm, 0.6mm, and 0.8mm nozzle sizes. This gives users more flexibility for fine-detail printing, standard printing, faster output, or thicker-layer functional parts.

The hardened steel nozzle material also supports more demanding filament use compared with standard soft nozzle materials.

Built-In Camera and Remote Workflow

The built-in camera supports remote monitoring, making it easier to check long prints, multi-color jobs, and print farm workflows. USB and Wi-Fi connectivity provide convenient file transfer options.

The Creator 5 supports Orca-Flashforge and OrcaSlicer workflows, making it suitable for users who want modern slicing and printer management options.

Technical Specifications

Recommended Filaments

• PLA

• PETG

• TPU-90A with top external mount

• TPU-95A

• TPU-64D

• PLA-CF

• PETG-CF

• Silk

• PVA

• BVOH

Supported Filaments with Enclosure

• ABS

• ASA

• HIPS

• ABS-GF

• PA-CF

• ASA-CF

• ASA-GF

• S-Multi

• S-PAHT

• PET-CF

• PAHT-CF

• PPA-CF

• PPS-CF

Applications

• Multi-color 3D printing

• Multi-material 3D printing

• Product prototypes

• Educational models

• Display models

• Functional parts

• Support material printing

• Flexible and rigid material combinations

• Logo and sign models

• Decorative models

• Small-batch production

• Print farm use

• Workshop and studio 3D printing

Compatibility

• 1.75mm FDM filament workflows

• Orca-Flashforge slicing software

• OrcaSlicer workflow

• USB and Wi-Fi file transfer

• Multi-color models prepared for independent toolhead printing

• Support material workflows using compatible materials

Usage Note

For best results, calibrate the toolheads correctly before multi-color or multi-material printing. Start with simple single-color prints, then test two-color and four-color prints after confirming bed leveling, flow calibration, and filament feeding. For flexible filaments, use a smooth and low-resistance filament path, and dry moisture-sensitive filaments before printing.

Note:
3D printers are supplied as semi-assembled kits. Assembly is straightforward and typically takes only a few minutes, depending on the user's experience.
The customer is responsible for assembling the printer. However, the we will provide technical assistance and guidance whenever required.
