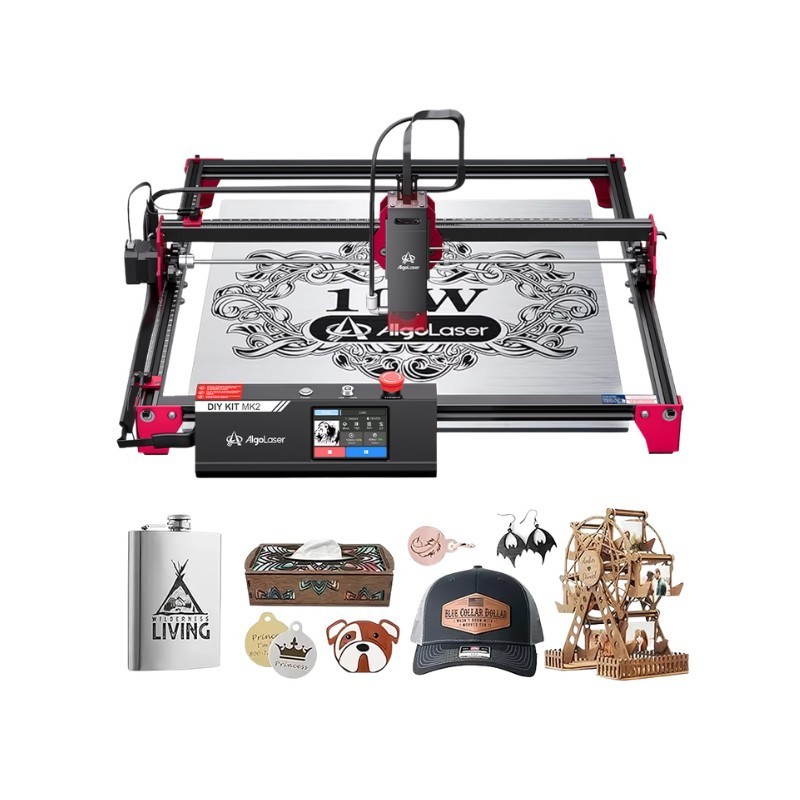

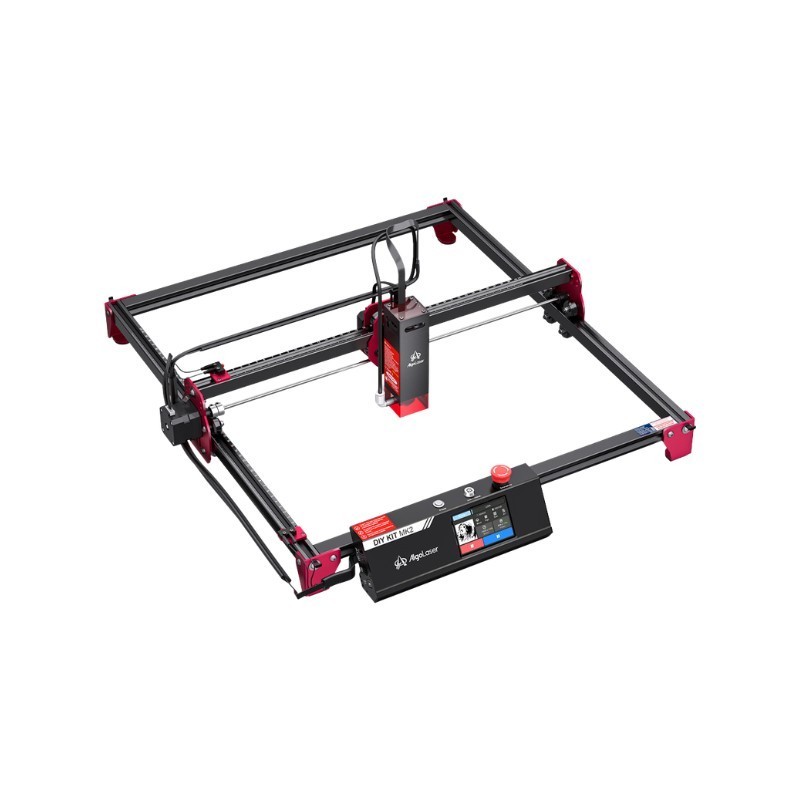

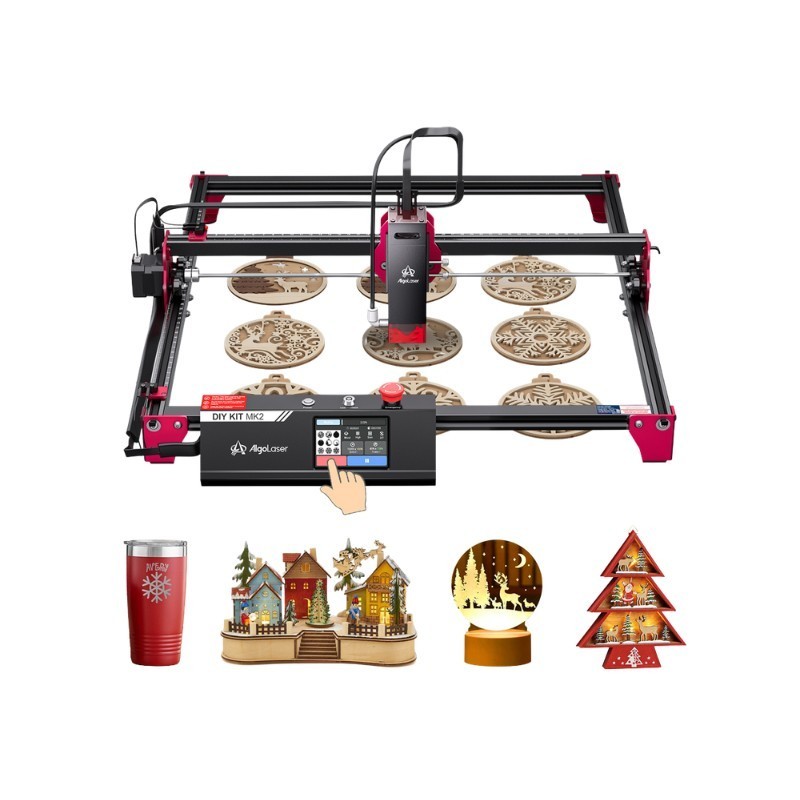

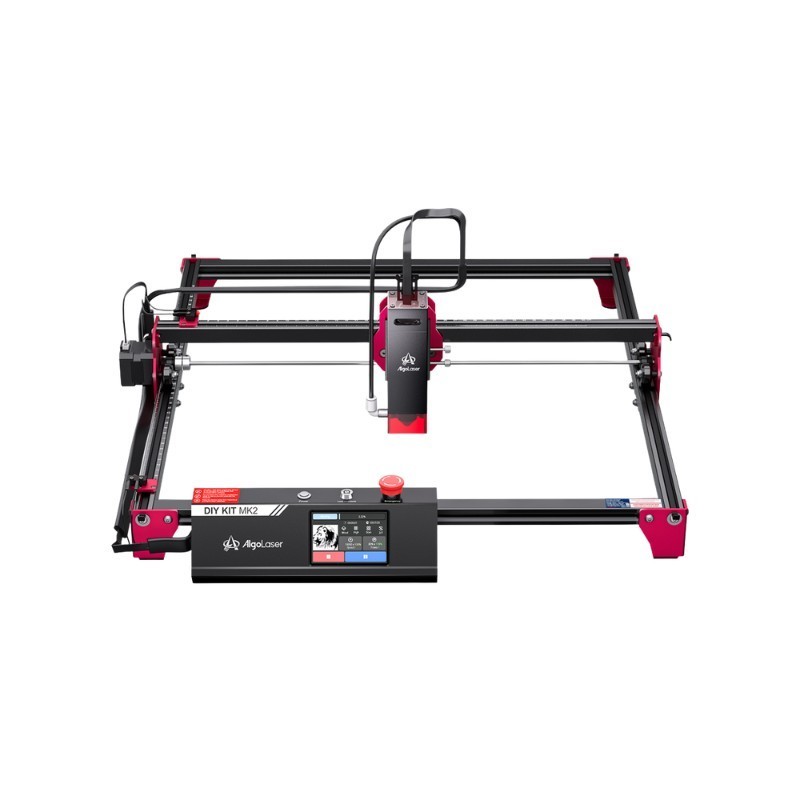

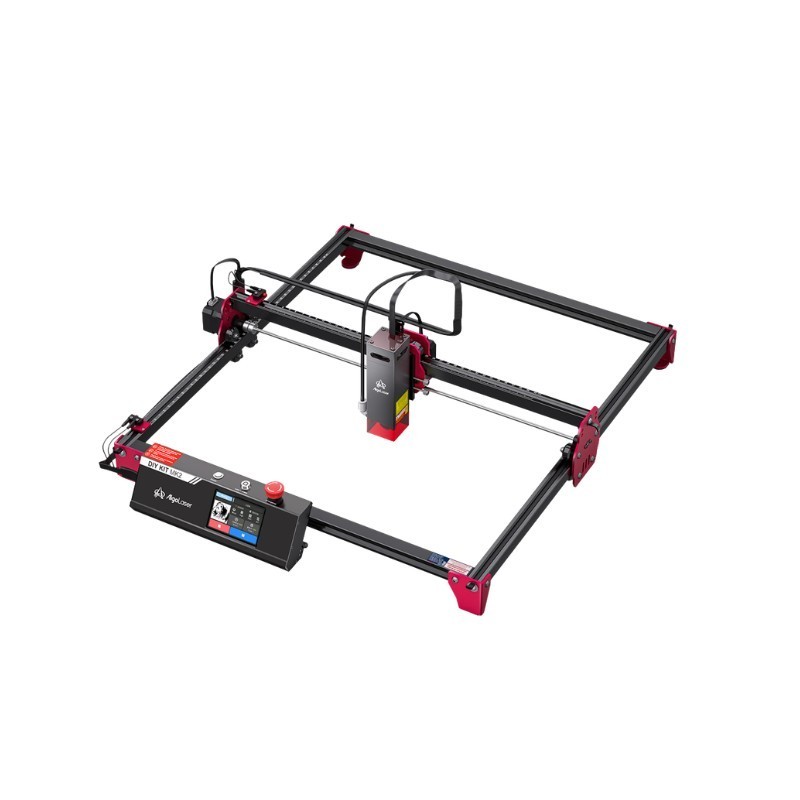

AlgoLaser DIY KIT MK2 5W Smart Laser Engraving Machine

The AlgoLaser MK2 5W is a compact and intelligent laser engraving machine designed for beginners, hobbyists, educators, and small businesses. Combining a 5W diode laser, the powerful AlgoOS operating system, and advanced safety features, it delivers accurate engraving, easy operation, and reliable performance for a wide range of creative projects.

With standalone operation, WiFi connectivity, and compatibility with professional software such as LightBurn, the MK2 5W provides an excellent balance of simplicity and capability.

Key Features

• 5W High-Precision Diode Laser
  Delivers detailed engraving and light cutting on a wide range of materials.
• AlgoOS Smart Operating System
  Built-in image library, visual preview, text editing, freehand drawing, original image engraving, and automatic parameter recommendations.
• High-Speed Engraving
  Maximum engraving speed up to 12,000 mm/min for faster project completion.
• Standalone Touchscreen Control
  Integrated 3.5-inch color touchscreen allows operation without a computer.
• WiFi and Offline Operation
  Supports WiFi, USB, TF card, and USB flash drive connections for flexible workflow.
• LightBurn & LaserGRBL Compatible
  Works with leading laser engraving software for advanced users.
• Expandable Accessory Support
  Compatible with optional Smart Hub, Z-axis modules, honeycomb table, rotary attachment, enclosure, camera, air purifier, and other AlgoLaser accessories.

Intelligent Features

• Original image engraving
• Reverse engraving
• Automatic material parameter matching
• Vibration detection
• Print interruption recovery
• Firmware updates
• Sleep mode
• Security sensors
• Lock screen protection
• Multiple engraving modes (High Efficiency, High Precision, Balanced)

Advanced Safety Features

• Class 1 safety design (when used with compatible enclosure)
• Emergency stop button
• Safety lock
• Machine movement detection
• Tilt protection
• Thermal protection
• Protective laser shield
• Automatic shutdown when abnormal conditions are detected

Technical Specifications

• Model: AlgoLaser MK2 5W
• Laser Type: Blue Diode Laser
• Optical Output Power: 5W
• Laser Wavelength: 450 nm
• Working Area: 400 × 435 mm
• Expandable Working Area: Up to 400 × 880 mm
• Laser Spot Size: Approximately 0.08 × 0.08 mm
• Maximum Engraving Speed: 12,000 mm/min
• Focus Type: Fixed Focus
• Z-Axis Adjustment: Up to 65 mm
• Display: 3.5-inch Color Touchscreen
• Controller: 32-bit ESP32
• Connectivity: WiFi (2.4 GHz), USB Type-A, USB Type-C, TF Card, USB Flash Drive
• Storage: Built-in 8 GB
• Supported File Formats: BMP, JPG, PNG, DXF, AI, SVG and more
• Software: AlgoOS, LightBurn, LaserGRBL

Compatible Materials

Suitable for engraving:

• Wood
• Bamboo
• Leather
• Cork
• Cardboard
• Paper
• Rubber
• Fabric
• Slate
• Stone
• Painted metals
• Anodized aluminum
• Dark acrylic

Suitable for light cutting of:

• Wood
• Plywood
• MDF
• Leather
• Cardboard
• Paper
• Dark acrylic

(Cutting performance depends on material type, thickness, and machine settings.)

Applications

Ideal for:

• Personalized gifts
• Sign making
• Leather crafts
• Wooden artwork
• Educational projects
• DIY creations
• Small business production
• Model making
• Product customization
• Home workshops
