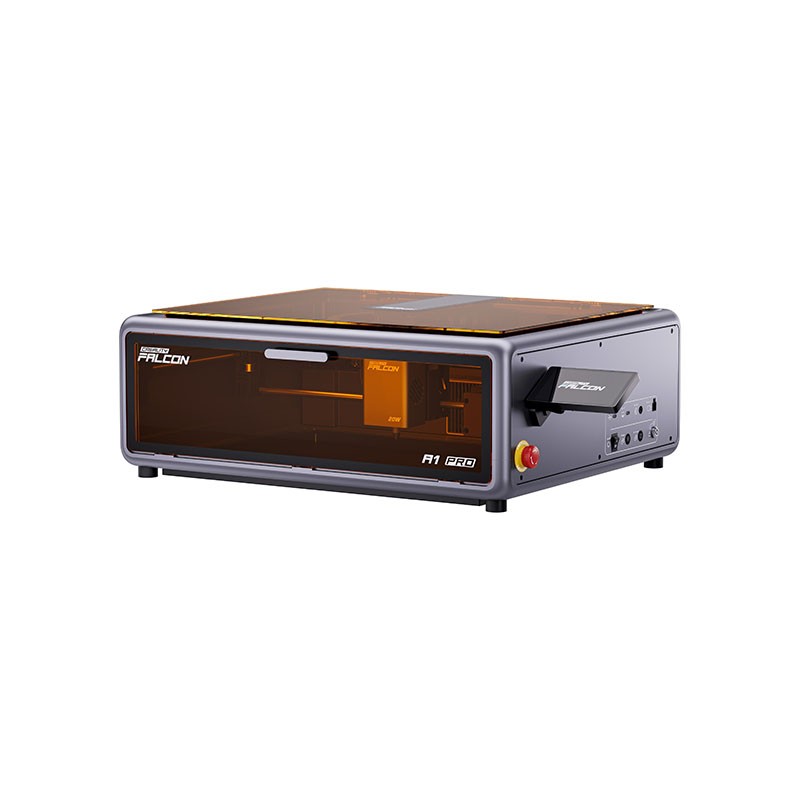

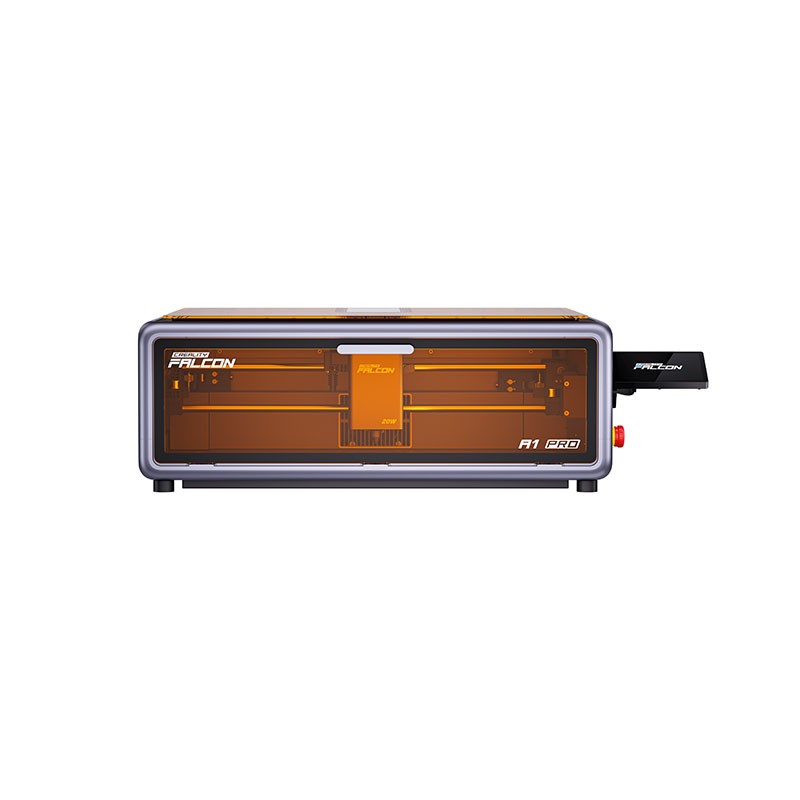

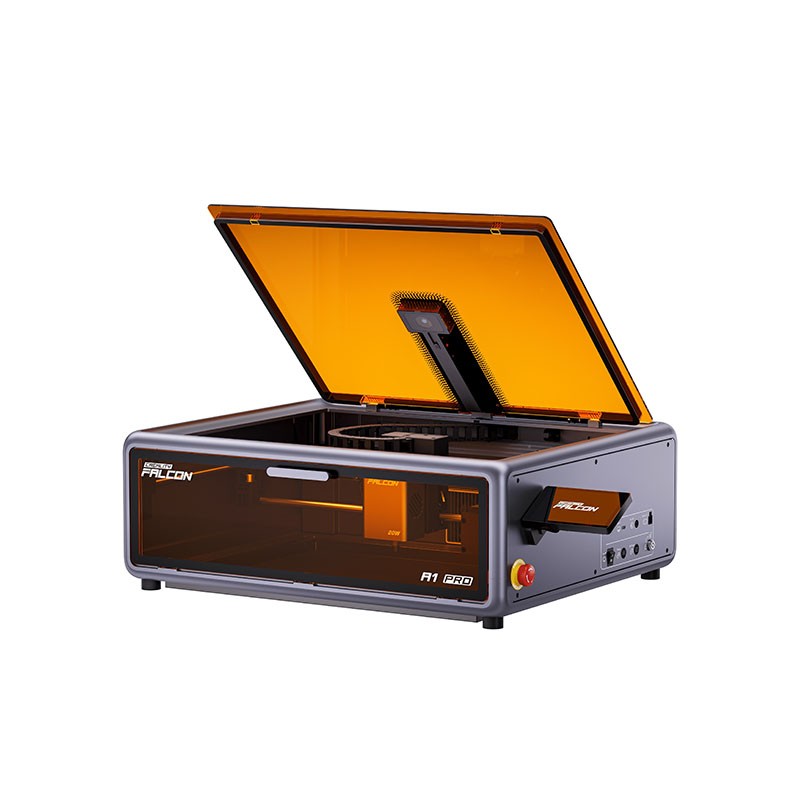

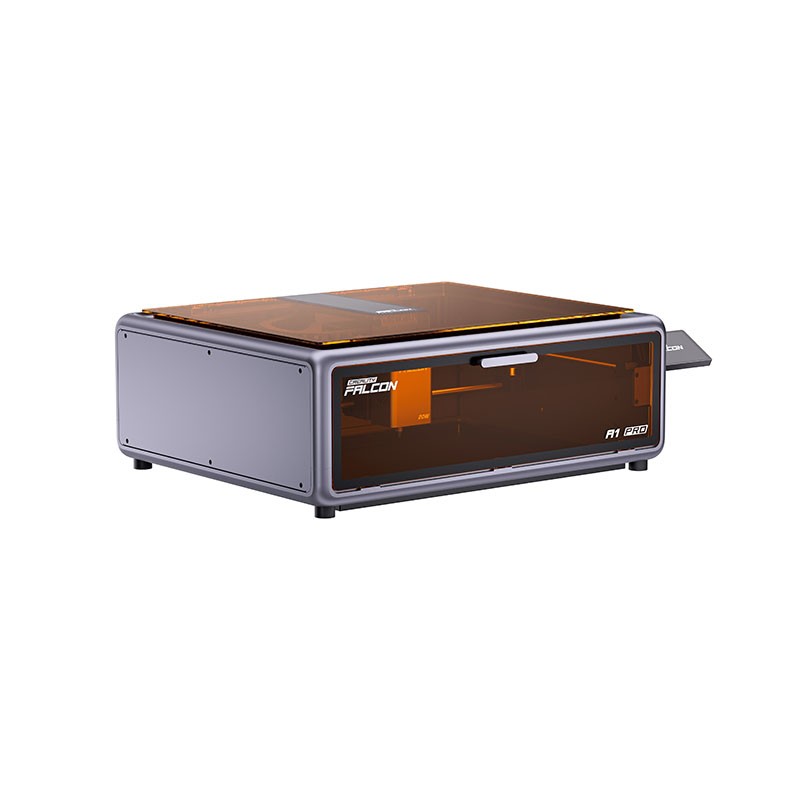

Creality Falcon A1 Pro 20W Laser Engraving Machine

The Creality Falcon A1 Pro redefines precision laser cutting with a powerful 20W blue diode laser and cutting-edge AI enhancements. It effortlessly cuts through over 350 materials including wood, acrylic, stainless steel, leather, and more—making it the ideal solution for creators, professionals, and small businesses.

Key Features

• 20W blue laser diode module (optional 2W infrared laser available separately)

• High-speed engraving and cutting up to 600 mm/s with excellent stability

• AI-supported autofocus with integrated laser rangefinder and camera

• Focus accuracy: 0.076 mm in under 3 seconds

• Smart camera preview system for real-time visual positioning and monitoring

• Material support: Wood, bamboo, acrylic, stainless steel, leather, glass, fabric, and more

• Smart control via touchscreen or mobile app

• FDA-certified Class 1 laser safety

Intelligent Autofocus and Vision System

The Falcon A1 Pro features an integrated AI-supported vision system that enables accurate autofocus in less than 3 seconds. The high-precision rangefinder and wide-angle camera ensure that each cut or engraving is positioned with millimeter-level accuracy.

Camera-Based Smart Positioning

Preview and align your artwork directly using the live camera feed on the touchscreen. This ensures perfect placement and reduces material waste.

Falcon Design App

Use your smartphone to monitor engraving progress in real-time, receive alerts (e.g., flame detection), and even generate time-lapse videos. The app makes it easy to manage jobs remotely and safely.

Smart Touchscreen Interface

The intuitive 4.3-inch color touchscreen supports real-time job control, file previews, and material changes—just like operating a smartphone.

Technical Specifications

• Machine size: 567 × 468 × 211 mm

• Engraving Area: 268x358mm

• Net weight: 16.8 kg

• Laser power: 20W diode (455 ± 15 nm)

• Laser spot size: 0.08 × 0.10 mm

• Safety class: FDA Class 1

• Optional module: 2W infrared laser (sold separately)

Special Note:

Diode laser modules do not have a warranty, since they are consumable products.

Note:
Laser Engravers are supplied as semi-assembled kits. Assembly is straightforward and typically takes only a few minutes, depending on the user's experience.
The customer is responsible for assembling the printer. However, the we will provide technical assistance and guidance whenever required.
