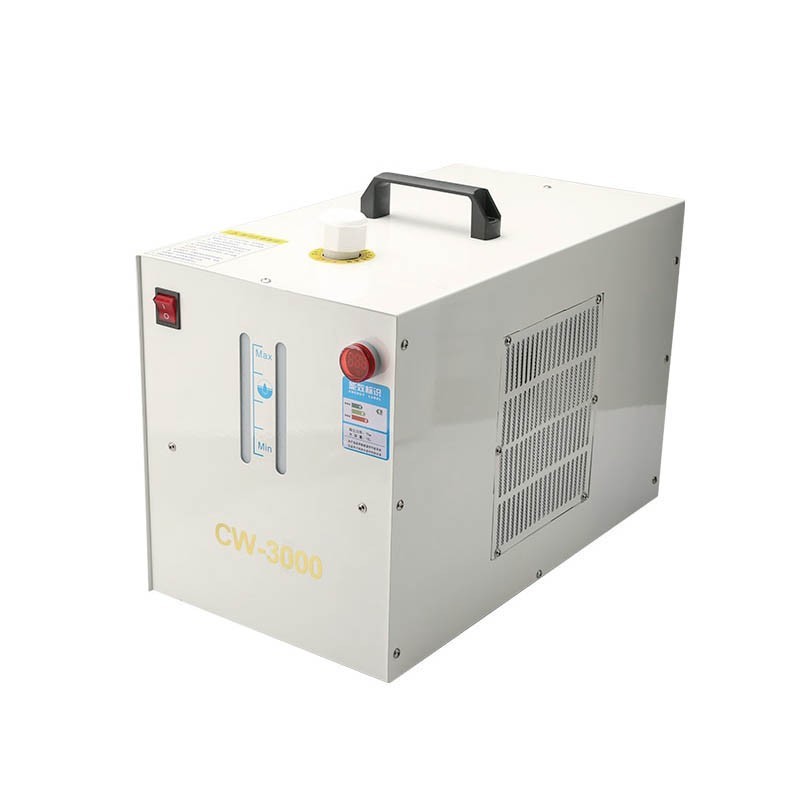

CW3000 Industrial Water Chiller (for CO2 Laser) - Type A

CW3000 Industrial Water Chiller

The CW3000 is a compact, economical water chiller designed for small laser engraving and cutting machines. It uses a fan-cooled radiator system without a compressor, making it suitable for light-duty applications and intermittent laser operation.

Key Specifications:

• Model: CW-3000

• Cooling Method: Passive air-cooled radiator (no compressor)

• Voltage: 220 V (single-phase)

• Frequency: 50/60 Hz

• Rated Power: 0.09 kW

• Water Tank Capacity: 9 L

• Flow Rate: ≥10 L/min

• Inlet/Outlet Size: φ10 mm barbed fittings

• Temperature Display: Digital

• Alarm Function: None (no active cooling or temperature regulation)

• 60W or 80W CO2 Tubes
• 3.2kW Spindle or below
