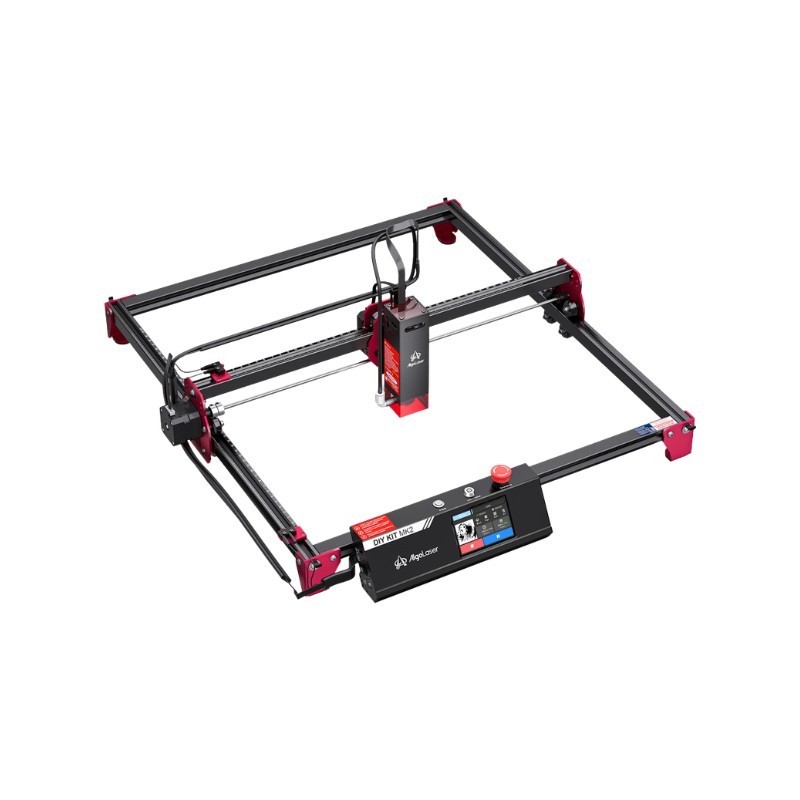

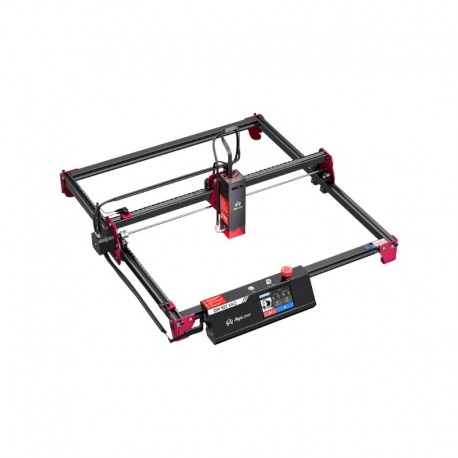

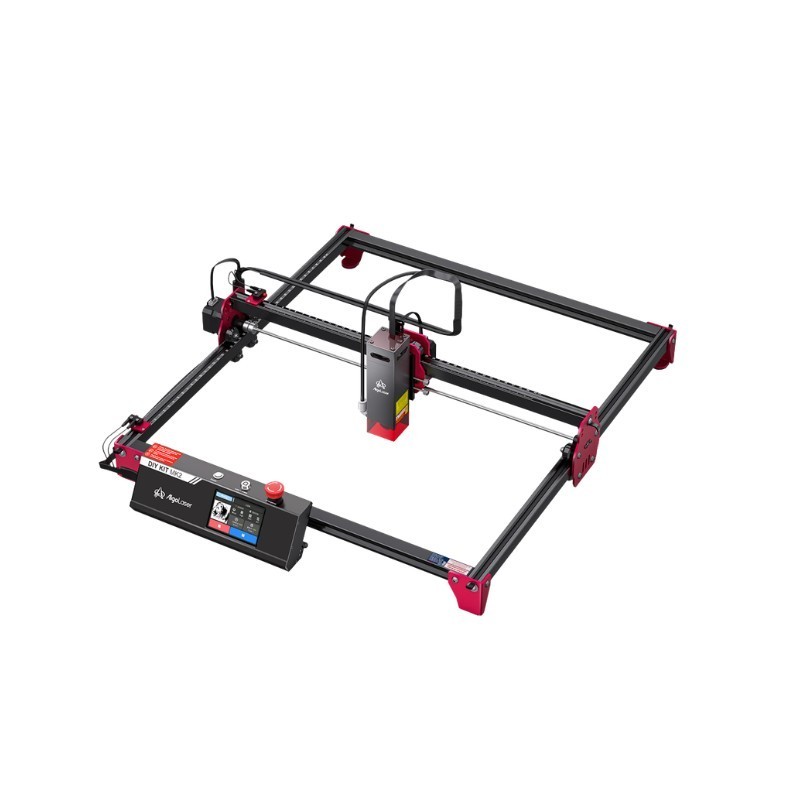

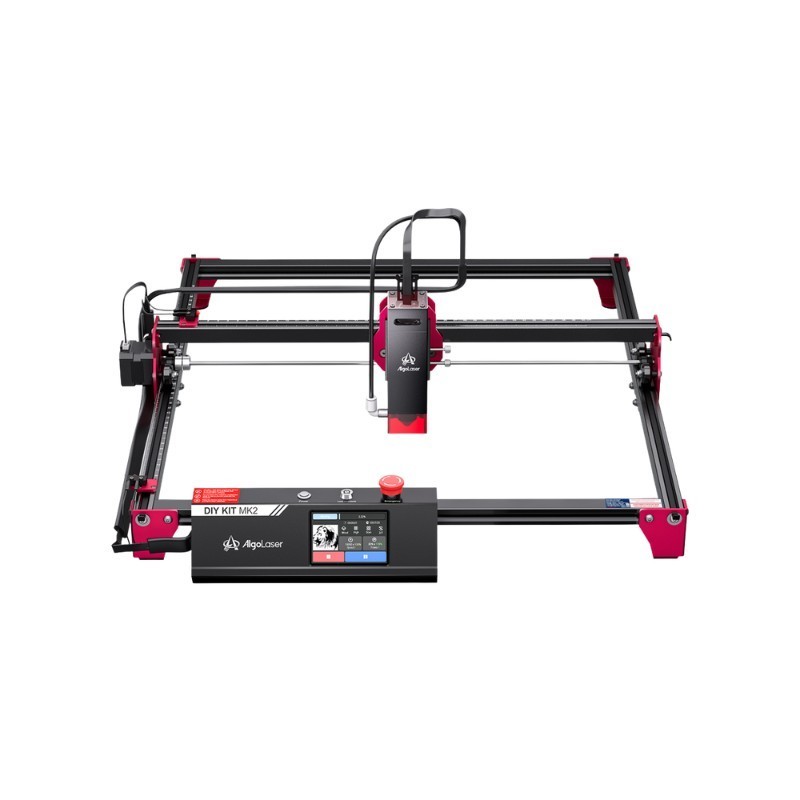

AlgoLaser DIY KIT MK2 10W Smart Laser Engraving Machine

A powerful and intelligent laser engraving machine designed for both beginners and professional users. The AlgoLaser MK2 combines high precision, strong performance, and smart connectivity for efficient engraving and cutting.

Key Features:

• Beginner-Friendly AlgoOS System
  Built-in AlgoOS with image library, visual preview, text input, freehand drawing, original image engraving, and reverse engraving. Automatic parameter matching simplifies setup for new users.

• Professional Software Compatibility
  Fully compatible with LightBurn and LaserGRBL. Supports WiFi remote control and multiple connection methods.

• High Precision Laser Module
  Equipped with a 10W diode laser using FAC laser compression technology, delivering a fine laser spot of 0.08 × 0.08 mm for accurate engraving and cutting.

• Fast Engraving Performance
  Maximum engraving speed up to 12,000 mm/min with a dual-CPU system for stable and efficient operation.

• Large Expandable Work Area
  Standard working area of 400 × 435 mm, expandable up to 400 × 880 mm for larger projects.

• 32-Bit ESP32 Control System
  Powered by a 240 MHz 32-bit chipset, providing faster processing and smoother operation compared to traditional 8-bit controllers.

• Touchscreen Control Panel
  Built-in 3.5-inch color touchscreen with user-friendly interface. Supports offline operation using stored G-code files without connecting a computer.

• Multiple Connectivity Options
  Supports WiFi (2.4 GHz), TF card (built-in 8GB storage), USB Type-A, USB Type-C, and USB flash drives.

• Wide File Format Support
  Compatible with BMP, JPG, PNG, DXF, AI, SVG and other common design formats.

• Advanced Safety Features
  Includes movement detection auto shutdown, thermal protection, emergency stop button, safety lock, and protective acrylic laser cover for eye protection.

• Smart Accessory Compatibility
  Supports multiple optional accessories such as Smart Hub, manual or electric Z-axis module, honeycomb working table, heightening feet, rotary roller modules, enclosure, camera, and air purifier.

• Image Processing Engine
  Built-in Algo Graphics Engine can process large images quickly, converting a 5MB image to engraving data in under one minute.

• Power Loss Recovery
  Automatically resumes engraving tasks after unexpected power interruptions.

Specifications:

• Model: AlgoLaser DIY KIT MK2

• Laser Technology: Diode Laser

• Laser Wavelength: 450 nm

• Optical Output Power: 10W

• Working Area: 400 × 435 mm

• Expandable Area: Up to 400 × 880 mm

• Spot Size: 0.08 × 0.08 mm

• Focus Type: Fixed focus with 30 mm focal range

• Z-Axis Height Range: Up to 65 mm

• Maximum Engraving Speed: 12,000 mm/min

• Power Input: AC 110–240V

• Software Support: LaserGRBL, LightBurn, AlgoLaser APP

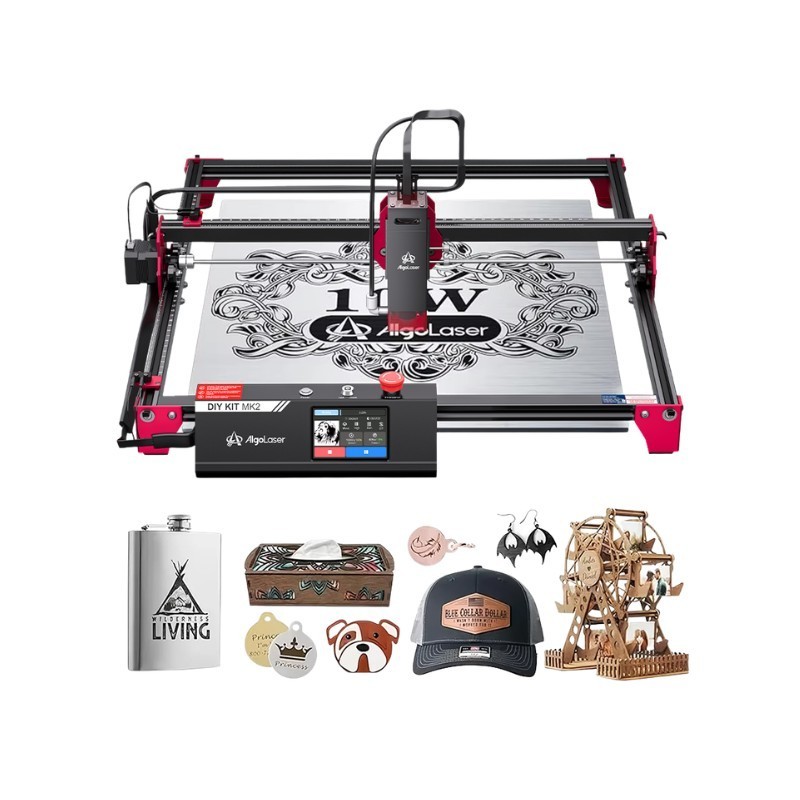

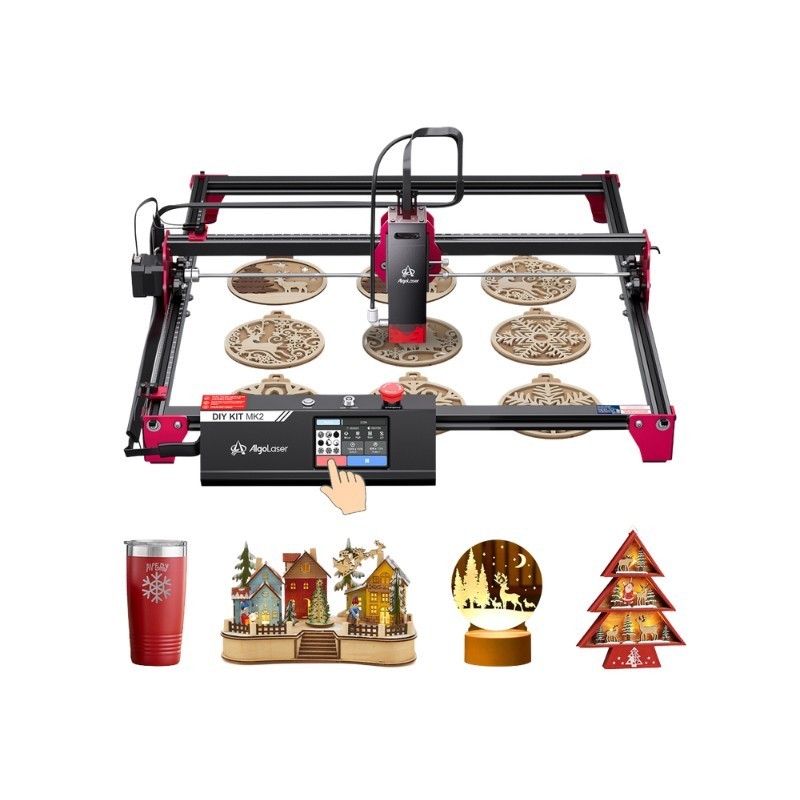

A versatile and upgradeable laser engraving machine suitable for DIY projects, small businesses, educational environments, and professional engraving work.

Note:

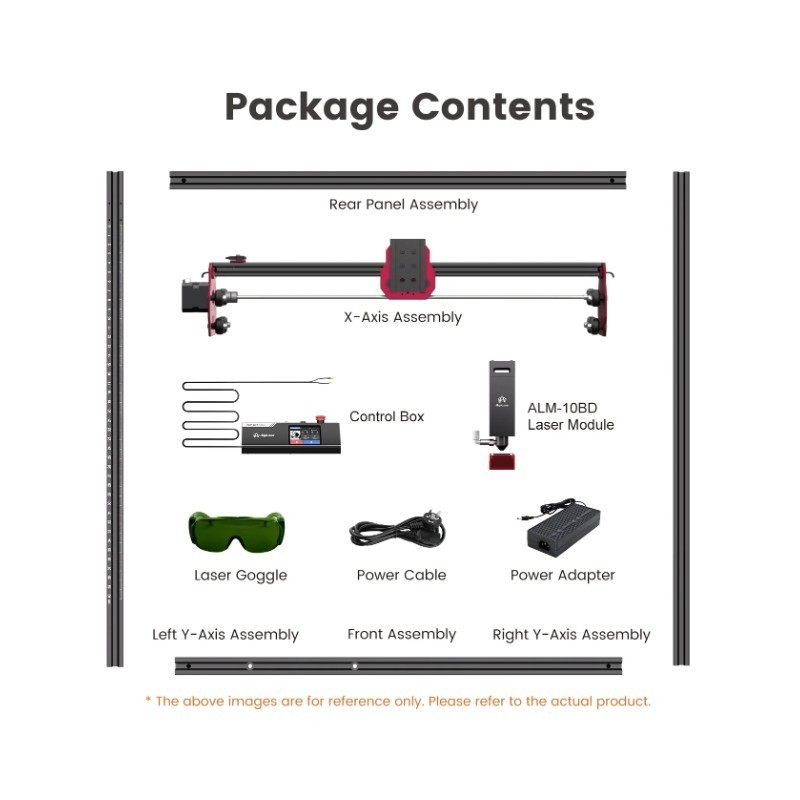

This machine is supplied as semi-assembled kits. Assembly is straightforward and typically takes only a few minutes, depending on the user's experience.
The customer is responsible for assembling the printer. However, the we will provide technical assistance and guidance whenever required.

Warranty Exclusions:
Diode laser modules are consumable products and are therefore not covered under warranty.
