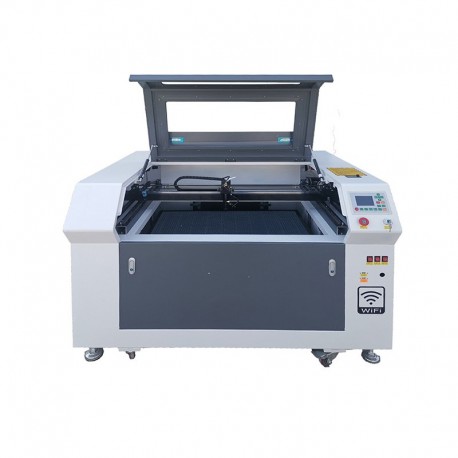

> >>>9060H WiFi Grey & White RUIDA CNC CO2 Laser Engraving Machine 100W 130W

CO2 Laser CNC

9060H Grey & White RUIDA CNC CO2 Laser Engraving Machine 100W 130W View larger
Previous Next

9060H WiFi Grey & White RUIDA CNC CO2 Laser Engraving Machine 100W 130W

New product

This product has been discontinued.

More details

This product is no longer in stock

Rs 655,000.00

Estimated Delivery: 3 to 6 weeks
  • 100W

Add to wishlist

More info

Colour

Gray and white

Working Table Size

900mm*600mm

Laser Tube

Sealed CO2 glass Tube (reci/EFR laser tube)

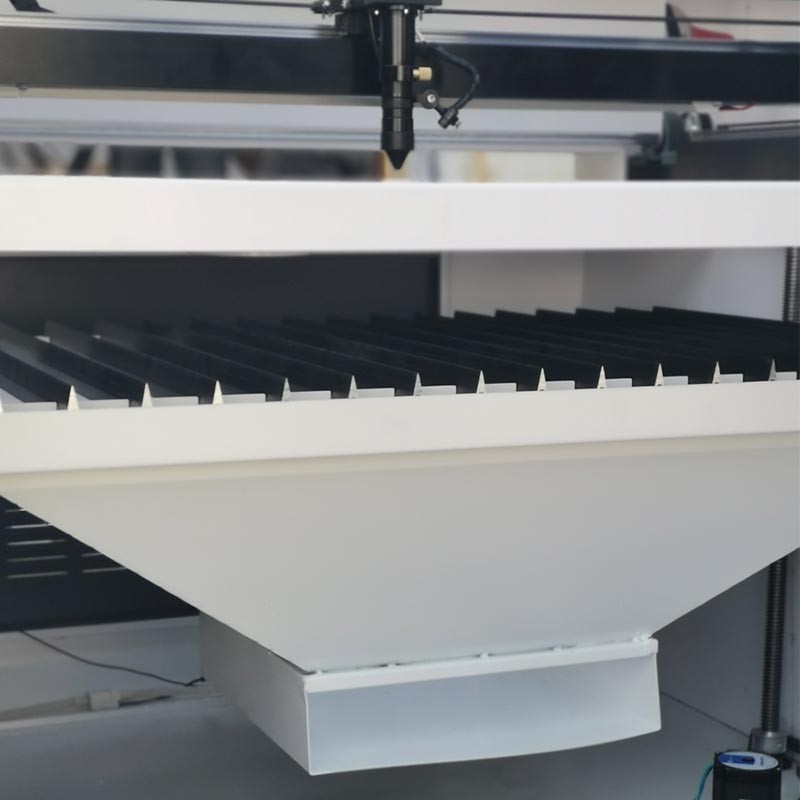

Working Table

Honeycomb / Blade platform

Laser Power

100W / 130W

Cutting Speed

0-200 mm/s

Engraving Speed

0-700mm/s

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Support Fils

BMP,HPGL,PLT,DST and AI

Interface

USB2.0 / Wireless wifi

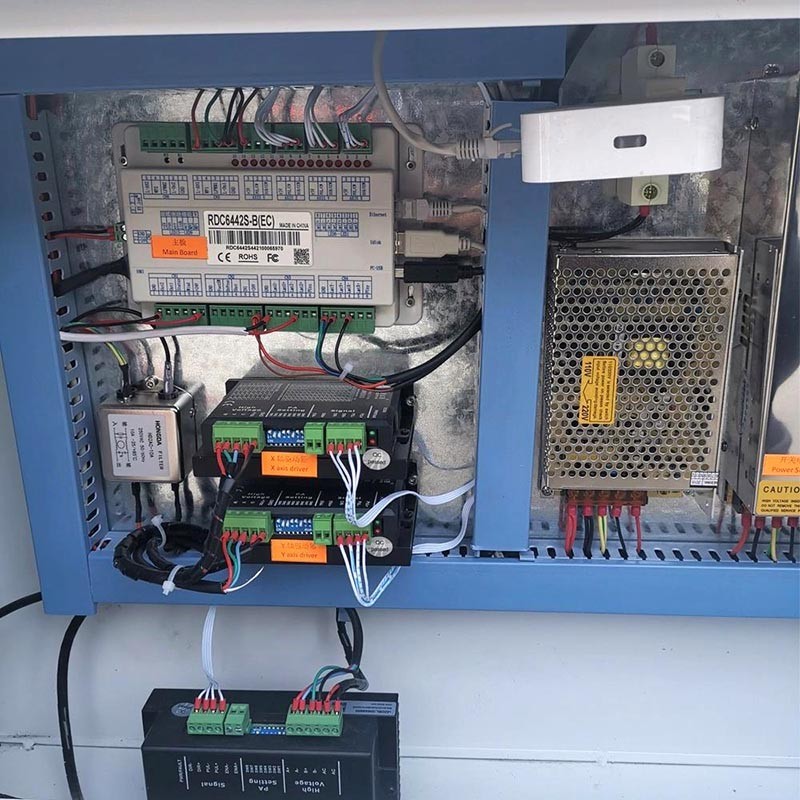

Control system

Ruida 6442s

Software

RD Works

Computer system

Windows XP/win7/ win8/win10

Motor

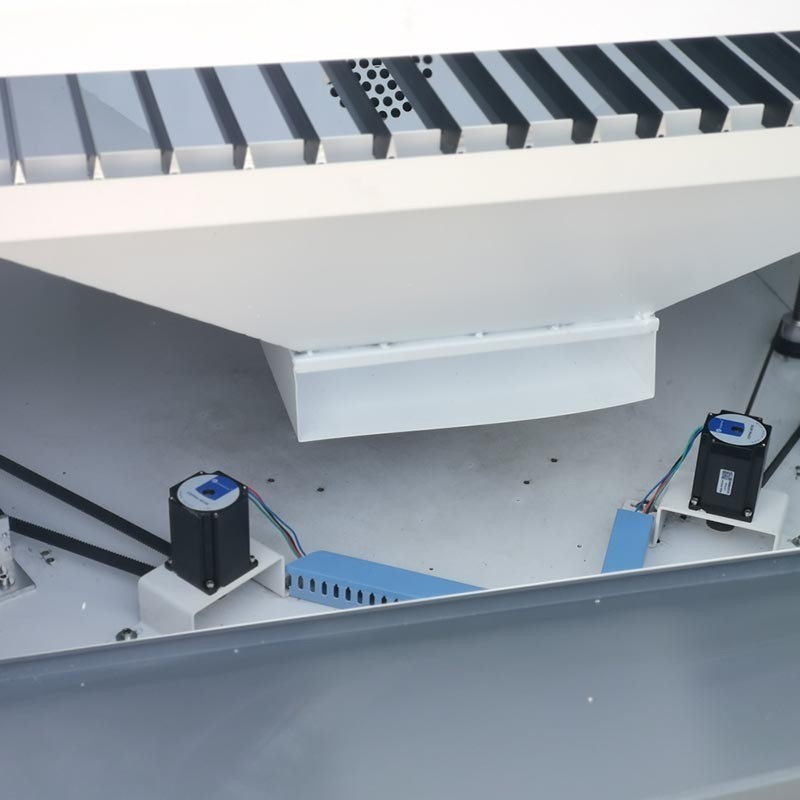

leadshine motor and driver

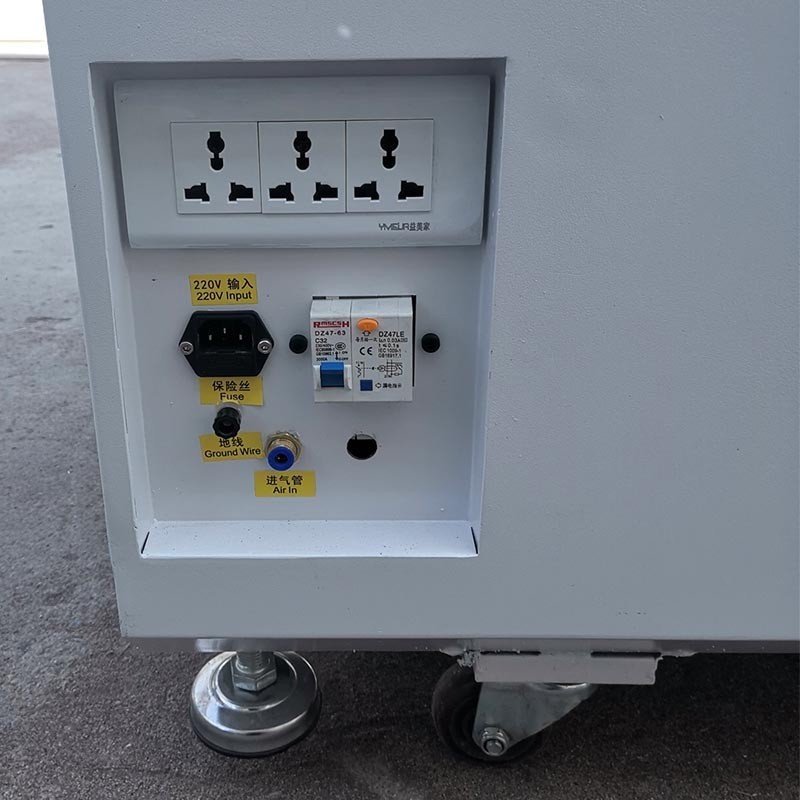

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Working Environment

0-45℃(temperature)      5-95%(humidity)

Power consumption

<900W (Total)

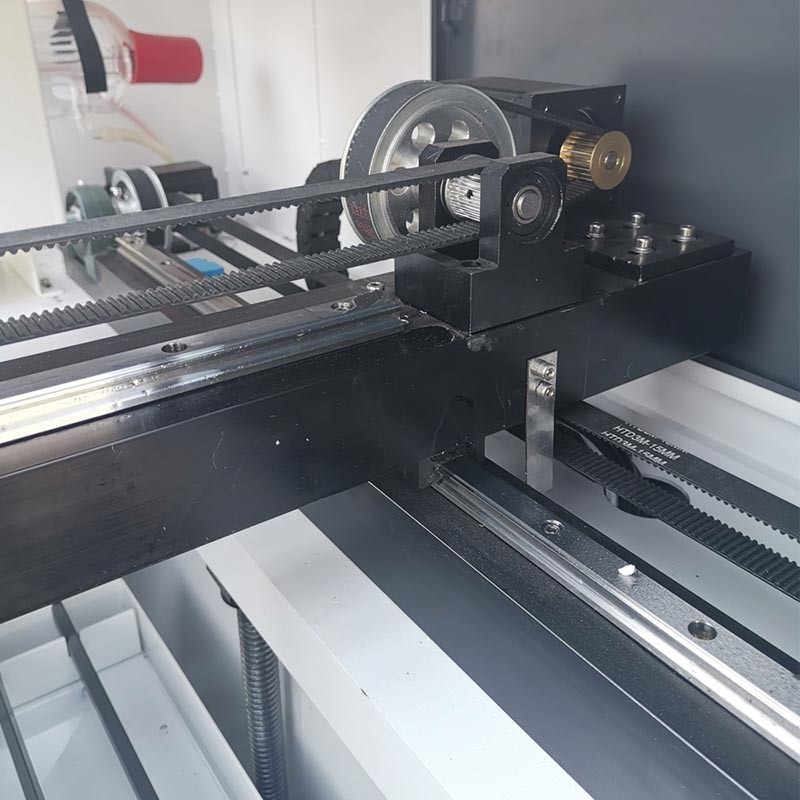

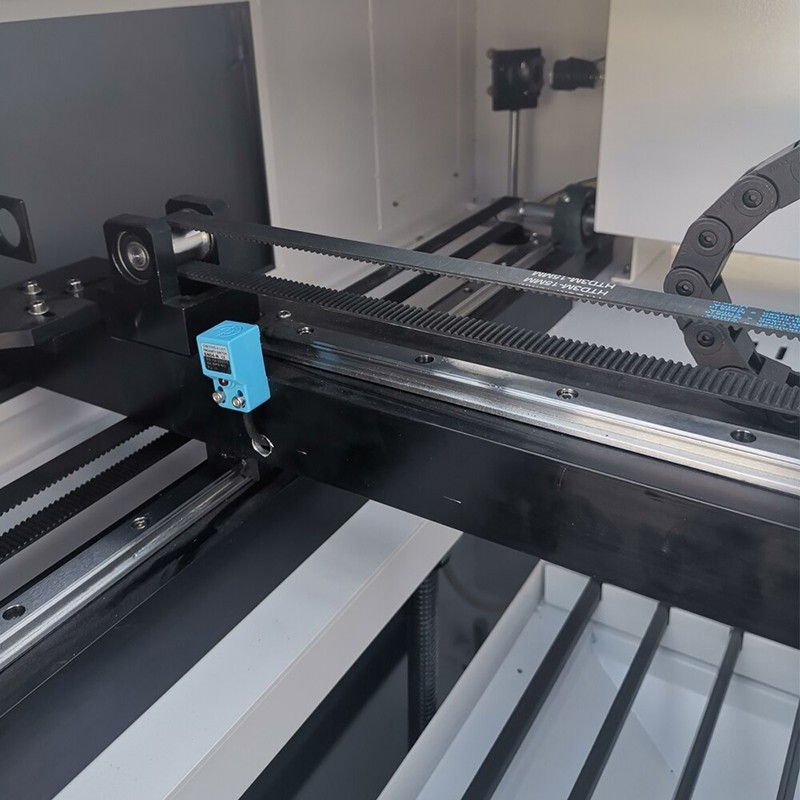

Motion guide

PMI imported by Taiwan  width 15 mm

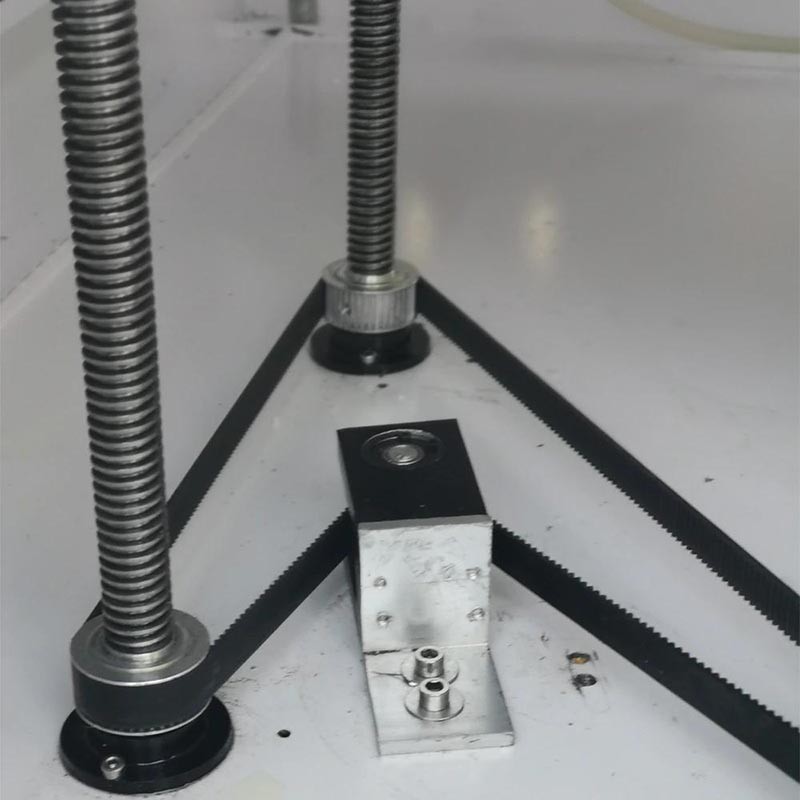

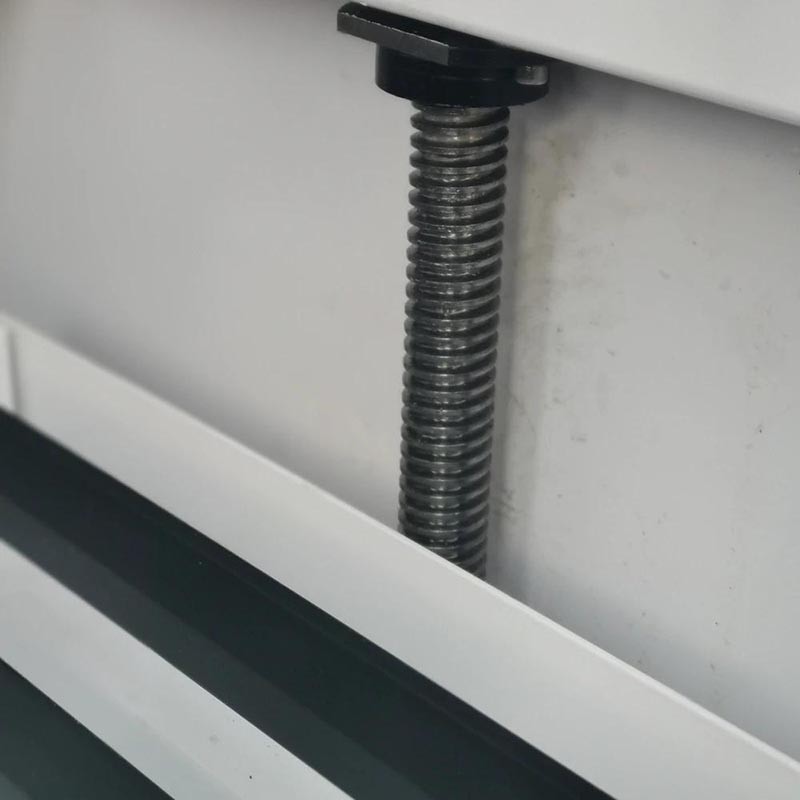

Z-Axis Movement

Automatic up and down by double motors control(lift distance 260mm)

Position system

Red-light pointer

Cooling way

Water cooling and protection system

laser power supply

led laser power supply

Package

Standard plywood case for export

Warranty

One year warranty, except consumables like laser tube, mirror and lens, etc.

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software/English User Manual/USB Cable/Power Cable

Optional parts

Spare focus lens

Spare reflecting mirror

Spare rotary for cylinder materials

Industrial Water cooler

Main Features

Full size machine, WiFi, LeadShine or other Branded steppers and drivers, USA imported lenses, Taiwan PMI linear guide rail.

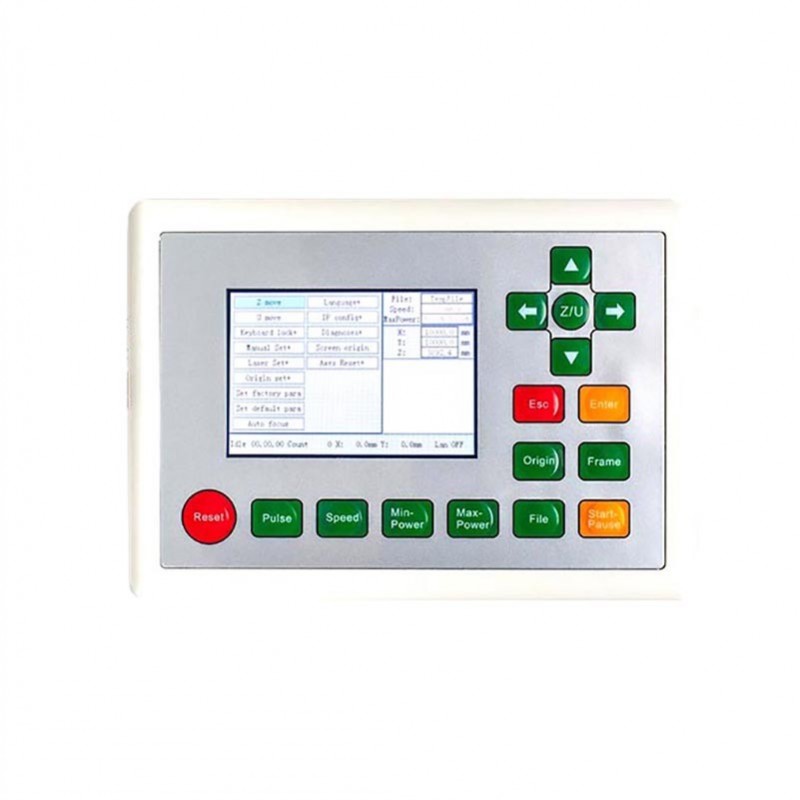

* Ruida system with color screen supports multiple languages.
* EFR or reci Laser tube with warranty

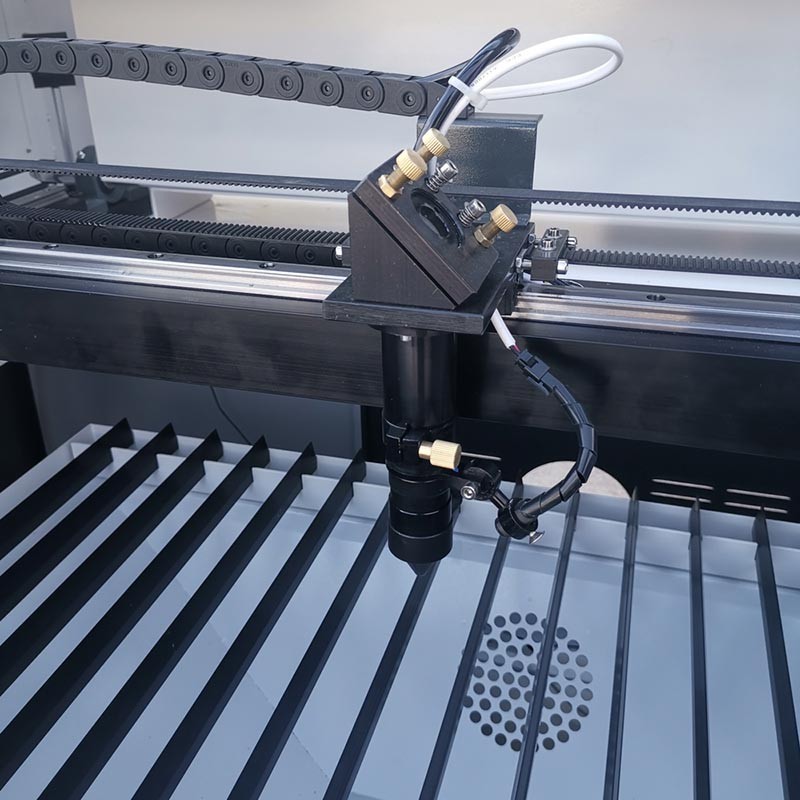

* Industrial grade laser head and large focusing mirrors(diameter 20, focusing length 50.8)
* Support dual platform, blade platform and honeycomb (optional one or two)

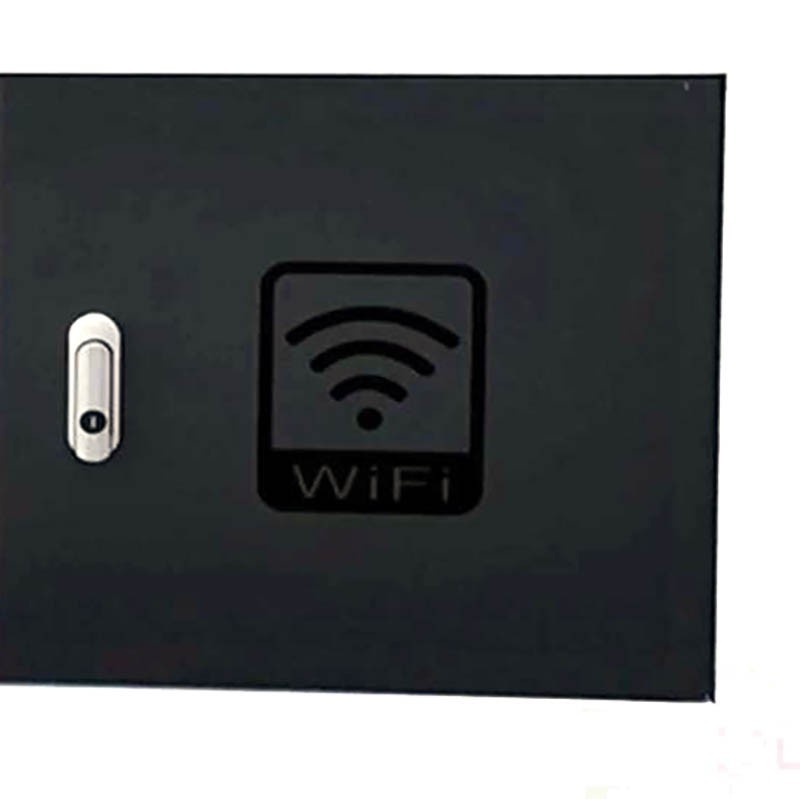

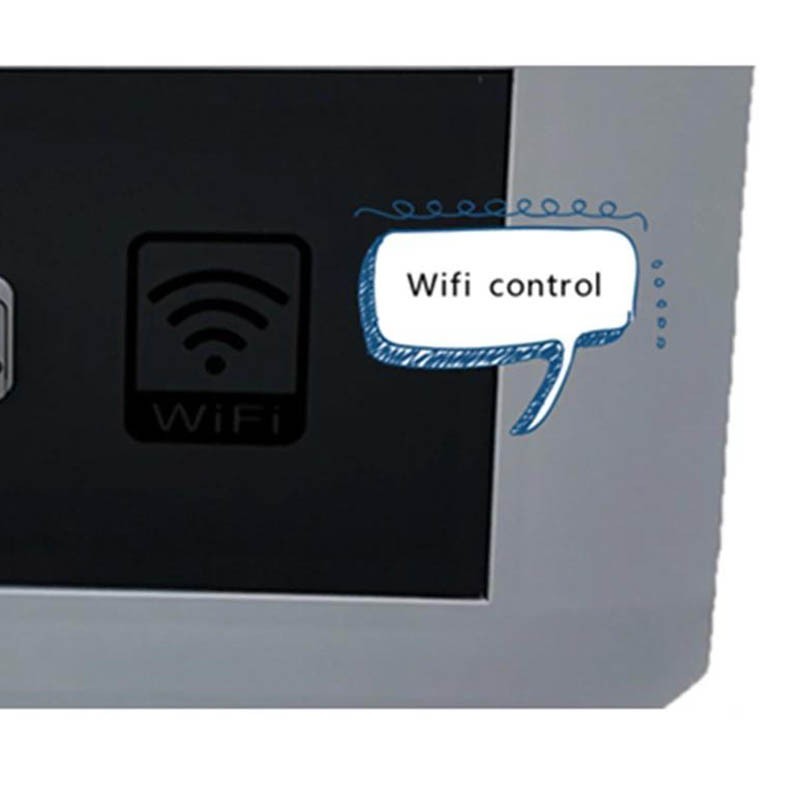

* WIFI Wireless receiver, you can transfer the file from your computer into machine. It is very easy to operate.
* Higher precision and faster motors drivers and linear guides.

Delivery:

Free Delivery within Colombo and suburbs. Estimated delivery time is 5-7 weeks after the payment.

Payment Terms:

100% in advance when ordering.

Warranty:

12 Months Warranty

Malfunctions which are caused by machine will be responsible for our manufacturer.

Malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

Warranty is not included wearing parts such as belts and filters, or consumables.

Restriction and Exemption Clause:

This warranty does not cover repairs or replacements caused if:

  1. The actual working conditions of the product have deviated from the contractual conditions (including but not limited to temperature, corrosiveness, gas composition, power supply, system main power, etc.)
  2. Inappropriate product maintenance, on-site accidents, failure to perform overheat protection or long-term reverse operation, etc., which seriously violate equipment damage caused by the provisions of the Installation Operation and Maintenance Manual.
  3. Assembled products are disassembled or modified after assembly.
  4. The serial number is changed, removed or incorrect.
  5. The buyer does not follow proper instructions according to the installation and maintenance manual.
