CO2 Laser CNC

View larger

6040 Grey & White RUIDA CNC CO2 Laser Engraving Machine 50W 60W 80W 100W

Condition: New product

This product is no longer in stock

Model	TS4060 laser engraving and cutting machine
Colour	Grey and White
Working Table Size	400mm *600mm

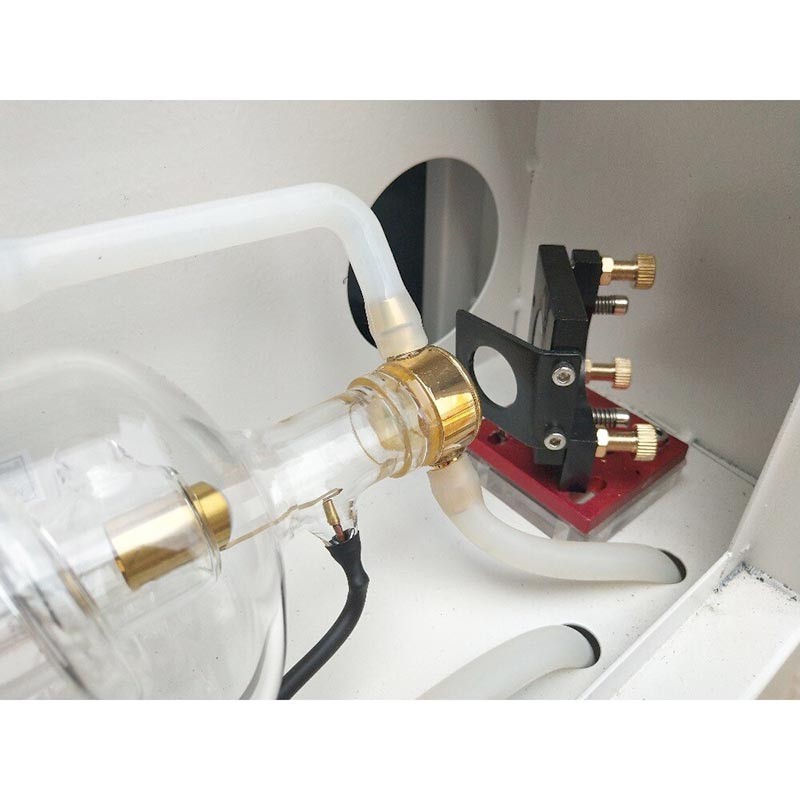

Laser Tube	Sealed CO2 glass Tube

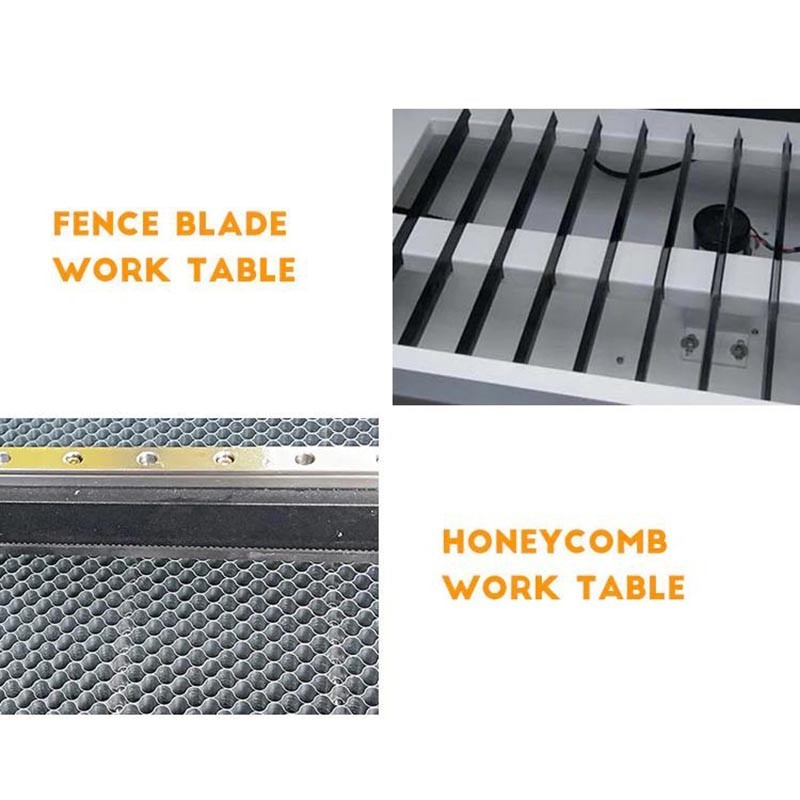

Working Table	Honeycomb
Laser Power	60W/80W/100W
Cutting Speed	0-60 mm/s
Engraving Speed	0-600mm/s
Resolution	±0.05mm/1000DPI
Minimum Letter	English 1×1mm (Chinese Characters 2*2mm)
Support Fils	BMP,HPGL,PLT,DST and AI
Interface	USB2.0
Software	Rdworks v8 ( suitable for Ruida 6442s controller )
Computer system	Windows XP/win7/ win8/win10
Motor	Stepper Motor
Power Voltage	AC 110 or 220V±10%,50-60Hz
Power cable	European Type/China Type/America Type/UK Type
Working Environment	0-45℃(temperature) 5-95%(humidity)
Power consumption	<350W (Total)
Z-Axis Movement	Automatic
Position system	Red-light pointer
Cooling way	Water cooling and protection system
Machine Size	1478586cm
Gross Weight	135KG
Package	Standard plywood case for export
Warranty	One year warranty, except consumables

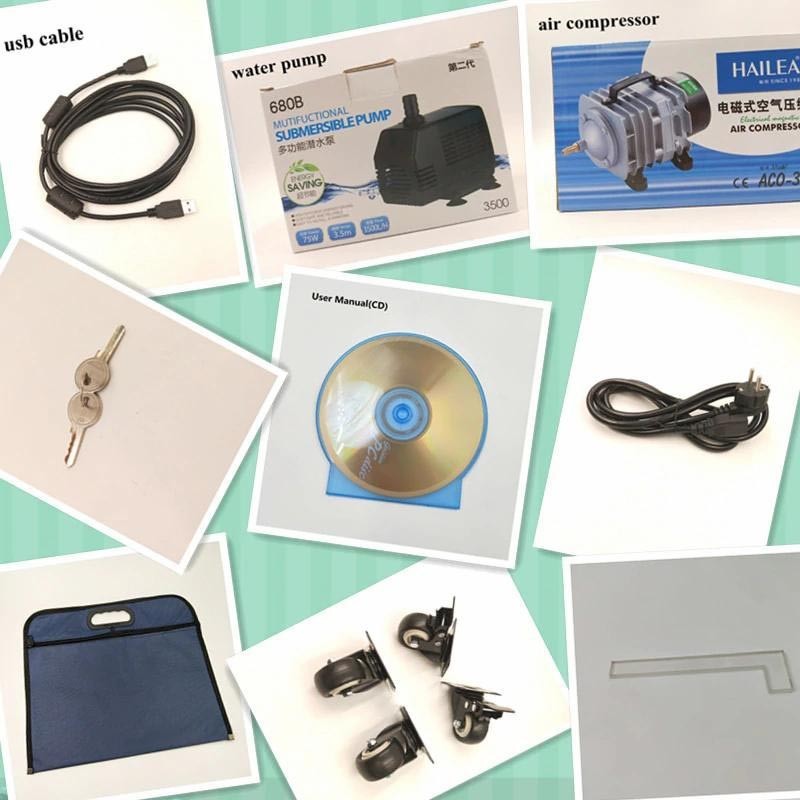

Free accessories	Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable

Free Delivery within Colombo and suburbs. Estimated delivery time is 5-7 weeks after the payment.

100% in advance when ordering.

12 Months Warranty

Malfunctions which are caused by machine will be responsible for our manufacturer.

Malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

Warranty is not included wearing parts such as belts and filters, or consumables.

This warranty does not cover repairs or replacements caused if:

The actual working conditions of the product have deviated from the contractual conditions (including but not limited to temperature, corrosiveness, gas composition, power supply, system main power, etc.)
Inappropriate product maintenance, on-site accidents, failure to perform overheat protection or long-term reverse operation, etc., which seriously violate equipment damage caused by the provisions of the Installation Operation and Maintenance Manual.
Assembled products are disassembled or modified after assembly.
The serial number is changed, removed or incorrect.
The buyer does not follow proper instructions according to the installation and maintenance manual.
