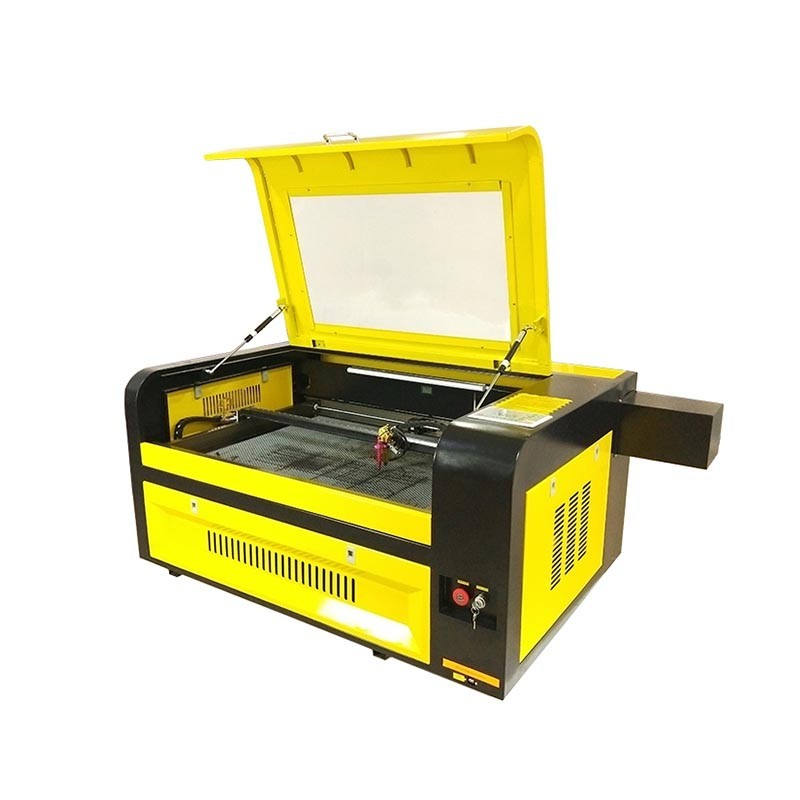

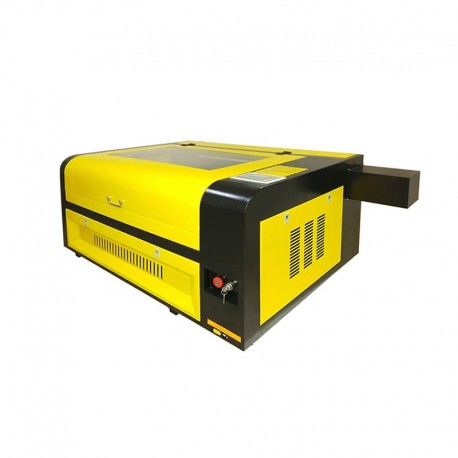

9060H Yellow RUIDA CNC CO2 Laser Engraving Machine 60W 80W 100W 130W

Condition: New product

This product is no longer in stock

Color	Black & Yellow

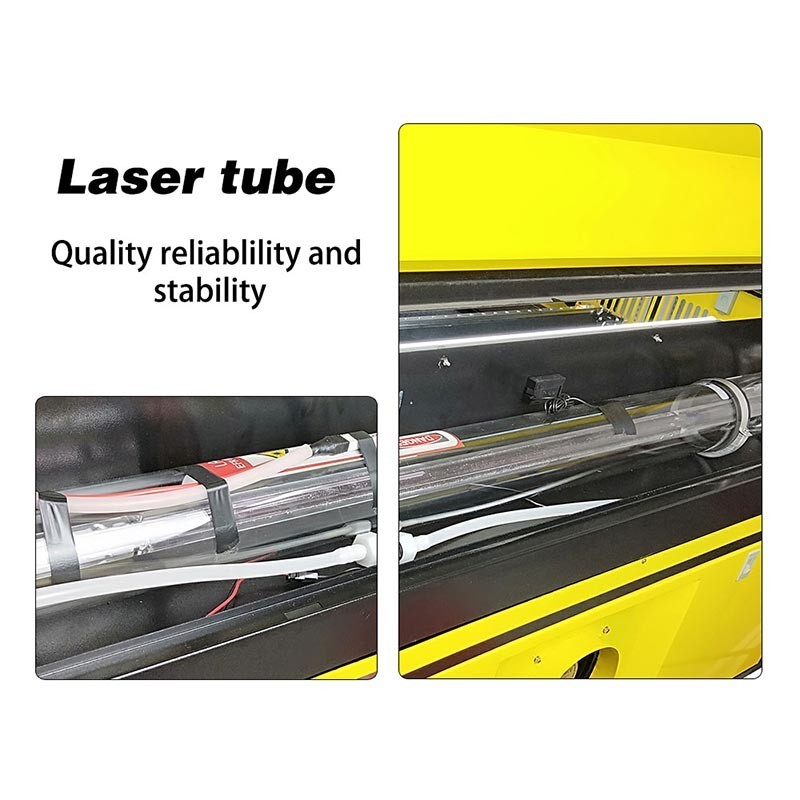

Laser Tube	Sealed CO2 glass Tube

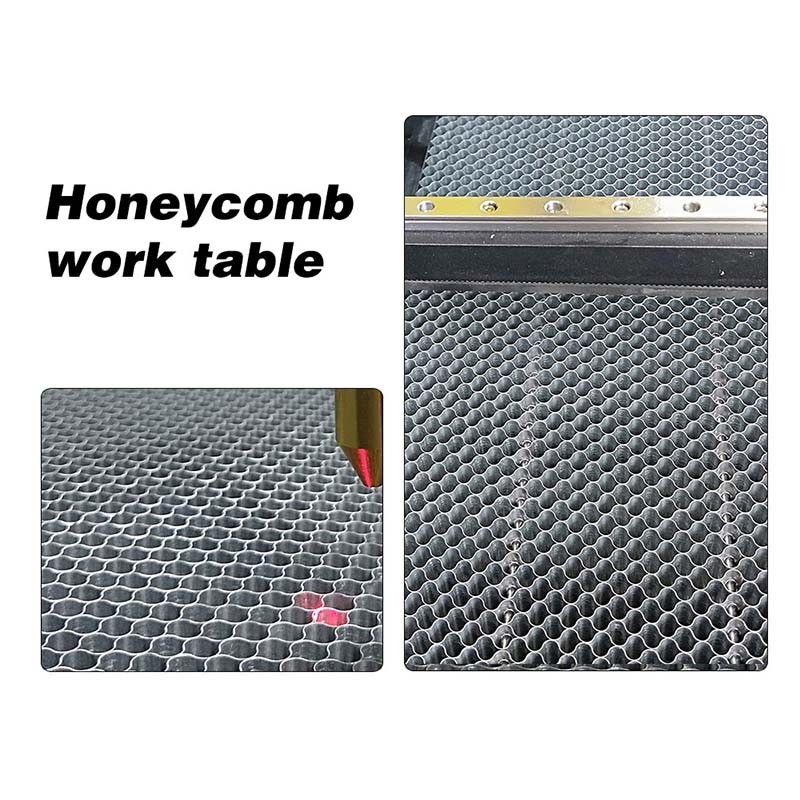

Working Table	Honeycomb/ Blade work table
Laser Power	60W/80W/100W/130W
Cutting Speed	0-60mm/s
Engraving Speed	0-700mm/s
Resolution	±0.05mm/1000DPI
Minimum Letter	English 1×1mm (Chinese Characters 2*2mm)
Support Fils	BMP,HPGL,PLT,DST and AI
Interface	USB2.0
Software	RD Works
Computer system	Windows XP/win7/ win8/win10
Motor	Stepper Motor

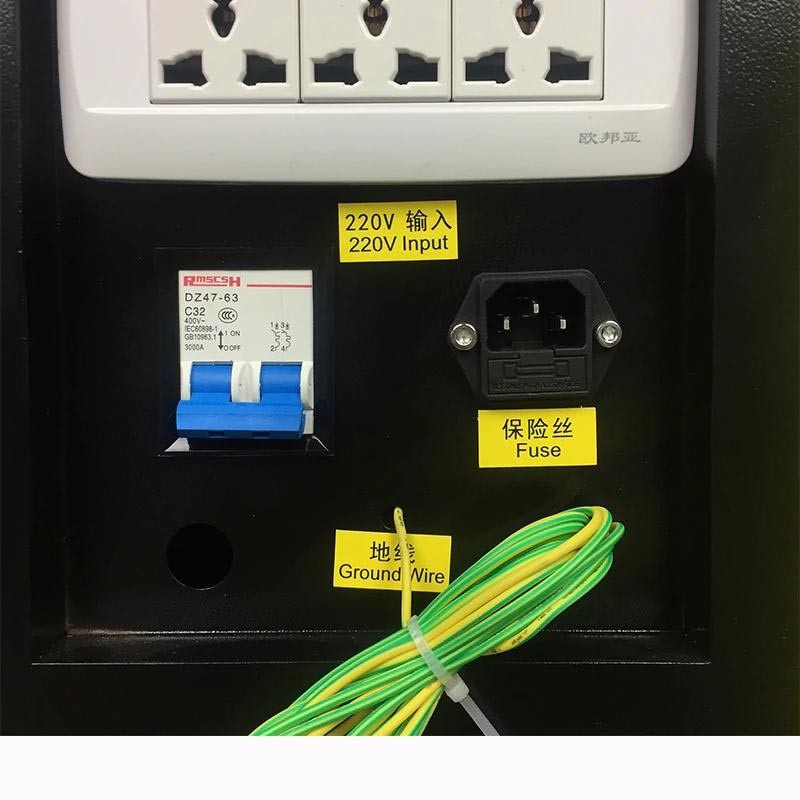

Power Voltage	AC 110 or 220V±10%,50-60Hz
Power cable	European Type/China Type/America Type/UK Type
Working Environment	0-45℃(temperature) 5-95%(humidity)
Power consumption	<900W (Total)
Z-Axis Movement	Automatic
Position system	Red-light pointer
Cooling way	Water cooling and protection system
Cutting thickness	Please consult sales
Packing Size	155x120x110cm
Gross Weight	180KG
Package	Standard plywood case for export
Warranty	One year warranty, except consumables like laser tube, mirror and lens, etc.

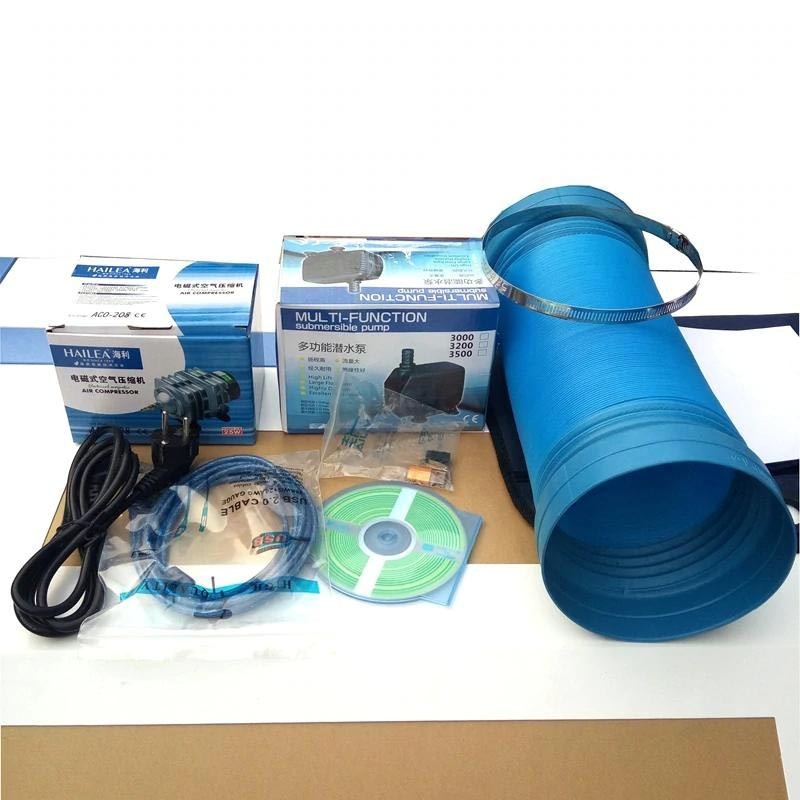

Free accessories	Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable
Optional parts	Spare focus lens Spare reflecting mirror Spare rotary for cylinder materials Industrial Water cooler

Main Features

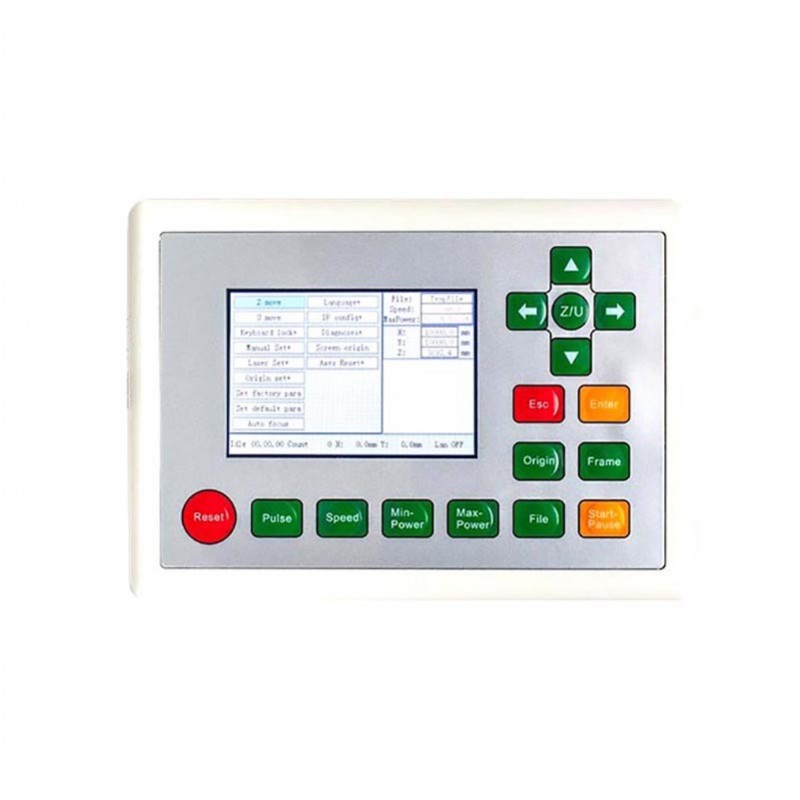

1) Ruida 6442s controller, the most popular control system for CO2 laser engraving cutting machine.

2) Better quality machine chassis.

3) EFR Laser tube or Reci laser tube optional.

4) Electrical up and down work table, 600mm*900mm work area.

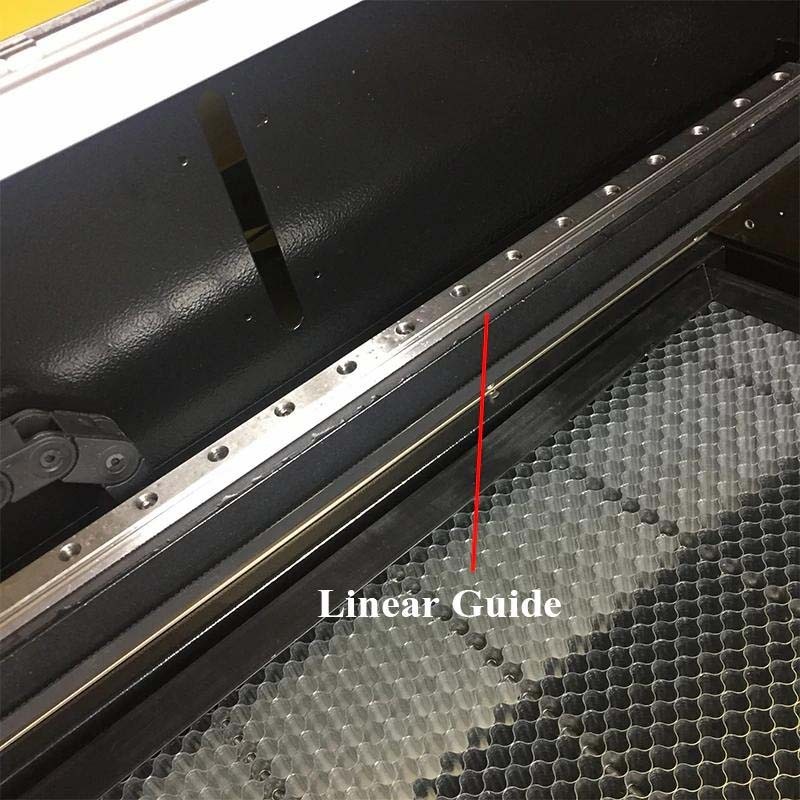

5) Y-Axis double linear guide rail + big power motor, small noise, fast speed, max is 700mm/s.

6) 57 Stepper motor

Free Delivery within Colombo and suburbs. Estimated delivery time is 5-7 weeks after the payment.

100% in advance when ordering.

12 Months Warranty

Malfunctions which are caused by machine will be responsible for our manufacturer.

Malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

Warranty is not included wearing parts such as belts and filters, or consumables.

This warranty does not cover repairs or replacements caused if:

The actual working conditions of the product have deviated from the contractual conditions (including but not limited to temperature, corrosiveness, gas composition, power supply, system main power, etc.)
Inappropriate product maintenance, on-site accidents, failure to perform overheat protection or long-term reverse operation, etc., which seriously violate equipment damage caused by the provisions of the Installation Operation and Maintenance Manual.
Assembled products are disassembled or modified after assembly.
The serial number is changed, removed or incorrect.
The buyer does not follow proper instructions according to the installation and maintenance manual.
