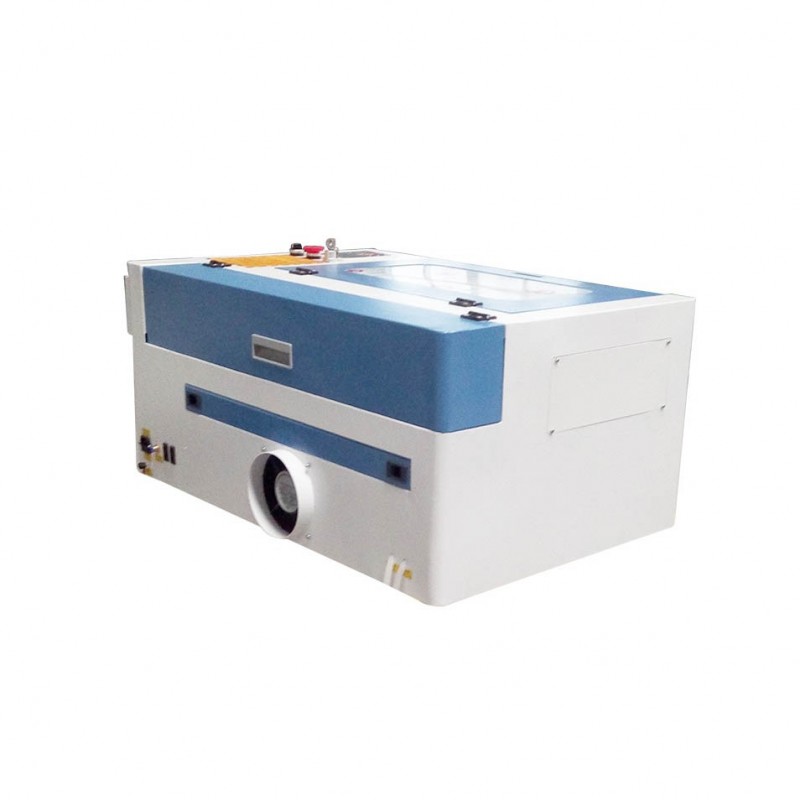

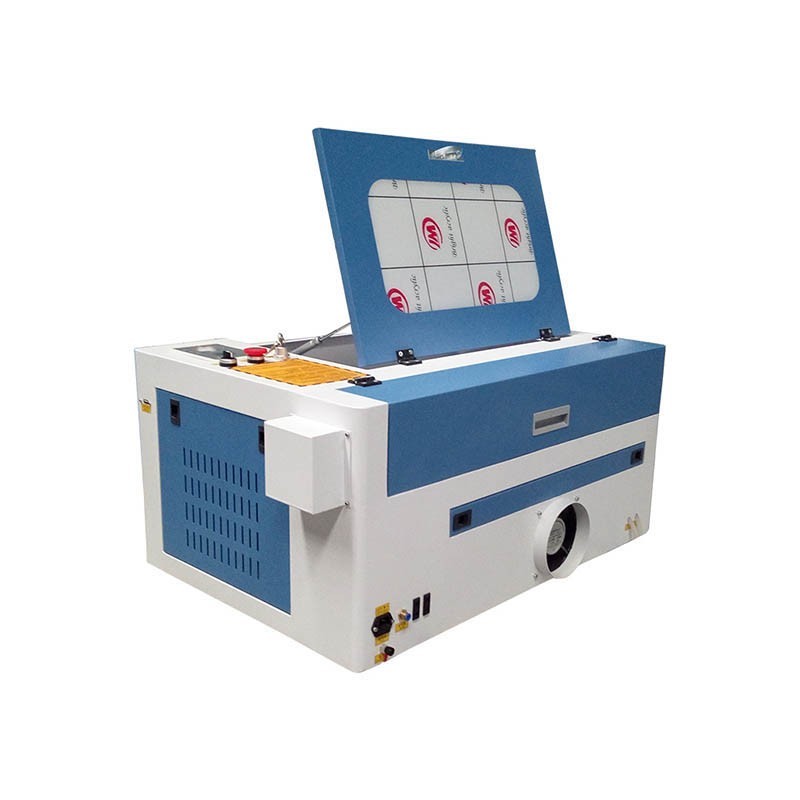

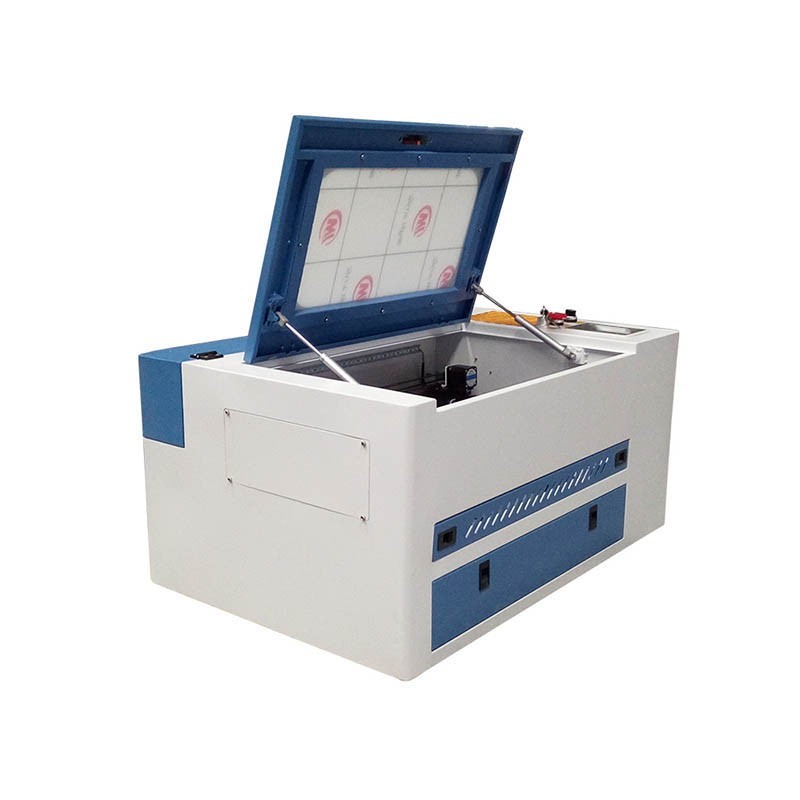

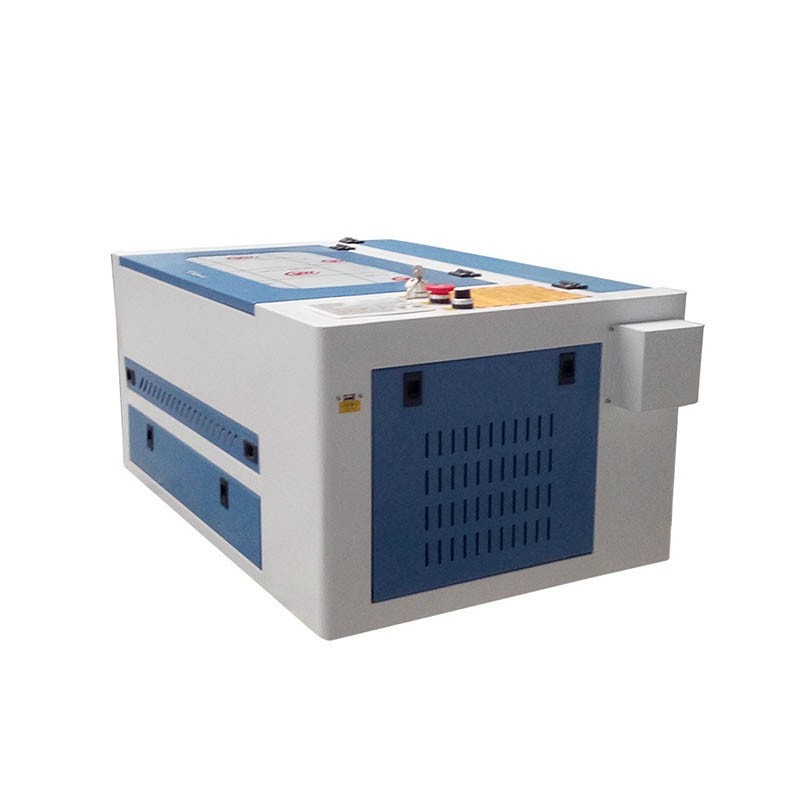

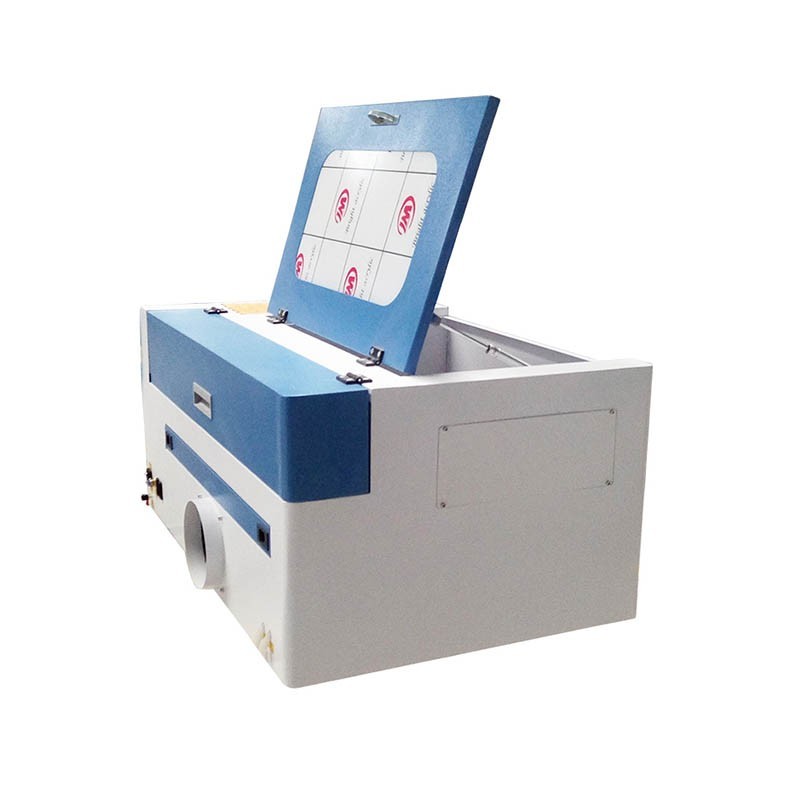

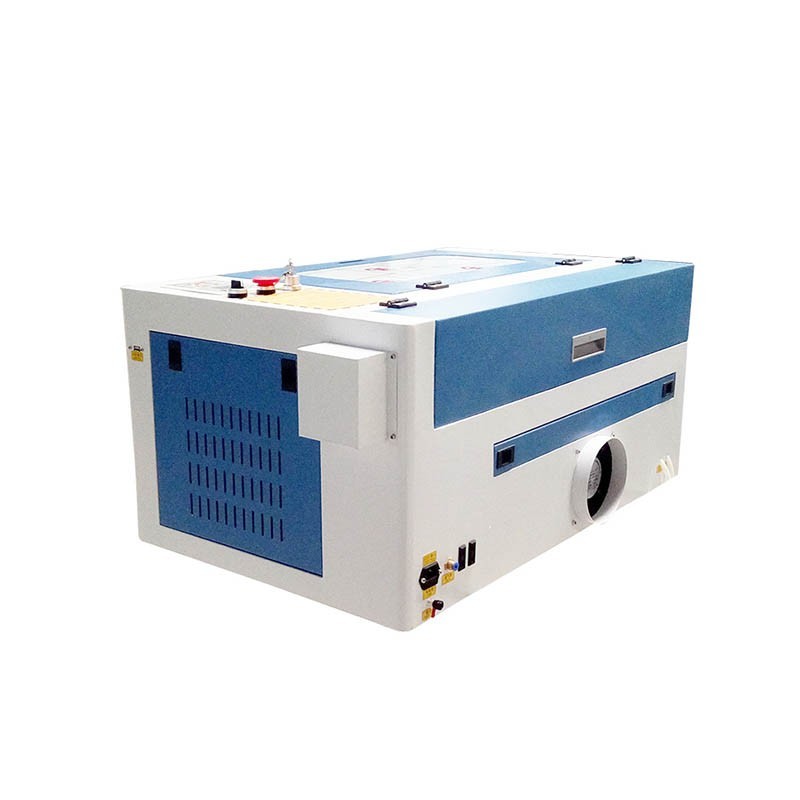

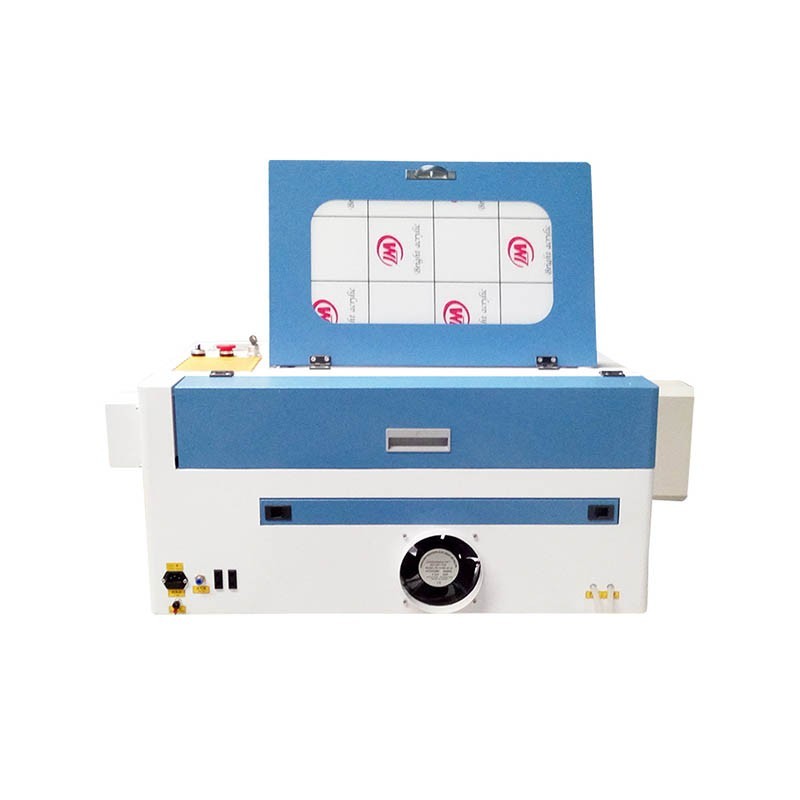

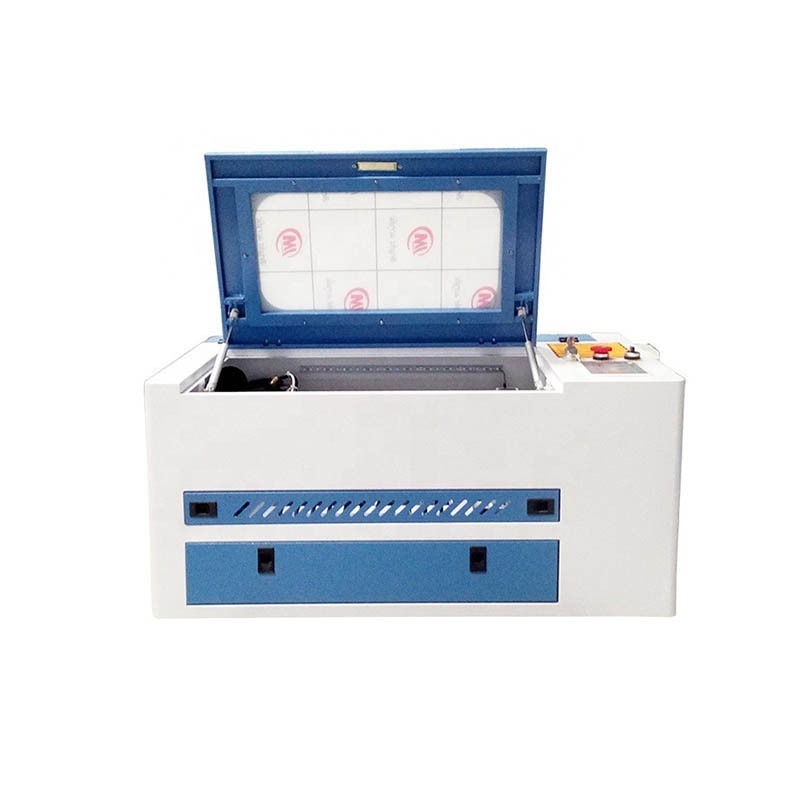

4030 Blue & White RUIDA CNC CO2 Laser Engraving Machine 50W

New product

This product has been discontinued.

More details

This product is no longer in stock

Rs 219,000.00

Estimated Delivery: 3 to 6 weeks
  • 50W

Add to wishlist

More info

Model

TS4030 laser engraving and cutting machine

Colour

Blue and White

Working Table Size

400mm * 300mm

Laser Tube

Sealed CO2 Glass Tube

Working Table

Honeycomb

Laser Power

50W

Cutting Speed

0-60 mm/s

Engraving Speed

0-400mm/s

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Support Fils

BMP,HPGL,PLT,DST and AI

Interface

USB2.0

Software

RDworks

Computer system

Windows XP/win7/ win8/win10

Motor

Branded Stepper Motor

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Working Environment

0-45℃(temperature)      5-95%(humidity)

Power consumption

<350W (Total)

Z-Axis Movement

Automatic

Position system

Red-light pointer

Cooling way

Water cooling and protection system

Machine Size

115*80*63cm

Gross Weight

85KG

Package

Standard plywood case for export

Warranty

One year warranty, except consumables

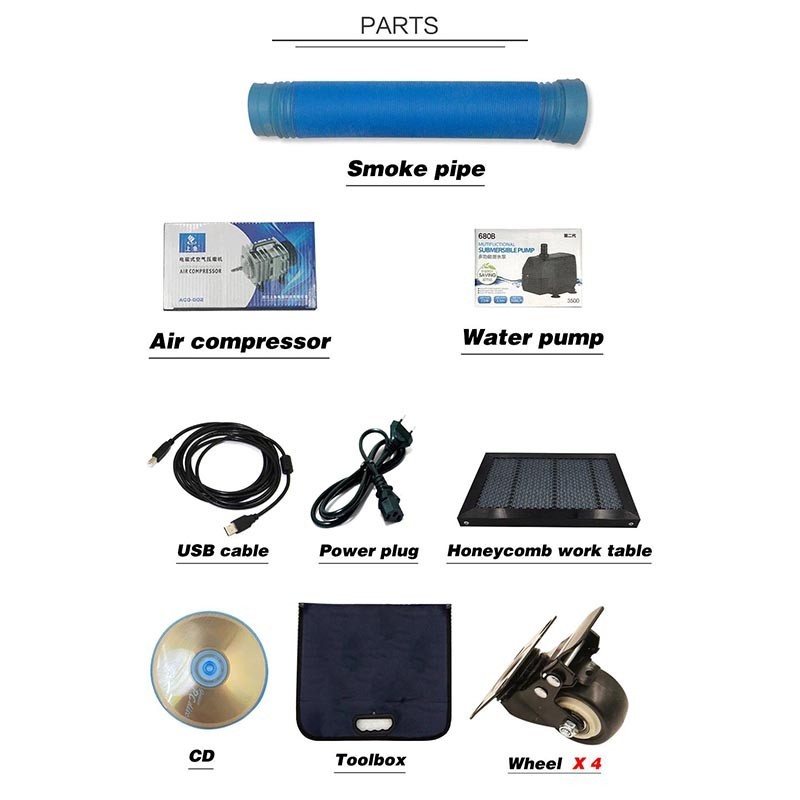

Free accessories

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable



Main Features

LeadShine or other Branded steppers and drivers, imported lenses, Branded linear guide rail.

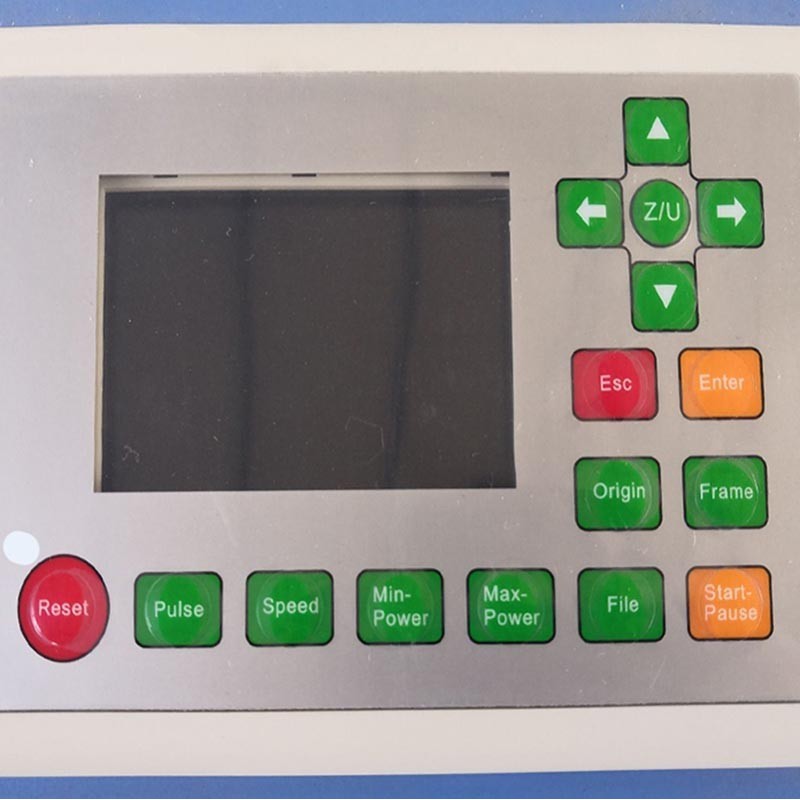

* Ruida system with color screen supports multiple languages.
* Industrial grade laser head and large focusing mirrors than Normal 4030 model
* Support dual platform, blade platform and honeycomb (optional one or two)
* Higher precision and faster motors drivers and linear guides.

Delivery:

Free Delivery within Colombo and suburbs. Estimated delivery time is 5-7 weeks after the payment.

Payment Terms:

100% in advance when ordering.

Warranty:

12 Months Warranty

Malfunctions which are caused by machine will be responsible for our manufacturer.

Malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

Warranty is not included wearing parts such as belts and filters, or consumables.

Restriction and Exemption Clause:

This warranty does not cover repairs or replacements caused if:

  1. The actual working conditions of the product have deviated from the contractual conditions (including but not limited to temperature, corrosiveness, gas composition, power supply, system main power, etc.)
  2. Inappropriate product maintenance, on-site accidents, failure to perform overheat protection or long-term reverse operation, etc., which seriously violate equipment damage caused by the provisions of the Installation Operation and Maintenance Manual.
  3. Assembled products are disassembled or modified after assembly.
  4. The serial number is changed, removed or incorrect.
  5. The buyer does not follow proper instructions according to the installation and maintenance manual.
