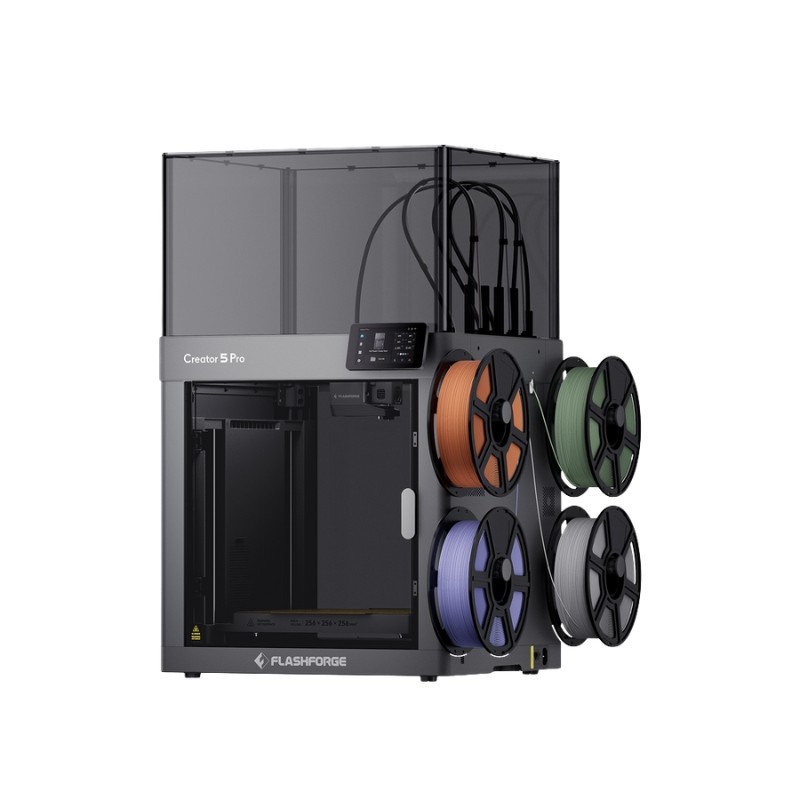

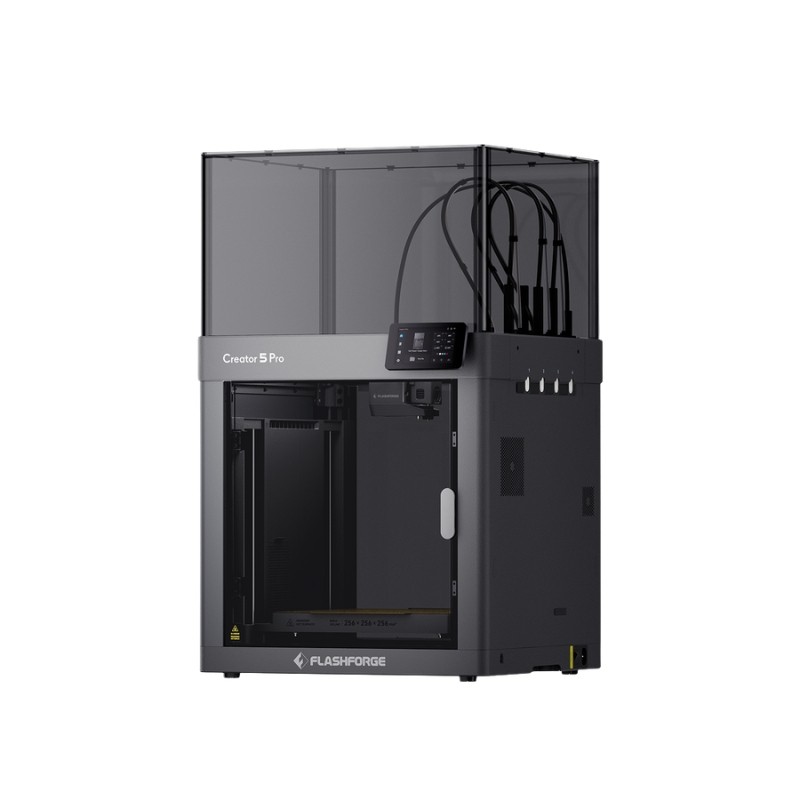

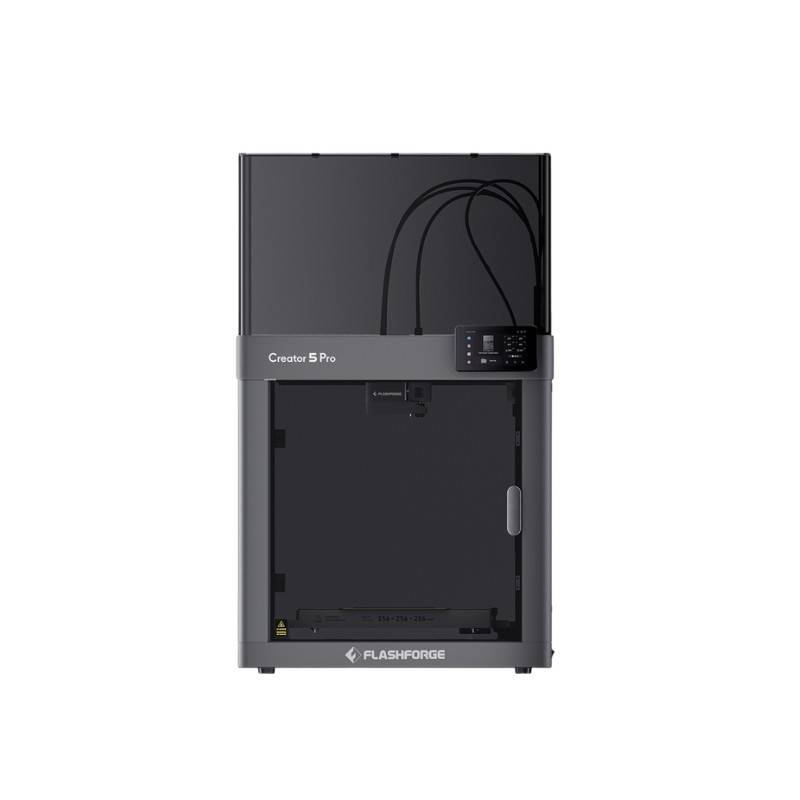

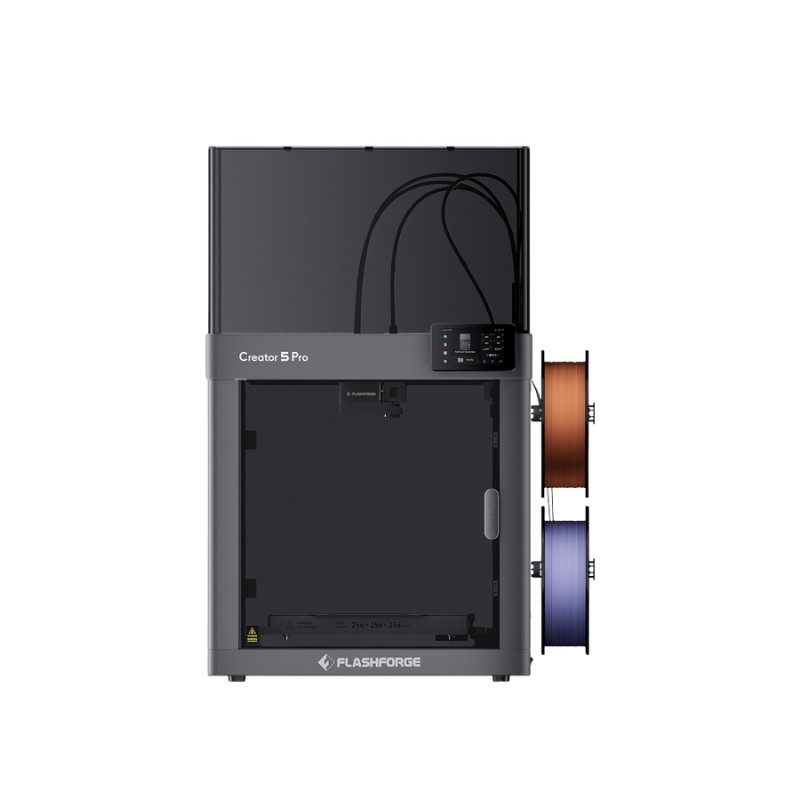

Flashforge Creator 5 Pro 3D Printer

The Flashforge Creator 5 Pro is an enclosed 4-toolhead FDM 3D printer designed for multi-color, multi-material, and engineering-grade 3D printing. Instead of using one nozzle for all colors, it uses four independent toolheads, allowing each toolhead to hold a separate filament for faster switching and reduced purge waste.

With a 256 × 256 × 256mm build volume, fully enclosed frame, active heated chamber up to 65°C, and high-temperature 320°C extrusion capability, the Creator 5 Pro is suitable for users who need stronger material support than an open-frame desktop printer.

It is a practical choice for product designers, schools, studios, print farms, workshops, and professional users who need colorful models, functional prototypes, support-material printing, and engineering filament capability in one compact machine.

Key Features

• 4 independent toolheads for multi-color and multi-material printing

• Enclosed frame design for improved printing stability

• Active chamber heating up to 65°C

• 256 × 256 × 256mm build volume

• Up to 320°C extruder temperature

• Up to 120°C heated bed temperature

• HEPA13 and activated carbon air filtration

• Automatic leveling, dynamic flow calibration, and built-in camera

4 Independent Toolheads

The Creator 5 Pro uses four separate toolheads, allowing users to load different colors or compatible materials into each toolhead. This design helps reduce purge waste and filament switching delays compared with traditional single-nozzle multi-color systems.

It is useful for multi-color models, product samples, display parts, educational prints, logos, signs, and decorative models.

Enclosed Frame for Better Material Support

The enclosed structure helps maintain a more stable internal printing environment. This is especially important when printing materials that are more sensitive to cooling, warping, cracking, or layer separation.

Compared with the open-frame Creator 5, the Creator 5 Pro is better suited for ABS, ASA, nylon-based materials, and reinforced engineering filaments.

Active Heated Chamber

The Creator 5 Pro supports active chamber heating up to 65°C. This helps improve print reliability with engineering materials by reducing temperature fluctuation around the printed part.

A more controlled chamber can help improve layer bonding, reduce warping, and support cleaner results on demanding materials.

Multi-Material Printing Capability

With four toolheads and an enclosed heated environment, the Creator 5 Pro can support more flexible material combinations. Users can print with different colors, combine support materials with model materials, or use stronger engineering filaments for functional parts.

Material combinations should be selected carefully based on print temperature, bed temperature, chamber temperature, shrinkage, bonding, and support removal requirements.

High-Speed Printing Performance

The printer supports fast movement, high acceleration, and a maximum print speed of up to 300mm/s. This helps reduce print time for suitable models while maintaining stable motion performance.

Actual print quality depends on material type, nozzle size, layer height, slicer settings, calibration, and model complexity.

Automatic Calibration and Leveling

Automatic bed leveling and dynamic flow calibration help reduce setup time and improve print consistency. These features are especially important for multi-toolhead printing, where accurate alignment and material flow are required for clean multi-color or multi-material results.

Air Filtration and Cooling System

The Creator 5 Pro includes HEPA13 and activated carbon filtration to help manage particles and odors during printing. It also includes a controlled airflow and cooling system to support stable printing conditions inside the enclosed chamber.

Good ventilation is still recommended when printing materials that produce fumes or odors.

Built-In Camera and Remote Workflow

The built-in Full HD camera supports remote monitoring and print progress checking. This is useful for long prints, multi-color jobs, print farm workflows, and professional users who need to monitor prints without standing near the machine.

The printer supports USB and Wi-Fi connectivity and works with Orca-Flashforge and OrcaSlicer.

Technical Specifications

Recommended Filaments

• PLA

• PETG

• TPU-90A with top external mount

• TPU-95A

• TPU-64D

• PLA-CF

• PETG-CF

• Silk

• PVA

• BVOH

• S-Multi

• S-PAHT

• ABS

• ASA

• PA-CF

• PET-CF

• PAHT-CF

• ASA-CF

• ASA-GF

• ABS-GF

• PPA-CF

• PPS-CF

• HIPS

Supported Filaments with Enclosure

• ABS

• ASA

• HIPS

• ABS-GF

• PA-CF

• ASA-CF

• ASA-GF

• S-Multi

• S-PAHT

• PET-CF

• PAHT-CF

• PPA-CF

• PPS-CF

Applications

• Multi-color 3D printing

• Multi-material 3D printing

• Engineering prototypes

• Functional parts

• Support material printing

• ABS and ASA printing

• Nylon and reinforced filament printing

• Product samples

• Educational models

• Display models

• Workshop tools

• Brackets and fixtures

• Small-batch production

• Print farm use

• Professional desktop manufacturing

Compatibility

• 1.75mm FDM filament workflows

• Orca-Flashforge slicing software

• OrcaSlicer workflow

• USB and Wi-Fi file transfer

• Multi-color models prepared for independent toolhead printing

• Support material workflows using compatible materials

• Engineering filament workflows that benefit from an enclosed heated chamber

Usage Note

For best results, calibrate the toolheads before multi-color or multi-material printing. Use the enclosed chamber and suitable material profiles for ABS, ASA, nylon, and reinforced filaments. Moisture-sensitive materials should be dried before printing, and ventilation is recommended when printing materials that produce fumes or odors.

Note:
3D printers are supplied as semi-assembled kits. Assembly is straightforward and typically takes only a few minutes, depending on the user's experience.
The customer is responsible for assembling the printer. However, the we will provide technical assistance and guidance whenever required.
