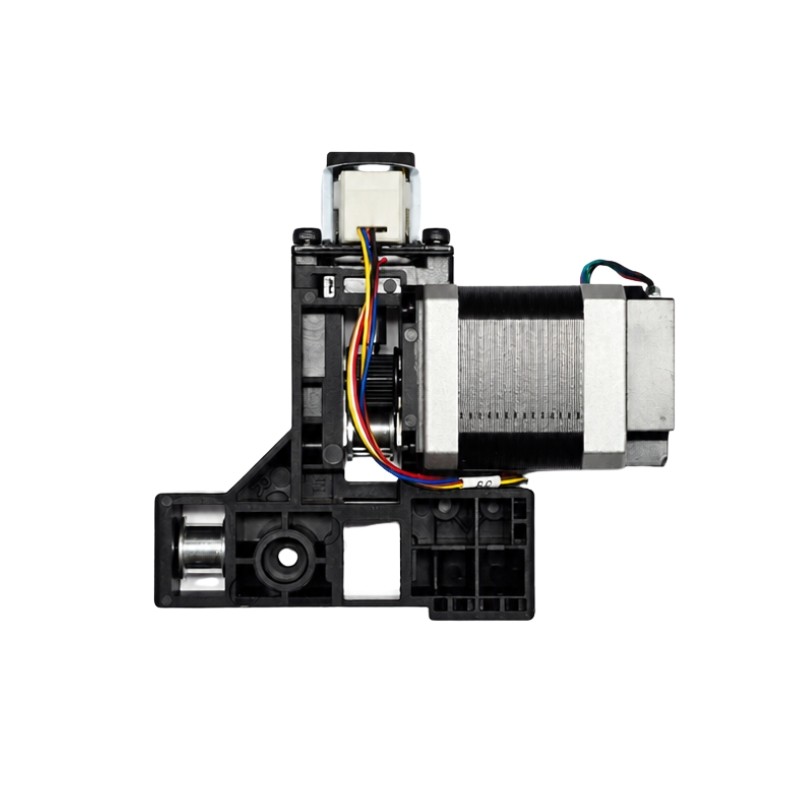

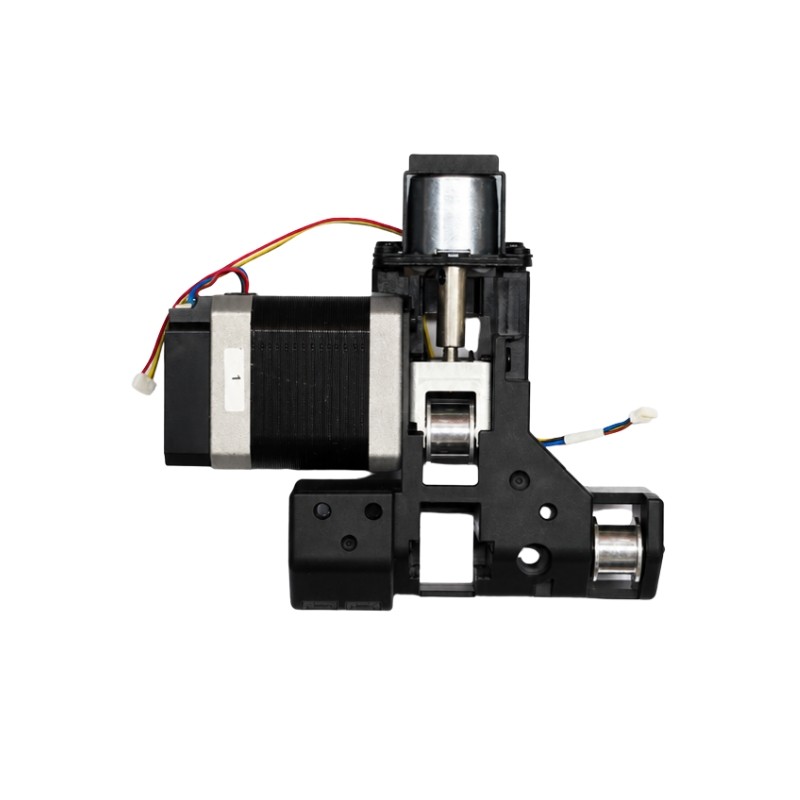

Creality X Axis Motor Kit Assembly for K2 Plus

The Creality X Axis Motor Kit Assembly for K2 Plus is an original replacement motion-control component designed specifically for the Creality K2 Plus 3D Printer.

The K2 Plus uses an advanced CoreXY motion system powered by FOC closed-loop step-servo motors. The X-axis motor works together with the Y-axis drive, belts, pulleys, and motion-control electronics to position the toolhead accurately during high-speed printing.

This complete replacement assembly is suitable for repairing a faulty, damaged, or worn original X-axis motor system and restoring the smooth, responsive motion required by the K2 Plus.

Key Features

• Original Creality X-axis replacement motor assembly

• Designed specifically for Creality K2 Plus

• FOC closed-loop step-servo motor technology

• Integrated position feedback for precise motion control

• Supports the K2 Plus CoreXY motion system

• Designed for high-speed acceleration and movement

• Suitable for replacing a faulty or damaged original motor assembly

• Requires calibration after replacement

FOC Closed-Loop Step-Servo Technology

Unlike a conventional open-loop stepper motor, the K2 Plus uses closed-loop step-servo technology.

The motor system continuously monitors its movement and uses feedback to maintain the commanded position.

Creality's FOC — Field-Oriented Control — system manages the motor using position, speed, and current control loops.

This provides advantages such as:

• Accurate positioning

• Fast response

• Smooth movement

• Strong torque

• Reduced risk of missed steps

• Better control during rapid acceleration

• Efficient motor operation

32,768 Controllable Microsteps per Revolution

Creality specifies 32,768 controllable microsteps per revolution for the K2 Plus step-servo motors.

This high-resolution motor control helps the motion system position the toolhead precisely while operating at the high speeds and acceleration levels supported by the K2 Plus.

Accurate motion is particularly important for:

• Fine surface details

• Consistent layer alignment

• Curved surfaces

• High-speed printing

• Rapid travel movements

• Dimensional accuracy

Designed for the CoreXY Motion System

The K2 Plus uses a CoreXY-style motion system where the X and Y motors work together through the belt system to move the printhead.

Because of this arrangement, problems with the X-axis motor can affect movement in more than one apparent direction.

The replacement assembly works together with:

• X/Y belts

• Drive pulleys

• Idler pulleys

• Linear motion components

• Y-axis motor

• Main motion-control electronics

Correct installation and belt routing are essential for normal printer operation.

Restores Accurate Toolhead Movement

A malfunctioning X-axis motor assembly can cause symptoms such as:

• X/Y motor errors

• Layer shifting

• Abnormal movement

• Positioning errors

• Grinding or unusual motor noise

• Failed homing

• Irregular toolhead motion

• Motor communication errors

• Print failures at high speed

Replacing a confirmed faulty motor assembly with the correct K2 Plus component helps restore normal motion performance.

Integrated Closed-Loop Feedback

The K2 Plus servo system uses feedback rather than relying only on commanded step pulses.

This enables the printer's motion-control system to monitor the motor and detect abnormal operating conditions.

The K2 Plus firmware also provides dedicated servo-motor calibration functions for its X, Y, and Z motors.

After motor replacement, the appropriate calibration procedure should be completed before normal printing.

Built for High-Speed K2 Plus Motion

The K2 Plus is designed for print speeds up to 600mm/s and acceleration up to 30,000mm/s² under suitable printing conditions.

The X-axis motor therefore needs to respond rapidly while maintaining accurate positioning throughout repeated acceleration, deceleration, and direction changes.

The dedicated step-servo motor system is an important part of achieving this motion performance.

Complete Motor Assembly

This replacement part is supplied as the X-axis motor assembly rather than a generic standalone stepper motor.

Using the correct assembly helps maintain compatibility with the K2 Plus:

• Mechanical mounting

• Drive pulley arrangement

• Electrical connections

• Encoder feedback

• Firmware control

• CoreXY belt system

Do not replace the K2 Plus X-axis motor with a standard open-loop stepper motor.

Technical Specifications

Applications

• K2 Plus X-axis motor replacement

• Repair of motion-system faults

• Motor communication error repair

• Layer-shift troubleshooting

• Abnormal motion repair

• Printer refurbishment

• Preventive spare-part inventory

• Print farm maintenance

• Service centre repairs

• Production printer maintenance

Compatibility

Compatible with:

• Creality K2 Plus

• Creality K2 Plus Combo

The Combo uses the same K2 Plus printer platform.

This motor assembly should not be assumed compatible with:

• Creality K2

• Creality K2 Pro

• Creality K2 SE

• Creality K1

• Creality K1C

• Creality K1 Max

• Ender Series printers

Hardware Revision Note

K2 Plus units may exist with different hardware revisions.

Before ordering or installing the motor assembly, compare the replacement with the original component and confirm:

• Motor connector

• Cable arrangement

• Mounting points

• Pulley configuration

• Assembly shape

• Printer serial / hardware revision where required

This is particularly important when replacing motors on earlier and later production versions of the K2 Plus.

Package Includes

• 1 × Creality X Axis Motor Kit Assembly for K2 Plus

Only the components physically supplied with the selected replacement assembly are included. Belts, Y-axis motor, motion rails, idlers, mainboard, and other printer components are not included unless specifically stated.

Installation Note

Replacing the K2 Plus X-axis motor requires working with the CoreXY motion system and should be performed carefully.

Before installation:

• Switch off the printer

• Disconnect mains power

• Allow heated components to cool

• Record the original cable and belt routing

• Release belt tension correctly

• Disconnect the original motor carefully

• Install the replacement assembly in the correct orientation

• Confirm pulley and belt alignment

• Restore correct belt tension

• Reconnect all motor and feedback connections

• Perform the required X-axis servo motor calibration

• Test movement before beginning a full print

Incorrect belt routing or tension can cause poor print quality, abnormal noise, or motion errors.

Troubleshooting Note

An X-axis related error does not always mean the motor itself has failed.

Similar symptoms can also result from:

• Loose motor connector

• Damaged wiring

• RS485 communication problem

• Belt tension problems

• Damaged pulley or idler

• Motion obstruction

• Linear rail problems

• Mainboard faults

• Belt auto-tension system problems

The K2 Plus provides dedicated X/Y/Z servo-motor diagnostics, so the motor should be confirmed faulty before replacement.

Usage Note

This is a specialized K2 Plus closed-loop step-servo motor assembly, not a conventional 42-series open-loop stepper motor.

After replacement, perform the appropriate Creality servo motor calibration and verify smooth X/Y motion before returning the printer to normal high-speed operation.
