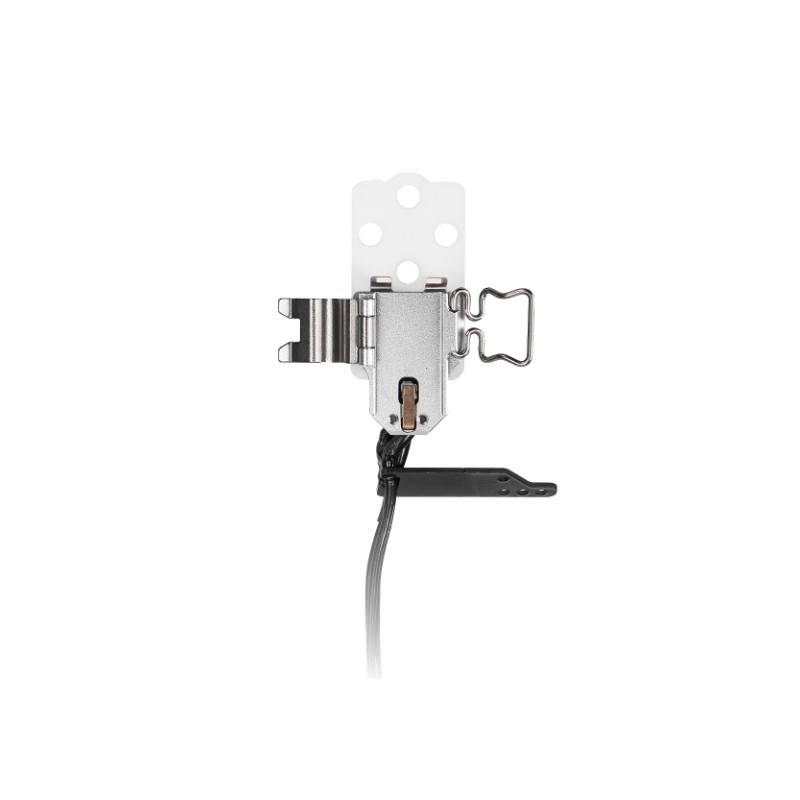

Bambu Lab Hotend Heating Assembly for H2D and H2C Left

The Bambu Lab Hotend Heating Assembly for H2D and H2C Left is an original replacement component designed specifically for the left hotend of compatible Bambu Lab H2D and H2C Series printers.

The heating assembly provides the heat required to bring the left hotend to the selected printing temperature while also securing the hotend through an integrated clamping mechanism. This design allows the hotend to be removed quickly for maintenance or replacement without replacing the entire heating assembly.

The current left-side version is identified as FAH028-V1 and replaces the earlier FAH028 revision.

Key Features

• Original Bambu Lab hotend heating assembly

• Current part number FAH028-V1

• Replaces earlier FAH028 version

• Dedicated to the left hotend

• Compatible with H2D and H2C Series configurations

• Integrated hotend clamping mechanism

• Supports quick hotend removal and replacement

• Includes baffle plate and required mounting screws

Dedicated Left Hotend Heating

The H2D and H2C toolhead systems use separate left and right hotend positions.

The FAH028-V1 is specifically designed for the left side and supplies the thermal energy required to heat the installed left hotend for filament extrusion.

Stable heating helps maintain:

• Consistent filament melting

• Reliable extrusion

• Stable material flow

• Accurate layer formation

• Repeatable nozzle temperature

Quick Hotend Replacement

The heating assembly uses a clamping mechanism to secure the hotend in its operating position.

When maintenance or a nozzle change is required, the hotend can be released from the heating assembly without replacing the complete heater system.

This makes routine servicing and hotend replacement faster and more convenient.

Left Side Only

FAH028-V1 is specifically the left-side heating assembly.

The right-side heating assembly is a separate component with a different design and part number.

The left and right assemblies should not be assumed to be interchangeable.

Stable Temperature Control

During printing, the heating assembly works together with the printer's temperature-control electronics to bring the hotend to the requested temperature and maintain it during extrusion.

Stable temperature control helps reduce problems such as:

• Inconsistent extrusion

• Poor layer bonding

• Temperature fluctuations

• Failed heating

• Interrupted prints

• Material flow variation

Metal and Ceramic Construction

The heating assembly combines metal and ceramic components to provide the mechanical support and thermal performance required by the hotend system.

Correct contact between the heating assembly and hotend is important for efficient heat transfer and stable temperature regulation.

Integrated Baffle Plate

The left-side assembly includes a dedicated baffle plate as part of the installation.

This component forms part of the correct mechanical arrangement around the left heating assembly and should be installed together with the replacement heater according to the Bambu Lab maintenance procedure.

Useful Replacement Part

Replacement may be appropriate when troubleshooting conditions such as:

• Left hotend not heating

• Slow hotend heating

• Unstable nozzle temperature

• Heating-related printer errors

• Intermittent heating

• Damaged heater assembly

• Physical damage following a filament blob

• Damage around the hotend mounting area

Correct diagnosis should be performed before replacing the assembly because similar symptoms can also result from wiring, connectors, toolhead electronics, or hotend-related faults.

Technical Specifications

Applications

• Left hotend heating

• H2D toolhead maintenance

• H2C toolhead maintenance

• Replacement of damaged heating assembly

• Heating fault repair

• Temperature-control troubleshooting

• Hotend system servicing

• Preventive spare-part replacement

• Print farm maintenance

Compatibility

Compatible with:

• Bambu Lab H2D

• Bambu Lab H2D Laser

• Bambu Lab H2C

• Bambu Lab H2C Laser

This product is specifically intended for the left hotend position.

It should not be assumed interchangeable with:

• H2D / H2C right heating assembly

• H2S heating assembly

• X2D left or right heating assemblies

• P2S heating assembly

• A1 Series heating assembly

• A2L heating assembly

Package Includes

• 1 × Bambu Lab Hotend Heating Assembly – Left

• 1 × Baffle Plate

• 4 × M2.5-7 Screws

• 2 × M1.6-4 Screws

Installation Note

Switch off the printer and disconnect it from power before replacing the heating assembly.

Allow the hotend to cool completely before beginning service.

During installation:

• Confirm that the replacement is the left-side FAH028-V1 assembly

• Remove the required toolhead covers

• Remove the existing hotend

• Disconnect the original heating assembly carefully

• Avoid pulling directly on electrical wires

• Install the replacement assembly in the correct left-side position

• Install the supplied baffle plate

• Secure the assembly using the supplied screws

• Reconnect all electrical connections fully

• Reinstall and correctly clamp the hotend

• Confirm normal heating before beginning a long print

Follow the appropriate Bambu Lab H2D/H2C maintenance procedure during installation.

Troubleshooting Note

A left hotend heating problem does not always indicate a failed heating assembly.

Similar symptoms may also be caused by:

• Loose electrical connectors

• Damaged wiring

• Toolhead board problems

• Incorrectly installed hotend

• Temperature-sensing faults

• Physical hotend damage

• Filament buildup around the heating area

Diagnose the complete heating system before replacing parts.

Usage Note

This product includes the H2D/H2C Left Hotend Heating Assembly, baffle plate, and mounting screws only. The hotend, nozzle, silicone sock, hotend cooling fan, extruder, toolhead board, right heating assembly, and other toolhead components are not included unless separately specified.
