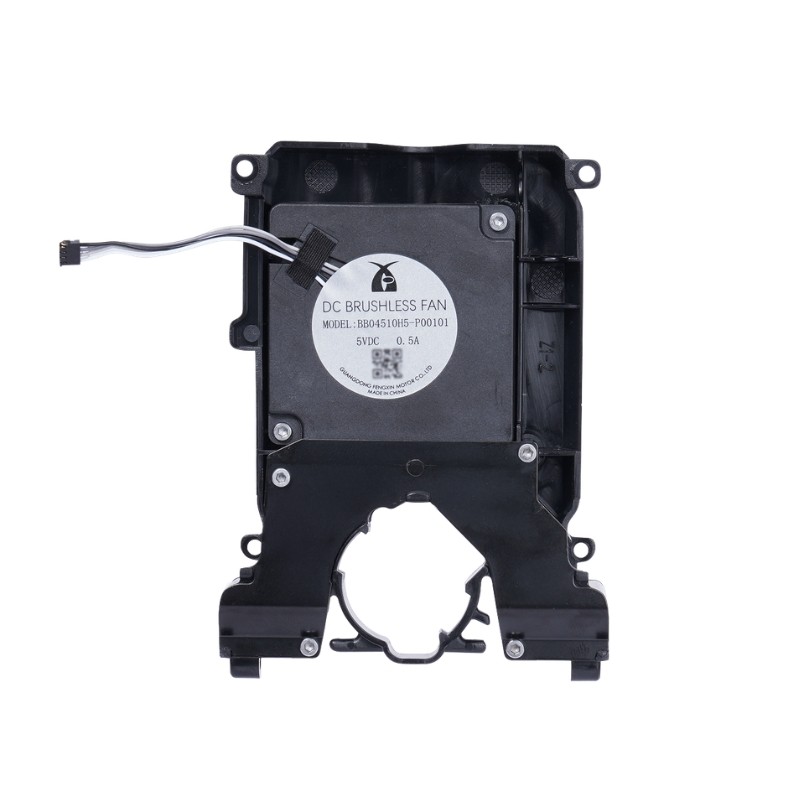

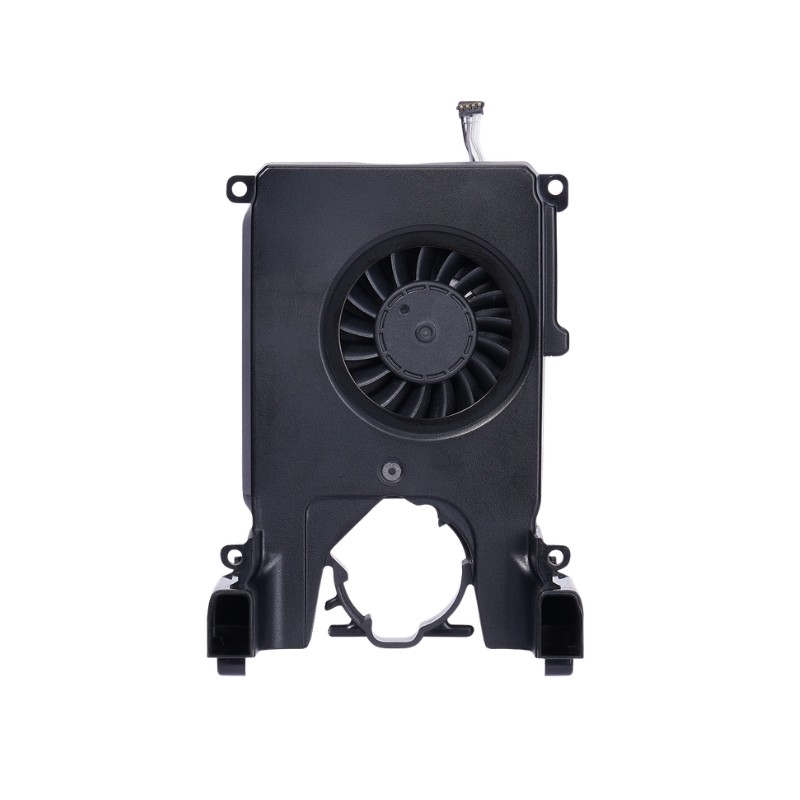

Bambu Lab Hotend Cooling Fan for H2D and H2C

The Bambu Lab Hotend Cooling Fan for H2D and H2C is an original replacement fan assembly designed to provide continuous cooling around the hotend heatsink area.

Positioned between the toolhead board and extruder, the fan helps remove heat from the upper section of the hotend so filament remains solid until it reaches the intended melt zone. Proper hotend cooling is important for reducing heat creep, premature filament softening, and clogs during printing.

This standard H2D/H2C cooling fan is suitable for replacing a damaged, noisy, or non-functioning original unit and restores the intended cooling performance of the toolhead.

Key Features

• Original Bambu Lab hotend cooling fan

• Part number FAF014

• Designed for Bambu Lab H2D and H2C

• Cools the hotend heatsink during operation

• Helps reduce heat creep and premature filament softening

• Supports reliable filament feeding

• Complete fan-and-bracket replacement assembly

• Includes the required mounting screws

Hotend Heatsink Cooling

The hotend contains both a high-temperature melt zone and a cooler upper section.

The cooling fan directs airflow across the heatsink so heat from the heater does not travel too far upward through the filament path.

Maintaining this temperature separation helps prevent filament from becoming soft before reaching the nozzle.

Helps Prevent Heat Creep

Insufficient hotend cooling can allow heat to travel upward from the nozzle and heater area.

This can cause filament to soften inside the heatbreak or extruder path and may lead to:

• Filament jams

• Hotend clogs

• Under-extrusion

• Inconsistent material flow

• Failed filament loading

• Extruder clicking

• Print interruptions

A properly functioning hotend cooling fan helps reduce the likelihood of these heat-related feeding problems.

Designed for H2D and H2C

The FAF014 version is designed specifically for the Bambu Lab H2D and H2C toolhead architecture.

Its mounting bracket, cable, connector, and screw positions are matched to these printer models.

Use the correct H2D/H2C version rather than assuming that fans from H2S, P Series, X Series, or other Bambu Lab printers are interchangeable.

Direct Replacement Assembly

The product is supplied as the complete hotend cooling fan assembly rather than only a loose fan.

This makes it suitable for replacing the original component when problems occur such as:

• Fan not spinning

• Fan speed errors

• Excessive fan noise

• Damaged fan blades

• Damaged cable or connector

• Intermittent fan operation

• Repeated heat-creep-related clogs

Important for High-Temperature Printing

Reliable heatsink cooling becomes particularly important when printing for long periods or operating the hotend at elevated temperatures.

The fan helps maintain the cold side of the hotend at a suitable temperature while the nozzle remains heated for extrusion.

This supports more consistent operation during demanding print jobs.

Toolhead Installation Position

The hotend cooling fan is installed between the toolhead board and extruder assembly.

Its airflow is directed toward the hotend cooling area, allowing heat to be carried away from the heatsink fins.

Correct fan orientation and installation are important for proper cooling performance.

Technical Specifications

Applications

• H2D hotend cooling

• H2C hotend cooling

• Replacement of failed cooling fan

• Repair of noisy fan

• Heat-creep troubleshooting

• Hotend maintenance

• Toolhead repair

• Preventive spare-part replacement

• Print farm maintenance

Compatibility

Compatible with:

• Bambu Lab H2D

• Bambu Lab H2C

Use the H2D/H2C version specifically. Other Bambu Lab printers may use different fan assemblies, brackets, connectors, or mounting hardware.

Package Includes

• 1 × Bambu Lab Hotend Cooling Fan

• 2 × M2.5×8 Screws

• 2 × BT2.6×8 Screws

Installation Note

Power off the printer and disconnect it from mains power before replacing the fan.

During installation:

• Disconnect the fan connector by holding the connector housing rather than pulling the wires

• Install the fan in the correct airflow orientation

• Secure all mounting screws properly

• Confirm that no cable can contact moving parts

• Check that the fan spins freely before completing reassembly

After replacement, confirm normal airflow and fan operation before starting a long print.

Troubleshooting Note

Replacing the hotend cooling fan is appropriate when the fan itself has failed or is not providing sufficient airflow.

Hotend clogging can also be caused by other components or conditions, including:

• Damaged hotend

• Blocked filament path

• Incorrect filament settings

• Toolhead board problems

• Damaged wiring or connectors

• Excessive chamber temperature

• Filament-related issues

Correctly diagnose the cause before replacing parts.

Important Product Note

This product is the standard FAF014 Hotend Cooling Fan for H2D and H2C.

It should not be confused with the separate Toolhead Enhanced Cooling Fan available for selected H2-series configurations, which is a different cooling component with a different design and function.
