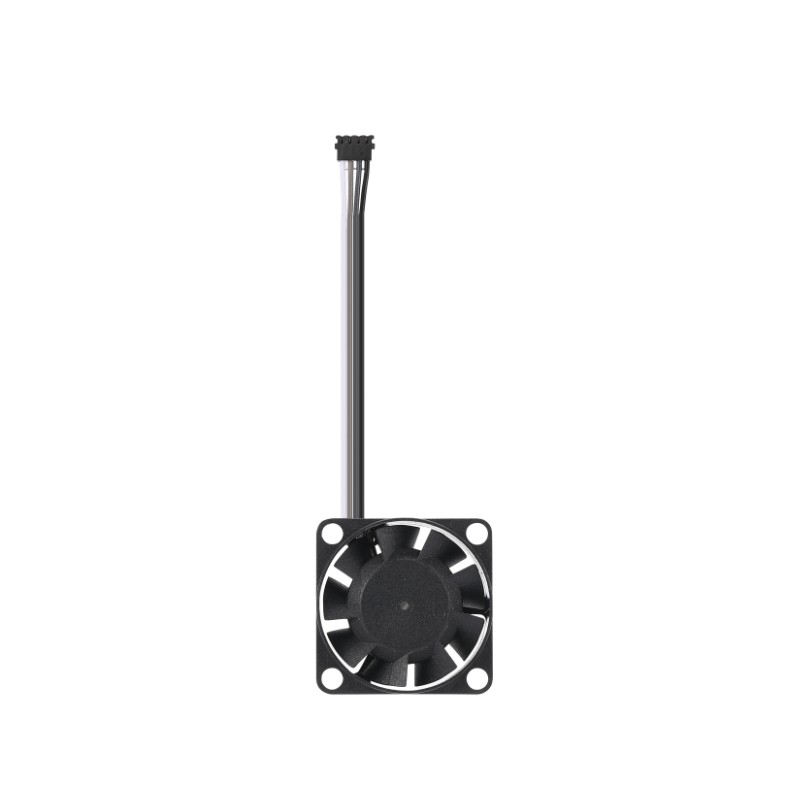

Bambu Lab Hotend Cooling Fan for X2D

The Bambu Lab Hotend Cooling Fan for X2D is an original replacement cooling assembly designed specifically for the Bambu Lab X2D toolhead.

Its main function is to cool the upper section of the hotend and maintain the correct temperature transition between the heated nozzle area and the cooler filament path above it. This helps prevent filament from softening too early and reduces the risk of heat-creep-related clogs and extrusion problems.

The X2D version includes dedicated left and right air ducts together with the cooling fan, allowing the complete hotend airflow path to be restored during replacement.

Key Features

• Original Bambu Lab hotend cooling fan

• Part number FAF023

• Designed for Bambu Lab X2D

• Includes dedicated left and right air ducts

• Cools the upper hotend area

• Helps reduce premature filament softening

• Helps prevent heat-creep-related blockages

• Includes the required mounting screws

Hotend Cooling Function

During printing, the nozzle must remain hot enough to melt filament while the upper portion of the hotend needs to stay considerably cooler.

The hotend cooling fan directs airflow through the dedicated ducts toward the hotend cooling area, helping prevent excessive heat from travelling upward through the filament path.

This thermal separation is important for maintaining smooth and reliable extrusion.

Helps Prevent Heat Creep

If the upper hotend becomes too warm, filament can start softening before it reaches the intended melt zone.

This may contribute to:

• Hotend clogs

• Filament jams

• Increased feeding resistance

• Under-extrusion

• Extruder clicking

• Failed filament loading

• Inconsistent material flow

• Interrupted print jobs

A properly functioning hotend cooling fan helps maintain the intended temperature balance around the hotend.

Dedicated Left and Right Air Ducts

The X2D cooling assembly includes both left and right air ducts.

These ducts direct airflow from the fan toward the required areas of the hotend system, helping ensure that cooling air reaches the intended surfaces efficiently.

When replacing the fan, the ducts should also be installed in their correct positions and orientation.

Designed Specifically for X2D

The FAF023 fan assembly is designed for the Bambu Lab X2D toolhead architecture.

Its:

• Fan dimensions

• Air ducts

• Mounting points

• Wiring

• Connector arrangement

• Screw locations

are matched to the X2D.

Fans used on H2D, H2C, H2S, P2S, A1 Series, A2L, or older Bambu Lab printer families should not be assumed to be interchangeable.

Supports the X2D Dual-Hotend Toolhead

The X2D uses a dual-hotend toolhead architecture with main and auxiliary extrusion paths.

The hotend cooling system helps maintain stable thermal conditions around this compact toolhead arrangement, supporting consistent filament feeding and reliable operation during demanding print jobs.

Useful Replacement Part

Replacement may be appropriate if the original fan develops symptoms such as:

• Fan not spinning

• Reduced airflow

• Abnormal fan noise

• Grinding or rattling

• Damaged fan blades

• Damaged cable or connector

• Intermittent fan operation

• Repeated heat-creep-related clogging

Replacing the fan with the correct FAF023 assembly helps restore the intended cooling performance of the X2D toolhead.

Important for Long Print Jobs

Hotend cooling is particularly important during long prints where the toolhead remains heated for many hours.

Reliable airflow helps maintain the upper hotend temperature within its intended operating range and supports consistent filament movement throughout extended printing sessions.

Technical Specifications

Applications

• X2D hotend cooling

• Toolhead maintenance

• Replacement of failed cooling fan

• Repair of noisy fan

• Heat-creep troubleshooting

• Hotend maintenance

• Preventive spare-part replacement

• Print farm maintenance

• Workshop and service use

Compatibility

Compatible with:

• Bambu Lab X2D

• Bambu Lab X2 Series toolhead configuration

This is the dedicated X2D version and should not be assumed compatible with other Bambu Lab printer families.

Package Includes

• 1 × Bambu Lab Hotend Cooling Fan

• 1 × Left Air Duct

• 1 × Right Air Duct

• 3 × BT2×5 Screws

• 2 × BT1.6×5 Screws

• 1 × BT3×7 Screw

Installation Note

Switch off the printer and disconnect it from power before replacing the cooling fan.

During installation:

• Remove the toolhead covers as required

• Disconnect the original fan carefully

• Avoid pulling directly on the wiring

• Install the fan in the correct orientation

• Install both left and right air ducts correctly

• Secure the assembly using the supplied screws

• Route the cable according to the original path

• Make sure the fan blades rotate freely

• Confirm normal fan operation after reassembly

Troubleshooting Note

A failed hotend cooling fan can contribute to filament feeding and clogging problems, but similar symptoms may also be caused by:

• Partially blocked nozzle

• Damaged hotend

• Incorrect filament temperature

• Wet or contaminated filament

• Extruder problems

• Toolhead wiring faults

• Loose or damaged connectors

• Excessive chamber temperature

Proper diagnosis should be carried out before replacing parts.

Usage Note

This product includes the X2D hotend cooling fan, left and right air ducts, and mounting screws only. The hotends, heating assemblies, extruders, toolhead board, part cooling fan, and other toolhead components are not included unless separately specified.
