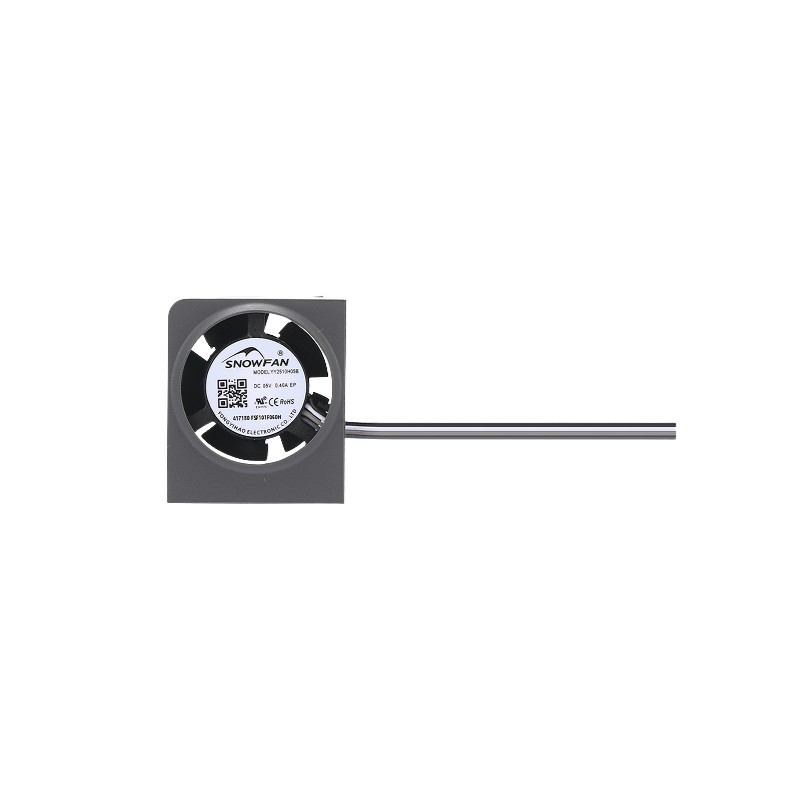

Bambu Lab Hotend Cooling Fan for H2S

The Bambu Lab Hotend Cooling Fan for H2S is an original replacement cooling component designed specifically for the Bambu Lab H2S toolhead.

Installed between the toolhead board and extruder, the fan cools the upper section of the hotend and helps prevent heat from travelling too far upward through the filament path. Maintaining this cooler zone helps keep filament solid until it reaches the intended melting area, reducing the risk of heat creep, premature softening, and hotend clogs.

The current H2S version is identified as FAH047-V1 and replaces the earlier FAH047 revision.

Key Features

• Original Bambu Lab hotend cooling fan

• Current part number FAH047-V1

• Replaces earlier FAH047 version

• Designed specifically for Bambu Lab H2S

• Positioned between the toolhead board and extruder

• Helps prevent premature filament softening

• Reduces the risk of heat-creep-related clogs

• Includes the required BT2-4 mounting screws

Dedicated Hotend Cooling

The nozzle operates at high temperature during printing, while the upper part of the hotend must remain considerably cooler.

The hotend cooling fan continuously moves air across this area, helping maintain the required temperature difference between the cold filament path and the hot melt zone.

Reliable cooling supports smooth filament feeding and consistent extrusion throughout the print.

Helps Prevent Heat Creep

If insufficient airflow allows heat to travel upward through the hotend, filament can begin softening before reaching the nozzle.

This can contribute to problems such as:

• Hotend clogs

• Filament jams

• Under-extrusion

• Extruder clicking

• Increased feeding resistance

• Failed filament loading

• Inconsistent extrusion

• Interrupted print jobs

A correctly operating hotend cooling fan helps reduce these heat-related problems.

Designed Specifically for H2S

The FAH047-V1 version is designed around the Bambu Lab H2S toolhead architecture.

Its physical layout, mounting points, cable routing, connector, and airflow arrangement are intended for the H2S.

Cooling fans used by H2D/H2C, P2S, X2D, A1 Series, A2L, and other Bambu Lab printers should not be assumed to be interchangeable.

Current FAH047-V1 Revision

The current replacement fan is supplied as FAH047-V1.

An earlier FAH047 version also exists. For the earlier version, Bambu Lab specifies that the fan orientation should be checked during installation and adjusted if necessary.

With the revised FAH047-V1 version, this orientation adjustment is not required and the fan can be installed according to the normal replacement procedure.

Important for Long Print Jobs

The hotend cooling fan plays an important role during extended prints where the hotend may remain at operating temperature for many hours.

Continuous airflow helps prevent heat accumulation around the upper hotend and supports stable filament feeding throughout long printing sessions.

This is particularly important during demanding high-speed or high-temperature printing.

Useful Replacement Part

Replacement may be appropriate if the original fan develops symptoms such as:

• Fan not spinning

• Hotend fan speed error

• Rattling or whining noise

• Reduced airflow

• Intermittent fan operation

• Damaged fan blades

• Damaged wiring or connector

• Repeated heat-creep-related clogs

Replacing a failed fan with the correct H2S-specific component helps restore the intended toolhead cooling performance.

Technical Specifications

Applications

• H2S hotend cooling

• Toolhead maintenance

• Replacement of failed cooling fan

• Repair of noisy fan

• Heat-creep troubleshooting

• Hotend maintenance

• Preventive spare-part replacement

• Print farm maintenance

• Workshop and service use

Compatibility

Compatible with:

• Bambu Lab H2S

• Bambu Lab H2S Laser configuration using the corresponding H2S toolhead

This is the dedicated H2S version. H2D and H2C use a different hotend cooling fan assembly.

Package Includes

• 1 × Bambu Lab Hotend Cooling Fan for H2S

• 2 × BT2-4 Screws

Installation Note

Switch off the printer and disconnect it from power before replacing the fan.

During installation:

• Remove the required toolhead covers

• Disconnect the original fan connector carefully

• Avoid pulling directly on the wires

• Install the replacement fan in the correct position

• Secure it using the supplied BT2-4 screws

• Route the cable correctly

• Confirm that the fan blades rotate freely

• Check normal fan operation after reassembly

If installing an older FAH047 revision, verify the fan orientation according to the Bambu Lab installation procedure. The revised FAH047-V1 version does not require this additional orientation adjustment.

Troubleshooting Note

A failed hotend cooling fan can contribute to filament jams and clogs, but similar symptoms may also result from:

• Partially blocked nozzle

• Damaged hotend

• Incorrect filament temperature

• Extruder problems

• Wet or contaminated filament

• Damaged wiring

• Loose connector

• Toolhead board problems

Correct diagnosis should be carried out before replacing parts.

Usage Note

This product includes the H2S hotend cooling fan and mounting screws only. The hotend, heating assembly, extruder, toolhead board, part cooling fan, and other toolhead components are not included unless separately specified.
