AlgoLaser Rotary Roller 2.0 RR2 for Laser Engravers

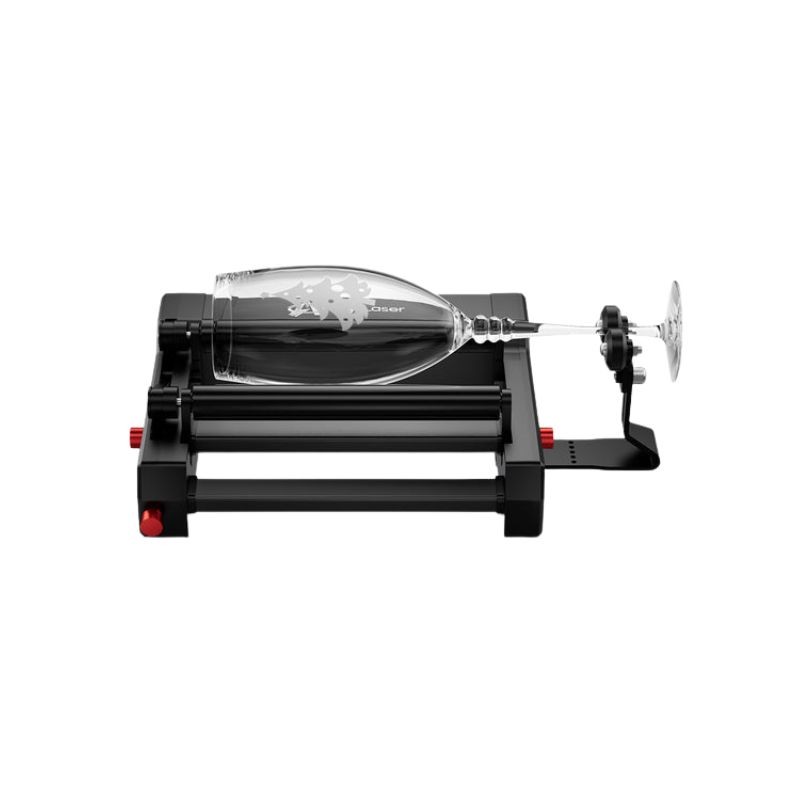

The RR2 rotary roller is designed for precise engraving on cylindrical and curved objects. With plug-and-play operation and wide compatibility, it is ideal for cups, bottles, tubes, pens, and other round materials.

Key Features:

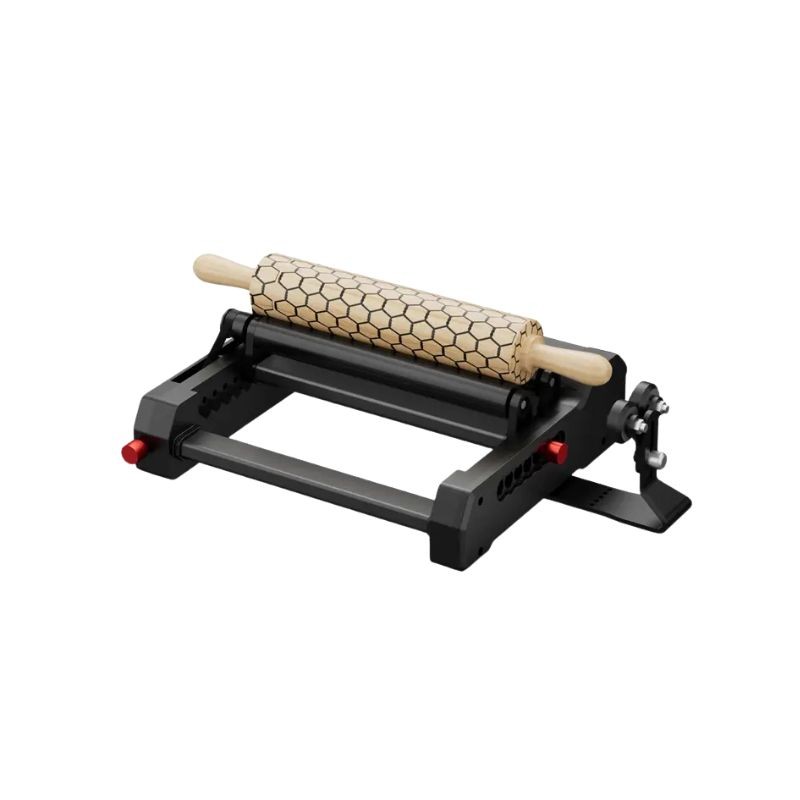

• Suitable for engraving cylindrical objects such as cans, bottles, cups, bowls, drums, guitars, tubes, and logs

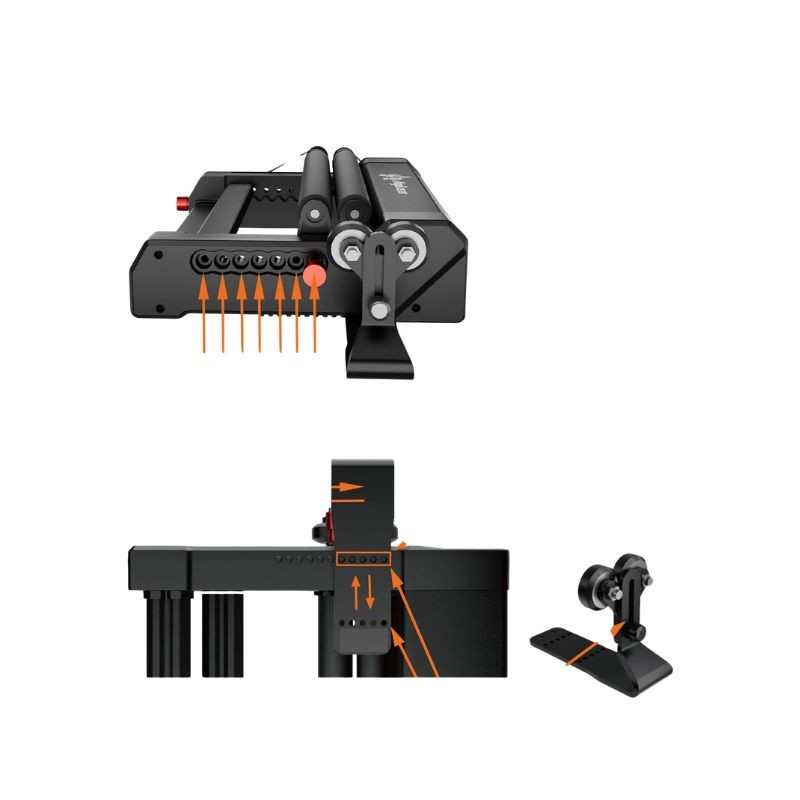

• Adjustable in 7 gear positions to support diameters from 1mm to 150mm

• Maximum engraving speed up to 3000mm/min

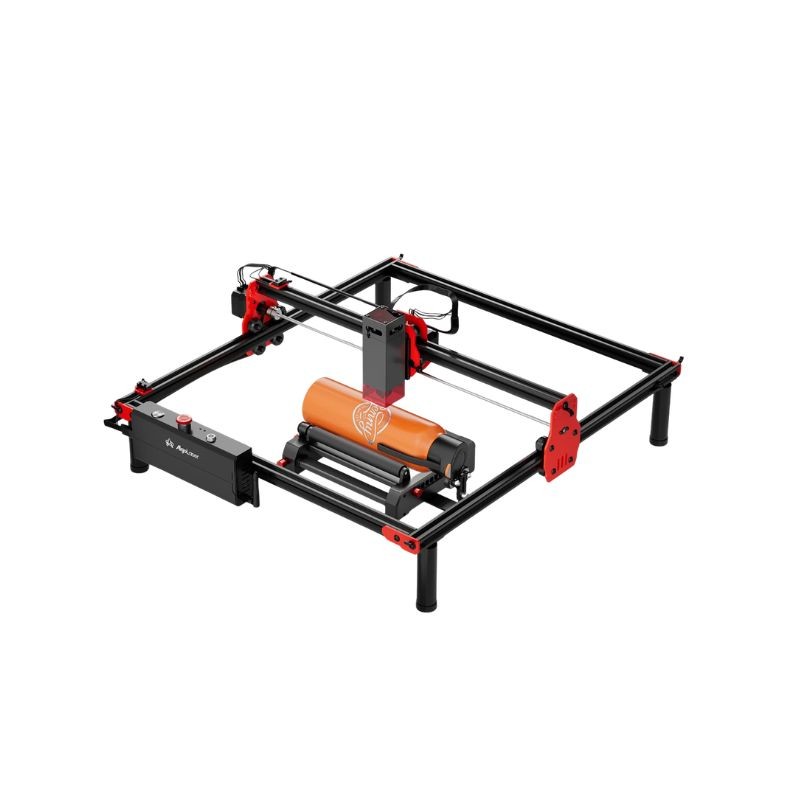

• When inverted, supports engraving lengths up to 135cm (53.1 inches) depending on bracket spacing

• Equipped with precision 42 hybrid stepper motor for accurate and stable rotation

• No installation required, simply connect the Y-axis cable and start engraving

• Surface linear speed matches original Y-axis speed, no additional software configuration needed

• Compatible with most GRBL-based laser engraving machines

• Software support: LightBurn, LaserGRBL, AlgoLaser APP

Specifications:

• Model: RR2

• Product Type: Y-axis rotary roller

• Product Size: 265 × 195 × 70mm (including bracket)

• Product Weight: 1.15kg (including bracket)

• Frame Material: ABS + fiber, stainless steel, silicone rubber

• Drive Mode: Motor-driven

• Roller Movement Stroke: 0–60mm

• Supported Diameter:

  • Cylinder: 1–150mm

  • Goblet: 1–100mm

  • Rod type: 1–150mm

• Engraving Length: Depends on Y-axis bracket distance

• Package Size: 29.5 × 25 × 10.5cm

• Package Weight: 1.6kg

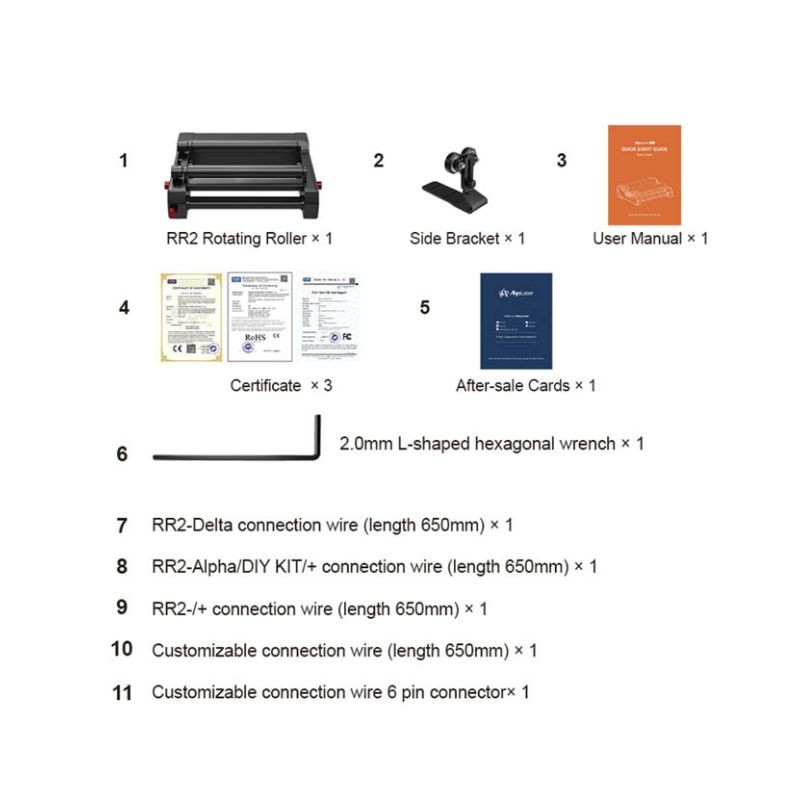

Package Includes:

• 1 × Y-Axis Rotary Roller Kit

• 1 × Side Bracket

• 1 × 2.0mm L-shaped Hex Key

• 4 × Connection Wires (650mm each)

• 1 × Customizable 6-pin Connector Wire

A practical and efficient upgrade for laser engraving machines, allowing clean and accurate 360° rotary engraving on a wide range of round objects.

*Compatible with all AlgoLaser machines except Pixi.
