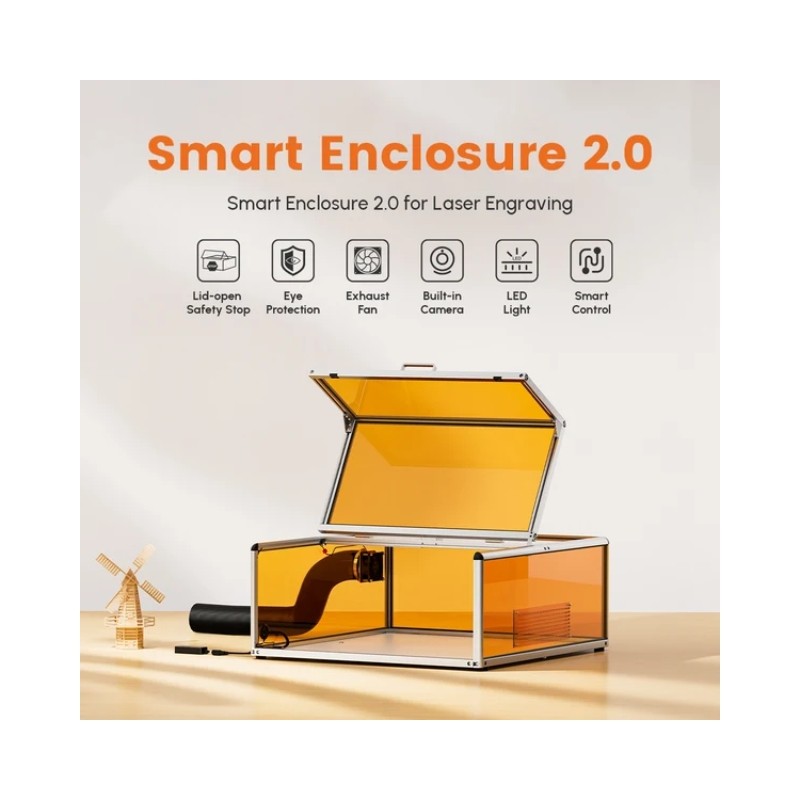

AlgoLaser Smart Enclosure 2.0 With Camera for Laser Engravers

The AlgoLaser Smart Enclosure 2.0 With Camera is designed to create a safer, cleaner, and more organized workspace around compatible open-frame laser engraving machines. It combines a protective enclosure with a built-in camera, smart cover detection, internal lighting, fan control, and LightBurn camera positioning support.

The integrated camera allows users to view the actual engraving workspace inside LightBurn and position artwork directly over the material before starting a job. This is especially useful for engraving irregular objects, pre-cut blanks, coasters, signs, tags, scrap materials, and multiple items placed on the work area.

When used with compatible AlgoLaser machines, the Smart Enclosure can also interact with the laser engraver to pause laser emission when the cover is opened, providing an additional layer of operational protection during normal use.

Key Features

• Smart laser engraver enclosure with built-in camera

• Designed for compatible AlgoLaser laser engravers

• LightBurn camera positioning support

• Smart cover detection with automatic laser pause

• Integrated internal lighting

• Smart fan control

• Large internal space for compatible laser machines

• Suitable for workshops, schools, studios, and laser engraving businesses

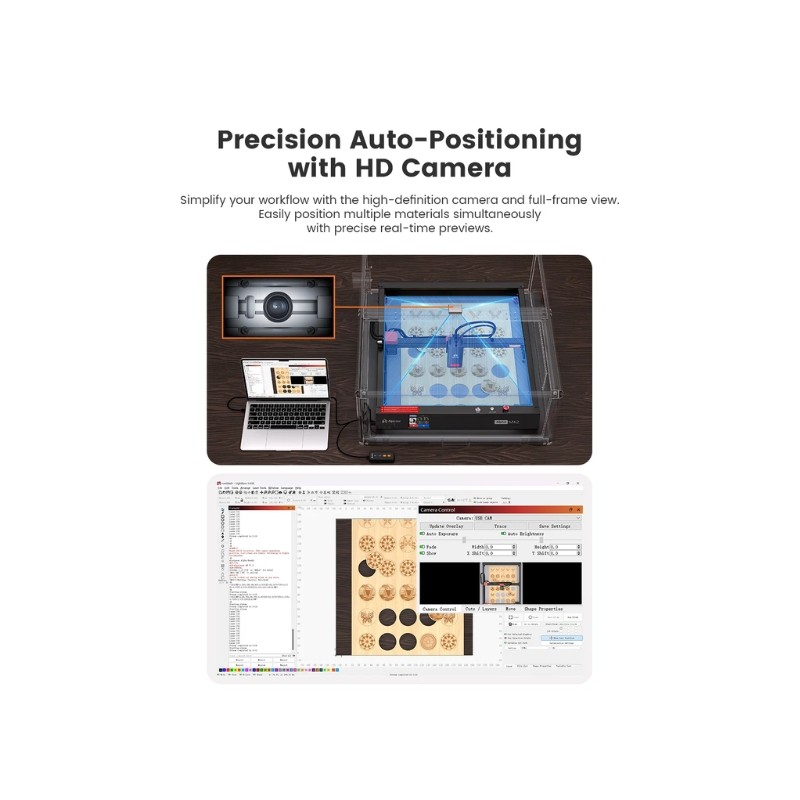

Built-In Camera for Visual Positioning

The Smart Enclosure 2.0 includes an integrated camera that provides an overhead view of the engraving workspace.

After completing camera calibration in LightBurn, users can see the material directly inside the software and position artwork over the actual object before engraving or cutting.

This reduces the need for repeated manual measurements and framing tests, making setup faster and more convenient.

Ideal for Irregular and Pre-Cut Objects

Camera positioning is especially useful when engraving objects that are not perfectly rectangular or that already have a finished shape.

Typical applications include:

• Coasters

• Keychains

• Wooden blanks

• Acrylic pieces

• Leather patches

• Tags

• Signs

• Business cards

• Product blanks

• Scrap material

Artwork can be positioned visually according to the actual location of the object on the engraving bed.

Batch Engraving Workflow

When multiple objects are placed inside the work area, the camera can help users position individual designs over each item.

This makes the enclosure useful for small-batch customization work such as personalized gifts, tags, product labels, coasters, promotional products, and craft items.

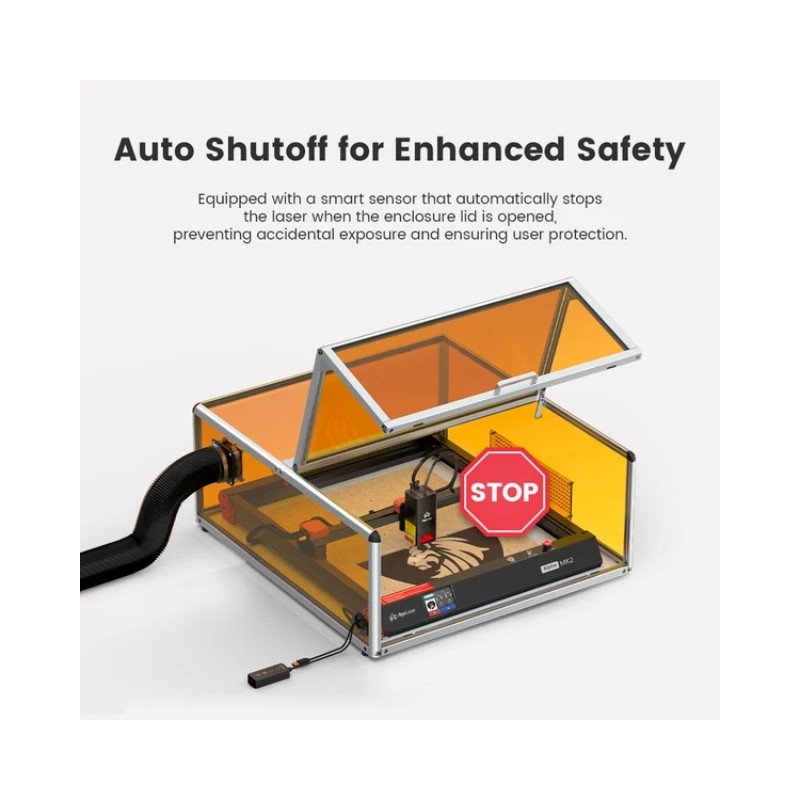

Smart Cover Detection

When connected to a compatible AlgoLaser machine, the enclosure can detect when the cover is opened.

Opening the cover can automatically pause laser emission, helping prevent the laser from continuing to operate while the user accesses the engraving area.

After the cover is closed, the engraving workflow can continue according to the supported machine setup.

Integrated Lighting

Built-in lighting improves visibility inside the enclosure and helps the camera capture a clearer view of the engraving area.

Better lighting is useful when positioning dark materials, small workpieces, or objects with edges that may otherwise be difficult to see in the camera view.

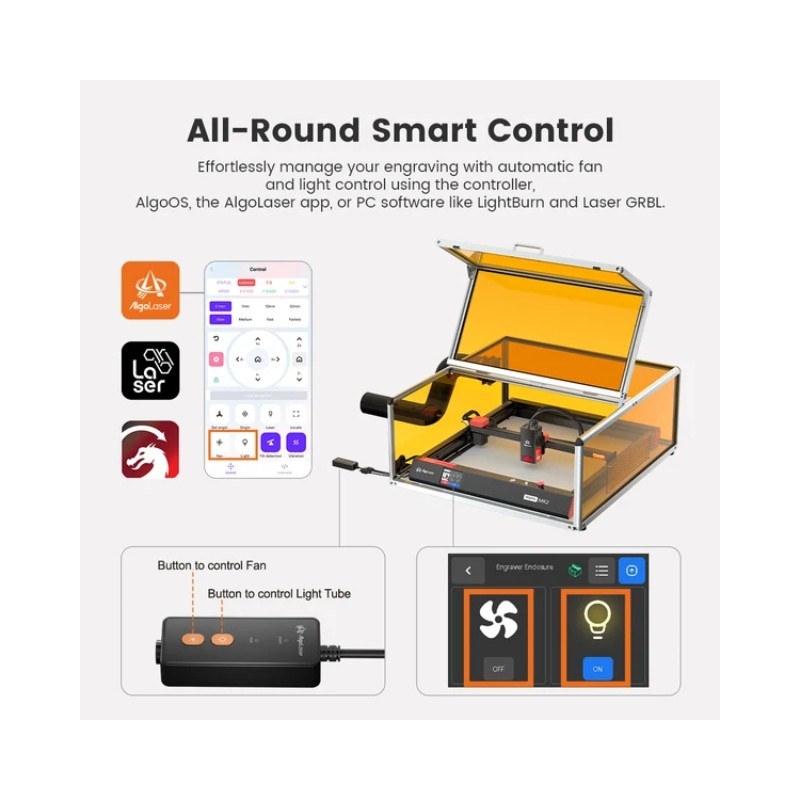

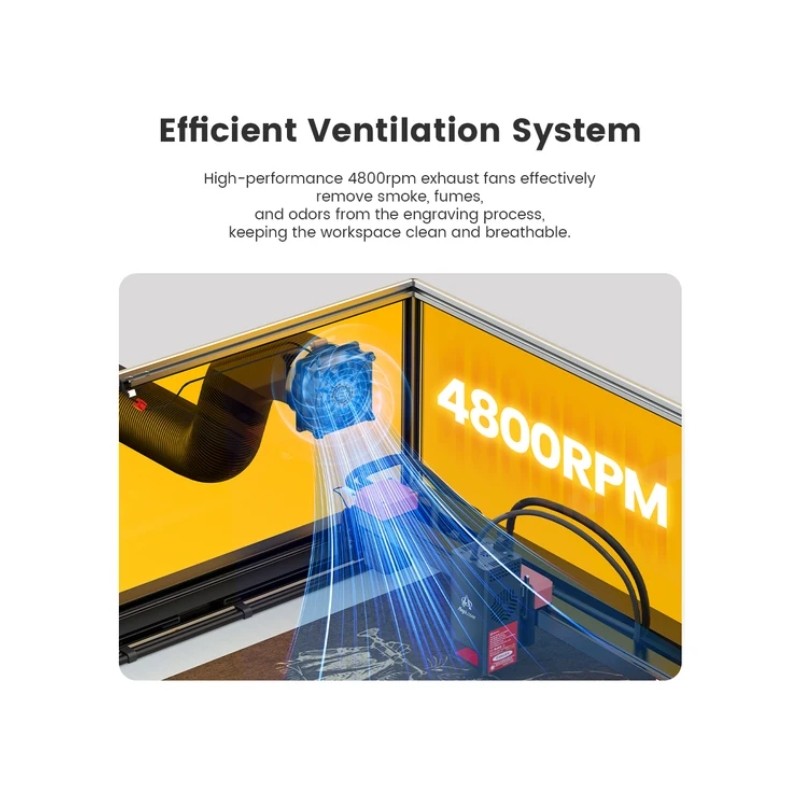

Smart Fan Control

The enclosure includes an integrated fan system that can be controlled as part of the supported AlgoLaser workflow.

The fan helps manage airflow inside the enclosure and can be used together with suitable smoke extraction or filtration equipment to create a cleaner laser engraving workspace.

Proper ventilation or smoke extraction should always be used according to the material being processed.

Helps Contain Smoke and Debris

The enclosure surrounds the laser engraving area and helps contain smoke, dust, and debris generated during engraving and cutting.

When connected to a suitable extraction or smoke purification system, it can help reduce the amount of smoke released directly into the surrounding workspace.

This is especially useful when processing materials such as wood, plywood, MDF, leather, and compatible acrylic.

Large Internal Working Space

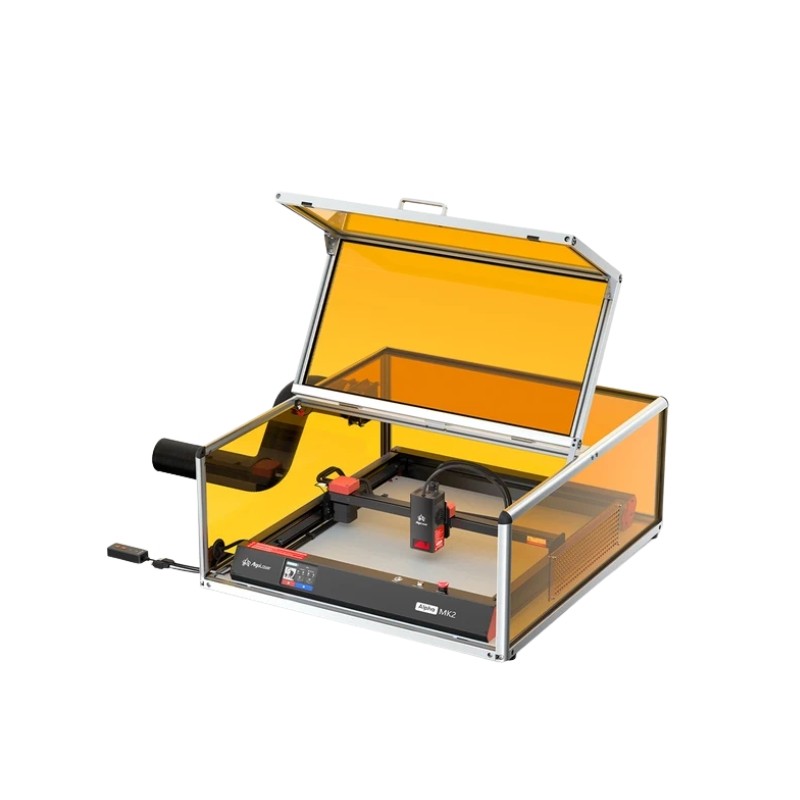

The Smart Enclosure 2.0 is designed to accommodate compatible laser engravers with machine dimensions up to approximately 733 × 785 × 323mm.

This provides enough internal space for many AlgoLaser open-frame engravers while still allowing room for normal machine movement and operation.

Always check the total machine dimensions when using additional accessories such as rotary systems, risers, extension kits, or cable management components.

Designed for LightBurn Workflow

The built-in camera is designed to work with LightBurn's camera functions.

Once calibrated, users can use the camera for:

• Workspace preview

• Material positioning

• Artwork alignment

• Batch engraving

• Irregular object engraving

• Scrap material utilization

• Job setup verification

LaserGRBL does not provide the same camera positioning workflow as LightBurn.

Technical Specifications

Compatible AlgoLaser Machines

The Smart Enclosure 2.0 is designed for compatible AlgoLaser machines including:

• AlgoLaser Alpha

• AlgoLaser Alpha MK2 Series

• AlgoLaser DIY KIT

• AlgoLaser DIY KIT MK2 Series

• AlgoLaser DIY KIT MINI

Compatibility may vary according to machine configuration and installed accessories.

Third-Party Laser Engraver Compatibility

Laser engravers from other brands may physically fit inside the enclosure if their dimensions are within the available internal space.

However, smart functions such as automatic cover detection, laser pause interaction, integrated fan control, and lighting control are designed primarily for compatible AlgoLaser machines.

The camera can still be used where the computer, connection, and LightBurn software support the required camera workflow.

Applications

• Laser engraving machine enclosure

• LightBurn camera positioning

• Artwork alignment

• Batch engraving

• Product customization

• Wood engraving

• Acrylic engraving and cutting

• Leather engraving

• Sign making

• Gift customization

• Craft production

• Workshop laser setups

• School and makerspace laser systems

• Small business laser engraving

Optional Accessories

Depending on the required workflow, the Smart Enclosure 2.0 can be used together with compatible accessories such as:

• AlgoLaser Smoke Purifier

• AlgoLaser Smart Hub

• Air Assist System

• Rotary Roller

• Rotary Chuck

• LightBurn Software

• Compatible laser engraver accessories

Optional accessories may not be included unless specifically stated with the selected package.

Compatibility Note

Smart functions such as cover detection, automatic laser pause, lighting control, and fan control depend on the connected laser engraver and supported AlgoLaser setup.

Physical fit inside the enclosure does not guarantee compatibility with every smart function.

Usage Note

Install the enclosure on a stable and level working surface and ensure suitable ventilation or smoke extraction before operating the laser. Complete the camera calibration process in LightBurn after installation.

For accurate camera positioning, avoid moving the laser engraver, enclosure, or camera after calibration. If their relative positions change, recalibration may be required.

Note

The smart hub is a necessary tool for using the smart enclosure and smart air pump at the same time.
For most DIY KIT 5W/10W users that haven't use smart air pump can choose the enclosure only.
