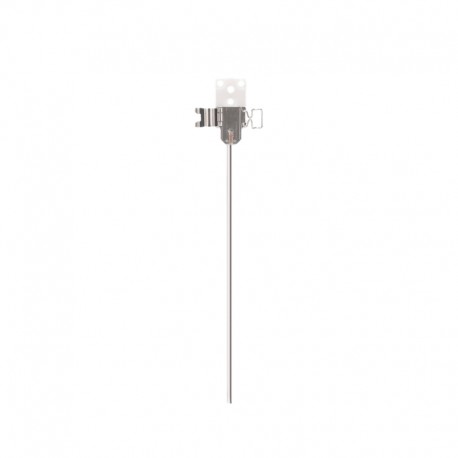

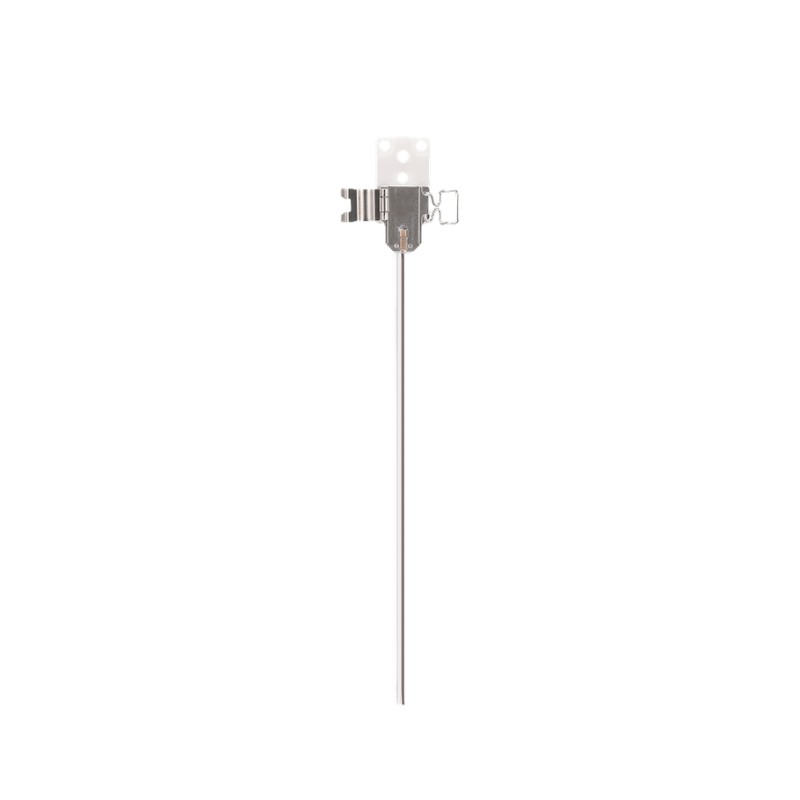

Bambu Lab Hotend Heating Assembly for A2L

The Bambu Lab Hotend Heating Assembly for A2L is an original replacement component responsible for heating the removable hotend and supporting accurate nozzle temperature control on the Bambu Lab A2L.

Designed around Bambu Lab's quick-swap hotend system, the assembly remains installed on the toolhead while the hotend itself can be released through the clamping mechanism. This separates the heating and electronic components from the replaceable hotend, making nozzle changes and maintenance faster and more convenient.

The FAH070 assembly is designed specifically for the Bambu Lab A2L and is suitable for replacing a damaged or malfunctioning original heating assembly.

Key Features

• Original Bambu Lab hotend heating assembly

• Part number FAH070

• Designed specifically for Bambu Lab A2L

• Provides heat to the removable hotend

• Supports the A2L quick-swap hotend design

• Quick-clamping mechanism secures the hotend

• Metal and ceramic construction

• Includes three M3×10 mounting screws

Heats the Hotend for Filament Extrusion

The heating assembly supplies the thermal energy required to bring the installed hotend to the selected printing temperature.

Once heated, filament entering the hotend melts and can be extruded through the nozzle to form each printed layer.

Stable heating is essential for maintaining:

• Consistent material flow

• Reliable extrusion

• Accurate layer formation

• Correct filament melting

• Stable printing temperatures

Quick-Swap Hotend Design

The A2L heating assembly is specifically designed to support Bambu Lab's removable hotend system.

A quick-clamping mechanism holds the hotend securely against the heating assembly during operation.

When maintenance or a nozzle change is required, the hotend can be released without replacing the complete heater assembly.

This makes it easier to switch between compatible nozzle sizes or replace a worn hotend.

Separates Thermal and Electronic Components

The heating assembly remains part of the toolhead while the removable hotend can be separated from it.

This design reduces the number of electrical connections that need to be handled during routine hotend replacement.

It is particularly useful for users who regularly change between different compatible nozzle diameters for detailed printing, standard printing, or higher-flow applications.

Integrated Temperature Monitoring

The heating system works together with the printer's temperature-control electronics to monitor and regulate hotend temperature during printing.

Accurate temperature feedback allows the printer to control heater output and maintain the temperature required by the selected filament profile.

If the heating assembly or its temperature-sensing system develops a fault, the printer may detect abnormal heating behavior and stop operation for safety.

Designed Specifically for A2L

The FAH070 assembly is designed specifically for the Bambu Lab A2L toolhead.

Its:

• Mounting arrangement

• Electrical connection

• Heating interface

• Hotend clamping mechanism

• Toolhead integration

are designed around the A2L.

Heating assemblies used by the A1 Series, P2S, X2D, H2D, H2C, H2S, and other Bambu Lab printer families should not be assumed to be interchangeable.

Compatible with A1/A2 Series Hotends

The A2L uses compatible Bambu Lab A1/A2 Series removable hotends.

Depending on the selected hotend, compatible nozzle options include different diameters and nozzle materials for applications ranging from fine-detail printing to higher-flow extrusion.

The heating assembly itself does not include the removable hotend unless specifically stated separately.

Useful Replacement Part

Replacement of the heating assembly may be appropriate when troubleshooting problems such as:

• Hotend not heating

• Heating stopping unexpectedly

• Abnormal temperature readings

• Temperature fluctuations

• Heater-related printer errors

• Damaged heating assembly

• Damaged electrical connection

• Physical damage around the hotend mounting area

Correct diagnosis should be performed before replacing the component because similar symptoms can also originate from wiring, connectors, the hotend, toolhead electronics, or other components.

Quick-Clamping Mechanism

The heating assembly uses a clamping system to hold the hotend securely against the heating surface.

Correct contact between the hotend and heating assembly is important for efficient heat transfer and accurate temperature control.

After installing a hotend, make sure it is fully seated and correctly secured before starting a print.

Technical Specifications

Applications

• A2L hotend heating

• Replacement of damaged heating assembly

• Repair of hotend heating faults

• Temperature-control troubleshooting

• Toolhead maintenance

• Hotend system repair

• Preventive spare-part replacement

• Print farm maintenance

• Workshop and service use

Compatibility

Compatible with:

• Bambu Lab A2L

Designed for use with the A2L quick-swap hotend system.

Do not assume compatibility with heating assemblies from other Bambu Lab printer families even where the removable hotend itself may appear similar.

Package Includes

• 1 × Bambu Lab Hotend Heating Assembly for A2L

• 3 × M3×10 Screws

Installation Note

Switch off the printer and disconnect it from power before replacing the heating assembly.

During installation:

• Allow the existing hotend to cool completely

• Remove the hotend and required toolhead covers

• Disconnect the heating assembly connections carefully

• Avoid pulling directly on electrical wires

• Install the replacement assembly in the correct orientation

• Secure it using the supplied M3×10 screws

• Reconnect all electrical connections fully

• Reinstall the hotend and confirm that it is properly clamped

• Verify normal heating and temperature readings before beginning a long print

Troubleshooting Note

A hotend heating problem does not always mean the heating assembly itself has failed.

Similar symptoms may be caused by:

• Loose electrical connectors

• Damaged toolhead wiring

• Toolhead board problems

• Incorrectly installed hotend

• Temperature sensor faults

• Physical damage to the hotend

• Firmware-detected heating abnormalities

Inspect and diagnose the complete heating circuit before replacing components.

Usage Note

This product includes the A2L Hotend Heating Assembly and mounting screws only. The removable hotend, silicone sock, hotend cooling fan, extruder, toolhead board, and other toolhead components are not included unless separately specified.
