GD-40F Level Adjustable Flat Foma Wheels Casters 50kg 42mm

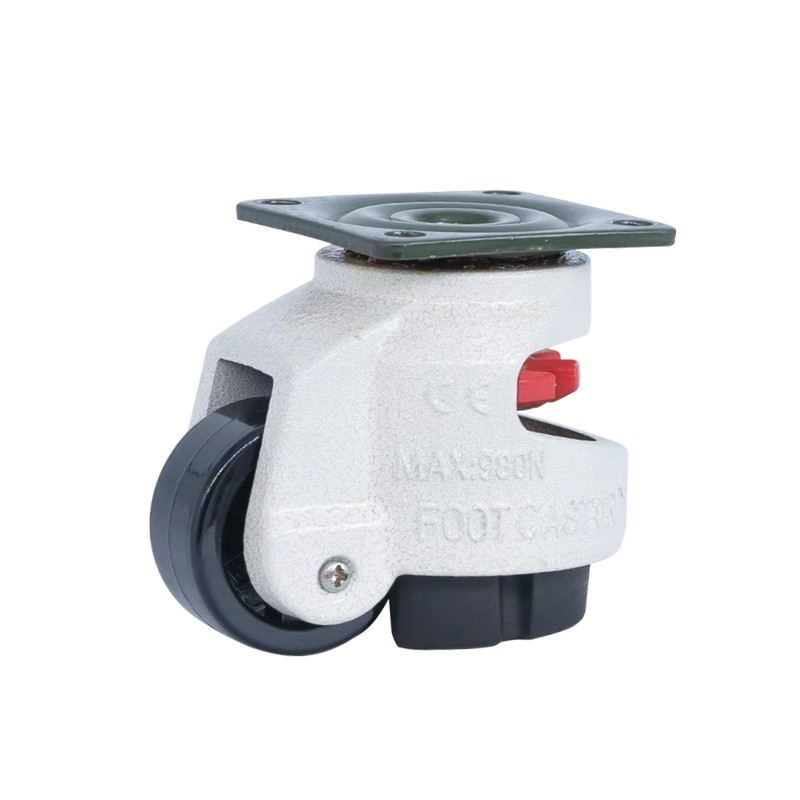

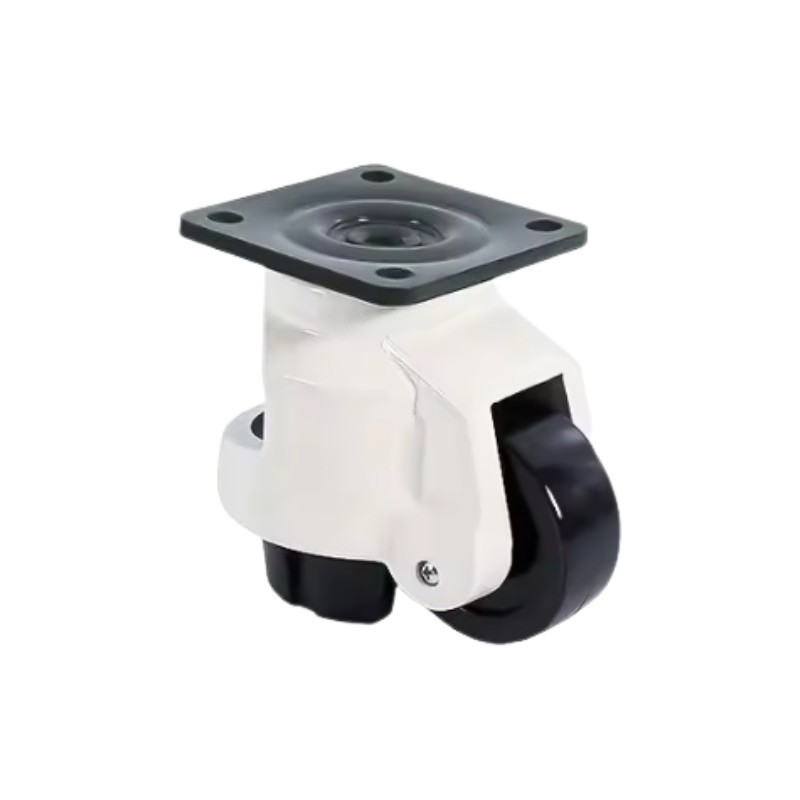

The GD-40F Level Adjustable Caster combines a swivel wheel and an adjustable leveling foot in one compact unit. It allows equipment to be moved when needed and positioned securely during operation, making it suitable for workbenches, machinery, storage cabinets, equipment stands, and workshop furniture.

With a 42mm wheel diameter and a 50kg load rating per caster, the GD-40F provides a practical solution for equipment that requires both mobility and a stable working position. Its flat mounting plate allows installation on compatible machine frames and furniture bases.

Key Features

• Combined swivel caster and adjustable leveling foot

• 42mm wheel diameter

• 50kg load capacity per caster

• Flat mounting plate for secure installation

• 360° swivel movement for easier positioning

• Adjustable foot for leveling and stabilizing equipment

• Compact design for machinery, workbenches, and cabinets

• Suitable for workshop, industrial, and general equipment use

Move Equipment and Keep It Stable

The GD-40F combines the convenience of a caster wheel with the stability of a leveling foot. When the foot is raised, the wheel allows the equipment to be moved. Once the equipment reaches its required position, the leveling foot can be lowered to support it.

This makes the caster particularly useful for machinery and workstations that occasionally need to be relocated but must remain stationary during operation.

Adjustable Leveling Foot

The integrated leveling mechanism allows users to adjust the equipment's height and compensate for minor floor unevenness.

The foot also helps reduce unwanted movement while the equipment is in use. This is useful for workbenches, tool cabinets, machine stands, and other equipment where stability is important.

Compact Swivel Wheel Design

The 42mm wheel provides convenient movement without requiring a large caster assembly. Its swivel mechanism allows equipment to be repositioned in different directions, making it practical for workshops and areas where floor space is limited.

Flat Plate Mounting

The GD-40F features a flat mounting plate designed for attachment to compatible equipment frames and furniture bases.

Before installation, check the mounting plate dimensions, hole spacing, and equipment structure to ensure the caster can be securely fitted.

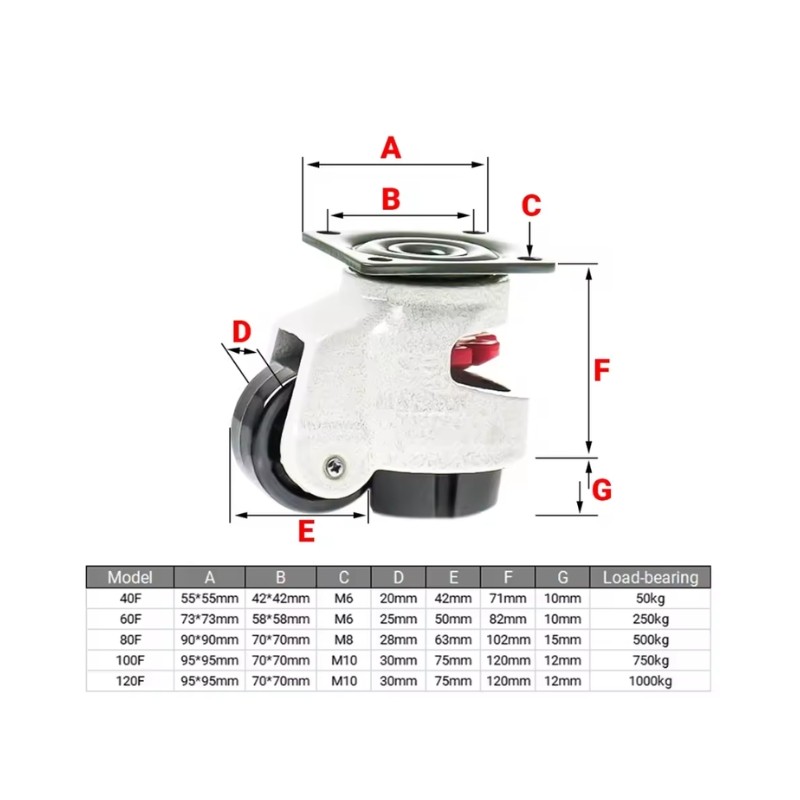

Technical Specifications

Applications

• CNC machine stands

• 3D printer worktables

• Industrial workbenches

• Tool cabinets

• Equipment racks

• Storage cabinets

• Laboratory equipment stands

• Workshop machinery

• Mobile assembly stations

• General machinery and furniture positioning

Compatibility

Suitable for equipment with a compatible flat mounting surface and sufficient structural strength to support the required load.

Load Capacity Note

The 50kg rating applies to an individual caster. The recommended total load for a set of four is approximately 100kg, allowing for practical load distribution and leveling. Do not calculate the recommended equipment load by simply multiplying the individual caster rating by four.

Usage Note

Raise the leveling foot before moving the equipment. Once positioned, lower and adjust the foot until the equipment is stable. Confirm the mounting dimensions and distribute the equipment weight evenly across the installed casters.
