Nidec VRSF-5C-750-LMS 1:5 Planetary Gearbox for NEMA34

The Nidec VRSF-5C-750-LMS is a premium industrial planetary gearbox designed to deliver high torque, excellent positioning accuracy, and reliable power transmission for CNC machines, automation systems, and motion control applications. Featuring a 1:5 reduction ratio and low backlash design, it is ideal for demanding applications requiring smooth and precise movement.

Key Features

• 1:5 Reduction Ratio
  Increases output torque while improving positioning precision and system stability.
• Designed for NEMA 34 Motors
  Compatible with NEMA 34 stepper motors and servo motors using a 14 mm input shaft.
• High Precision Planetary Gear Design
  Low backlash performance of ≤3 arc-min helps improve positioning accuracy and repeatability.
• Industrial-Grade Construction
  Heavy-duty cast iron housing provides excellent rigidity, durability, and vibration resistance.
• High Load Capacity
  Designed to handle demanding industrial applications with substantial radial and axial loads.
• IP65 Protection Rating
  Protected against dust ingress and water splashes for reliable operation in industrial environments.
• Premium FAG Bearings
  Equipped with high-quality FAG bearings for smooth operation and long service life.

Specifications

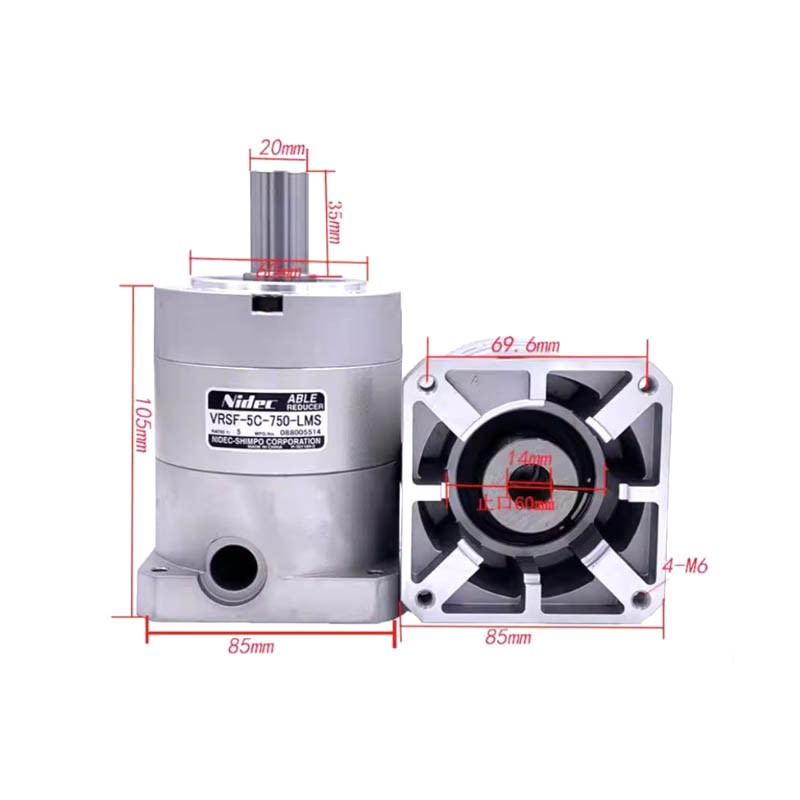

• Model: VRSF-5C-750-LMS
• Brand: Nidec-Shimpo
• Product Type: Planetary Gearbox Reducer
• Reduction Ratio: 1:5
• Maximum Input Speed: 3000 RPM
• Housing Material: Cast Iron
• Bearing Type: FAG Bearings
• Input Shaft: 14 mm Female
• Output Shaft: 20 mm Keyed Male Shaft
• Permitted Radial Load: 980 N
• Permitted Axial Load: 490 N
• Backlash (Precision): ≤3 Arc-Min
• Protection Rating: IP65

Applications

Suitable for:

• CNC Routers
• CNC Milling Machines
• Plasma Cutting Machines
• Laser Cutting Systems
• Industrial Automation Equipment
• Robotics
• Packaging Machinery
• Material Handling Systems
• Motion Control Applications

Benefits

• Increased torque output
• Improved positioning accuracy
• Reduced motor inertia effects
• Smooth and efficient power transmission
• High durability and reliability
• Suitable for continuous industrial operation

Ideal for CNC and automation applications requiring high precision, low backlash, and reliable industrial-grade performance.
