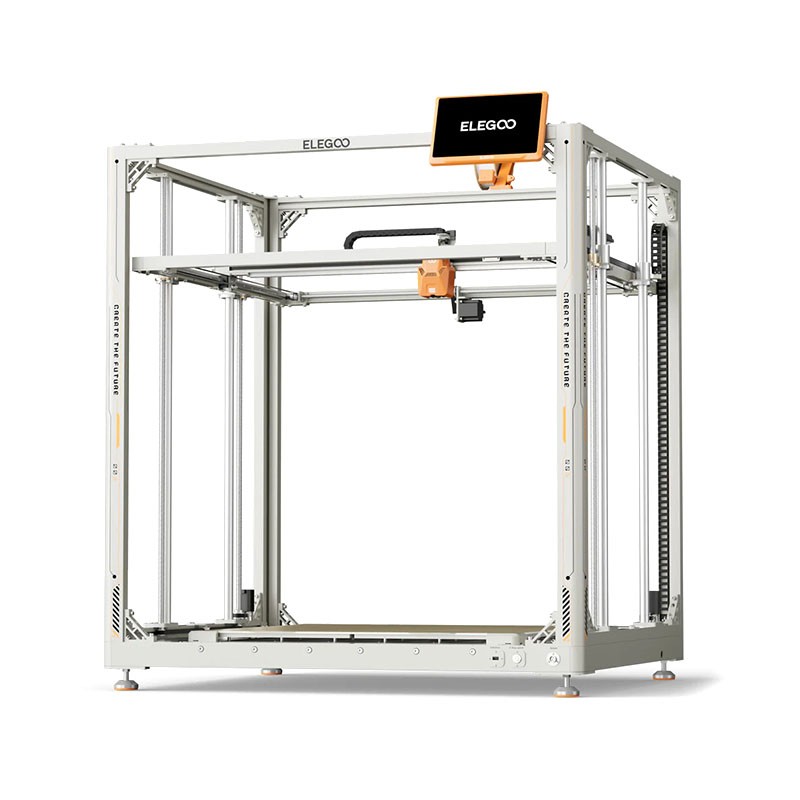

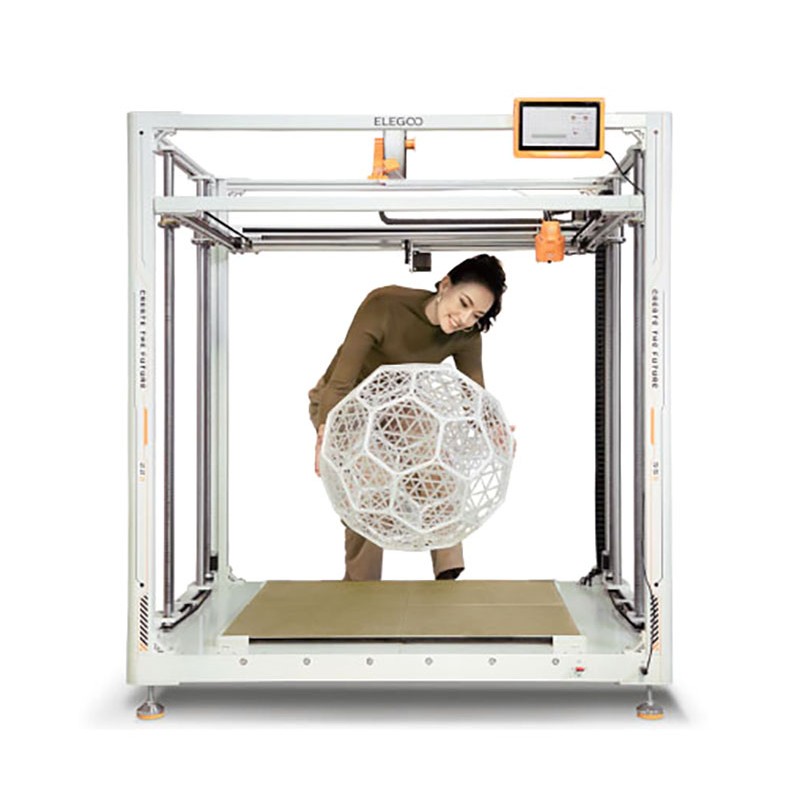

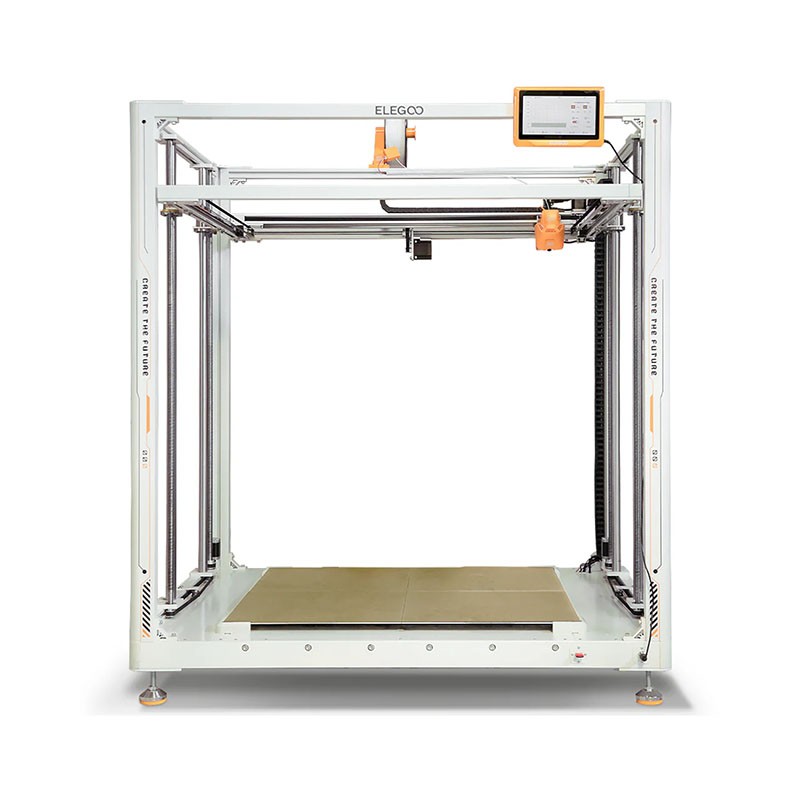

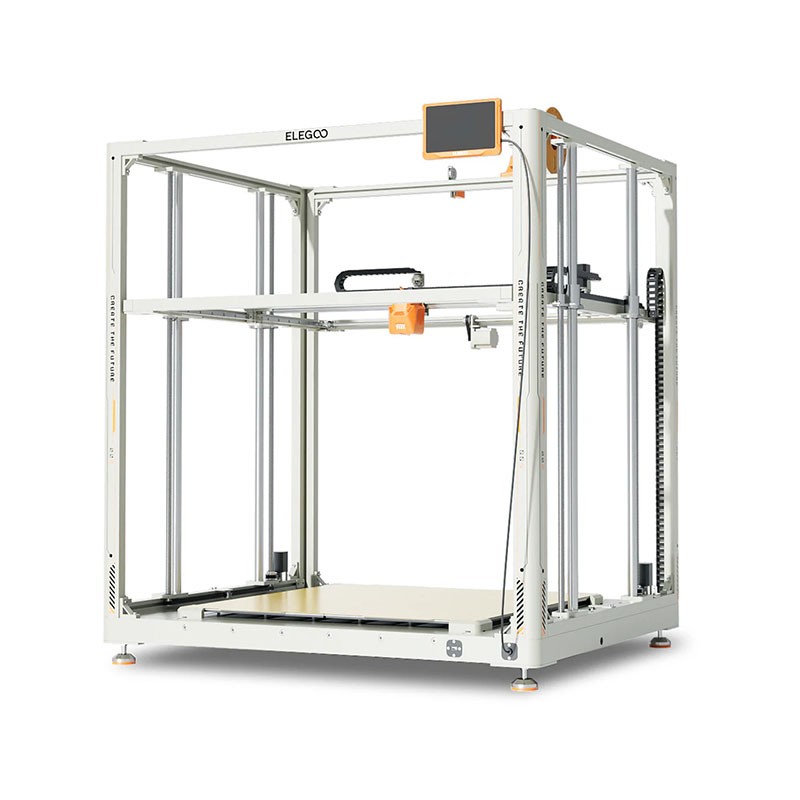

Elegoo OrangeStorm Giga 3D Printer

Note: This 3D printer comes as a semi-assembled kit. Easy-to-setup assembling process will take 30-90 minutes depending on the user's ability. Customer/User is responsible for assembling the printer and Seller will provide technical assistance when required.

Elegoo OrangeStorm Giga 3D Printer

The Elegoo OrangeStorm Giga is a large-format FDM 3D printer built for high-performance and industrial-grade applications. With an enormous build volume of 800 x 800 x 1000 mm, it offers hobbyists and professionals the freedom to create massive prints in a single pass.

Key Features:

• Build Volume: 800 x 800 x 1000 mm

• 64-bit quad-core processor (SOC RK3328, 1.5 GHz)

• Max printing speed: 300 mm/s

• Heated bed with 4 independent 410 x 410 mm PEI magnetic build plates

• Max bed temperature: 90 °C (heats in ~17 minutes)

• Optional 4-nozzle printing (multi-head for multi-colour prints)

• Max nozzle temperature: 300 °C

• Nozzle construction: chrome-zirconium-copper with titanium alloy heat pipe and 60W ceramic heater

• Automatic one-click bed leveling with 121-point precision

• Face-mounted 7-inch HD capacitive touchscreen

• PID auto-calibration and built-in resonance compensation

• Filament runout sensor and power loss recovery

• Carbon base with anti-slip rubber pads

• Advanced cable routing with protective rails

Cooling System:

• 2 x 5015 dual-sided ball fans

• 1 x 4010 axial ball fan

• Intelligent fan control for post-print shutdown

Connectivity & Extras:

• Optional multi-nozzle mount for printing up to four models simultaneously

• User-friendly knob controls and spool holder for 5 kg rolls

• Robust steel housing and linear guide system for X and Y axes

• Z-axis with reinforced guide rod for stability

In the Box:

• OrangeStorm Giga printer

• Print head

• 7" touchscreen

• Levelling plates ×2

• Spool holder and arm

• Filament breakage detectors ×2

• Cable rail clips ×2

• Z-axis end stops ×2

• Filament guide assembly

• Power cable

• Levelling card

• Grease

• Corner brackets ×8

• Tools, fasteners, and user manual

Technical specifications:
