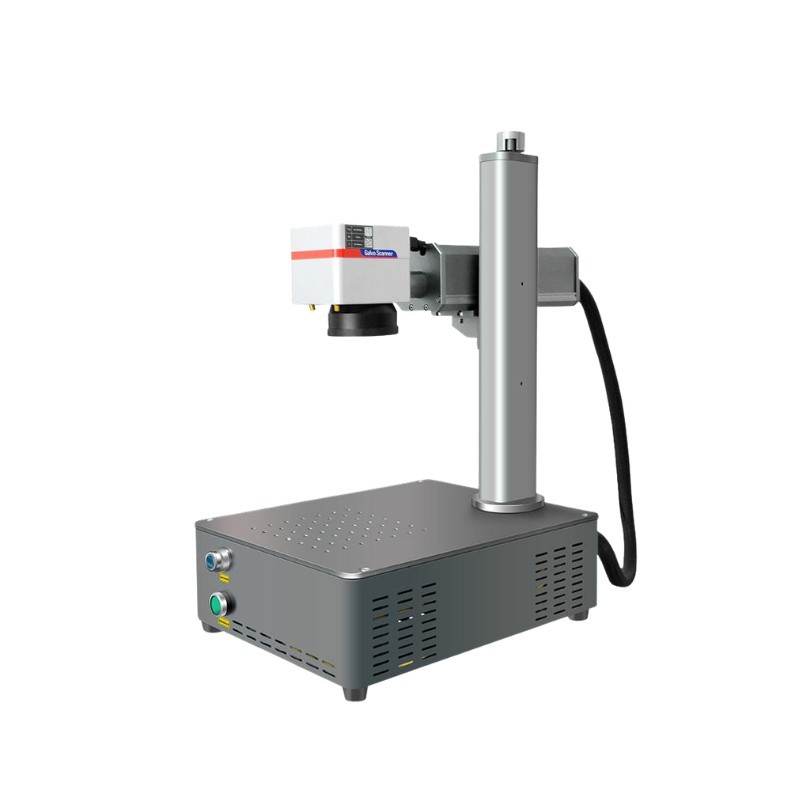

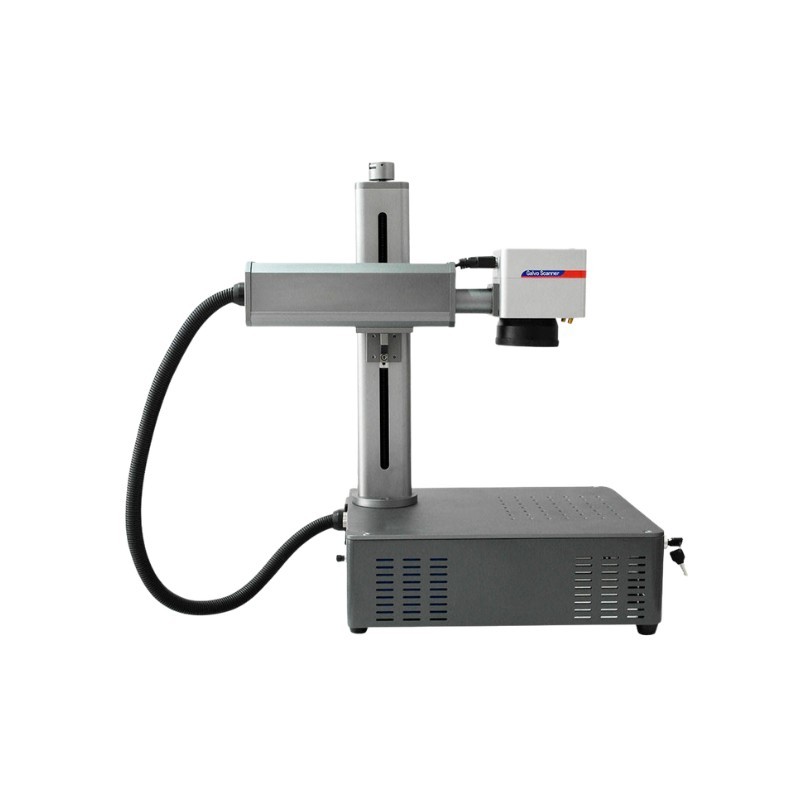

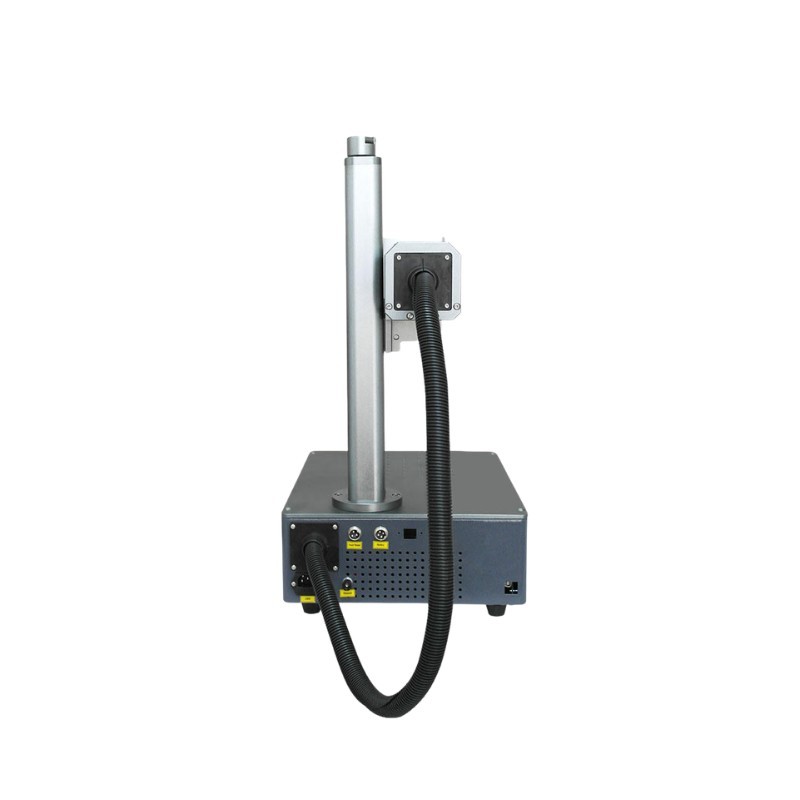

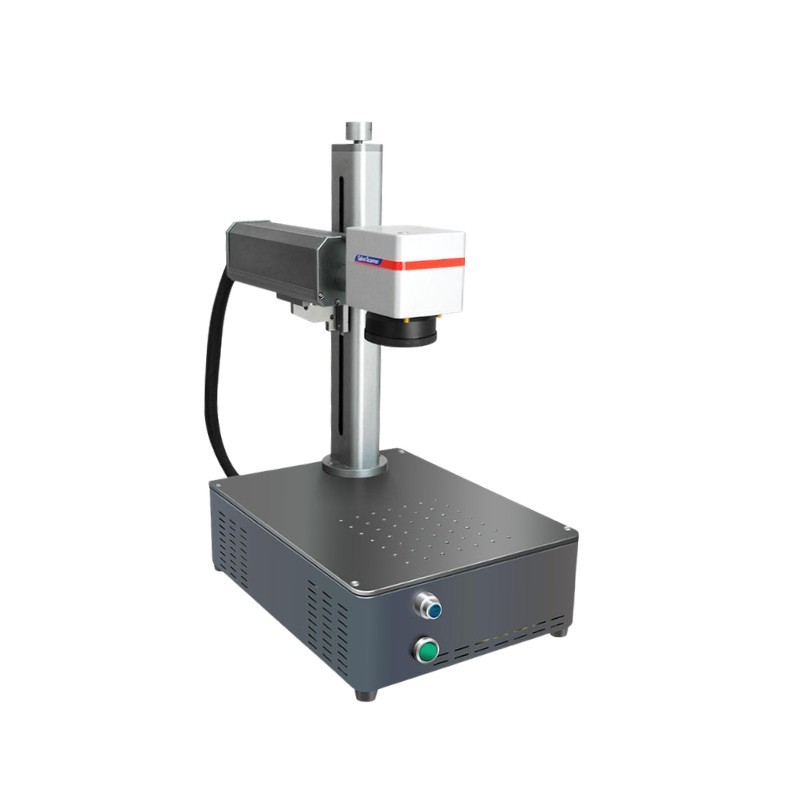

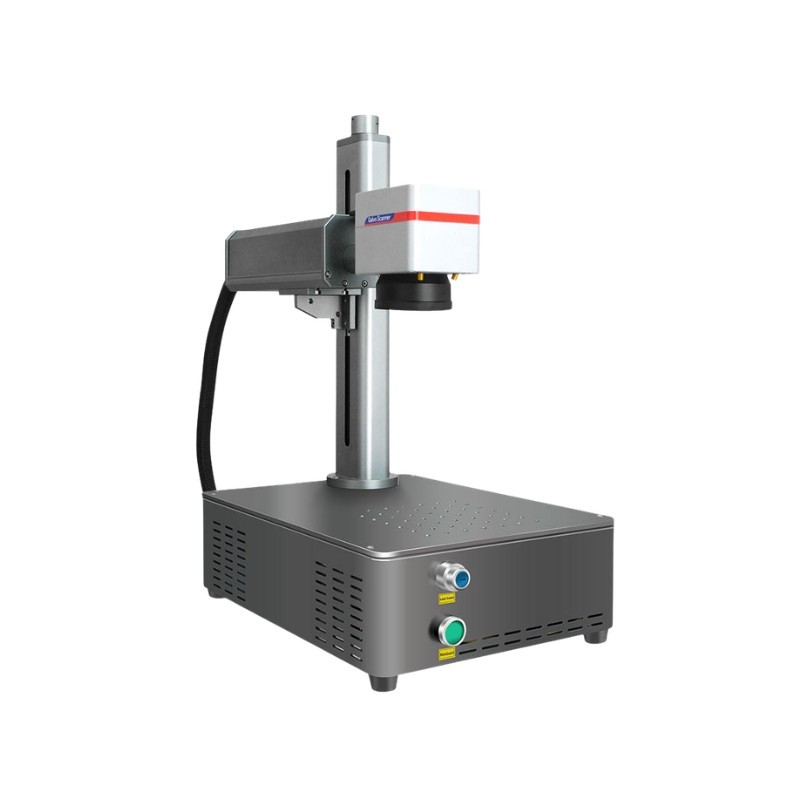

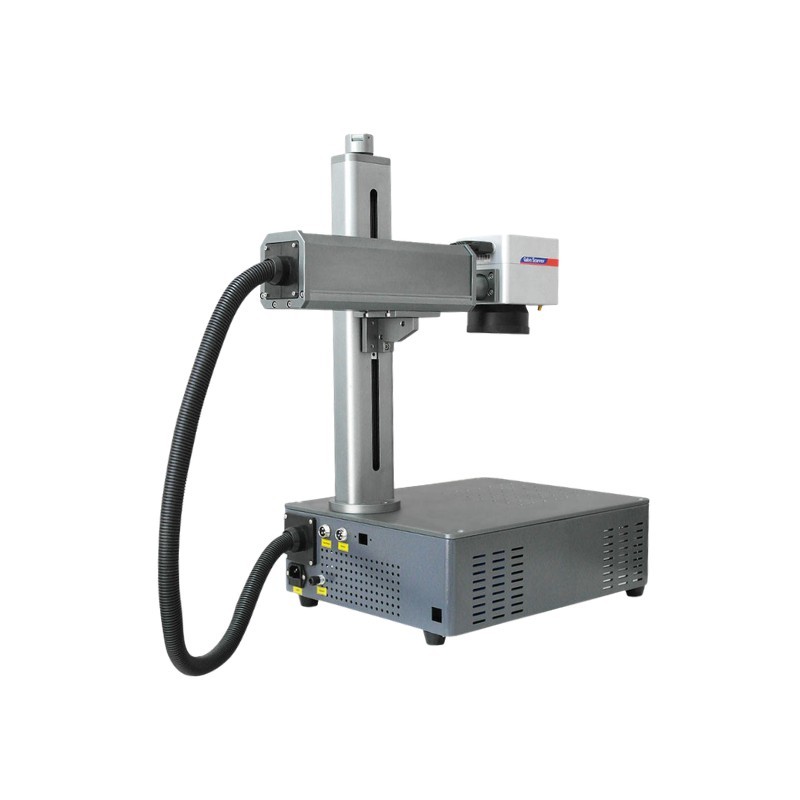

The Portable Fiber Laser Marking Machine 20W is a compact and professional laser marking system designed for high-precision permanent marking on metals and selected engineering plastics. Equipped with a genuine Raycus fiber laser source, SINO RC1001 galvo scanner, BJJCZ LV7 control card, and Mean Well power supply, it delivers reliable industrial-grade performance in a space-saving desktop design.
Key Features
- 20W Raycus Fiber Laser Source
Provides stable output, excellent beam quality, and long operational life. - 150 × 150 mm Marking Area
Suitable for logos, serial numbers, QR codes, barcodes, graphics, and product identification. - SINO RC1001 High-Speed Galvo Scanner
Ensures fast marking speeds and precise engraving accuracy. - BJJCZ LV7 Control System
Industry-standard control card compatible with professional laser marking software. - Double Red Light Positioning
Simplifies focusing and marking alignment for improved workflow efficiency. - Rotary Attachment Support
Compatible with optional rotary devices for marking rings, tumblers, pipes, and cylindrical objects.
Technical Specifications
- Laser Power: 20W
- Laser Source: Raycus
- Marking Area: 150 × 150 mm
- Galvo Scanner: SINO RC1001
- Control Card: BJJCZ LV7
- Power Supply: Mean Well
- Laser Wavelength: 1064 nm
- Marking Speed: ≤ 12000 mm/s
- Minimum Line Width: 0.01 mm
- Repetition Accuracy: ±0.003 mm
- Pulse Frequency: 10-60 KHz
- Cooling System: Air Cooling
- Operating Voltage: AC 110V / 220V, 50/60Hz
Package Includes
- Portable Fiber Laser Marking Machine
- Foot Switch
- Data Cable
- Laser Safety Glasses
- 2 Aluminum Bars
- USB Drive with Reference Marking Parameters
Applications
Ideal for metal engraving, industrial traceability, logo marking, nameplates, electronics, tools, jewelry, and customized product marking.
The fiber laser system produces permanent, high-contrast markings with exceptional detail and accuracy. Suitable for both fine engraving and high-speed production marking applications.
Supported Materials
Suitable for marking:
- Stainless steel
- Carbon steel
- Aluminum
- Brass
- Copper
- Titanium
- Gold
- Silver
- Anodized aluminum
- Coated metals
- Engineering plastics (selected types)
Common Applications
- Product identification
- Serial number marking
- QR code and barcode engraving
- Logo engraving
- Tool marking
- Electronic component marking
- Nameplates and tags
- Industrial part traceability
- Jewelry engraving
