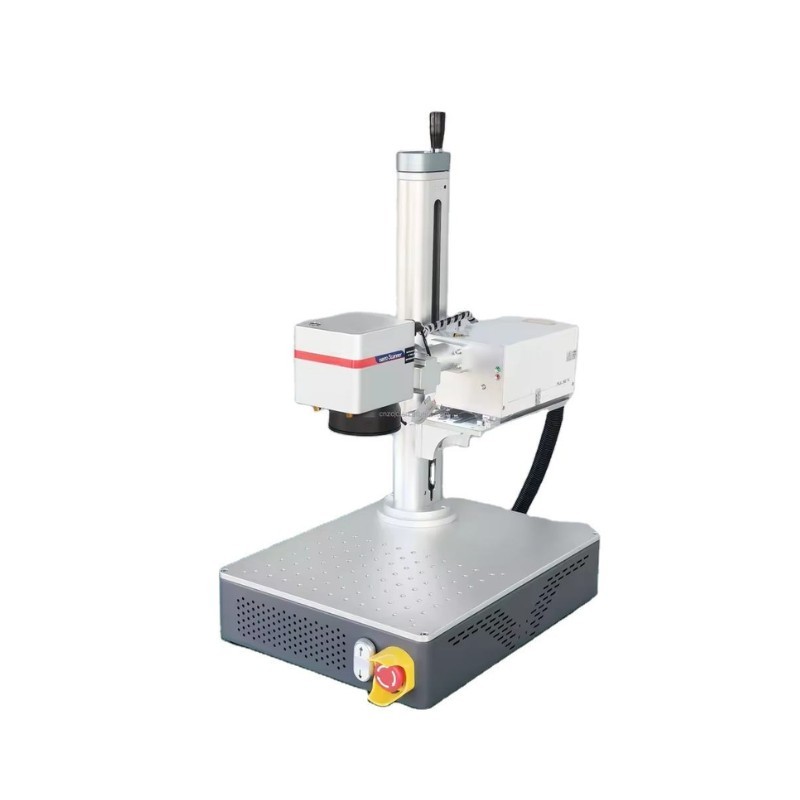

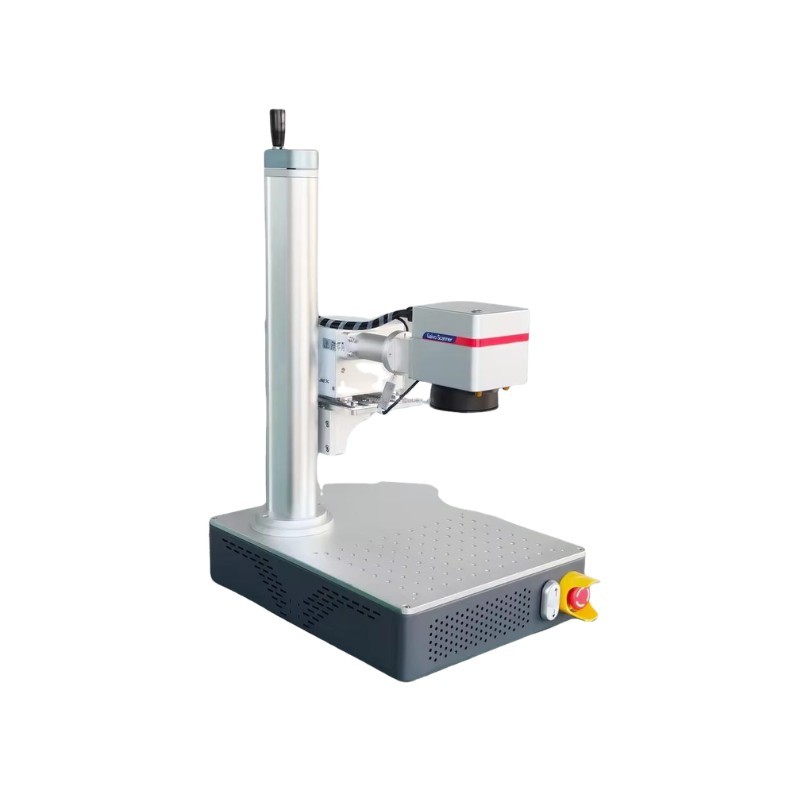

The Portable UV Laser Marking Machine 5W is a high-precision laser marking solution designed for delicate and heat-sensitive materials. Featuring a genuine Pulsex 5W UV laser source, SINO RC1001 galvo scanner, BJJCZ LV7 control card, and Mean Well power supply, it delivers exceptional marking quality with minimal heat impact, making it ideal for plastics, glass, electronics, and precision industrial applications.
Key Features
- 5W Pulsex UV Laser Source
High-quality UV laser source operating at 355nm wavelength for ultra-fine and high-contrast marking. - 150 × 150 mm Marking Area
Suitable for logos, serial numbers, QR codes, barcodes, product identification, and detailed graphics. - Cold Marking Technology
UV laser technology minimizes heat generation, reducing material damage, discoloration, and deformation. - SINO RC1001 High-Speed Galvo Scanner
Provides fast and accurate marking with excellent detail reproduction. - BJJCZ LV7 Control System
Professional industrial control card for stable operation and broad software compatibility. - Double Red Light Positioning
Simplifies alignment and focusing for improved workflow efficiency. - Rotary Attachment Support
Compatible with optional rotary devices for marking cylindrical and curved objects. - Compact Portable Design
Space-saving desktop structure suitable for workshops, laboratories, production lines, and educational environments.
Technical Specifications
- Laser Type: UV Laser
- Laser Power: 5W
- Laser Source: Pulsex
- Laser Wavelength: 355nm
- Marking Area: 150 × 150 mm
- Galvo Scanner: SINO RC1001
- Control Card: BJJCZ LV7
- Power Supply: Mean Well
- Pulse Frequency: 10-60 KHz
- Beam Quality: <1.2 M²
- Marking Speed: ≤12000 mm/s
- Repetition Accuracy: ±0.003 mm
- Minimum Line Width: 0.01 mm
- Character Size: 0.15-175 mm
- Cooling Method: Air Cooling
- Operating Voltage: AC 110V / 220V, 50/60Hz
- Working Temperature: 10°C-35°C
- Working Humidity: 20%-80%
Package Includes
- Portable UV Laser Marking Machine
- Foot Switch
- Data Cable
- Laser Safety Glasses
- 2 Aluminum Support Bars
- USB Drive with Reference Marking Parameters
Suitable Materials
- Plastics
- Acrylic
- Glass
- Crystal
- Ceramics
- PCB boards
- Electronic components
- Medical packaging
- Cosmetic packaging
- Rubber
- Coated metals
- Anodized aluminum
- Selected engineering materials
Applications
Ideal for electronics manufacturing, medical devices, cosmetic packaging, PCB marking, glass engraving, precision product identification, industrial traceability, and high-detail marking applications requiring minimal thermal impact and exceptional marking quality.
Note: The design and color of the machine may vary. Photos are for demonstration purposes only.
