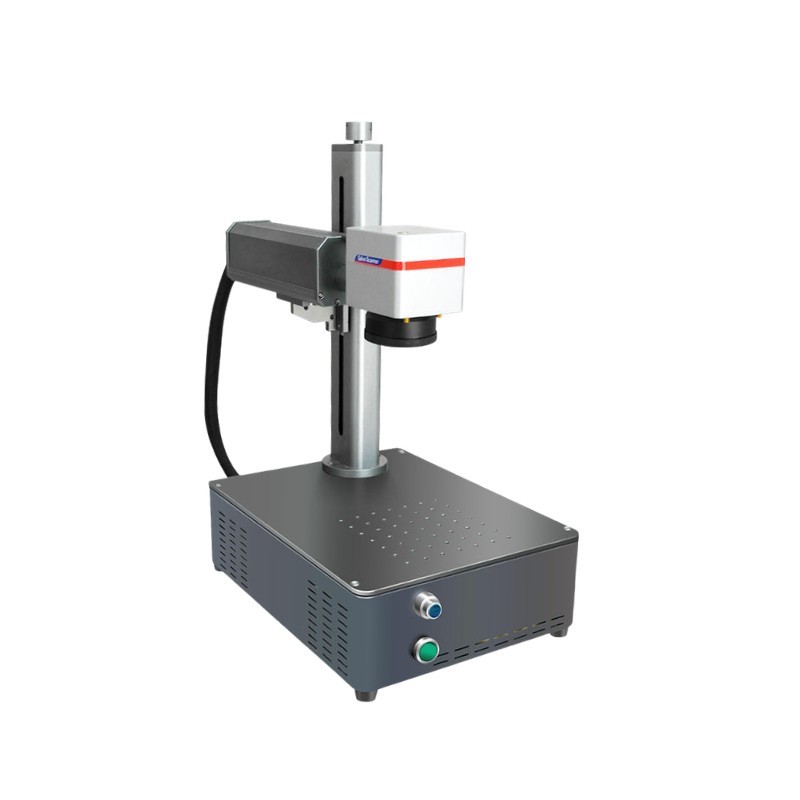

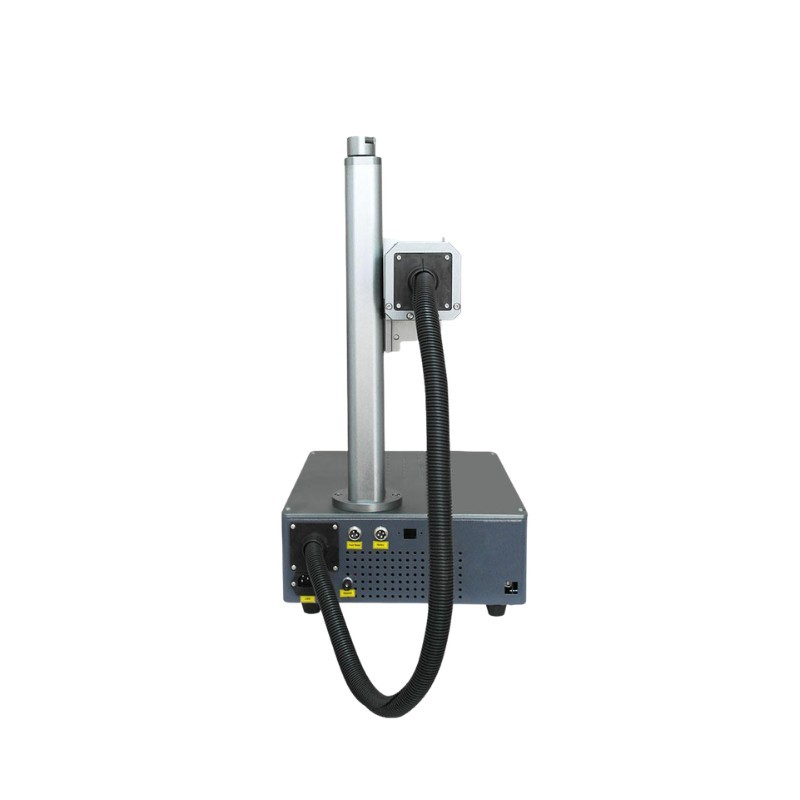

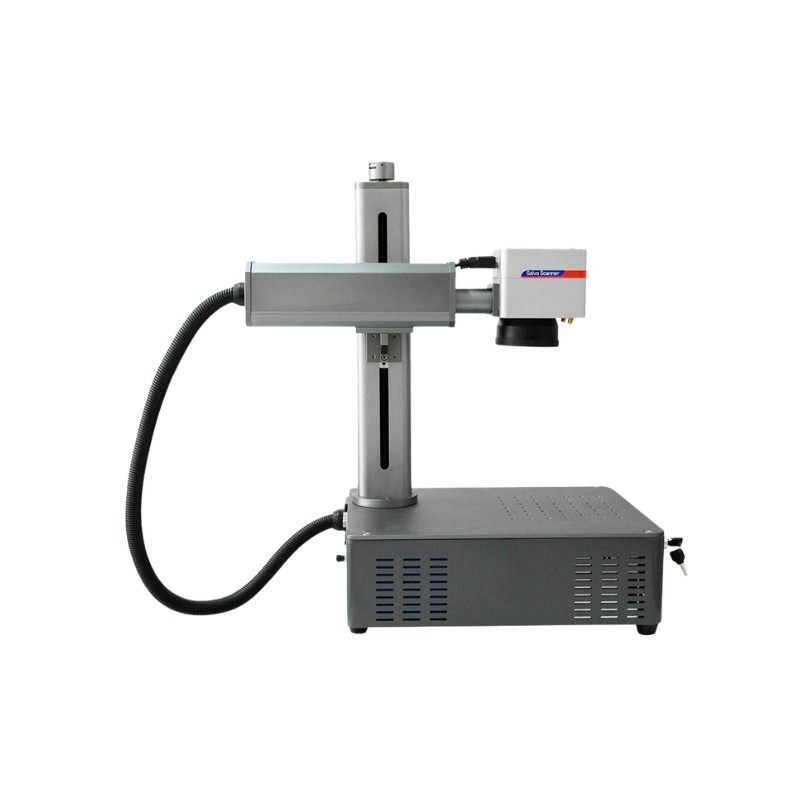

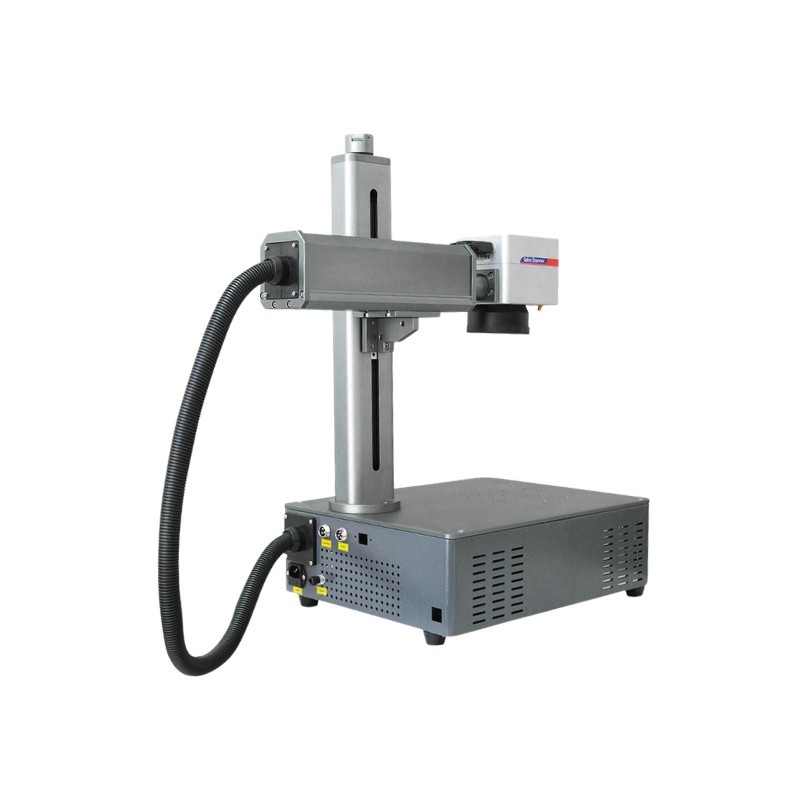

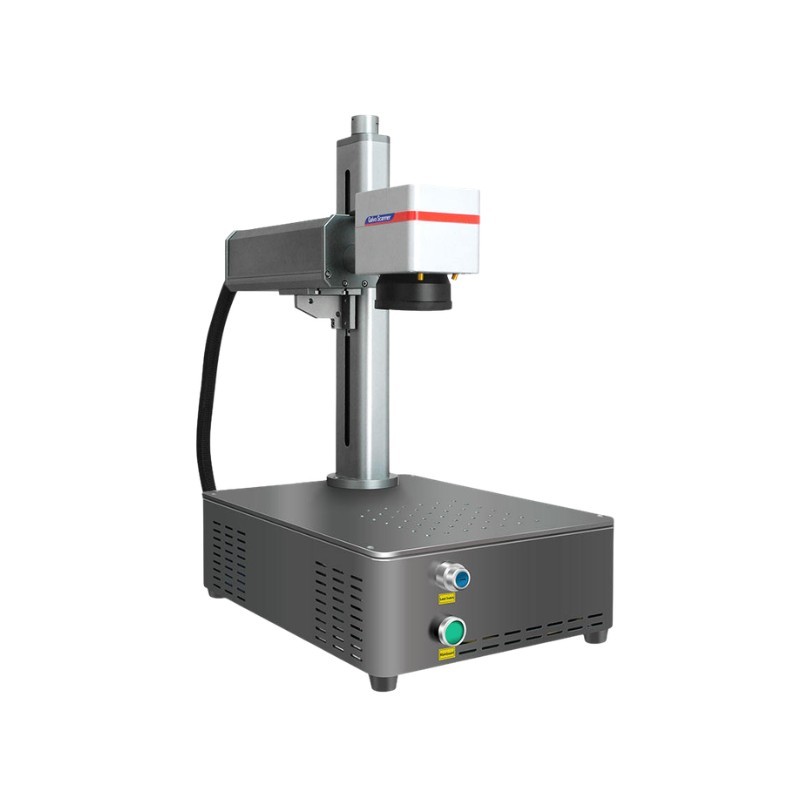

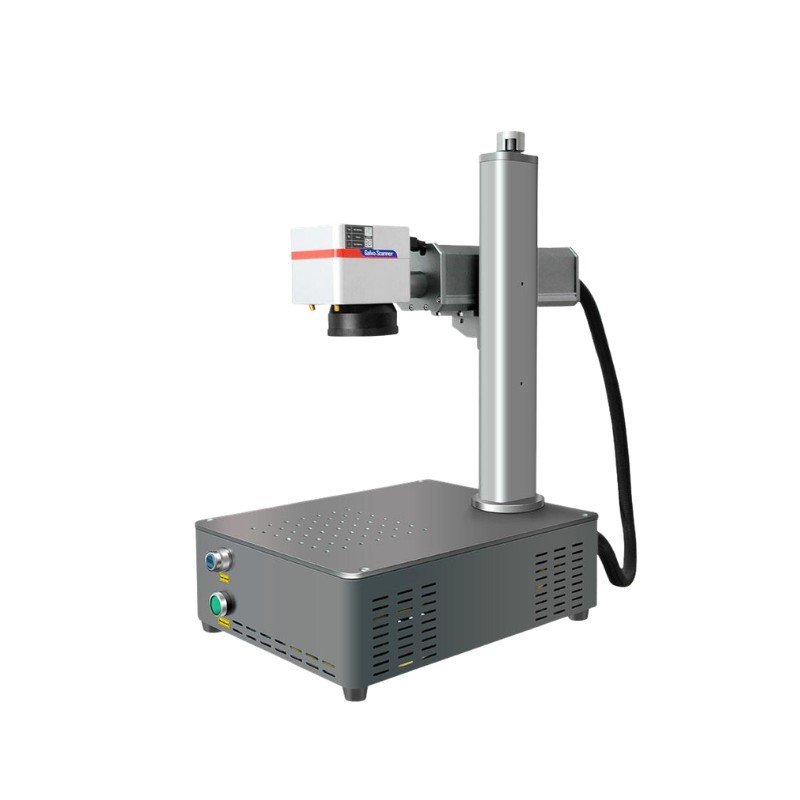

The Portable Fiber Laser Marking Machine 30W combines industrial-grade marking performance with enhanced power for deeper engraving, faster marking speeds, and improved productivity. Built with premium components including a Raycus laser source, SINO RC1001 galvo head, BJJCZ LV7 control card, and Mean Well power supply, it is suitable for both commercial and industrial marking applications.
Key Features
- 30W Raycus Fiber Laser Source
Provides increased marking power for deeper engraving and faster processing. - 150 × 150 mm Working Area
Suitable for a wide variety of marking and engraving applications. - High-Speed SINO RC1001 Galvo System
Delivers accurate positioning and efficient marking performance. - BJJCZ LV7 Industrial Control Card
Reliable and widely used laser control platform. - Dual Red-Light Preview System
Makes workpiece alignment fast and accurate. - Rotary Function Support
Compatible with rotary attachments for cylindrical object engraving.
Technical Specifications
- Laser Power: 30W
- Laser Source: Raycus
- Marking Area: 150 × 150 mm
- Galvo Scanner: SINO RC1001
- Control Card: BJJCZ LV7
- Power Supply: Mean Well
- Laser Wavelength: 1064 nm
- Marking Speed: ≤ 12000 mm/s
- Minimum Line Width: 0.01 mm
- Repetition Accuracy: ±0.003 mm
- Cooling System: Air Cooling
- Operating Voltage: AC 110V / 220V, 50/60Hz
Package Includes
- Portable Fiber Laser Marking Machine
- Foot Switch
- Data Cable
- Laser Safety Glasses
- 2 Aluminum Bars
- USB Drive with Reference Marking Parameters
Applications
Suitable for industrial product marking, metal engraving, QR code marking, tool identification, jewelry customization, and production traceability systems.
Supported Materials
Suitable for marking:
- Stainless steel
- Carbon steel
- Aluminum
- Brass
- Copper
- Titanium
- Gold
- Silver
- Anodized aluminum
- Coated metals
- Engineering plastics (selected types)
Common Applications
- Product identification
- Serial number marking
- QR code and barcode engraving
- Logo engraving
- Tool marking
- Electronic component marking
- Nameplates and tags
- Industrial part traceability
- Jewelry engraving
