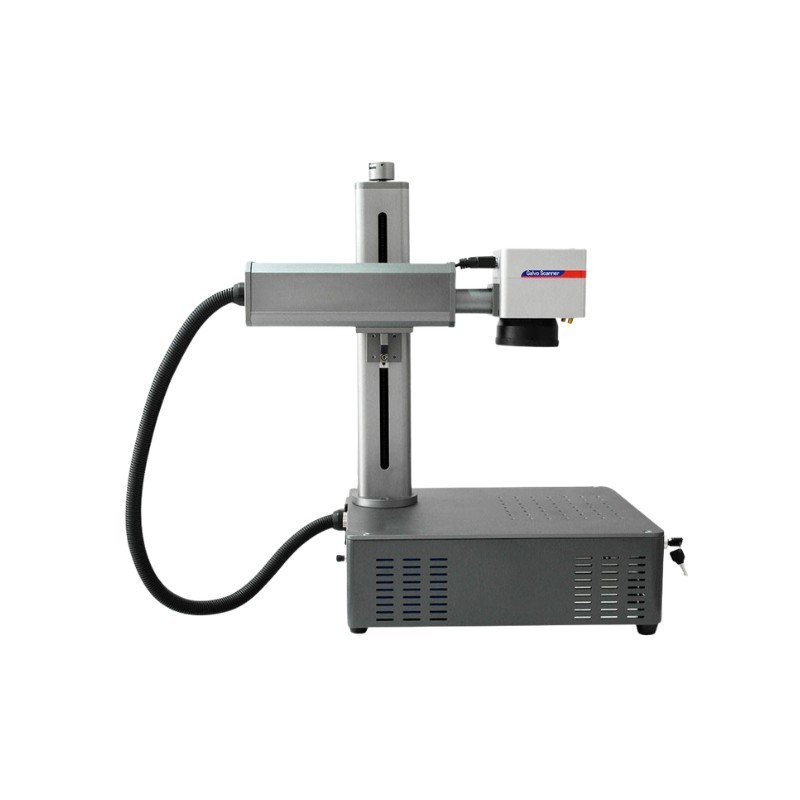

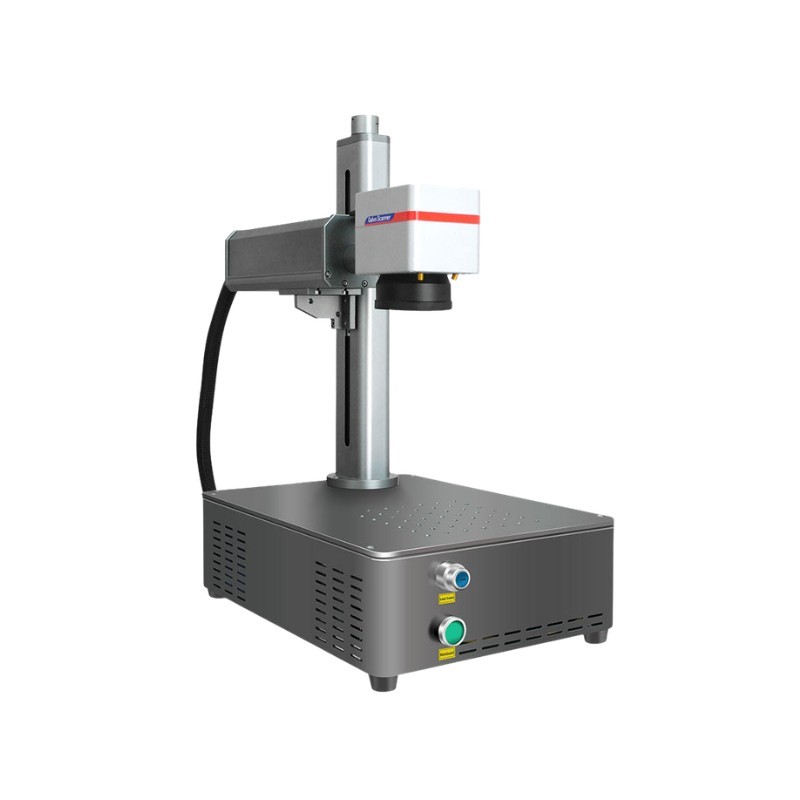

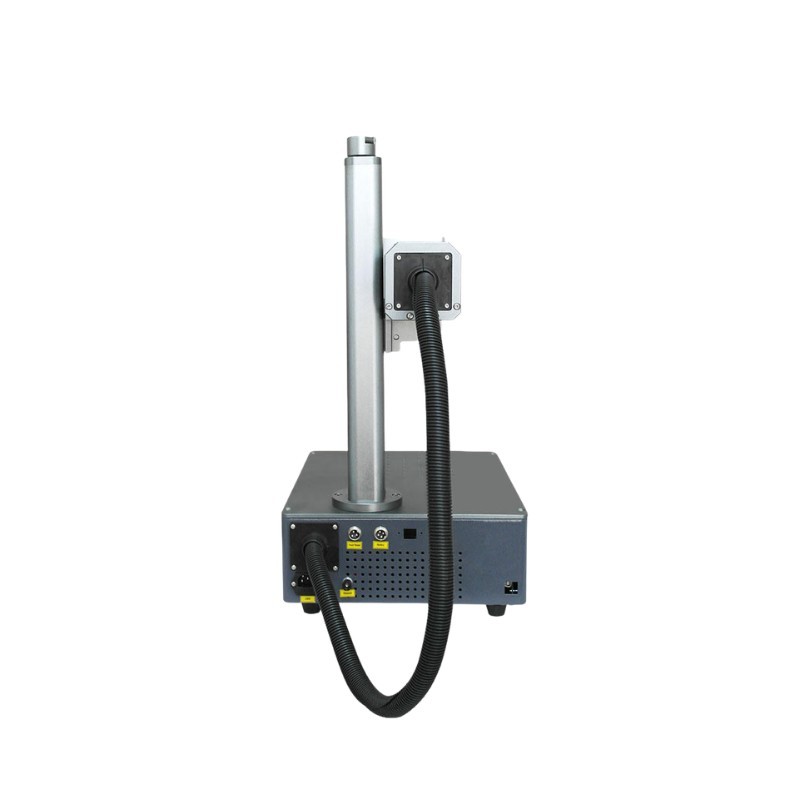

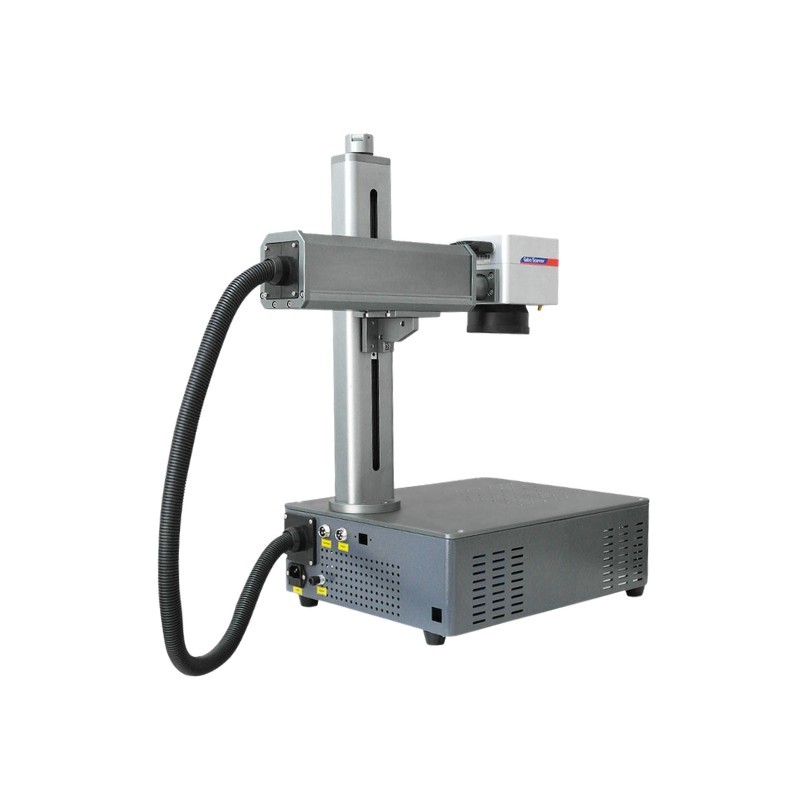

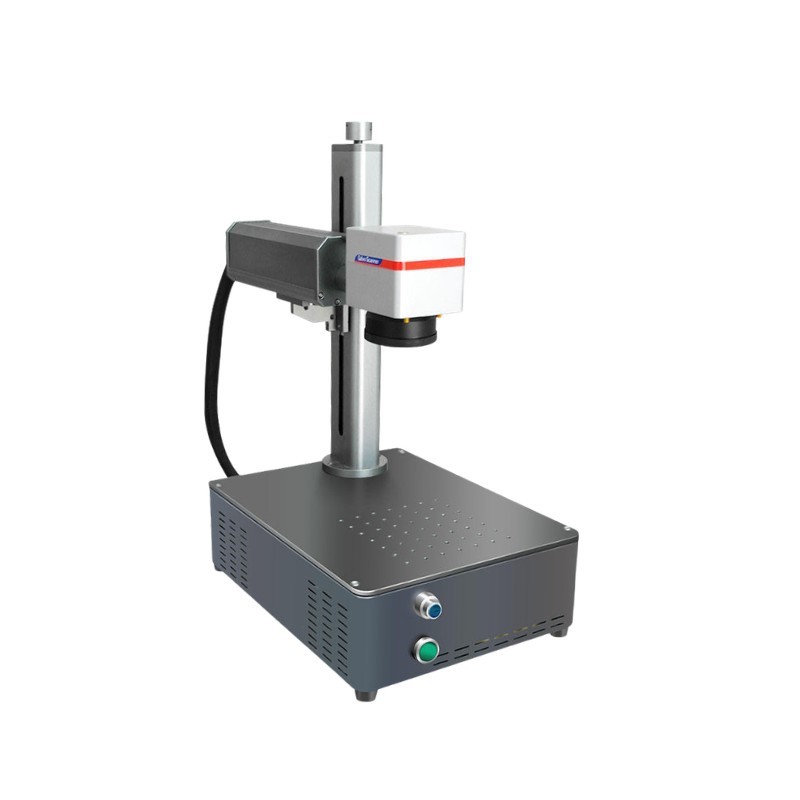

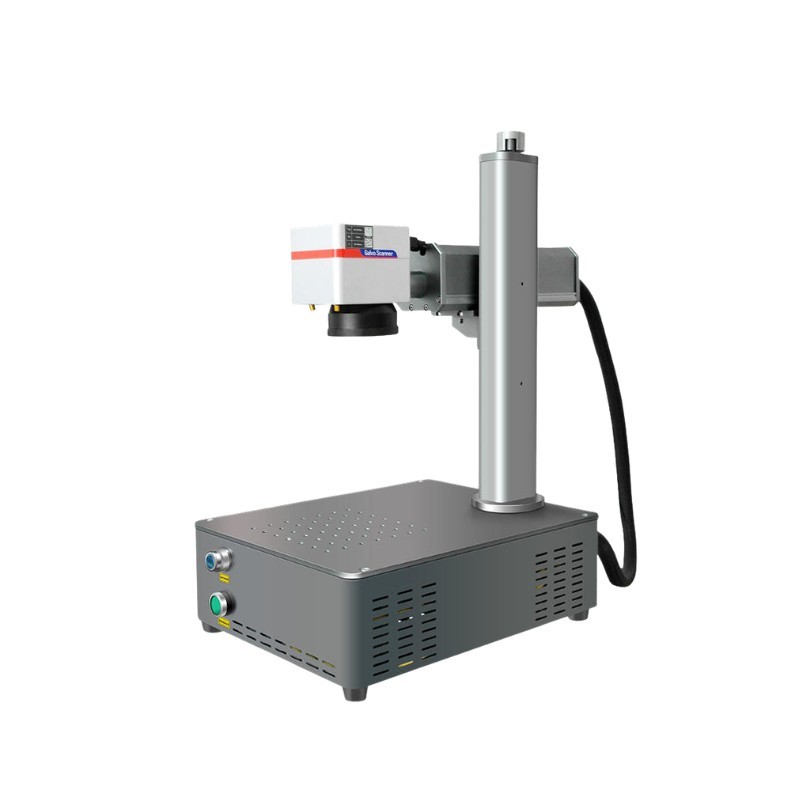

Portable Fiber Laser Marking Machine 50W 150x150mm

The Portable Fiber Laser Marking Machine 50W is a powerful industrial laser marking solution designed for deep engraving, high-speed production marking, and demanding commercial applications. Featuring a genuine Raycus fiber laser source, SINO RC1001 galvo scanner, BJJCZ LV7 control card, and Mean Well power supply, it delivers exceptional performance, accuracy, and reliability.

Key Features

• 50W Raycus Fiber Laser Source
  Provides higher marking power for deeper engraving and faster production speeds.
• 150 × 150 mm Marking Field
  Suitable for large batches and diverse marking requirements.
• SINO RC1001 High-Speed Galvo Head
  Ensures precise and efficient laser movement.
• BJJCZ LV7 Professional Control System
  Industry-standard controller for stable and reliable operation.
• Dual Red Light Positioning System
  Improves alignment accuracy and setup speed.
• Rotary Device Compatibility
  Supports marking of cylindrical and curved surfaces.

Technical Specifications

• Laser Power: 50W
• Laser Source: Raycus
• Marking Area: 150 × 150 mm
• Galvo Scanner: SINO RC1001
• Control Card: BJJCZ LV7
• Power Supply: Mean Well
• Laser Wavelength: 1064 nm
• Marking Speed: ≤ 12000 mm/s
• Minimum Line Width: 0.01 mm
• Repetition Accuracy: ±0.003 mm
• Pulse Frequency: 10-60 KHz
• Cooling System: Air Cooling
• Operating Voltage: AC 110V / 220V, 50/60Hz

Package Includes

• Portable Fiber Laser Marking Machine
• Foot Switch
• Data Cable
• Laser Safety Glasses
• 2 Aluminum Bars
• USB Drive with Reference Marking Parameters

Applications

Ideal for deep metal engraving, industrial manufacturing, production line marking, mold marking, tool identification, aerospace components, automotive parts, and high-volume engraving applications.
