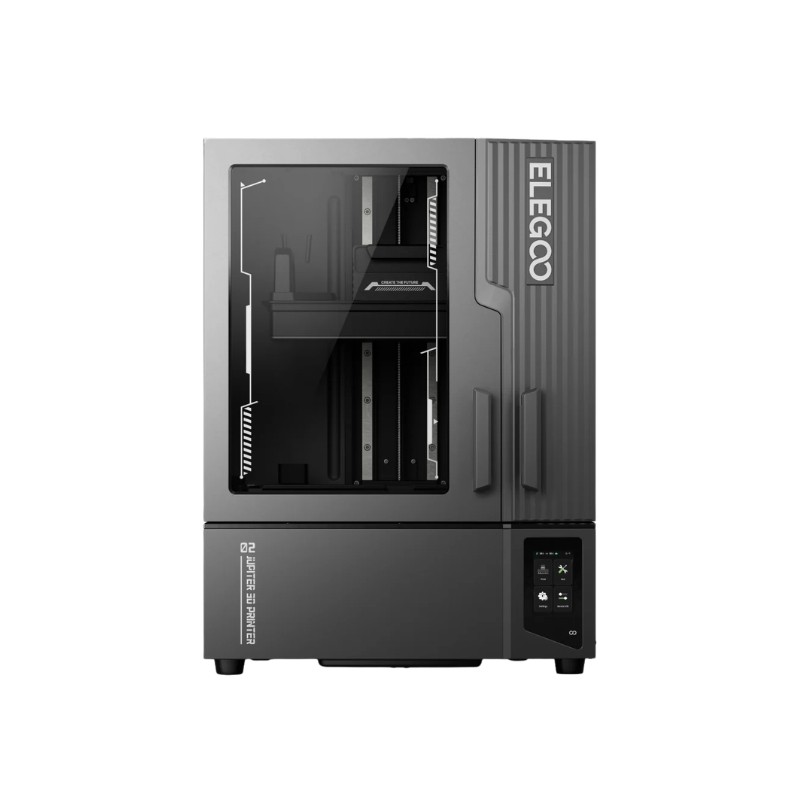

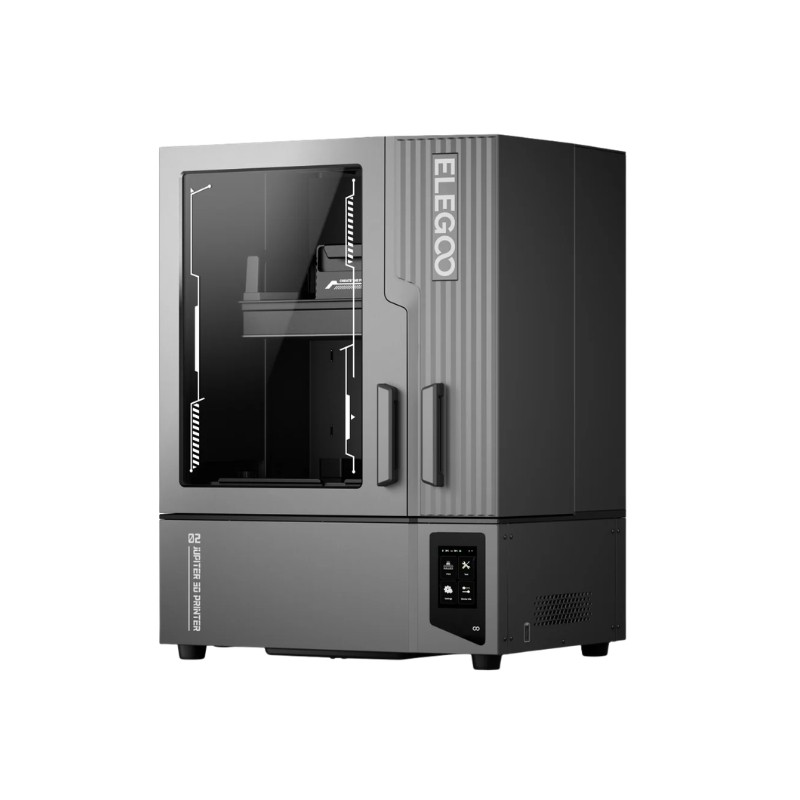

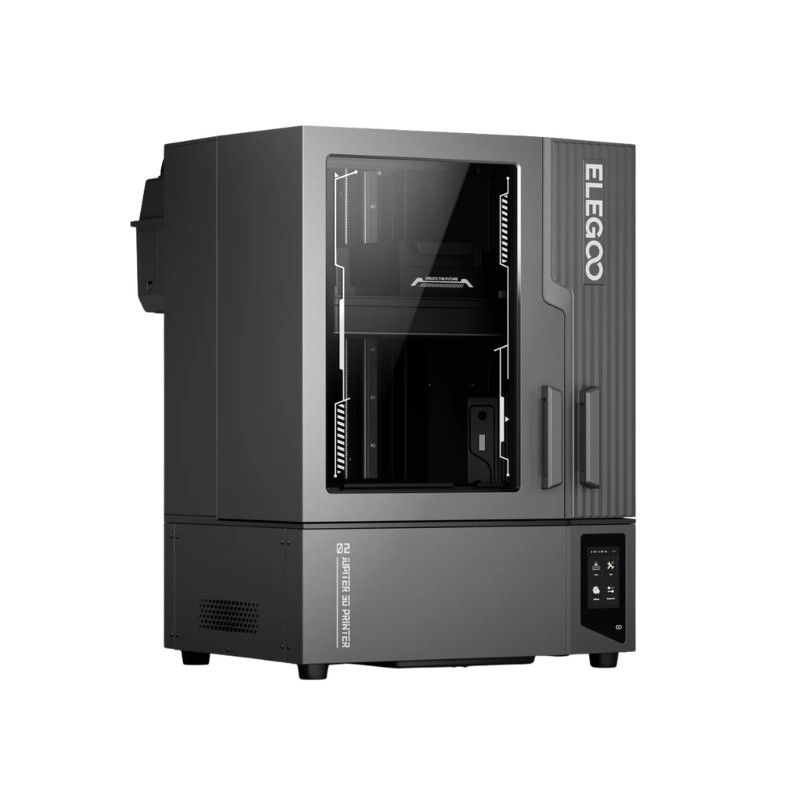

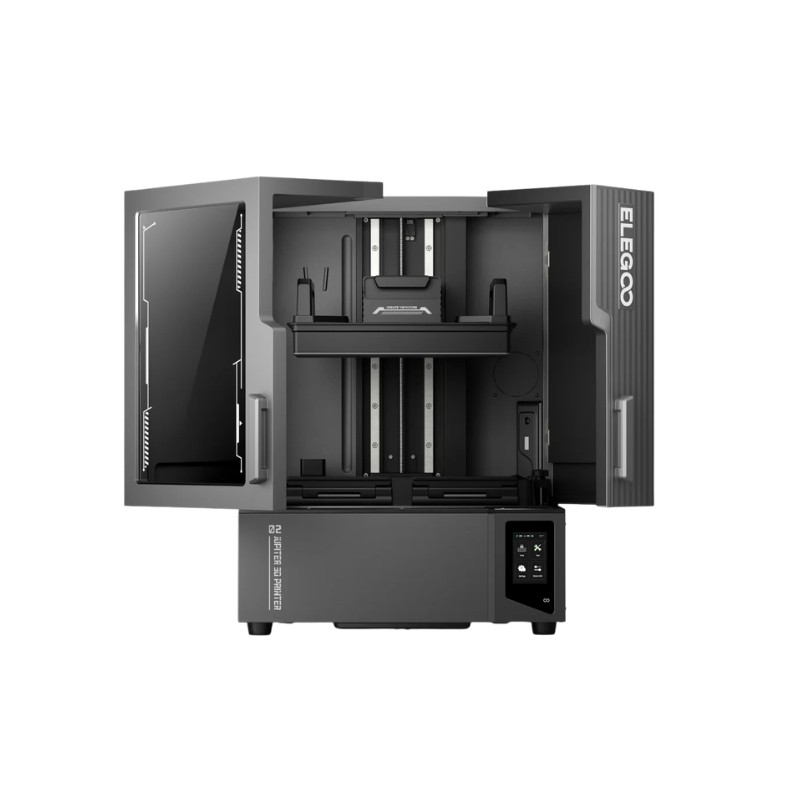

Elegoo Jupiter 2 Resin 3D Printer

The Elegoo Jupiter 2 is a large-format 16K MSLA resin 3D printer designed for users who need big build capacity, high detail, and smarter resin management in one professional desktop machine. With a 302.40 × 161.98 × 300.00mm build volume, it is suitable for large figures, props, display models, architectural parts, prototypes, batch printing, and detailed resin production work.

The printer uses a 14-inch 16K LCD with 15120 × 6230 resolution and 20 × 26µm XY resolution, allowing it to produce fine details, sharp edges, and smooth surfaces even on larger models. This makes it a strong choice for studios, miniature makers, character artists, product designers, schools, workshops, and small resin printing businesses.

Jupiter 2 also includes smart workflow features such as automatic leveling, 30°C smart tank heating, automatic resin feeding and recycling, built-in camera monitoring, quick-swap release film, smart mechanical sensor protection, and Wi-Fi cluster management.

Key Features

• Large 302.40 × 161.98 × 300.00mm build volume

• 14-inch 16K LCD with 15120 × 6230 resolution

• 20 × 26µm XY resolution for high-detail resin printing

• Automatic leveling with multi-point force sensor system

• Smart resin tank heating at 30°C

• Automatic resin feeding and recycling system

• Built-in camera with LED light for monitoring and time-lapse

• Quick-swap release film design for easier maintenance

Large Build Volume for Bigger Resin Prints

The Jupiter 2 provides a large printing area, making it suitable for bigger models and batch production. Users can print tall figures, large display pieces, props, architectural models, multiple miniatures, dental-style visual models, product samples, and prototype parts in one print job.

This larger format helps reduce the need to split models into many pieces and improves productivity for users printing multiple smaller parts together.

16K High-Resolution Detail

The 14-inch 16K LCD provides high-resolution masking for detailed resin printing. With 15120 × 6230 screen resolution and 20 × 26µm XY resolution, the printer can reproduce fine textures, small surface details, clean edges, and smooth curves.

This makes it suitable for professional-quality model printing where both size and detail are important.

Auto Leveling Made Easier

The printer uses a multi-point automatic leveling system with four independent force sensors. This helps simplify setup and improves first-layer consistency, reducing the manual adjustment work normally required before resin printing.

Manual leveling support is also useful for users who want additional control during setup and calibration.

Smart Tank Heating at 30°C

Jupiter 2 includes smart resin tank heating designed to keep resin around 30°C. Warmer resin can flow more smoothly and may improve layer adhesion, especially in cooler environments or when using thicker resin types.

The smart heating system helps improve consistency before and during printing, supporting more reliable results across different resin jobs.

Automatic Resin Feeding and Recycling

The automated resin system uses a two-way pump and 2kg resin bottle setup to feed resin into the tank and recycle excess resin when needed. This helps reduce the risk of running out of resin during long prints and makes large-volume resin printing easier to manage.

Resin level alerts also help users avoid print failures caused by low resin during production.

Built-In Camera and LED Monitoring

The built-in chamber camera with LED light allows users to monitor prints in real time and capture time-lapse videos. This is useful for long prints, larger models, and workshop environments where the printer may not be watched continuously.

Remote monitoring helps users check print progress and identify issues earlier.

Smart Mechanical Sensor Protection

The smart mechanical sensor system can detect resin shortage, residue in the tank, and leveling failure. Residue detection is especially important because cured resin particles left in the tank can damage the LCD or release film if printing continues.

These alerts help improve safety and reduce the chance of avoidable print failures.

Simplified Maintenance Design

The quick-swap release film design makes film replacement easier by using a quick-lock structure instead of traditional screw-heavy replacement methods. The modular LCD screen design also supports faster screen replacement and better sealing against resin leakage.

This makes Jupiter 2 more practical for users who print regularly and need lower maintenance downtime.

Technical Specifications

Smart Functions

• Automatic leveling

• Manual leveling option

• Smart tank heating

• Smart temperature detection

• Quick preheating

• Automatic resin feeding

• Resin recycling

• Resin bottle monitoring

• Resin shortage alarm

• Residue detection alarm

• Leveling failure alarm

• Built-in camera monitoring

• Time-lapse photography

• Wi-Fi cluster management

• OTA firmware upgrade

• High-temperature protection

• Power-loss recovery

• Quick-swap release film

• Faster LCD screen replacement

Suitable Applications

• Large resin models

• Miniatures and collectibles

• Character figures

• Props and display pieces

• Architectural models

• Product prototypes

• Jewelry models

• Dental-style visual models

• Art and sculpture models

• Batch printing small parts

• Educational resin printing

• Studio and workshop production

• Small business resin printing

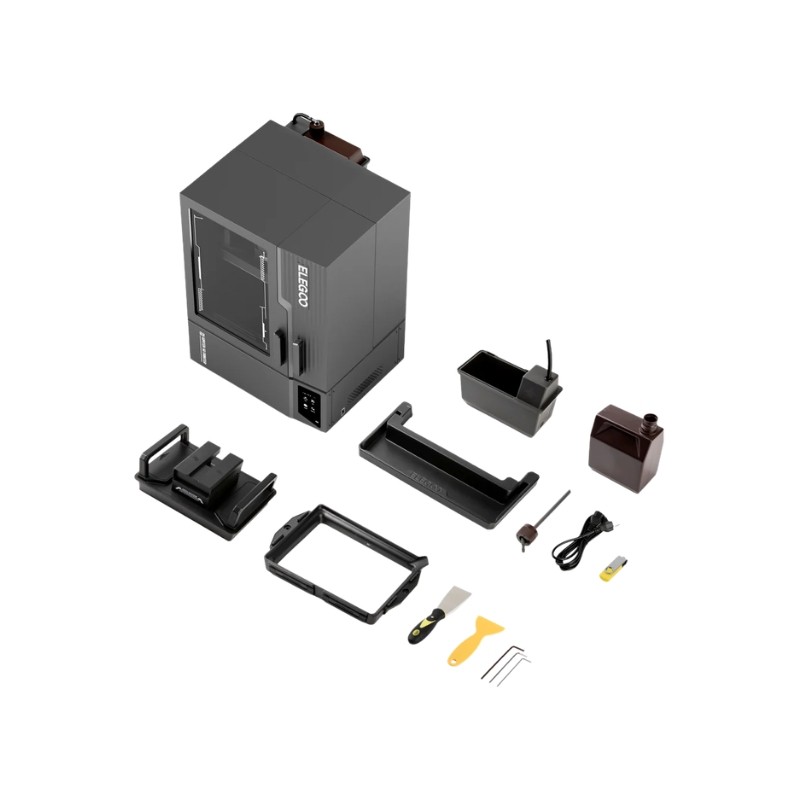

Package Includes

• 1 × Jupiter 2 3D Printer

• 1 × Bottle Cap Module

• 1 × Resin Bottle

• 1 × Auto Resin Feeding Cartridge

• 1 × Build Plate

• 1 × Resin Tank

• 1 × USB Flash Drive

• 1 × Mask

• 1 × Drip Tray

• 1 × Funnel

• Backup Screws

• Gloves

• Scraper

• Auto Resin Feeding & Recycling Accessory Box

• User Manual

• Power Cable

• Tool Kit

Compatibility

• Suitable for 405nm LCD/MSLA resin printing workflows

• Compatible with ELEGOO SatelLite slicing workflow

• Compatible with ELEGOO Matrix app workflow where available

• Supports Wi-Fi and USB file transfer

• Suitable for large-format and batch resin printing

• Compatible with Elegoo Marsmate Air Purifier where applicable

Usage Note

For full-size prints, the resin tank may need to be removed before taking out the model. Resin printing requires proper safety handling, including gloves, ventilation, washing, and curing after printing. Always test exposure settings for the selected resin, room temperature, layer height, and model type before final production printing.

Warranty Exclusions

Please note the following exclusions where warranty coverage does not apply:

1. LCD Print Screen
   The LCD screen is classified as a consumable component. It is not covered under warranty due to its wear-and-tear nature and potential damage from misuse or improper handling.

2. Resin Spills
   Damage caused by resin spills is not covered under warranty.
   Customers are responsible for operating resin printers carefully. While some features are automated, resin printers still require active human monitoring during use to avoid preventable issues.
