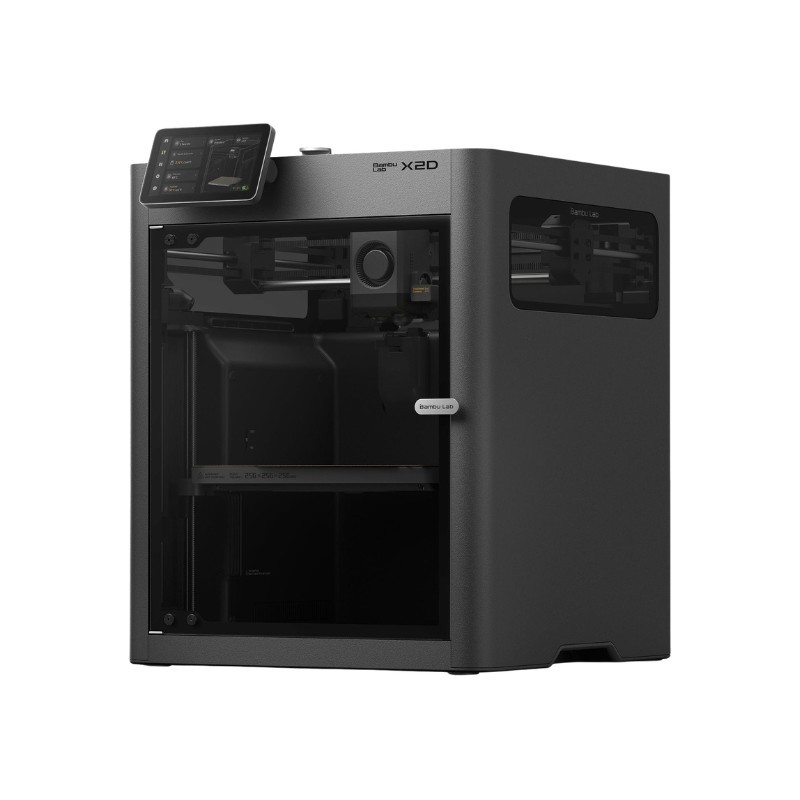

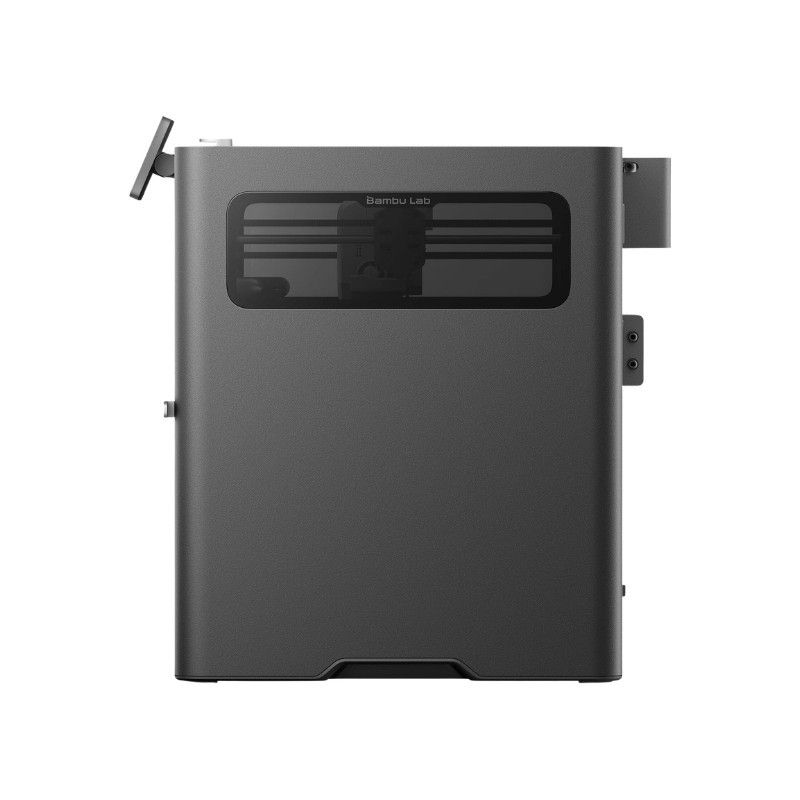

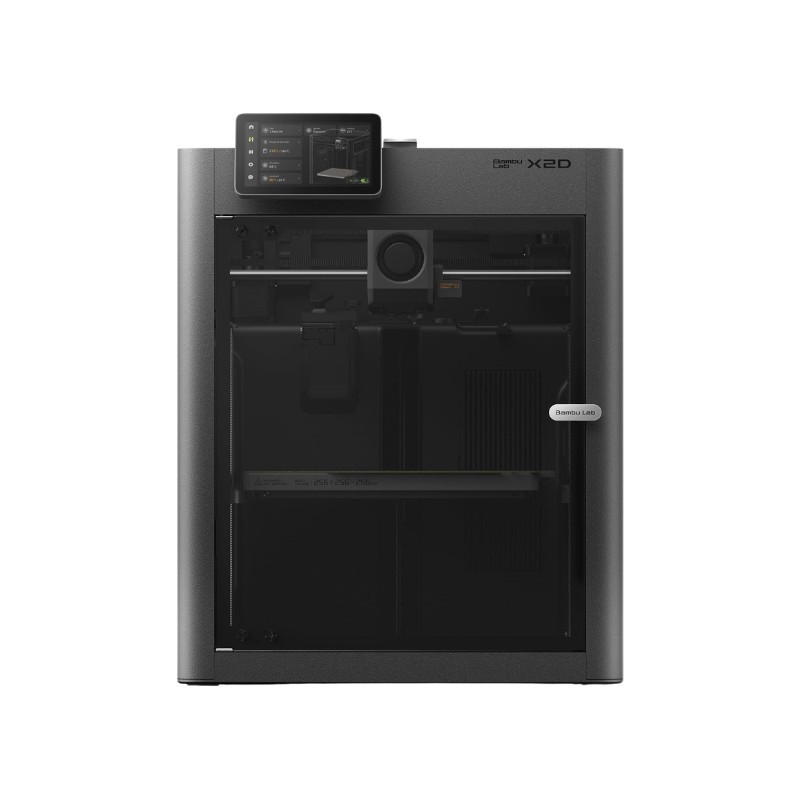

Bambu Lab X2D 3D Printer (Global Version)

The Bambu Lab X2D is the second-generation printer in the acclaimed X Series, now optimized for advanced dual-material workflows. Featuring an innovative dual-nozzle system, it combines a Direct Drive head for model materials with a Bowden-fed auxiliary head for support structures. This makes the X2D the ultimate tool for creating complex engineering components requiring specialized supports for a flawless finish on a build volume of up to 256 x 256 x 260 mm.

Highlights

• Nozzle Switching Mechanism: Mechanical switching tested for over 1 million cycles without loss of performance.
• Hybrid Extrusion: Direct Drive for main material and Bowden for support material.
• Build Volume: Print capacity up to 256 x 256 x 260 mm (235.5 x 256 x 256 mm in dual-nozzle mode).
• Sensor-Driven Precision: 31 sensors continuously monitor material flow, temperature, and safety.
• Active Chamber: Heated build chamber up to 65 °C for engineering materials.
• Advanced Filtration: Three-stage air purification with G3 pre-filter, HEPA H12, and activated carbon.
• Quiet and Accurate: Noise level below 50 dB and motion accuracy down to 50 µm (with optional Vision Encoder).

Key Features:

• Dual Extruder with Mechanical Switching
  Innovative gear-and-ratchet mechanism switches between two nozzles without additional motors, reducing weight and improving stability at high speeds.
• Hybrid Extrusion System
  • Direct Drive (left): Ideal for precise model printing
  • Bowden (right): Optimized for support materials
    Enables clean support removal and improved surface finish.
• Reduced Material Waste
  Efficient dual-material workflow minimizes unnecessary filament usage during support printing.
• Dynamic Flow Calibration
  Real-time monitoring with high-speed sensors detects inconsistencies and prevents print failures before they occur.
• Heated Build Chamber
  Enclosed design with active heating up to 65°C allows stable printing of engineering materials such as ABS, ASA, and Nylon.
• Dual Thermal Modes
  • Cool Mode for PLA and standard materials
  • Heat Mode for high-temperature technical filaments
• High-Speed Precision Printing
  Supports speeds up to 1000 mm/s with up to 20,000 mm/s² acceleration while maintaining accuracy.
• Advanced Monitoring System
  Equipped with up to 31 sensors for monitoring temperature, material flow, and safety conditions throughout the print process.
• Professional Support Printing Workflow
  Designed specifically for combining model and support materials efficiently for cleaner results.
• Air Filtration System
  Multi-stage filtration with G3 pre-filter, H12 HEPA filter, and activated carbon reduces odors and particles.
• Quiet Operation
  Operates below 50 dB in silent mode for a comfortable working environment.

Technical Specifications:

• Build Volume:
  • Single nozzle: 256 × 256 × 260 mm
  • Dual nozzle: 235.5 × 256 × 256 mm
• Extruder Type: Direct Drive + Bowden dual system
• Nozzle: 0.4 mm hardened steel
• Filament Diameter: 1.75 mm
• Max Nozzle Temperature: 300°C
• Max Bed Temperature: 120°C
• Max Speed: 1000 mm/s
• Max Acceleration: 20,000 mm/s²
• Max Flow Rate: 40 mm³/s
• Chamber Heating: Up to 65°C
• Camera: 1080p chamber camera
• Display: 5-inch touchscreen
• Connectivity: WiFi, USB
• Storage: 8GB eMMC

Material Compatibility:

Supports a wide range of materials including PLA, PETG, ABS, ASA, TPU, Nylon, PC, PVA, and carbon or glass fiber reinforced filaments.

Applications:

Ideal for engineering parts, functional prototypes, multi-material prints, and professional production workflows where precision and efficiency are critical.
