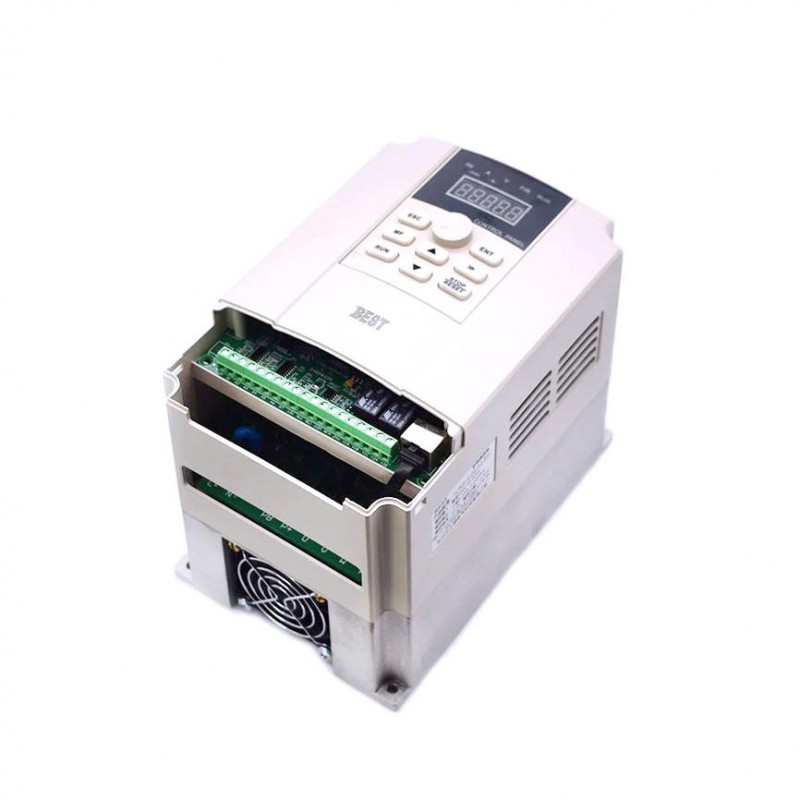

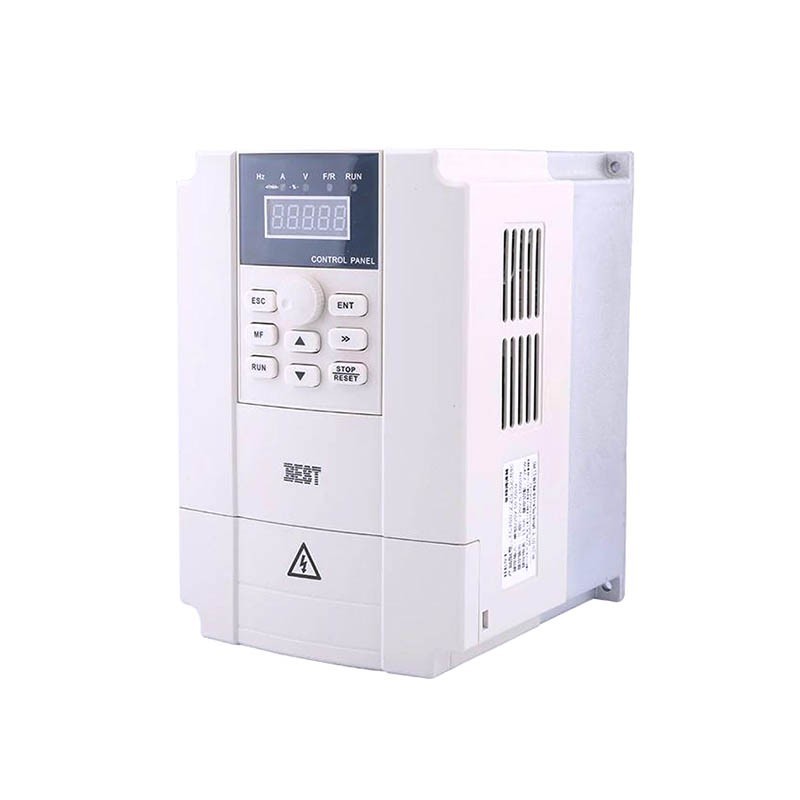

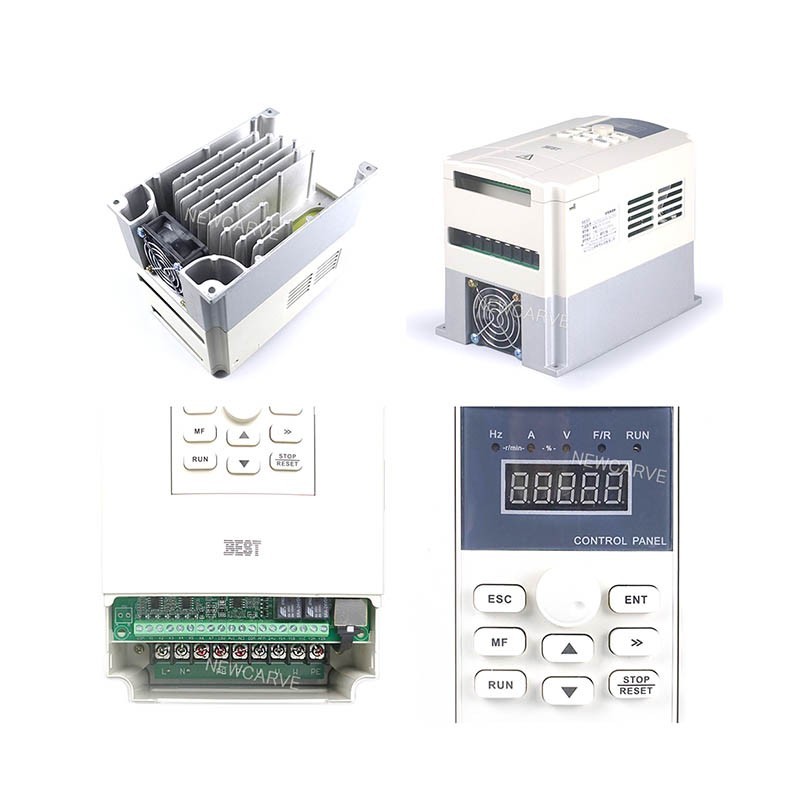

2.2kW 220V BEST VFD Inverter Variable Frequency Drive

Product Feature:

1) PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2) Easy PLC function can realize 16 legs of speed and inverter control function;

3) RS485 communication port, adopting standard international MODBUS main circuit control;

4) With the extremely strong anti-jamming capability

5) Low output ratting torque0.5HZ-150%, low speed running ability;

6) Carrier adjustable by 16KHZ, completely soundless working environment;

7) Broad voltage working area, normal running in 304V-456V;

8) Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9) Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10) With perfect error protection and short circuit starting protection capability;

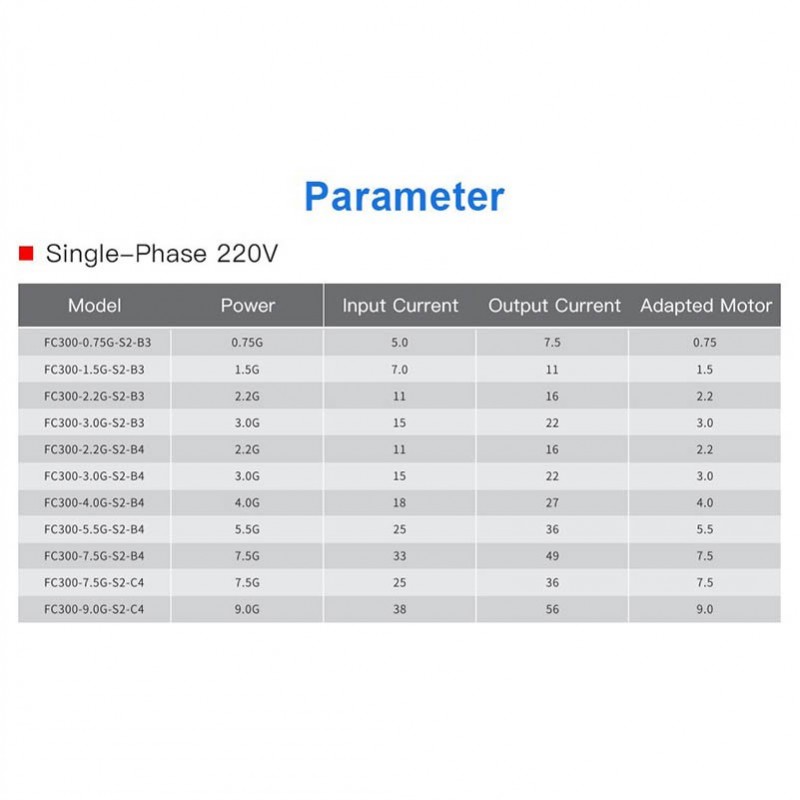

Tech parameters:
1) Input Voltage: 220V(+/-15%)

2) Output Voltage 0-220VAC

3) Input Frequency: 50-60 Hz

4) Output Frequency: 0-1000 Hz

5) Input Phase: 1 phase

6) Output Phase: 3 phase

7) Output current: 11A
