TWO TREES 500W Air Cooled Spindle Kit 12000RPM for TTC450 CNC

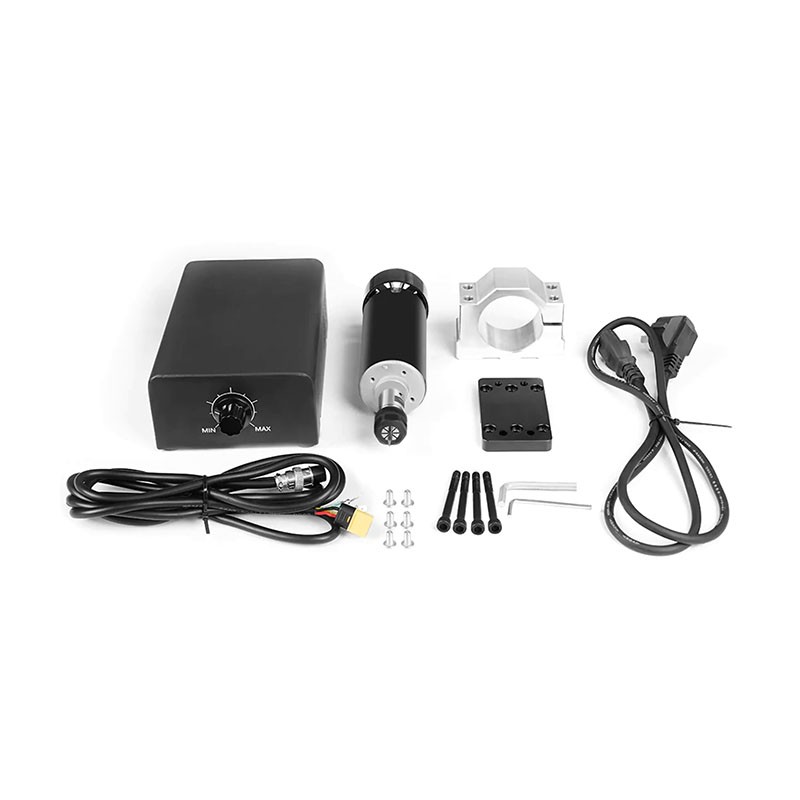

TwoTrees 500W Spindle Kit – High-Speed CNC Upgrade

Looking to enhance your CNC machine's capabilities? The TwoTrees 500W Spindle Kit is a smart, compact upgrade that delivers powerful, precise performance for both metal and non-metal engraving. Designed for ease of use, quiet operation, and reliability, it’s ideal for hobbyists and professionals alike.

 Key Highlights:

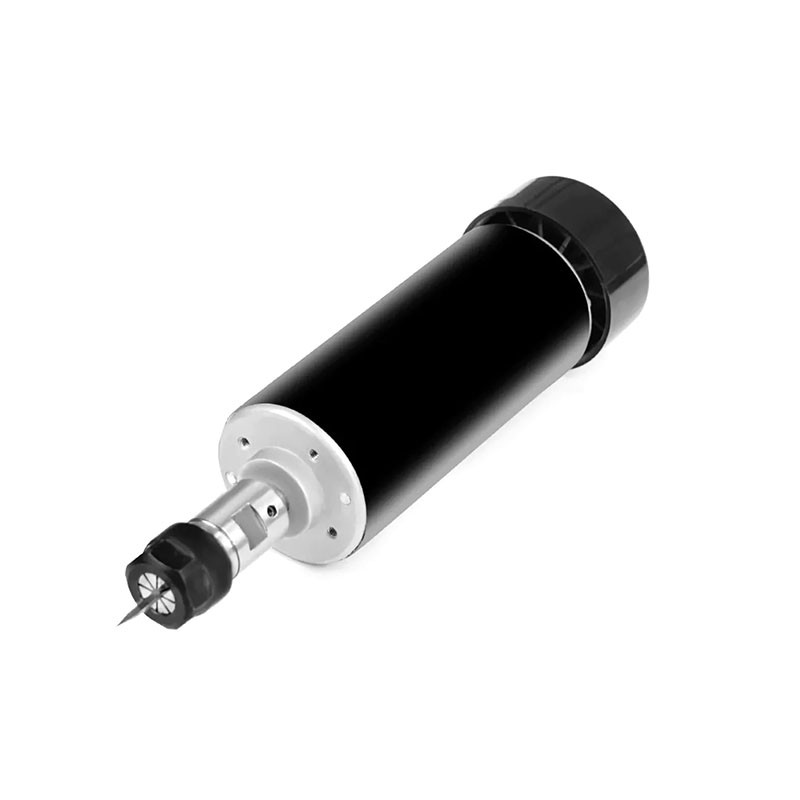

• 500W High-Performance Spindle
  Offers up to 12,000 RPM for clean and smooth engraving on various materials.

• Smart Termination Function
  Automatically powers off the spindle at the end of a job, improving safety and extending motor life.

• ER11 Collet Included
  Compatible with a wide range of engraving bits and tools for maximum flexibility.

• Quiet, Efficient Cooling
  Engineered for low noise and fast heat dissipation during long projects.

• Precise Runout Control
  Spindle runout maintained between 0.01–0.033 mm for high-accuracy tasks.

• CNC Compatibility
  Seamlessly integrates with the TTC450 CNC Router and other machines with similar mounts.

Technical Specifications:

• Power Output: 500W

• Max Speed: 12,000 RPM

• Torque: 0.6 Nm

• Collet Type: ER11

• Spindle Runout: 0.01 – 0.033 mm

• Weight: 1.4 kg

• Length: 199 mm (including motor + fan)

• Insulation Resistance: >2 MΩ

• Dielectric Strength: 400V
