HQD 800W Water Cooled Spindle 220V 3.5A 400Hz 24000rpm 65x210mm ER11A 4 Steel Bearing (Model: GDZ-18-2) - ZENIX Store LLC
> >>>>HQD 800W Water Cooled Spindle 220V 3.5A 400Hz 24000rpm 65x210mm ER11A 4 Steel Bearing (Model: GDZ-18-2)

Spindles

New products

Specials

HQD 800W Water Cooled Spindle 220V 3.5A 400Hz 24000rpm 65x210mm ER11 4 Steel Bearing (Model: GDZ-18-2) View larger
Previous Next

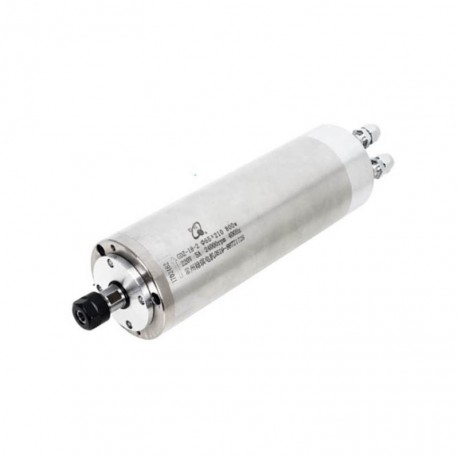

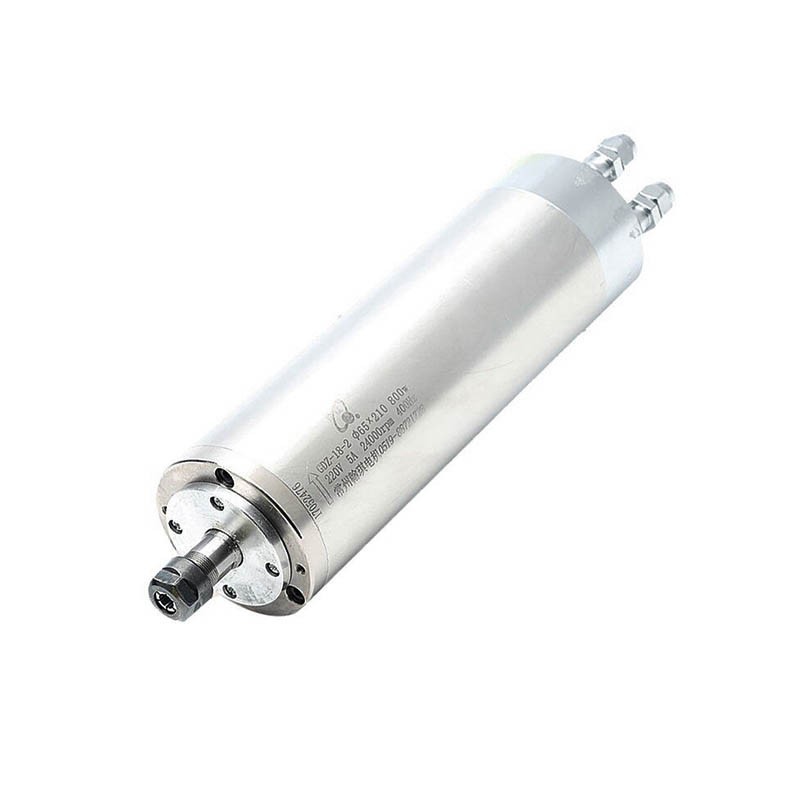

HQD 800W Water Cooled Spindle 220V 3.5A 400Hz 24000rpm 65x210mm ER11A 4 Steel Bearing (Model: GDZ-18-2)

New product

6 Months Warranty

More details

Rs 38,000.00

Estimated Delivery: 1 to 3 days

Add to wishlist

More info

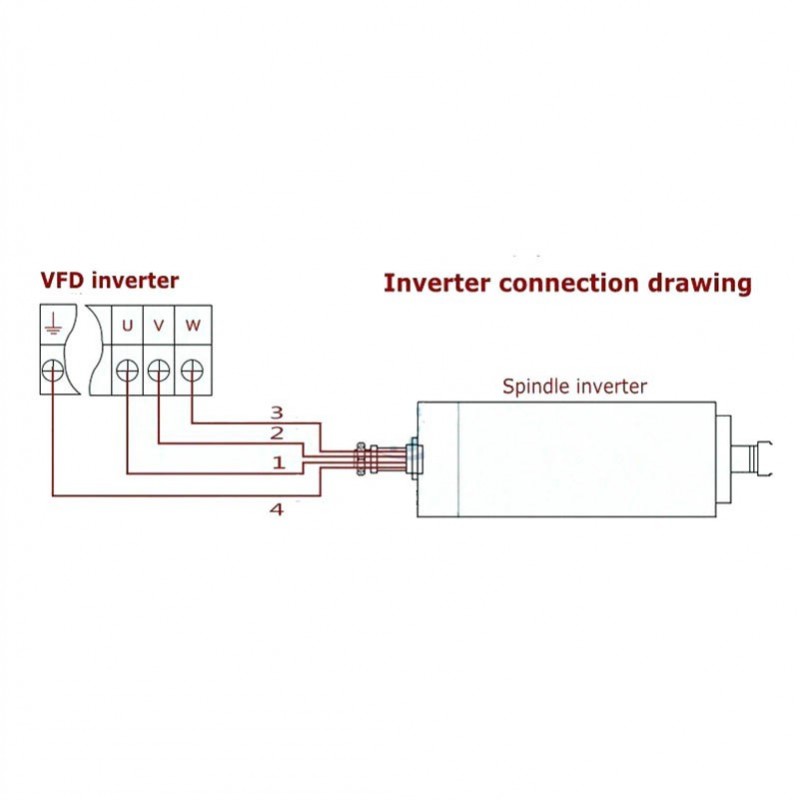

Note: Use a VFD inverter for output. Don't use household electricity directly.

Model: HQD GDZ-18-2

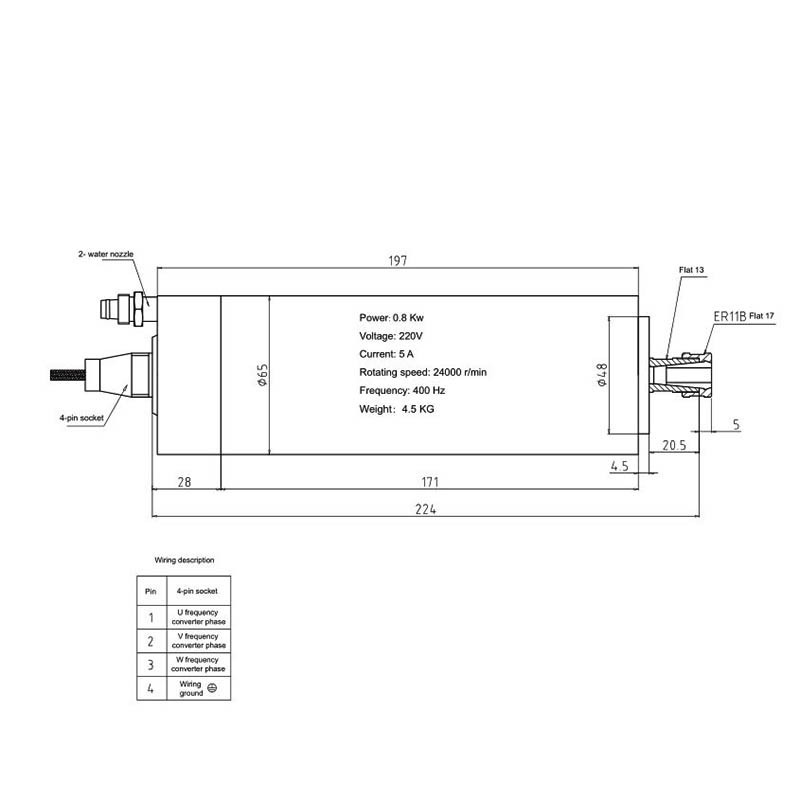

Overall dimensions: Φ65*210Φmm

Rotating speed: 24000RPM

Rated power: 0.8KW

Voltage: 220V

Current: 3.5A

Frequency: 400HZ

Steel Bearing: 7002C/P4 * 2, 7000C/P4 * 2

Chuck: ER11A

Cooling method: Self-cooling

Lubrication method: Grease

Number of phases: 3
Weight: 4.5kg
