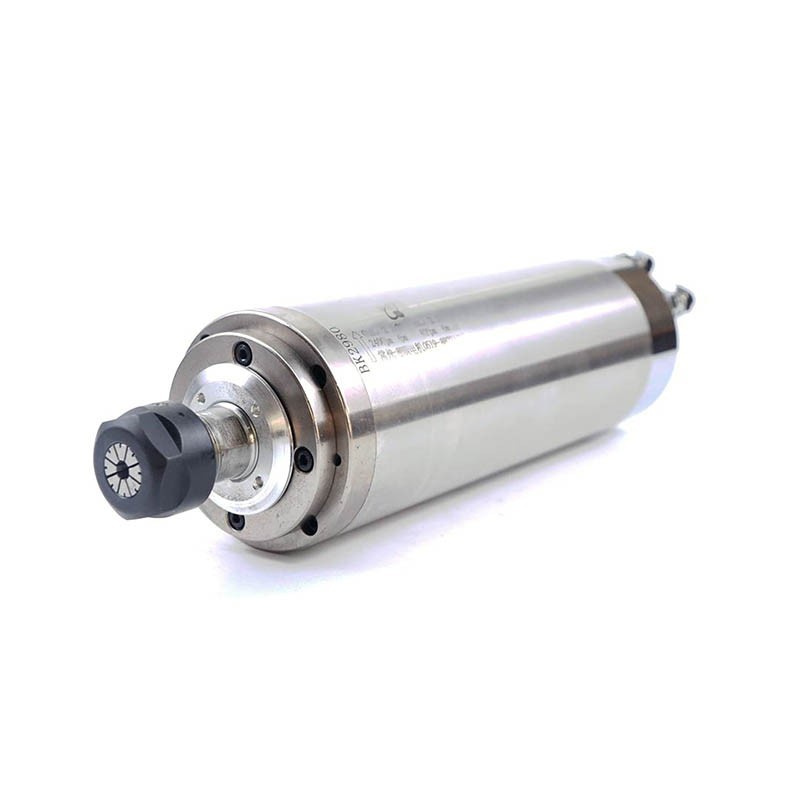

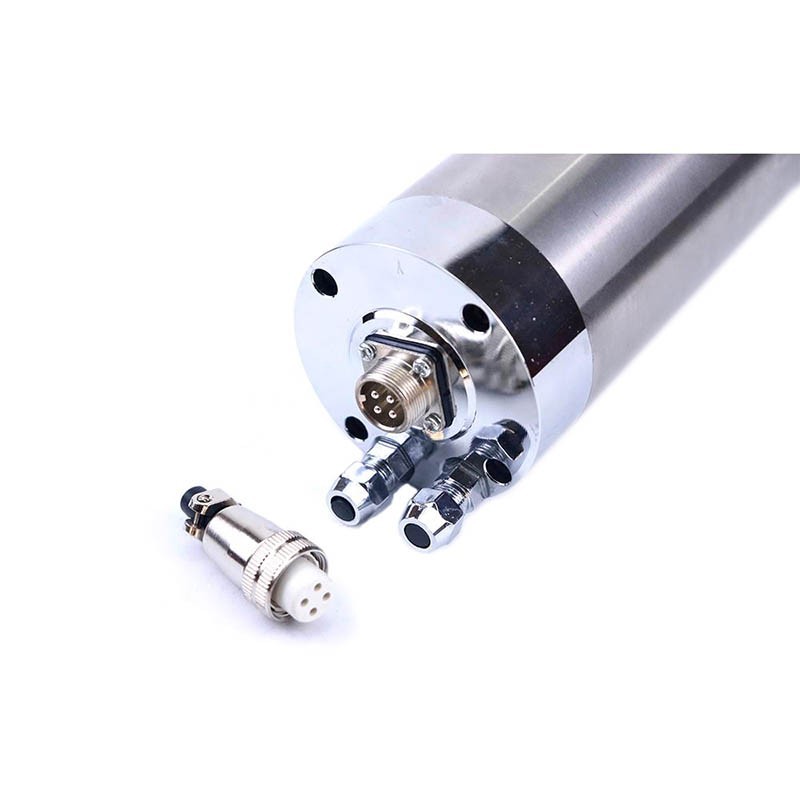

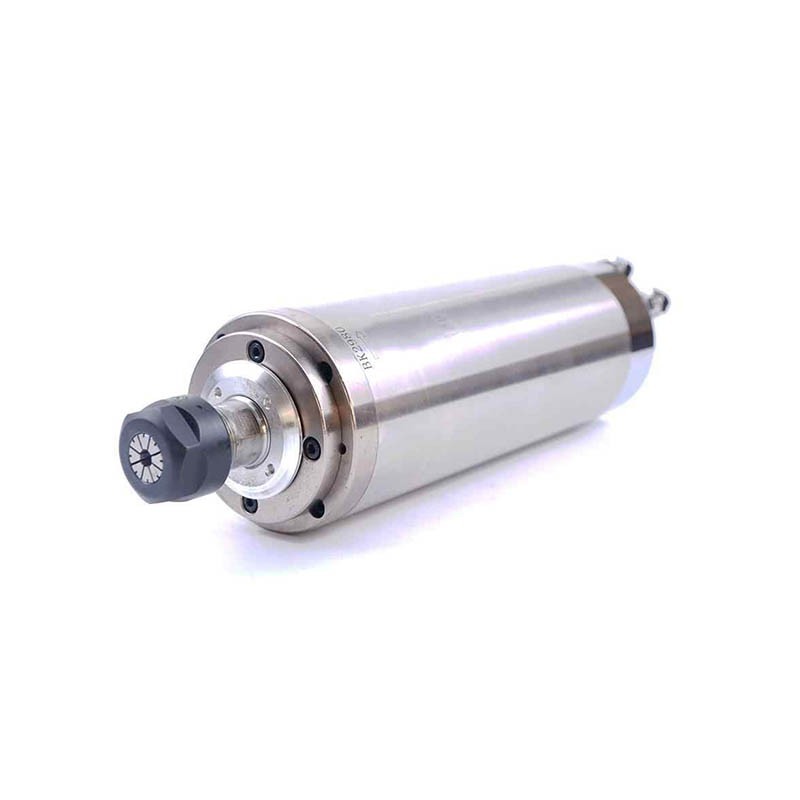

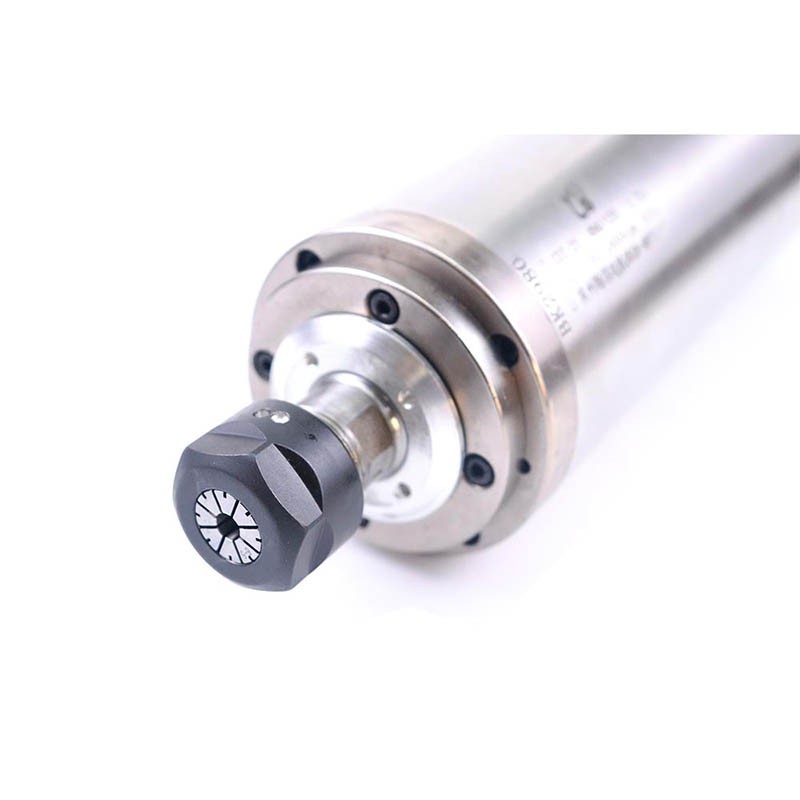

HQD 3.2KW Water Cooled Spindle 220V 12A 400Hz 24000rpm 100x265mm ER20A 4 Steel Bearing (Model: GDZ-24-1B 220V)

ZSP101616

New product

6 Months Warranty

More details

Rs 95,000.00

Estimated Delivery: 1 to 3 days

Add to wishlist

More info

Note: Use a VFD inverter for output. Don't use household electricity directly.

Model: HQD GDZ-24-1B
Overall dimensions: Φ100x265mm
Rotating speed: 24000RPM
Rated power: 2.2KW
Voltage: 220V
Current: 12A
Frequency: 400HZ
Steel Bearing: 7005C*2, 7003C*2
Chuck: ER20A
Cooling method: Self Water Cooling
Lubrication method: Grease
Number of phases: 3

Weight: 10kg
