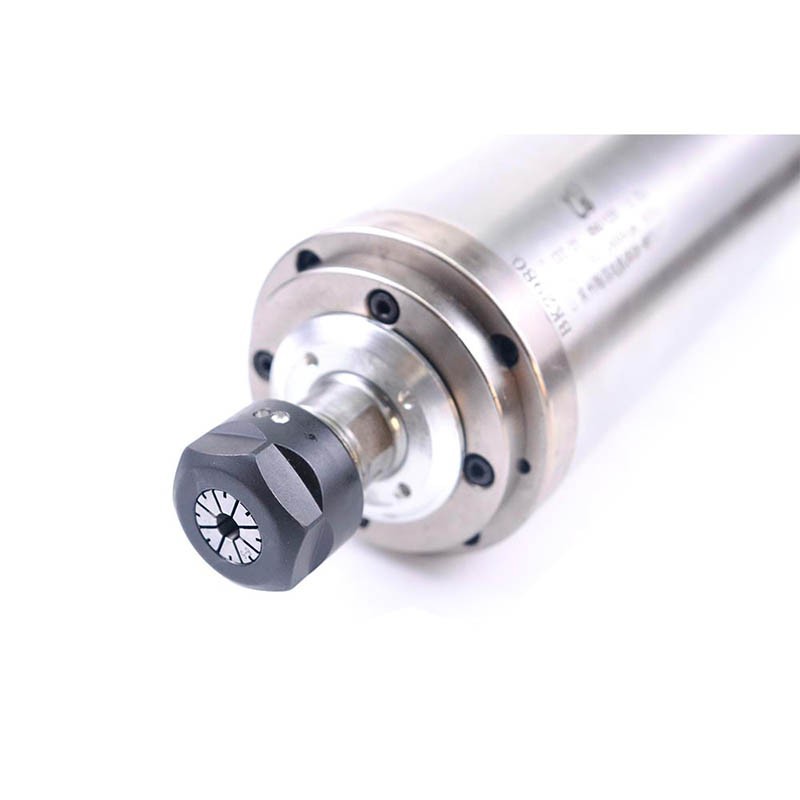

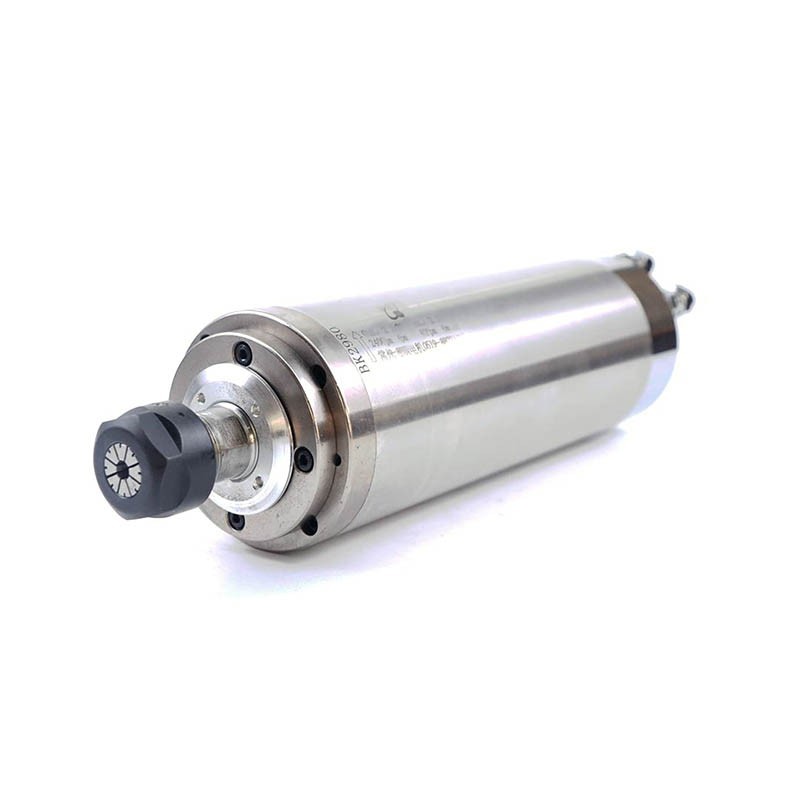

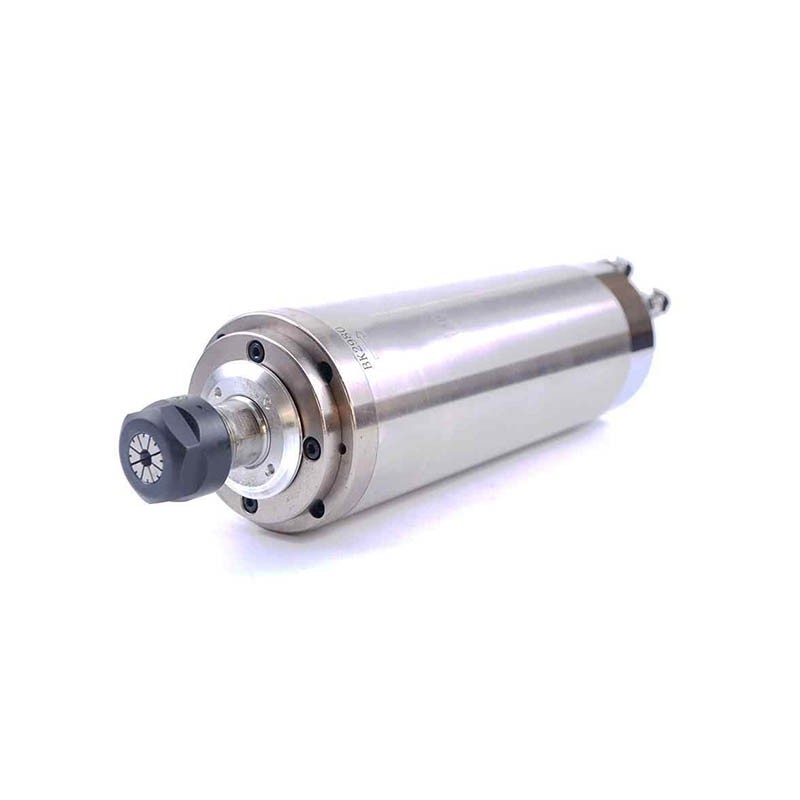

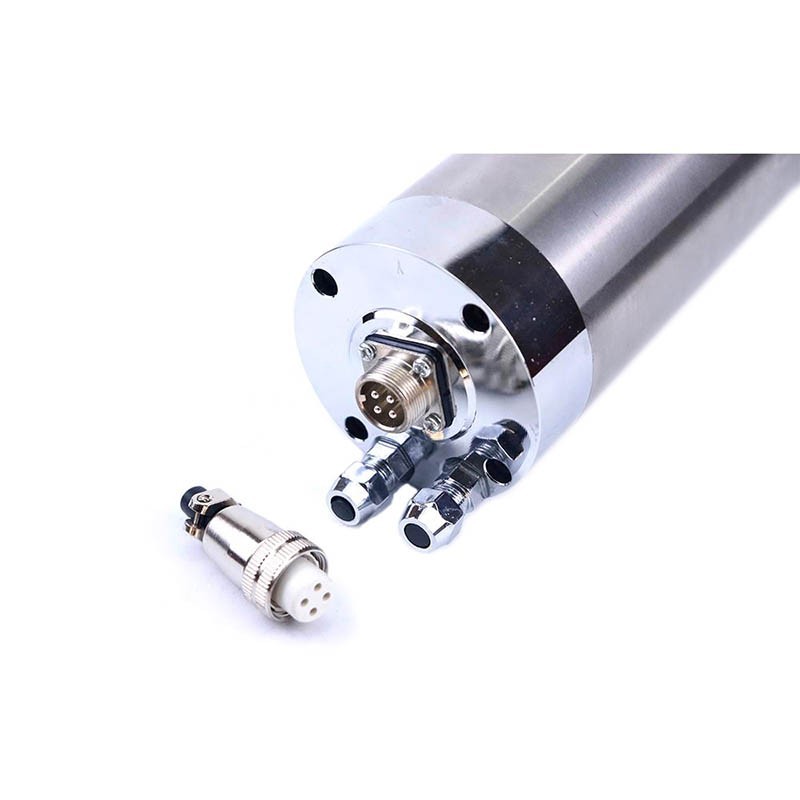

HQD 3.2KW Water Cooled Spindle 380V 12A 400Hz 24000rpm 100x265mm ER20A 4 Steel Bearing (Model: GDZ-24-1B 380V) - ZENIX Store LLC
> >>>>HQD 3.2KW Water Cooled Spindle 380V 12A 400Hz 24000rpm 100x265mm ER20A 4 Steel Bearing (Model: GDZ-24-1B 380V)

Spindles

Specials

New HQD 3.2KW Water Cooled Spindle 220V 12A 400Hz 24000rpm 100x265mm ER20 4 Steel Bearing (Model: GDZ-24-1B) View larger
Previous Next

HQD 3.2KW Water Cooled Spindle 380V 12A 400Hz 24000rpm 100x265mm ER20A 4 Steel Bearing (Model: GDZ-24-1B 380V)

New product

6 Months Warranty

More details

This product is no longer in stock

Rs 97,000.00

Estimated Delivery: 3 to 6 weeks

Add to wishlist

More info

Note: Use a VFD inverter for output. Don't use household electricity directly.

Model: HQD GDZ-24-1B
Overall dimensions: Φ100x265mm
Rotating speed: 24000RPM
Rated power: 2.2KW
Voltage: 380V
Current: 12A
Frequency: 400HZ
Steel Bearing: 7005C*2, 7003C*2
Chuck: ER20A
Cooling method: Self Water Cooling
Lubrication method: Grease
Number of phases: 3

Weight: 10kg
