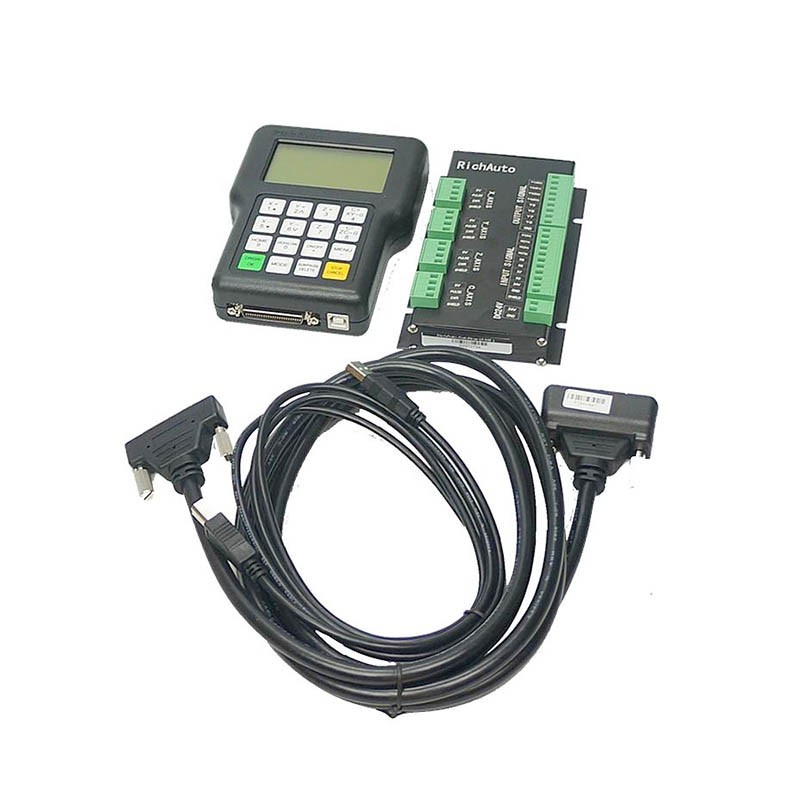

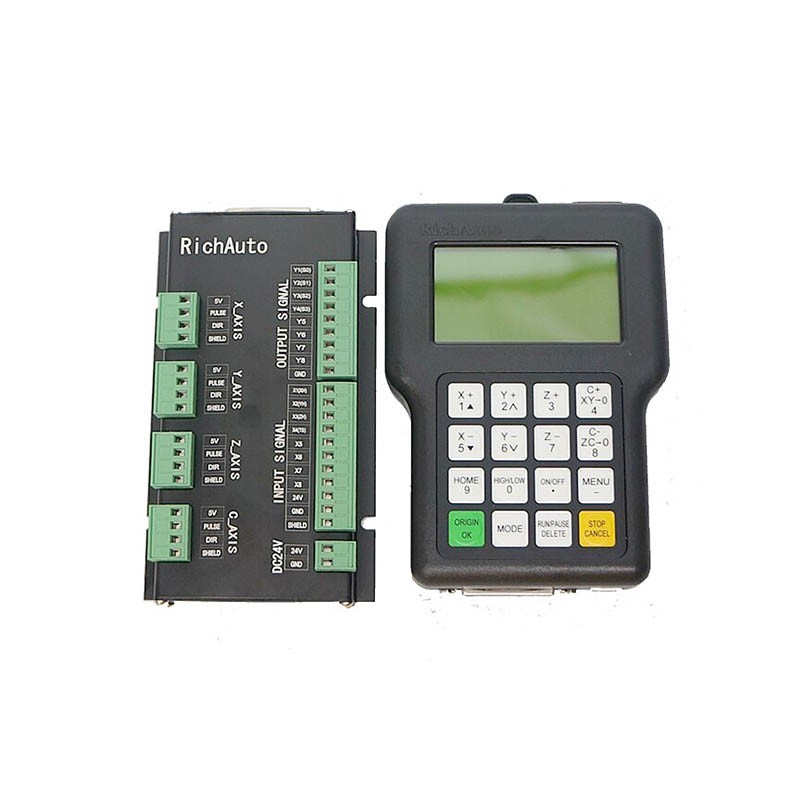

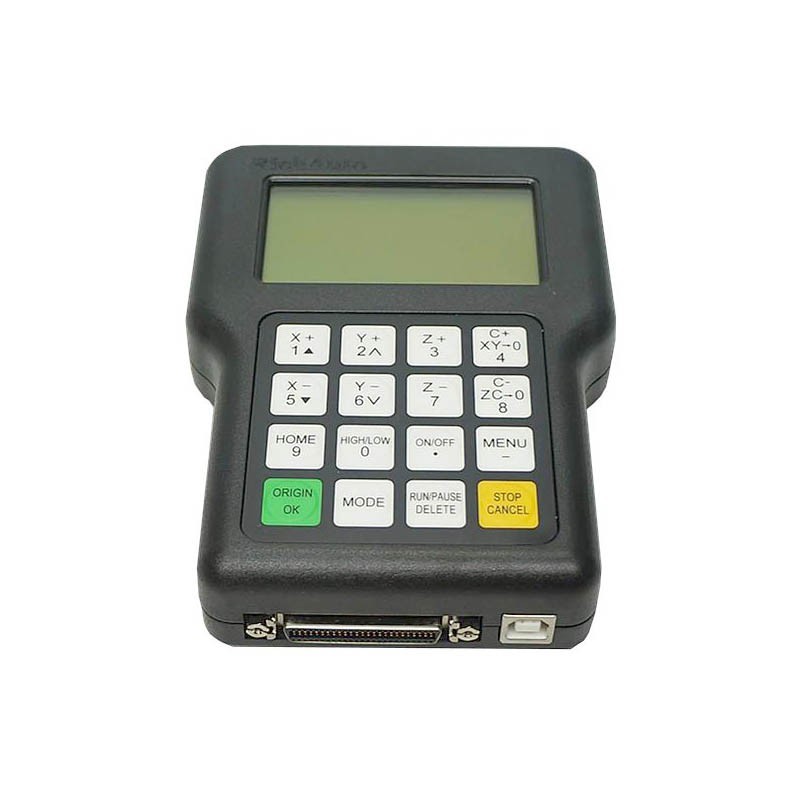

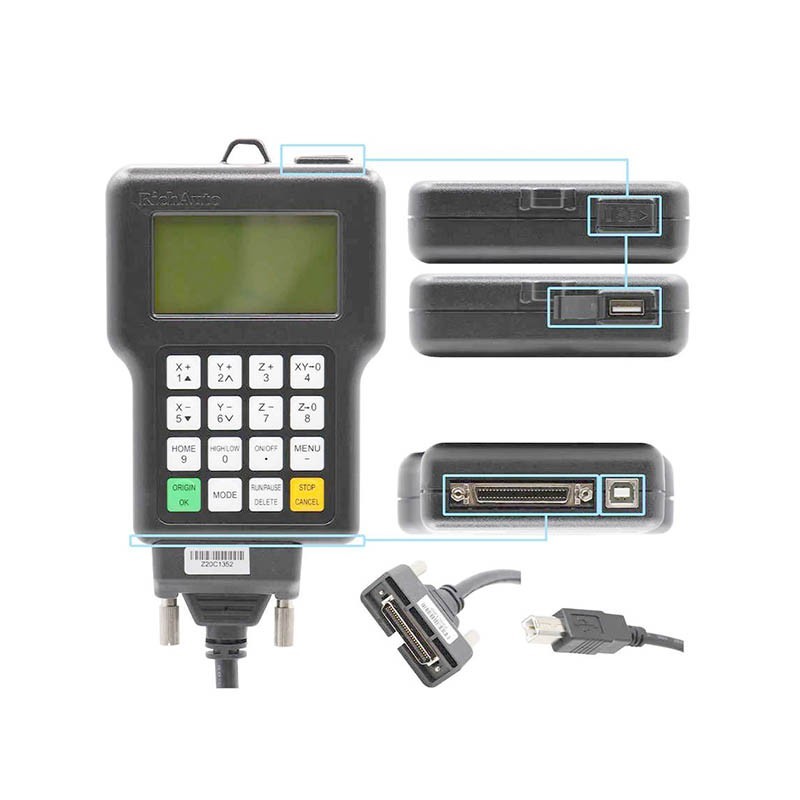

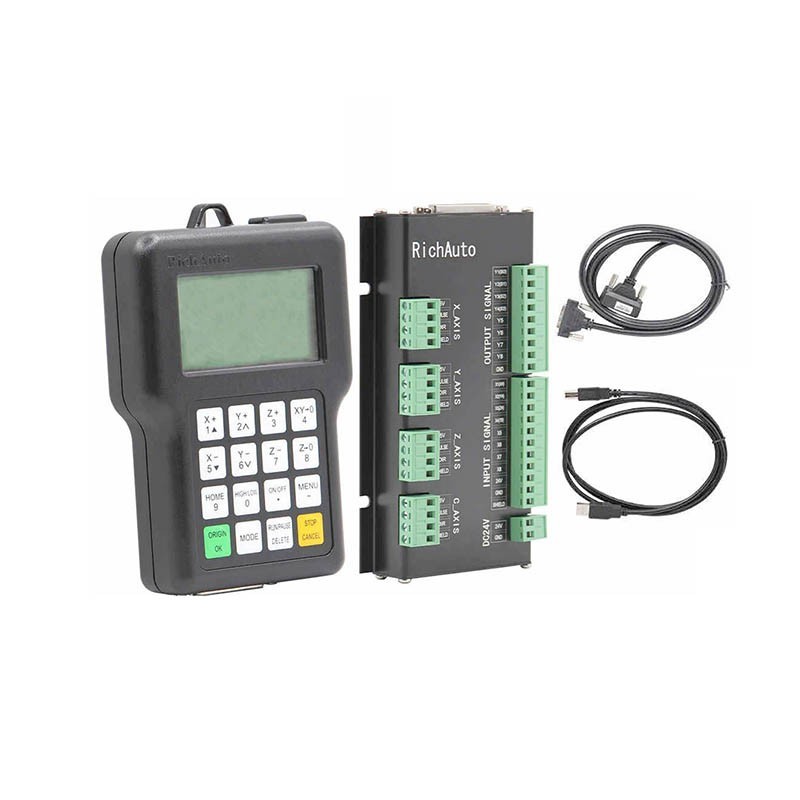

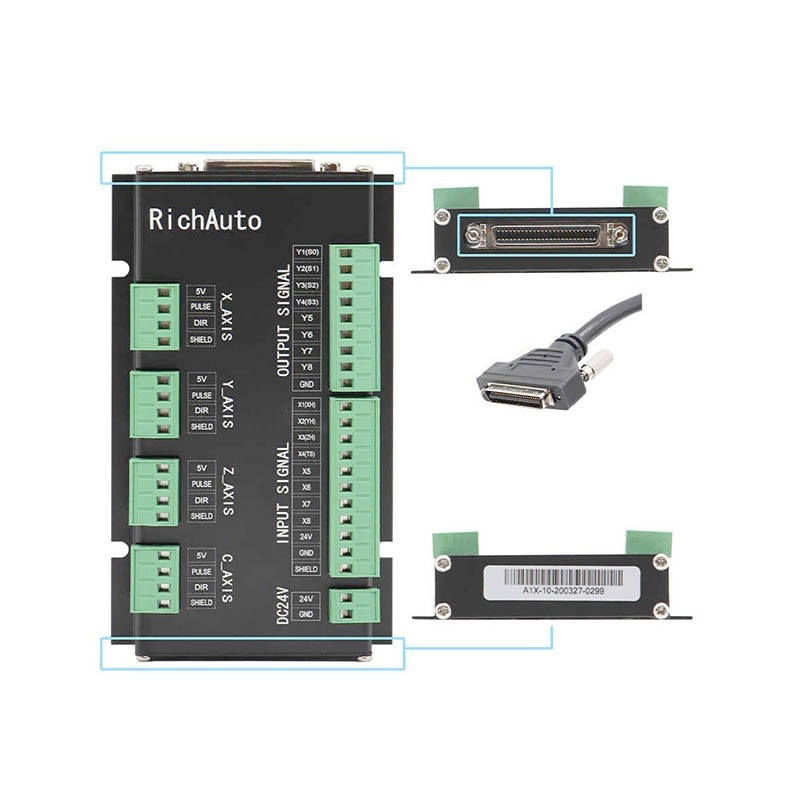

RichAuto A15 3 Axis DSP CNC Controller

Cable length: 4-6m

The RichAuto A15 is a CNC motion control system that can be used for machinery, advertisement, woodworking, mold engraving machine, laser, flame, plasma cutting machine, and so on. It has a new computing mode that can prevent damage during plasma processing.

• Series: A1X series
• Industry: Advertising
• Linkage Axis: 3 axis
• Screen Size: 3-inch monochrome screen
• ControlI/O: 8I/8O
• Model No.: RichAuto-A15

Product Feature

•  3-axis interpolations motion control, support 4 cylinders working.
•  Standard configured 8I/O interface board.
•  Support mobile calibration & fixed calibration, Tool setting position and speed are configurable.
•  Read the T command to control cylinders, spindles can switch flexibly.
•  Tool space can be set freely, the system calculates compensation automatically.
•  The user only needs to calibrate the cutter which is changed.
•  9 workpiece coordinates, 8 breakpoints storage positions.
•  Support tool broken continue breakpoint resume, Intelligent power failure recovery.
•  HIGH/LOW manual speed switching, fine adjusting, and distance setting.
•  Offer system alarms for drivers, inverters, E-stop switches, and hard limits.
•  Stop position and status can be set as user’s request.
