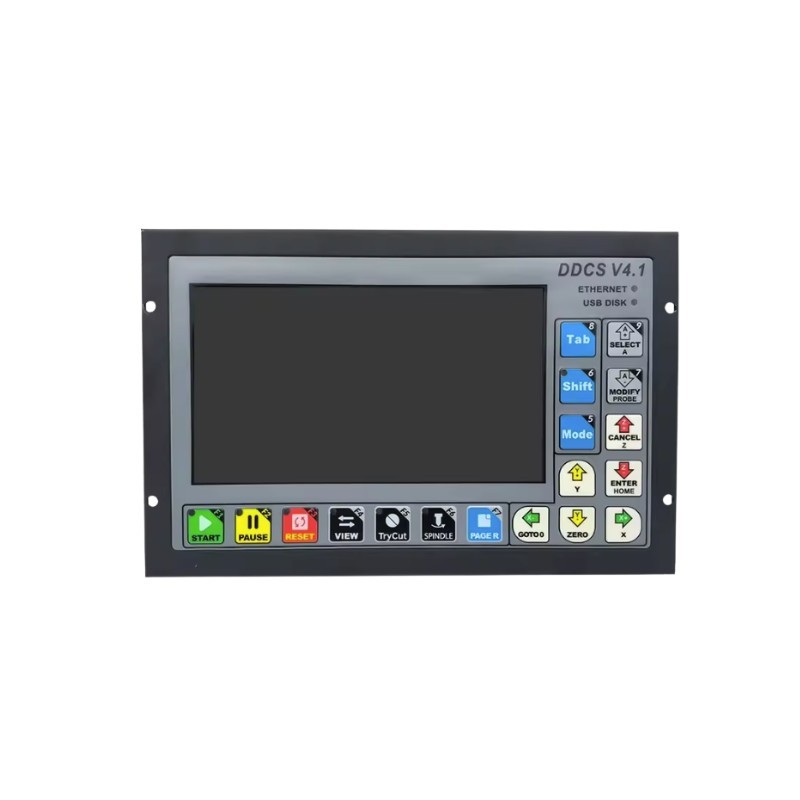

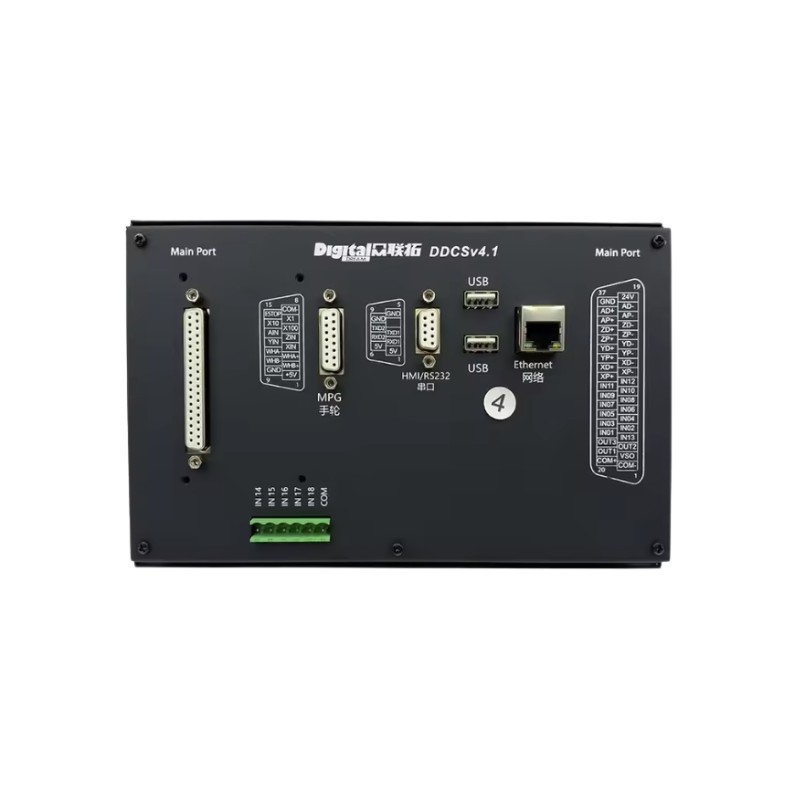

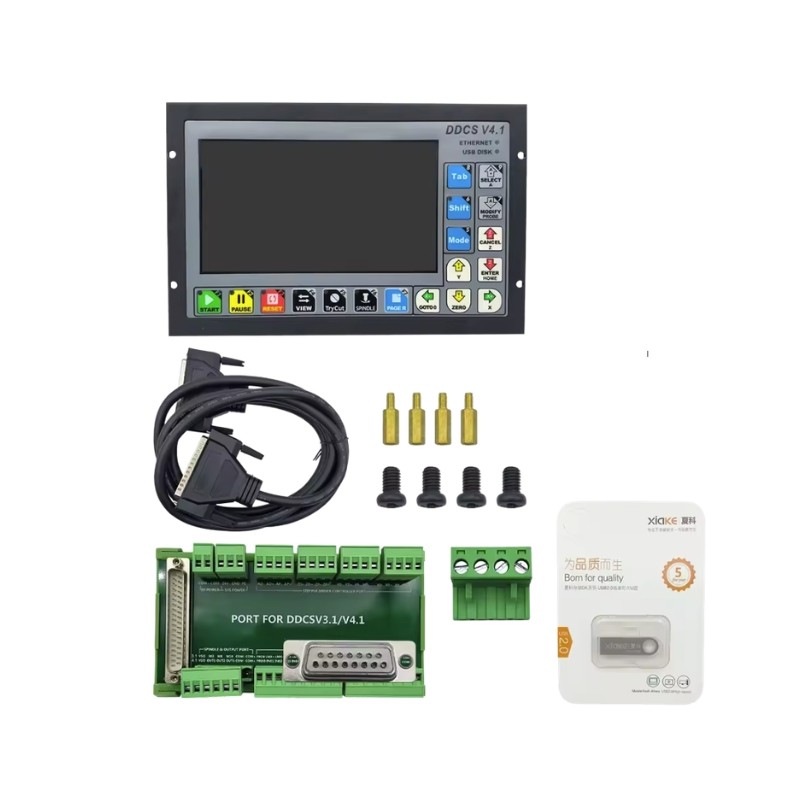

DDCS V4.1 4 Axis DSP CNC Controller

The DDCS V4.1 is a standalone 4-axis DSP CNC controller designed for precise and reliable motion control in CNC machines and automation systems. With an integrated operating system and independent processing capability, it allows CNC machines to run without requiring a connected computer.

Key Features

• Standalone CNC Control
  Operates independently without a PC for improved reliability and simplified machine setup.
• 4-Axis Motion Control
  Supports simultaneous control of X, Y, Z, and A axes for advanced machining applications.
• DSP High-Speed Processing
  Digital signal processing technology ensures smooth motion, accurate positioning, and stable operation.

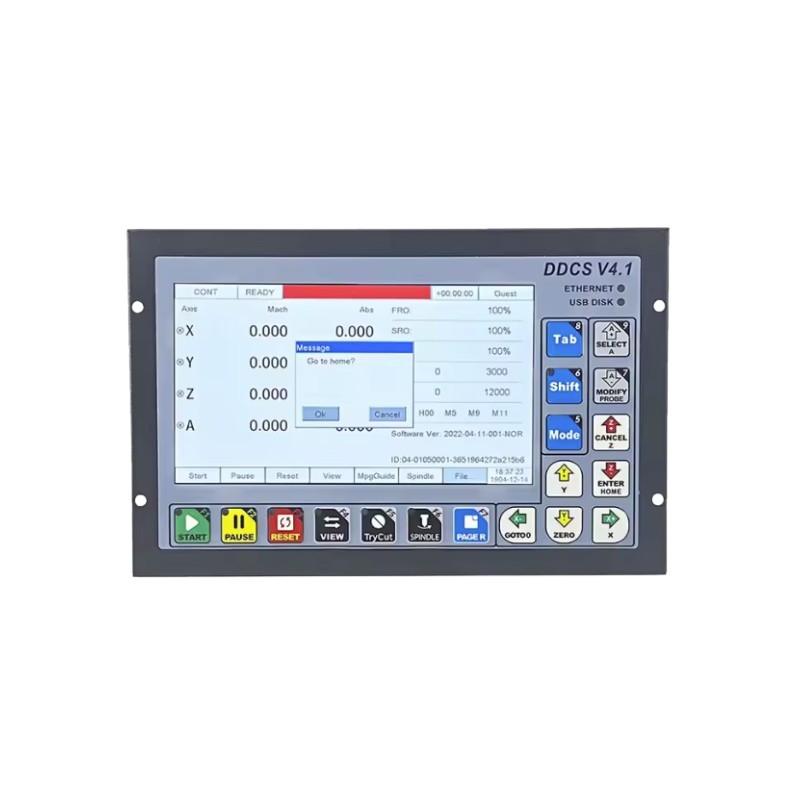

• User-Friendly Interface
  Integrated display and control panel provide easy operation and machine monitoring.
• USB File Loading
  Supports direct file transfer and program execution through USB storage devices.
• Stepper and Servo Compatibility
  Compatible with standard pulse and direction stepper or servo drivers.
• Stable Industrial Performance
  Designed for continuous operation in CNC and industrial environments.

Functions

• Manual axis jogging and positioning
• Program execution and file management
• Spindle control support
• MPG handwheel support
• Emergency stop integration
• Coordinate system management

Specifications

• Controller Type: DSP standalone CNC controller
• Axis Support: 4 Axis
• Input Voltage: 24V DC
• File Transfer: USB drive
• Control Output: Pulse and direction signals
• Display: Integrated LCD display
• Compatibility: Stepper and servo drivers

Applications

Ideal for CNC routers, engraving machines, plasma cutters, milling systems, rotary axis applications, and industrial automation projects requiring reliable 4-axis control.
