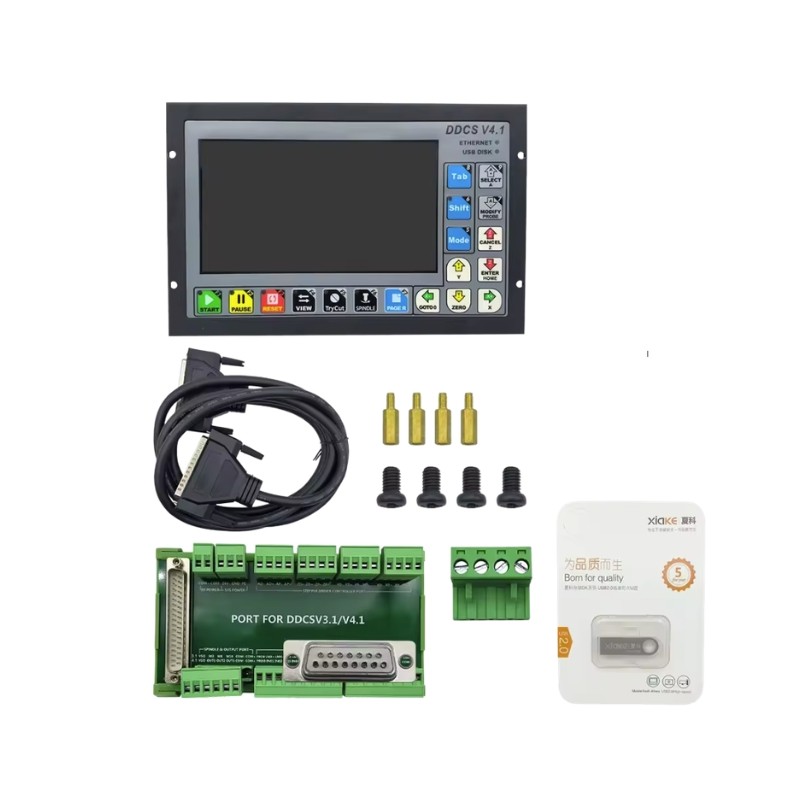

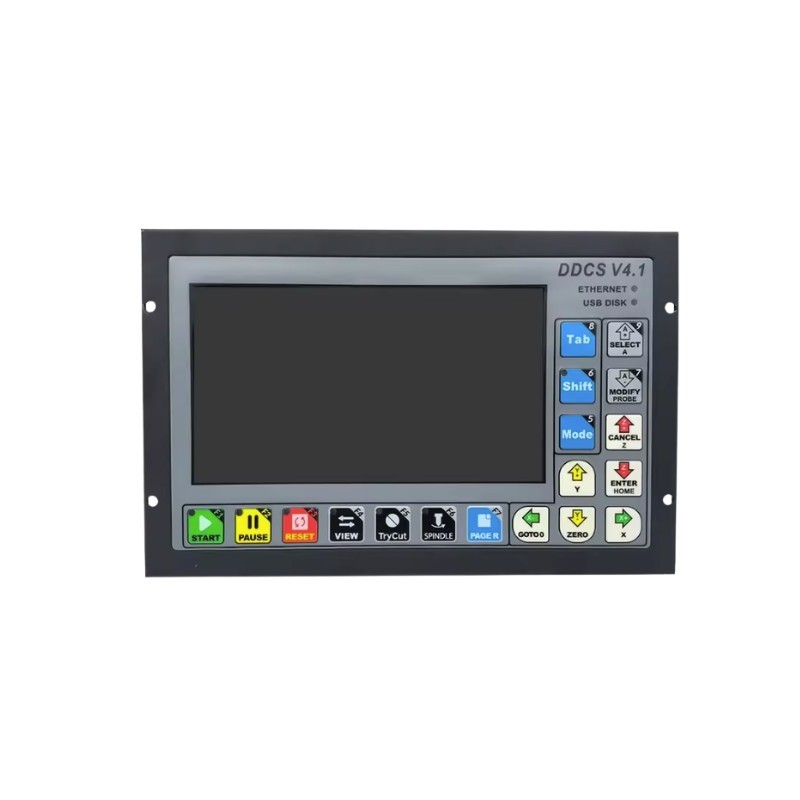

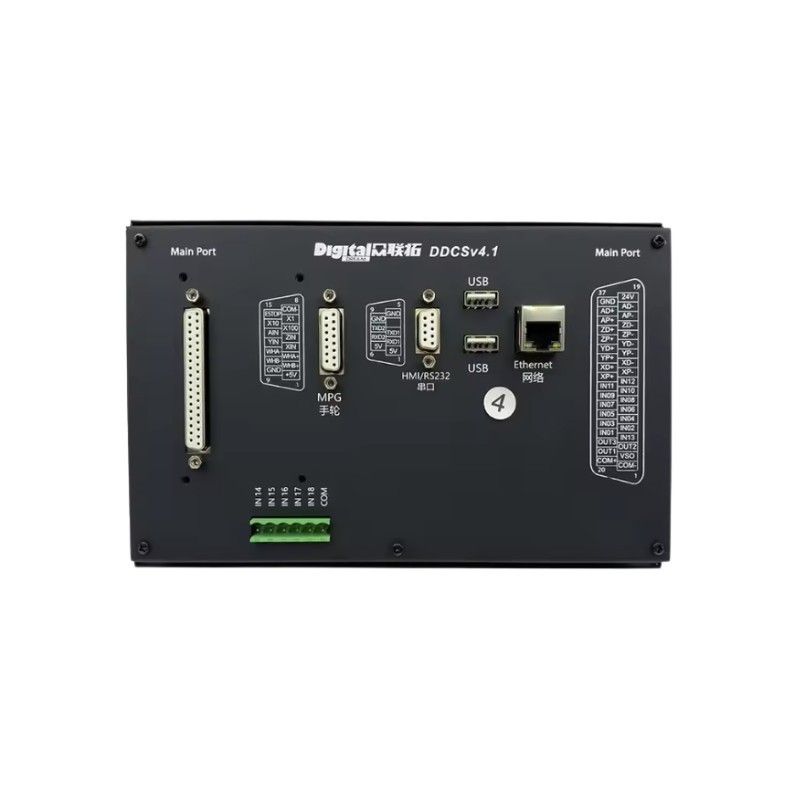

DDCS V4.1 3 Axis DSP CNC Controller

The DDCS V4.1 is a standalone 3-axis DSP CNC controller designed for reliable and precise motion control in CNC machines. With an integrated operating system and user-friendly interface, it provides stable machine control without requiring a computer during operation.

Key Features

• Standalone CNC Operation
  Runs independently without a PC, improving reliability and reducing system complexity.
• 3-Axis Motion Control
  Supports X, Y, and Z axis control for CNC routers, engraving machines, and automation systems.
• DSP-Based Control System
  High-speed digital signal processing ensures smooth motion and accurate machining performance.

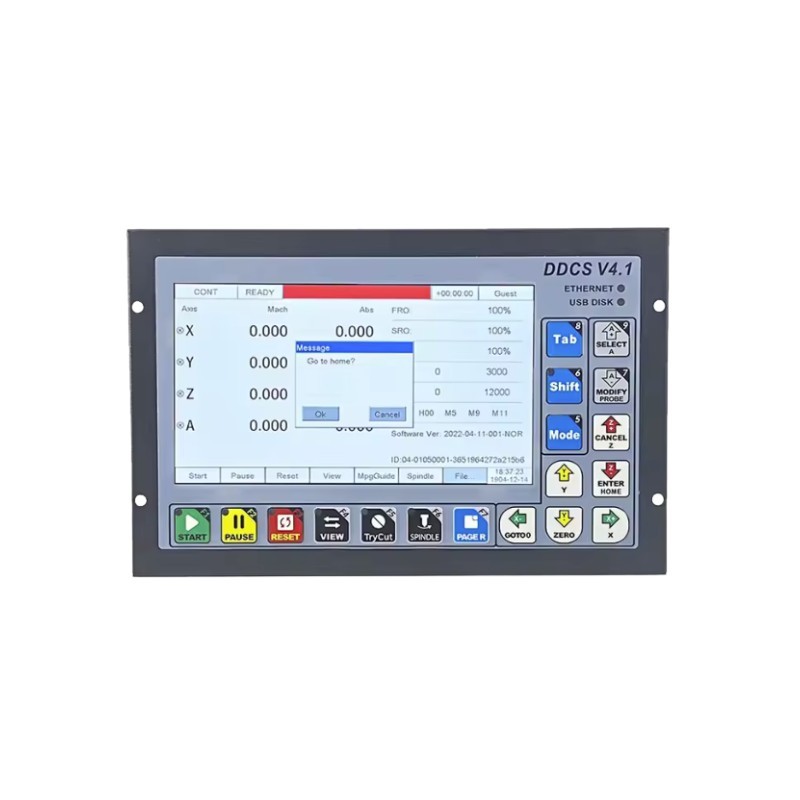

• User-Friendly Interface
  Equipped with a clear display and intuitive controls for easy operation and monitoring.
• USB File Support
  Supports loading machining files directly through USB storage devices.
• Wide Compatibility
  Compatible with standard stepper and servo driver systems.
• Stable and Reliable Performance
  Designed for continuous industrial and workshop use.

Functions

• Manual jogging and machine positioning
• Program execution and file management
• Spindle control support
• Emergency stop support
• MPG handwheel compatibility
• Coordinate system management

Specifications

• Controller Type: DSP standalone CNC controller
• Axis Support: 3 Axis
• Input Voltage: 24V DC
• File Transfer: USB drive
• Control Output: Pulse and direction signals
• Display: Integrated LCD display
• Compatibility: Stepper and servo motor drivers

Applications

Suitable for CNC routers, engraving machines, woodworking machines, plasma systems, and other motion control applications requiring reliable standalone CNC control.
