Cloned RichAuto A11 3 Axis 0501 DSP CNC Controller (2.5m Wire)

New product

This product is no longer in stock

Rs 55,000.00

Estimated Delivery: 3 to 6 weeks

Add to wishlist

More info

Processor

160M DSP

File Memorizer

128M memorizer inside, it supports file with any size because of adopting mobile memorize technology

Display

LCD with 128 dot*64 dot

Communication Terminals

USB terminal and U Disk

File Format

G code , PLT files (optional)

Axes

3 axes

Help Function

Useful help information and guide

Languages

Chinese, English, Russia, France, Japanese(optional or customize)

Operating Interface

Friendly Buttons and Menu Drive

Drive System

Step Motors

Interpolation function

linear, curve

Cutter Adjusting function

Yes

Spindle Control Function

Yes

System Data Inspect Function

Yes

Processing Data Inspect Function

Yes

Processing Position Adjusting Function

Yes

Multi Working Coordinates

It has 9 working coordinates

Stop Point Reprocessing Function

Yes

Copy Processing Function

Yes

Data protection when power off

Yes

Working Temperature

0C to +70C

Humidity

<90 no dew no frost

Outer Voltage

5 V

Consumptions

2 W

Dimensions(mm)

156*110*38

Characteristic

1. Totally independent from PC platform;

2. Directly read files from U Disk;

3. Easily process G code or PLT file with super size;

4. Strong system and process file examining function;

5. Easy to update system program;

6. It supports high micro step which makes precise and fast process possible;

7. Support to process part of the file;

8. Reliable data protection and recover function;

9. Friendly operating interface



Cautions

1. Don't use this product in strong magnetic filed or interfere environments;

2. Don't PnP U Disk while it is running a file;

3. Protect it from water, moist, dust and fire;

4. Protect it from metal materials getting into the cover;

5. Forbad to open the cover, there is no any user maintainable parts inside;

6. Plug U Disk and other lines gentle.

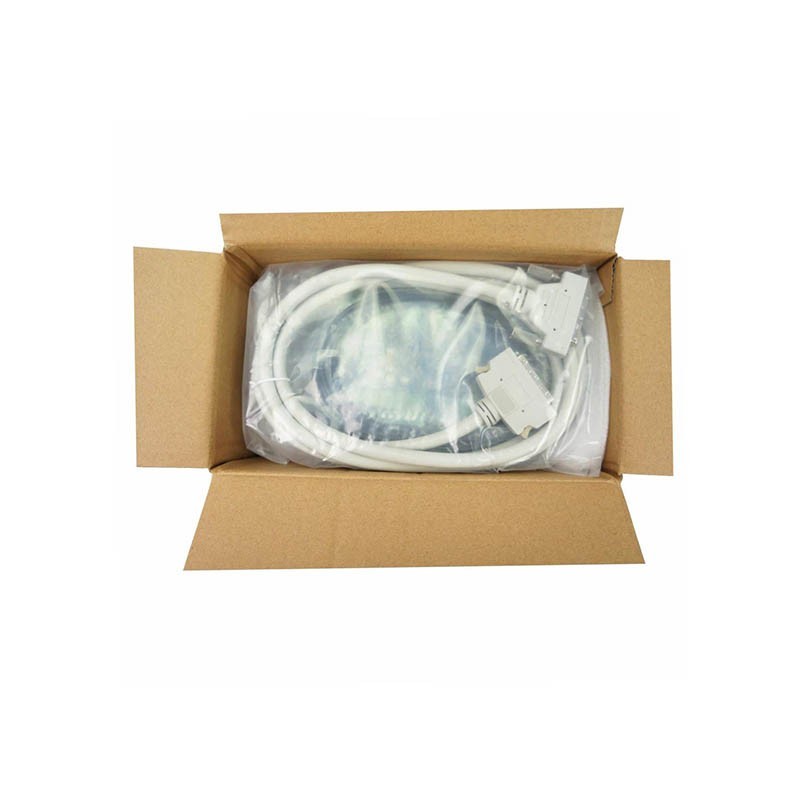

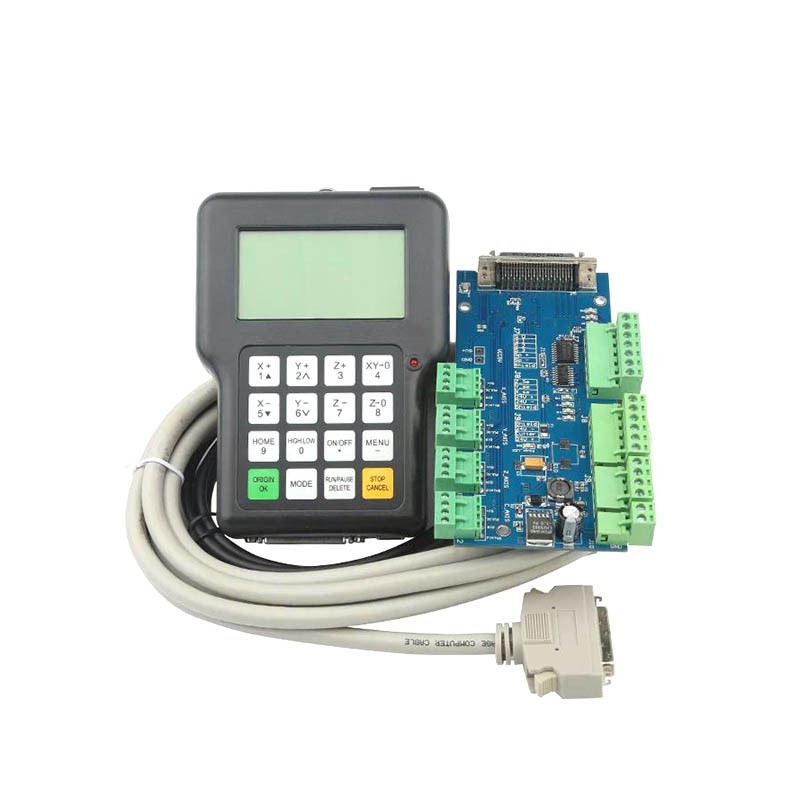

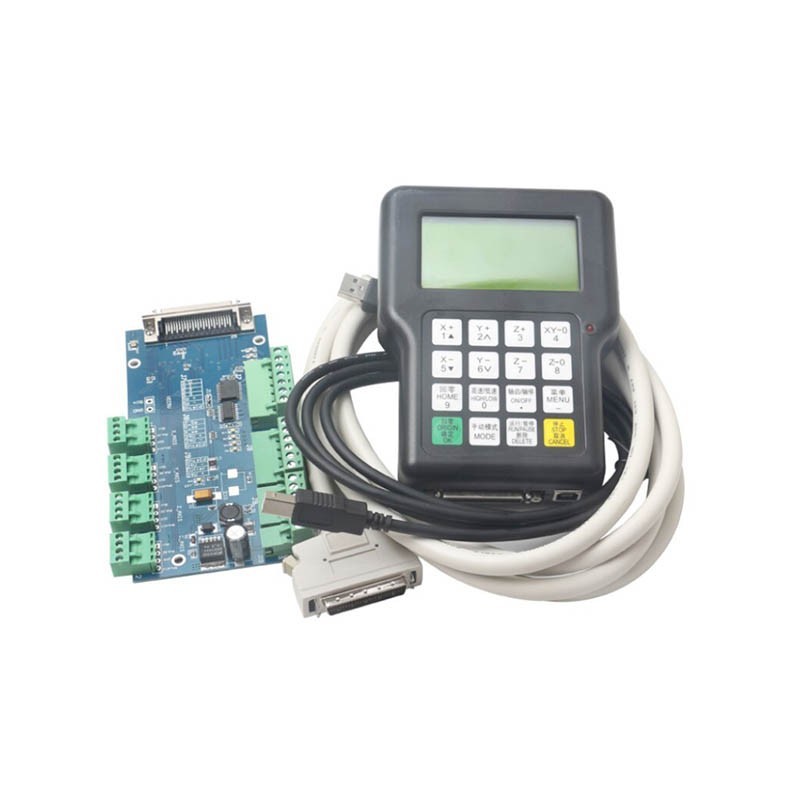

Package introduced

1pcs DSP handle

1pcs Fifty-pin data cable

1pcs Terminal Interface Board

1pcs USB data cable

1pcs Software CD
