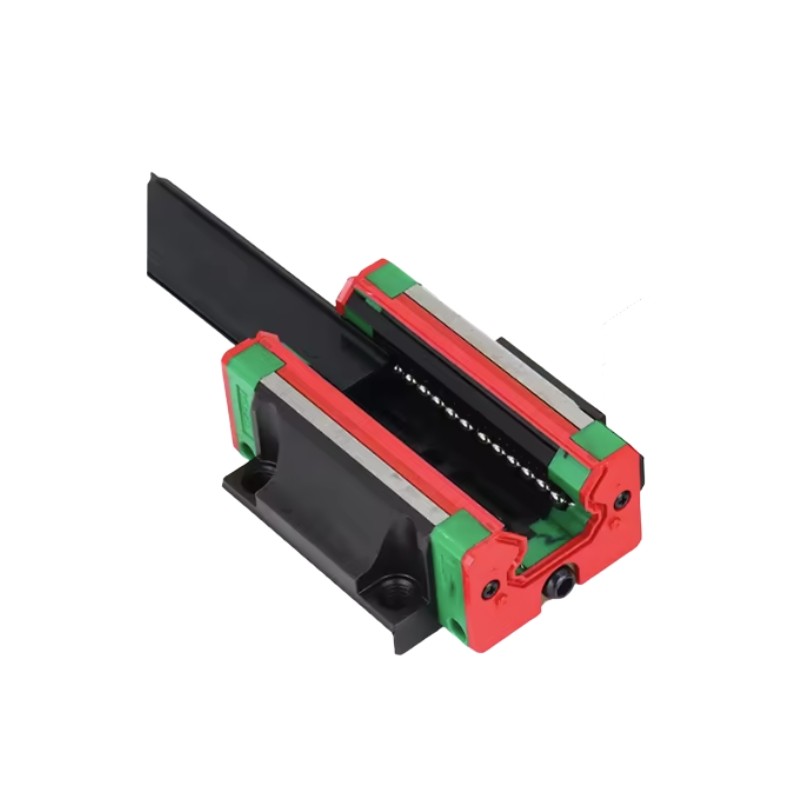

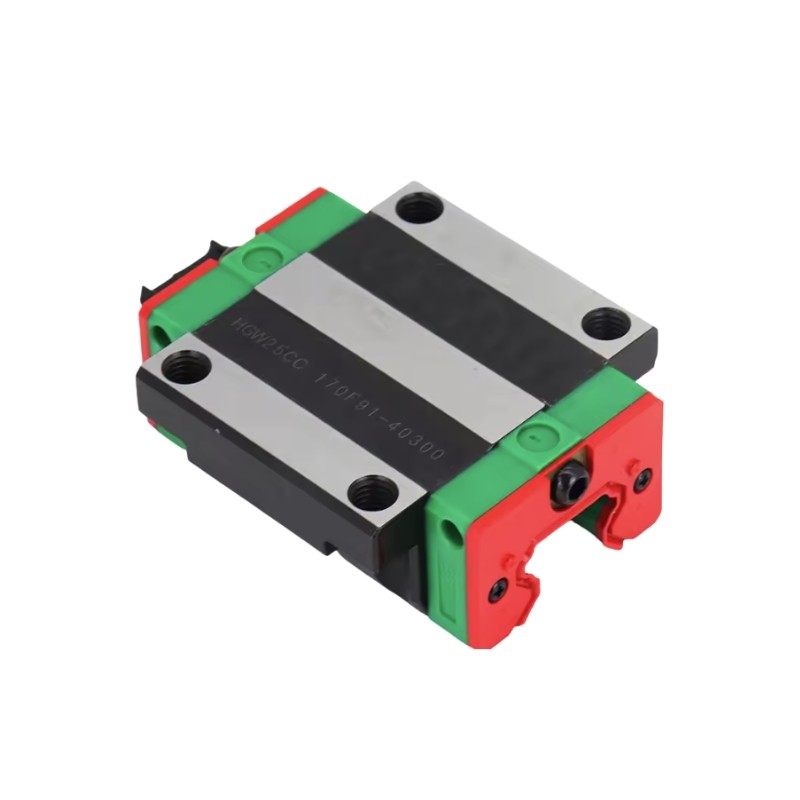

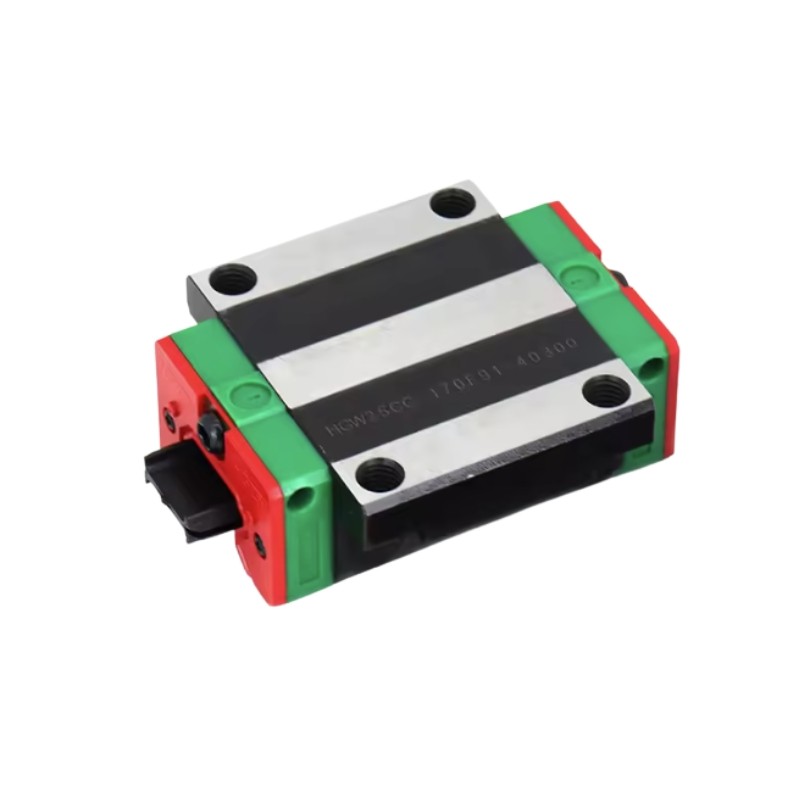

HGW20CA Flange 20mm Square Linear Rail Slider Block

The HGW20 Flange Linear Rail Slider Block is a precision linear motion carriage designed for use with compatible 20mm profile linear guide rails. Its wide flange-style body provides a stable mounting surface, making it suitable for CNC machines, automation equipment, 3D printers, laser machines, industrial machinery, and custom linear motion systems.

The block uses a recirculating ball-bearing system to provide smooth, low-friction linear movement along the rail while supporting loads from multiple directions. Compared with basic round-shaft bearing systems, profile linear guides provide higher rigidity, better positioning stability, and a more compact mechanical arrangement.

The HGW20 is particularly suitable for machine axes that require a wider mounting platform and strong support for moving tables, gantries, fixtures, or mechanical assemblies.

Key Features

• HGW20 flange-style linear guide slider block

• Designed for compatible 20mm profile linear rails

• Recirculating ball-bearing linear motion system

• Wide flange mounting surface for easier machine assembly

• Smooth and low-friction linear movement

• Suitable for loads from multiple directions

• High rigidity for CNC and automation applications

• Suitable for precision linear motion systems

Flange-Style Mounting Design

The HGW20 uses a wide flange-style carriage body that provides a larger mounting surface than narrow square-style blocks.

This makes it convenient for attaching machine tables, plates, brackets, gantries, and other moving components directly to the slider block.

The flange configuration is especially useful where wider mounting support or easier access to mounting holes is required.

Smooth Recirculating Ball Motion

Inside the carriage, steel balls continuously circulate as the block moves along the linear rail.

This recirculating bearing design helps reduce friction while maintaining accurate contact between the slider and rail, producing smooth and controlled linear movement.

It is suitable for applications requiring repeated movement, positioning accuracy, and stable machine motion.

High Rigidity Linear Guidance

Profile linear guide systems are designed to support forces from multiple directions while maintaining good rigidity.

When installed correctly, an HGW20 block and compatible rail can provide stable guidance for CNC machine axes, automation mechanisms, moving platforms, and other precision equipment.

Using two rails or multiple blocks can further improve stability for larger moving assemblies.

Suitable for CNC Machine Axes

The HGW20 is commonly used in linear motion systems where accurate and stable axis movement is required.

Typical applications include:

• CNC router X, Y, and Z axes

• CNC milling machine motion systems

• Laser cutting and engraving machines

• Industrial 3D printers

• Automation equipment

• Pick-and-place systems

• Linear positioning tables

• Custom machinery

20mm Profile Rail Compatibility

The HGW20 is designed for compatible 20mm profile linear guide rails, commonly referred to as HGR20-type rails.

The rail and slider block must use matching profiles and dimensions. Blocks from different manufacturers may not always interchange perfectly even when they use the same nominal size.

For best performance, use the slider with the correct compatible rail.

Precision Machine Installation

Linear guide performance depends heavily on correct installation.

The mounting surfaces should be flat, clean, and properly aligned. Misalignment between parallel rails can increase friction, create uneven loading, and shorten bearing life.

For CNC and precision equipment, careful alignment and secure mounting are recommended.

Technical Specifications

Applications

• CNC routers

• CNC milling machines

• CNC engraving machines

• Laser engraving machines

• Laser cutting machines

• Large-format 3D printers

• Industrial automation

• Linear motion stages

• XY positioning systems

• Gantry systems

• Machine tables

• Robotics

• Pick-and-place equipment

• Custom mechanical projects

Compatibility

• Compatible 20mm profile linear guide rails

• HGR20-style linear rail systems with matching carriage profile

• CNC and automation systems designed for HGW20-size blocks

Exact mounting dimensions, preload class, accuracy class, and load ratings can vary by manufacturer and selected version. Confirm these specifications when replacing an existing slider block.

Maintenance

Keep the rail clean and properly lubricated to maintain smooth movement and reduce wear. Avoid allowing dust, metal chips, wood particles, or other contamination to enter the bearing path.

For CNC machines operating in dusty environments, regular cleaning and lubrication are recommended.

Usage Note

Do not remove the slider block from the rail without using a suitable retaining or transfer rail, as the internal bearing balls may become displaced. When installing multiple rails, align them carefully before fully tightening the mounting screws to prevent binding and uneven bearing load.
