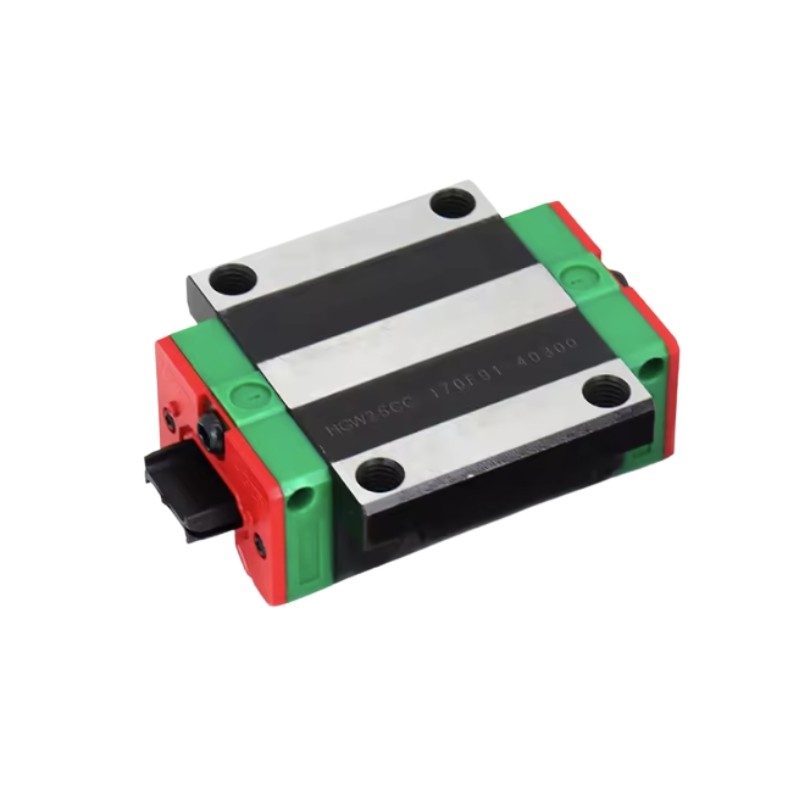

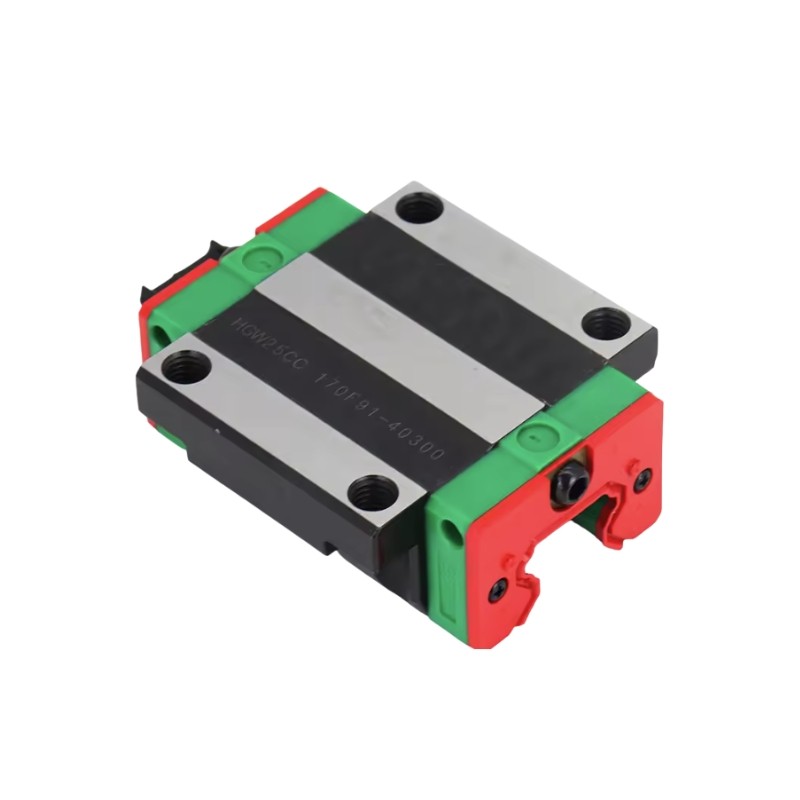

HGW25CA Flange 25mm Square Linear Rail Slider Block

The HGW25CA Flange Linear Rail Slider Block is a heavy-duty precision linear motion carriage designed for use with compatible 25mm profile linear guide rails. Its wide flange-style body provides a larger mounting surface, making it suitable for CNC machines, industrial automation, laser systems, large-format 3D printers, machine tools, and custom motion assemblies.

The block uses a recirculating ball-bearing system to provide smooth, low-friction movement along the rail while supporting loads from multiple directions. The 25mm size offers increased rigidity and load capability compared with smaller rail systems, making it suitable for larger machines and heavier moving assemblies.

The HGW25CA is especially useful for applications where stable guidance, repeatable positioning, and a wide mounting platform are required.

Key Features

• HGW25CA flange-style linear guide block

• Designed for compatible 25mm profile linear rails

• Recirculating ball-bearing motion system

• Wide flange mounting surface

• Smooth and low-friction linear movement

• Suitable for loads from multiple directions

• Higher rigidity for larger CNC and industrial machines

• Suitable for precision linear motion applications

Wide Flange Mounting Design

The HGW25CA features a wide flange-style carriage body that provides a larger mounting area than narrow square-type slider blocks.

This makes it convenient for mounting:

• Machine tables

• Gantry plates

• CNC axis assemblies

• Fixtures

• Brackets

• Moving platforms

• Automation components

The wider flange helps distribute load across a larger mounting surface and simplifies installation where additional mounting support is required.

25mm Heavy-Duty Linear Guide Size

The HGW25CA is designed for a 25mm class profile linear rail system. Compared with smaller 15mm or 20mm guide systems, the larger size is suitable for heavier mechanical assemblies and applications requiring increased rigidity.

This makes it a practical choice for medium to large CNC routers, industrial motion systems, machine tools, and automation equipment.

Recirculating Ball Bearing System

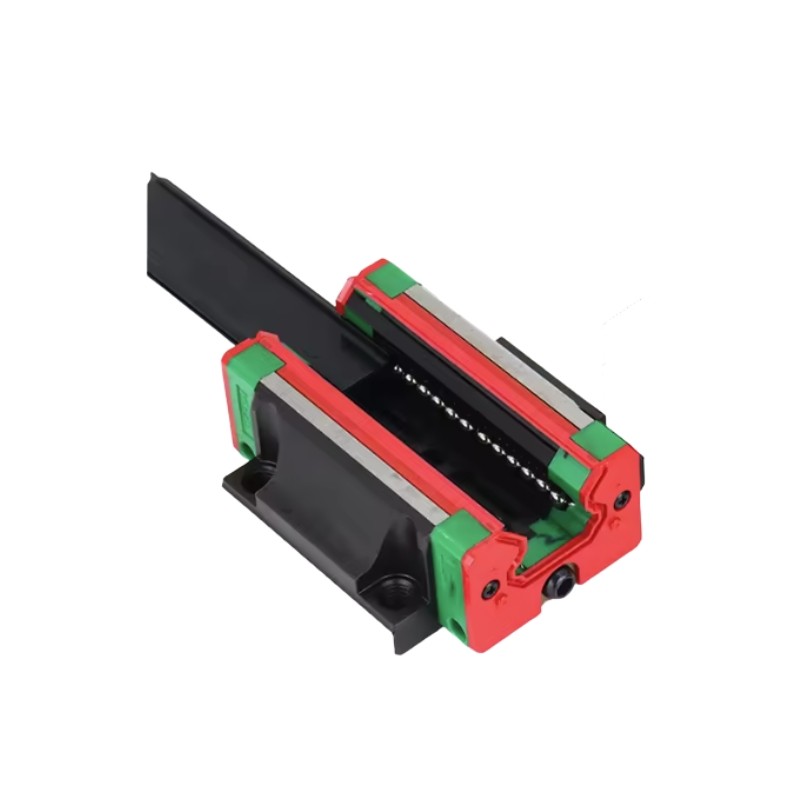

The slider contains precision steel balls that circulate continuously as the block moves along the rail.

This bearing structure reduces friction while maintaining close contact between the carriage and guide rail, allowing smooth and controlled motion over repeated cycles.

The recirculating design is suitable for applications requiring accurate positioning and long travel distances.

Stable Multi-Directional Load Support

Profile linear guides are designed to handle forces from multiple directions while maintaining rigidity.

This makes the HGW25CA suitable for horizontal, vertical, and gantry-style machine axes where the carriage may experience radial, reverse radial, and side loads.

Correct rail alignment and mounting are important for achieving smooth motion and even load distribution.

Suitable for CNC and Industrial Machinery

The HGW25CA is commonly used in applications where stable and accurate axis movement is required.

Typical uses include:

• CNC router X, Y, and Z axes

• CNC milling machines

• Laser cutting machines

• Laser engraving machines

• Industrial 3D printers

• Automation systems

• Machine tables

• Robotic equipment

• Linear
