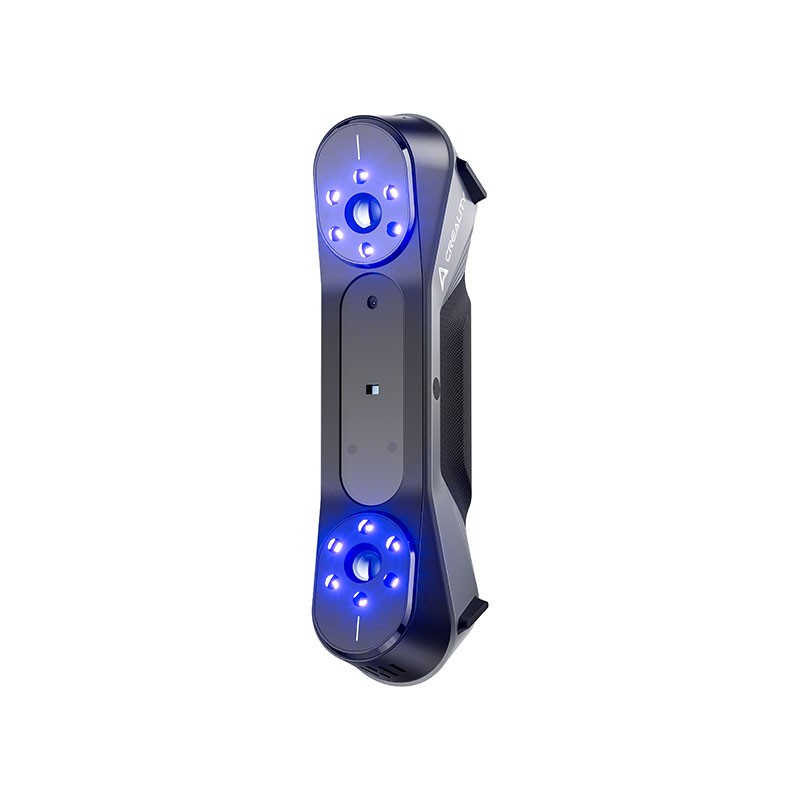

Creality Raptor 3D Scanner

The CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios.

Highlights

• 7 Blue Parallel Laser Lines
• Metrology Grade Accuracy, up to 0.02mm
• Scanning Speed up to 60fps
• Objects between 5-2000mm
• Anti-shaking for Smooth Scanning
• Scan Black/Metal Objects Without Sprays
• 24-Bit Full-Color Scanning
• Light and Compact, 372g

Compact and Easy to Handle

Weighing just 372 grams, the CR-Scan Raptor is designed for one-handed use—even during long sessions. It features an anti-slip coating and includes a removable neck strap for comfortable, fatigue-free scanning with added safety.

Scan Anything from 5 mm to 2 m

By combining 7 ultra-fine blue laser lines with structured NIR light, the Raptor can capture objects as small as 5 × 5 × 5 mm³ to as large as 2000 × 2000 × 2000 mm³—making it suitable for scanning everything from small bolts and human faces to large body parts and automotive components.

Industry-Leading Accuracy

With a scanning accuracy of up to 0.02 mm, the CR-Scan Raptor is built for high-precision applications. The scanner achieves this through:

• 7 parallel blue laser lines with ultra-thin profiles (as small as 0.1 mm),

• Advanced temperature compensation algorithms for stable performance in varying environments,

• High-performance optics, including a 20 mm large depth-of-field lens, <0.5% distortion, a 9-element glass lens, and a durable metal barrel and mount.

No Markers or Scan Sprays Needed

Thanks to speckle-based 3D imaging with infrared structured light, the CR-Scan Raptor can scan complex geometries and dark or reflective surfaces without additional markers or sprays. Black materials, metals, and automotive components can be scanned seamlessly and efficiently.

True-to-Life Color and Texture Capture

The Raptor features 12 circular LED lights arranged around the scanner for full-color 24-bit texture scanning. Blue light enhances laser scanning visibility, while white LEDs illuminate surfaces for realistic color data.

Lightning-Fast Scanning Speed

Capture high-resolution 3D data quickly with:

• Up to 60 fps with blue light scanning,

• Up to 20 fps with infrared scanning.

This makes even complex, high-detail scanning jobs fast and efficient.

Human Face and Body Scanning

A dedicated facial imaging algorithm allows for ultra-clear scanning of human features. The entire body can be scanned in as little as 2 minutes, making the Raptor ideal for medical, gaming, or digital modeling applications.

Additional Highlights

• 24-bit color scanning with realistic texture reproduction,

• One-Shot 3D imaging and anti-shake protection for stable operation,

• Ring indicator light for real-time feedback on scan progress,

• High-precision calibration plate made from glass for consistent accuracy.

Versatile Applications

Ideal for reverse engineering, metrology, automotive parts production, medical modeling, AR/VR asset creation, mold making, miniature/action figure replication, and more.

Technical specifications:
