S&A CW5200 TH Industrial Refrigeration Water Chiller (for CO2 Laser)

More Info

The S&A CW5200 TH Industrial Refrigeration Water Chiller is an active cooling system designed for CO2 laser engraving and cutting machines using water-cooled laser tubes. It circulates chilled water through the laser tube to help control operating temperature, protect the laser tube, and support more stable laser output during engraving and cutting work.

Unlike passive water coolers, the CW5200 uses refrigeration cooling with a compressor system. This makes it more suitable for users who need stronger and more consistent temperature control during longer working sessions, higher-duty laser operation, or warm workshop environments.

With precise temperature control, a compact body, built-in alarm protection, and a 6L water tank, the CW5200 TH is suitable for laser engraving workshops, sign makers, acrylic cutting businesses, schools, labs, makerspaces, and small production environments.

Key Features

• S&A / TEYU CW5200 TH industrial refrigeration water chiller

• Suitable for CO2 laser engraving and cutting machines

• Active refrigeration cooling system

• Around 1.4kW class cooling capacity

• ±0.3°C temperature control precision

• 5–35°C temperature control range

• Intelligent and constant temperature control modes

• Built-in alarm protection for safer operation

Active Refrigeration Cooling

The CW5200 TH uses compressor-based refrigeration cooling to reduce and control circulating water temperature. This provides stronger cooling performance than passive radiator-style chillers and basic water pump systems.

For CO2 laser machines, proper cooling is very important because overheating can reduce laser output stability, shorten tube life, and affect engraving or cutting consistency. The CW5200 helps maintain a more controlled cooling condition during regular machine operation.

Suitable for CO2 Laser Machines

This chiller is suitable for CO2 laser engraving and cutting machines that require circulating water cooling. It can be used for laser systems working with acrylic, wood, MDF, leather, rubber, paper, and other CO2 laser-compatible materials.

The correct chiller choice should be matched with the laser tube power, machine duty cycle, working environment temperature, and expected continuous working time.

Intelligent and Constant Temperature Modes

The CW5200 TH supports intelligent temperature control and constant temperature control. In intelligent mode, the chiller adjusts operation according to the surrounding environment. In constant temperature mode, users can set the required water temperature manually.

This flexibility makes the chiller practical for different workshop conditions and different laser operating requirements.

Built-In Alarm Protection

The chiller includes multiple protection and alarm functions, including water flow alarm, high temperature alarm, low temperature alarm, compressor delay protection, and compressor overcurrent protection. These alarms help alert the user when the cooling system is not operating normally.

This is important for protecting the CO2 laser tube, because poor water circulation or abnormal temperature can cause serious damage to the laser system.

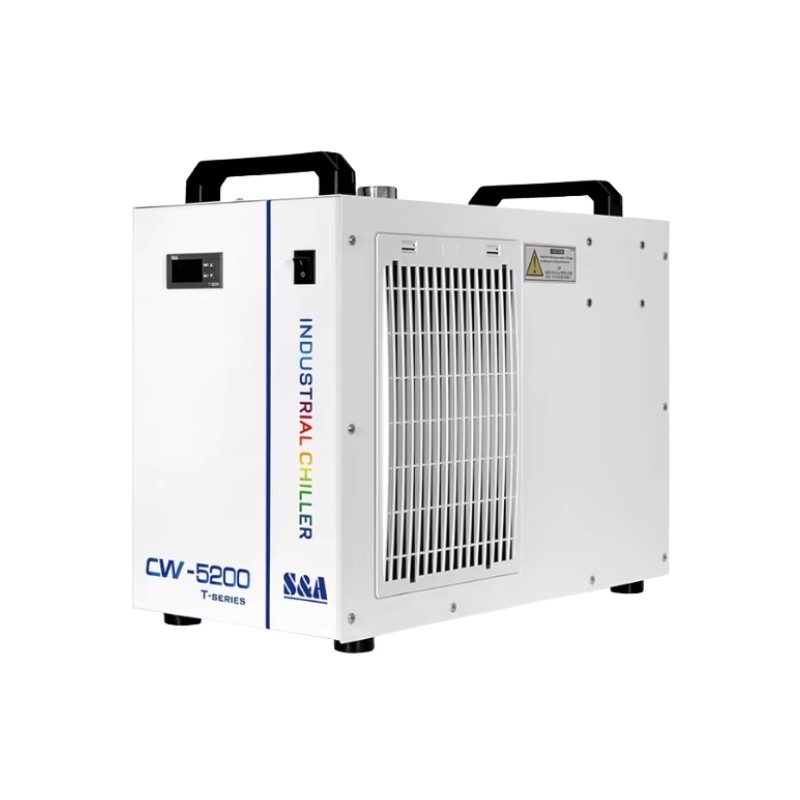

Compact Workshop-Friendly Design

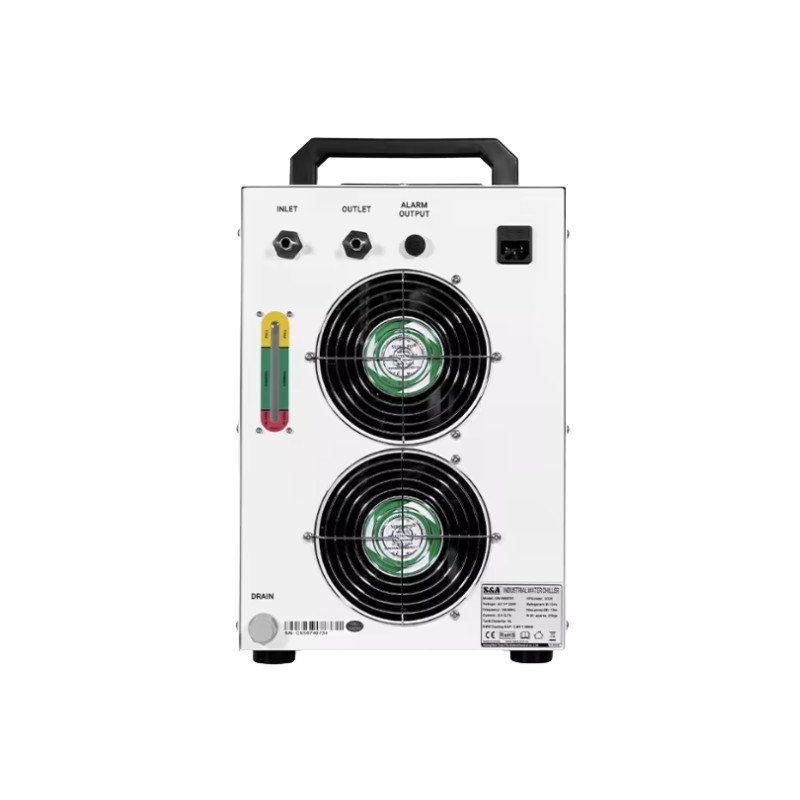

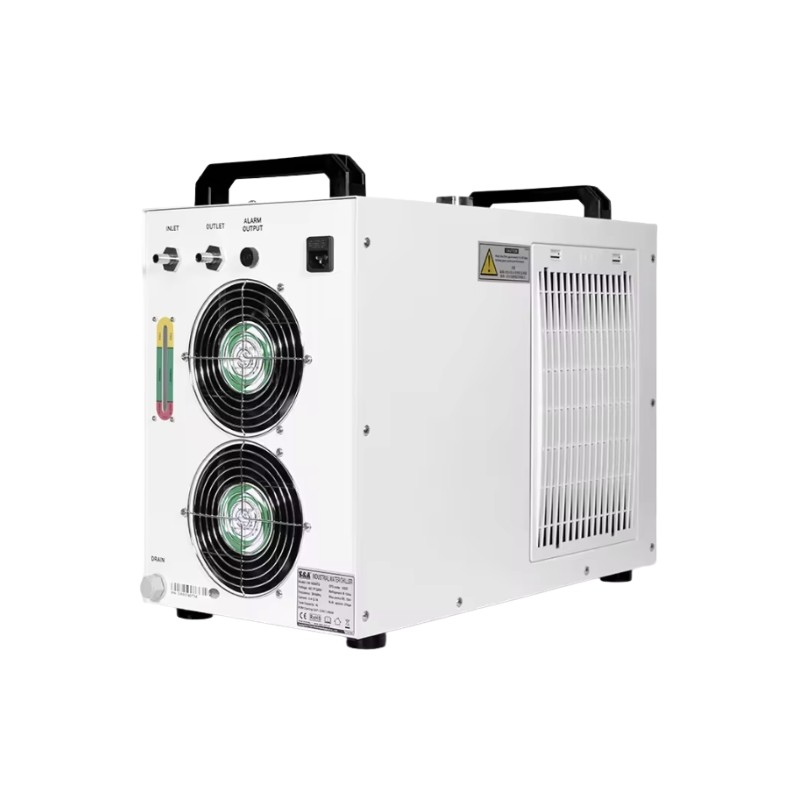

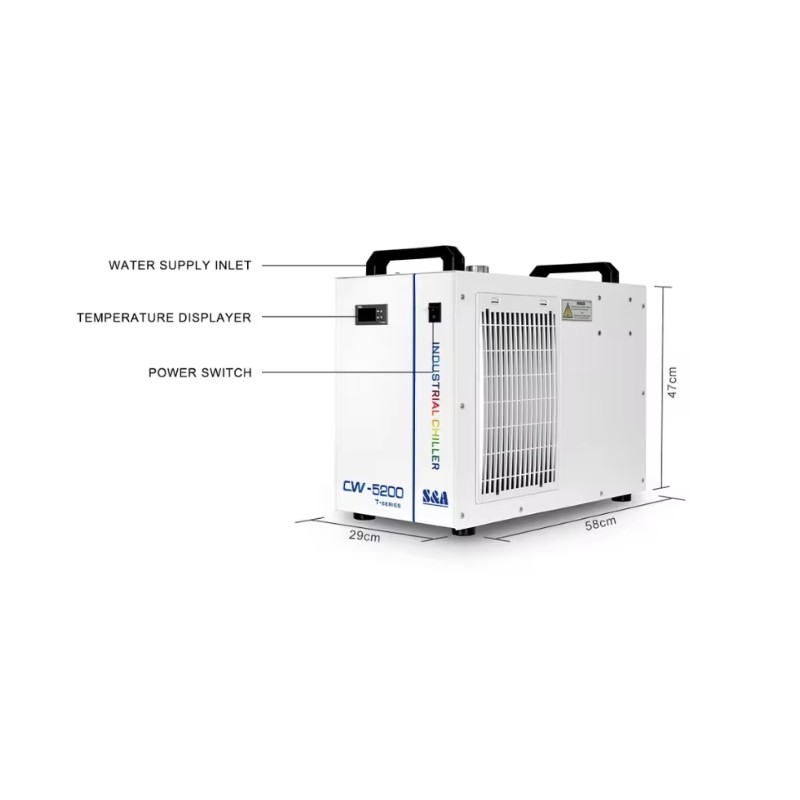

The CW5200 TH has a compact floor-standing body and is easy to place near a CO2 laser machine. It includes a water filling port, water level visibility, cooling fan system, inlet and outlet connectors, and a practical enclosure for workshop use.

Its compact design makes it suitable for small laser businesses, schools, labs, makerspaces, and production rooms where space is limited.

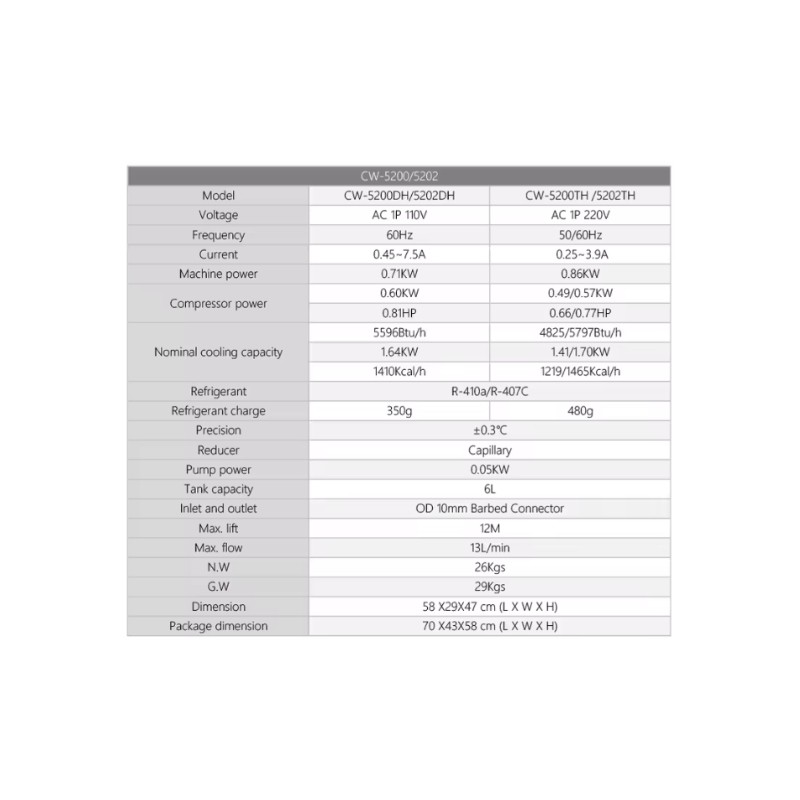

Technical Specifications

Applications

• CO2 laser tube cooling

• CO2 laser engraving machines

• CO2 laser cutting machines

• Acrylic cutting and engraving

• Wood and MDF laser processing

• Rubber stamp engraving

• Sign making

• Leather and paper laser work

• Workshop laser machine cooling

• School, lab, and makerspace laser setups

• Small production laser systems

Compatibility

• Suitable for CO2 laser machines with compatible water-cooled laser tubes

• Suitable for machines requiring OD 10mm barbed water inlet and outlet connections

• Suitable for users who need active refrigeration cooling instead of passive water circulation

• Chiller selection should be matched to the laser tube power and working conditions

Package Includes

• 1 × S&A CW5200 TH Industrial Refrigeration Water Chiller

Usage Note

Use distilled water, deionised water, or purified water for better long-term protection. Place the chiller in a dry, well-ventilated area and keep the air inlet and outlet clear. Check the water level regularly and replace the water periodically according to the working environment. Do not run the chiller without water in the tank.
