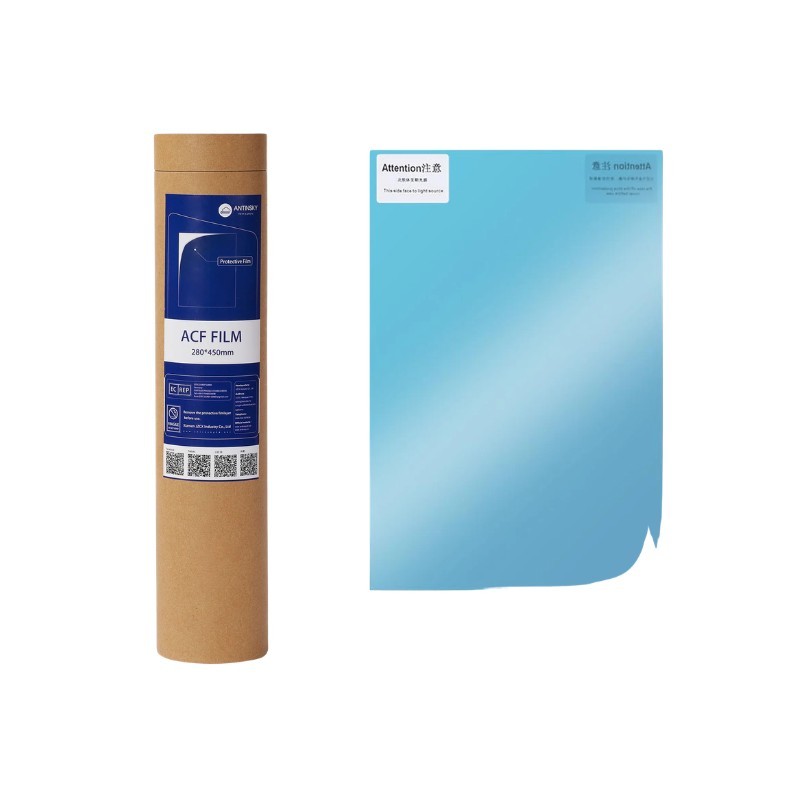

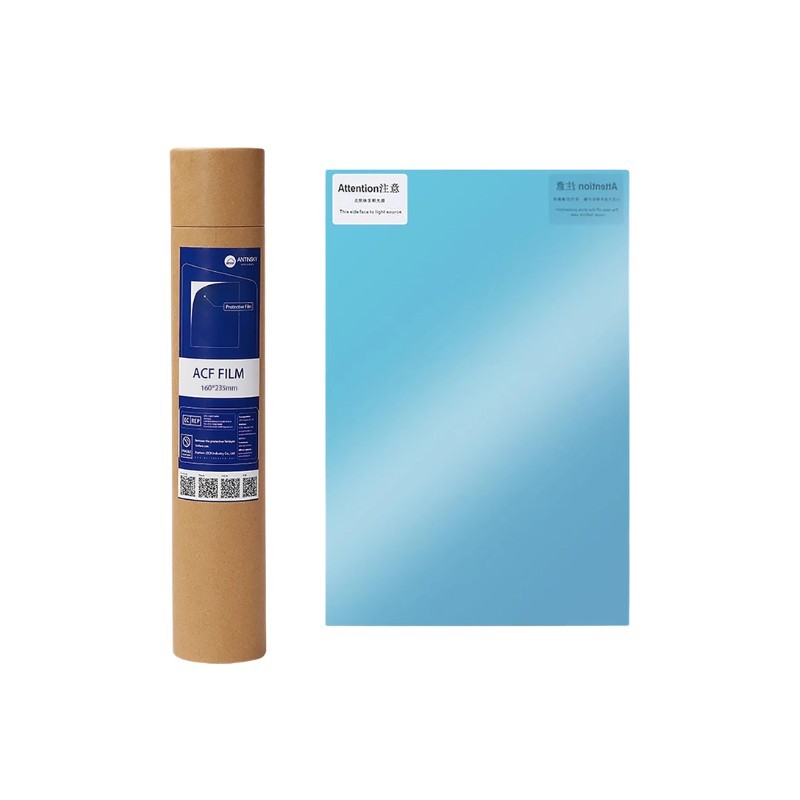

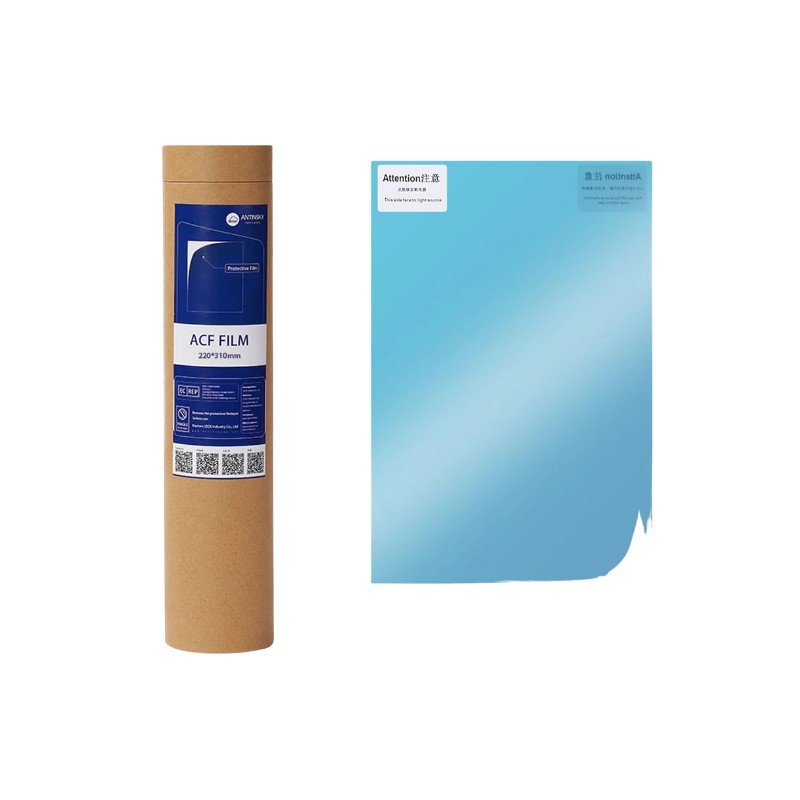

ANTINSKY ACF Release Film for LCD UV Resin 3D Printers

ANTINSKY ACF Release Film is an upgraded vat film designed for LCD, MSLA, and SLA resin 3D printers. Compared with standard FEP and nFEP films, ACF film is made to provide lower release force, improved durability, and more reliable layer separation during printing.

With up to 92% light transmittance and a 0.3 mm film thickness, ANTINSKY ACF Film is suitable for users who need stable performance for larger models, high-speed resin printing, and demanding resin printing workflows. Its lower peeling resistance helps each cured layer release more smoothly from the film, reducing print stress and improving the chance of successful prints.

This release film is especially useful for large-format resin printers, where stronger suction forces can affect print success and surface quality. When installed correctly, it provides a durable and consistent release surface for repeated resin printing.

Key Features

• ACF release film for LCD, MSLA, and SLA resin 3D printers

• Up to 92% light transmittance

• 0.3 mm film thickness

• Lower release force compared with FEP and nFEP film

• Designed to improve print success and layer release

• Higher durability with improved tensile strength

• Suitable for large-format resin printers

• Smooth release side for resin contact

Lower Release Force

ACF film is designed to reduce the force required to separate each cured resin layer from the vat film. This smoother release helps reduce stress on the printed model, supports better adhesion to the build plate, and can improve print success, especially on larger prints.

Lower release resistance can also reduce the waiting time between layers, making ACF film suitable for faster resin printing workflows when used with compatible printer settings.

Stronger and More Durable Film

With a thickness of 0.3 mm, ANTINSKY ACF Film is thicker than typical nFEP film. This added thickness helps improve tensile strength and resistance to cracking, giving the film better durability during repeated print cycles.

Proper installation, careful cleaning, and avoiding sharp tools on the film surface are important for maintaining long-term performance.

High Light Transmittance

The film provides up to 92% UV light transmittance, allowing curing light to pass through efficiently during printing. Although the film is thicker than nFEP, it maintains strong light transmission for accurate curing and detailed model reproduction.

Correct exposure calibration is recommended after replacing the release film, as exposure settings may vary depending on printer model, resin type, film condition, and layer height.

Better Print Quality for Large Models

ACF film offers excellent peeling performance with reduced deformation during layer release. This helps support cleaner details, smoother surfaces, and more stable printing results on larger resin models.

It is particularly useful for large-format LCD resin printers, where release force can have a significant impact on print reliability.

Faster Resin Printing Workflow

Because ACF film has lower release force, each layer can separate more easily during the lift movement. This may help reduce rebound time and improve printing efficiency when used with suitable printer settings.

Actual print speed improvement depends on the printer, resin, lift settings, exposure settings, model size, and support structure.

Important Installation Note

The smooth release side is covered with a blue protective film and must be removed before use. The smooth side should face the resin inside the vat.

The frosted back side should face the LCD screen. Before removing the protective film or installing the ACF film, place it flat on a clean table to avoid creases, dust, fingerprints, or surface damage.

Cleaning and Maintenance

After printing, clean the film gently using suitable resin cleaning methods. Do not scrape the surface with sharp tools, and avoid applying strong pressure to the film.

Replace the film if it becomes punctured, cloudy, deeply scratched, loose, creased, or damaged, as worn release film can cause print failures or resin leakage.

Technical Specifications

Applications

• LCD resin printer vat film replacement

• MSLA resin printing

• SLA resin printing

• Large-format resin printing

• High-speed resin printing workflows

• Miniature and model printing

• Prototype production

• Dental model printing

• Detailed resin prints

• General resin printer maintenance

Compatibility

• Compatible with suitable LCD, MSLA, and SLA resin printer vats

• Suitable for large-format resin printers

• Film size must be checked against the printer vat before installation

• Exposure settings should be recalibrated after film replacement

Package Includes

• ANTINSKY ACF Release Film for LCD UV Resin 3D Printers
