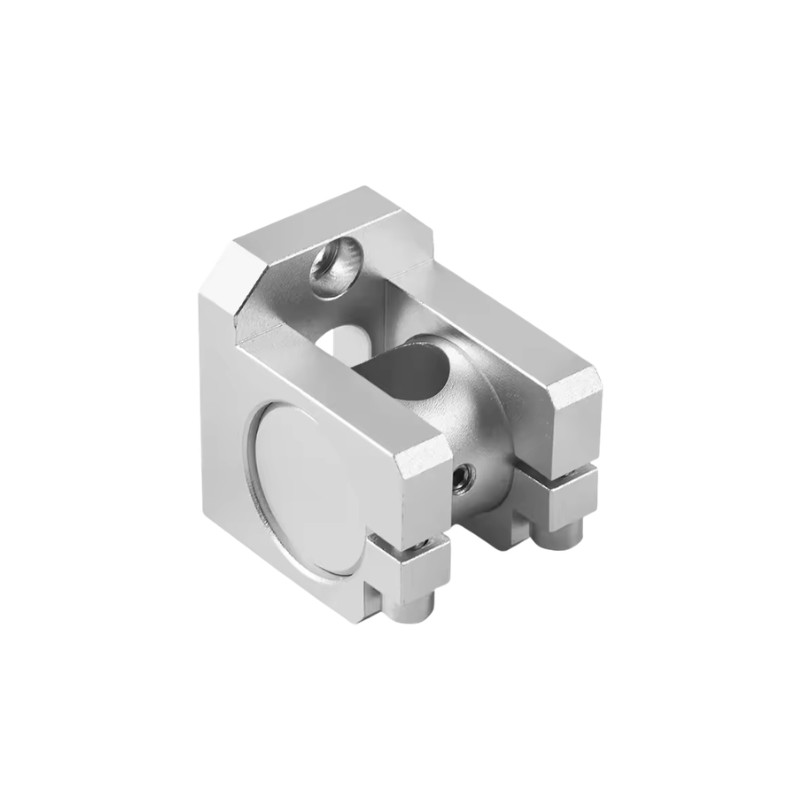

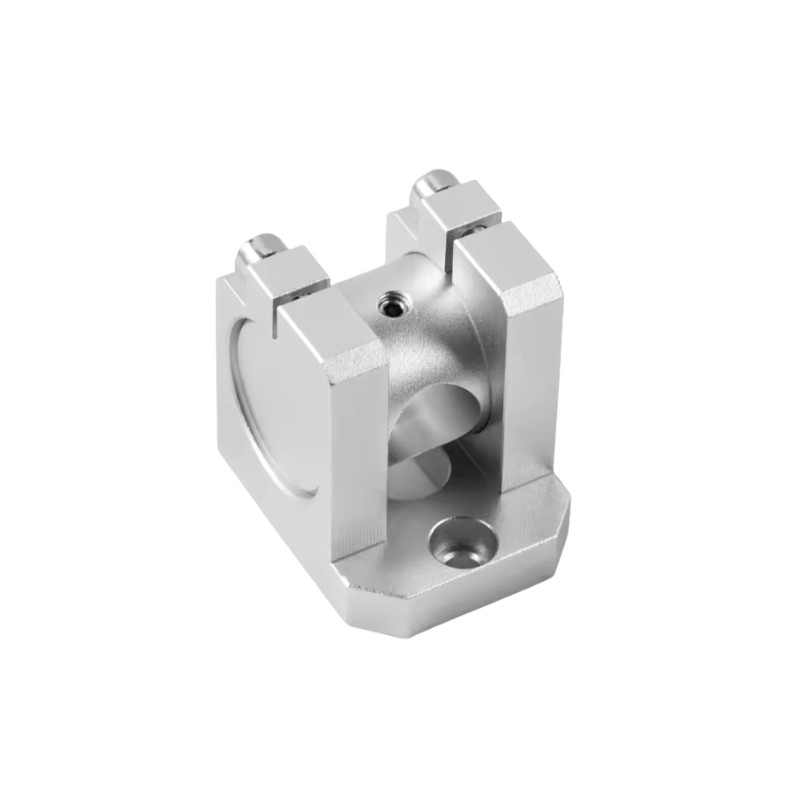

Red Laser Locator Mount 12mm for Fiber Laser Marking Machine

Mount Only. (Laser in not included)

The Red Laser Locator Mount 12mm is a positioning accessory used with compatible fiber laser marking machines. It is designed to hold a red laser locator module, helping users preview or align the marking position before starting the laser marking process.

In fiber laser marking workflows, accurate positioning is important when working with small parts, nameplates, tools, tags, jewellery items, and batch marking fixtures. A properly installed red laser locator helps improve setup efficiency by giving the operator a visible guide for alignment and workpiece placement.

This mount is suitable for laser marking machine repair, upgrade, or assembly projects where a 12mm red locator module needs to be installed securely near the marking head or galvo system.

Key Features

• Mount for red laser locator modules

• Suitable for compatible fiber laser marking machines

• Designed for 12mm locator module installation

• Helps with marking position alignment

• Useful for laser machine repair, upgrade, and assembly

• Supports easier workpiece positioning before marking

• Suitable for marking fixtures and batch production setup

• Compact accessory for laser marking machine integration

Accurate Positioning Assistance

The red laser locator provides a visible reference point or line to help users align the workpiece before marking. This is useful when placing logos, serial numbers, QR codes, text, or patterns on small or shaped items.

Better alignment helps reduce positioning errors and material waste, especially during repeated marking work.

Designed for Fiber Laser Marking Machines

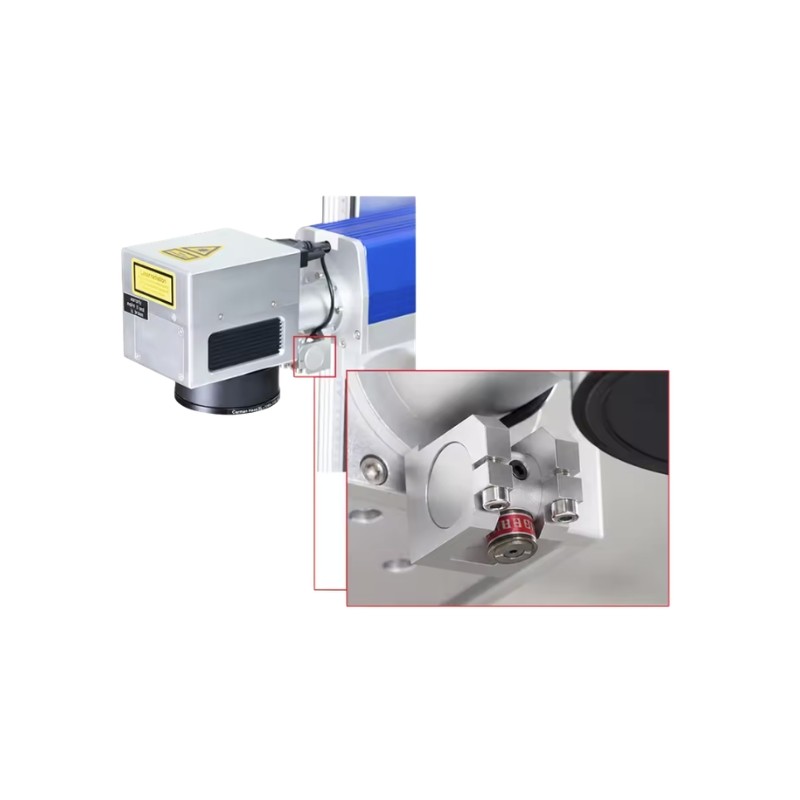

This mount is intended for use with compatible fiber laser marking systems. It can be installed as part of the positioning setup near the galvo head or marking area, depending on the machine design and locator configuration.

Compatibility should be checked before installation, as mounting position, screw spacing, and locator size may vary between machines.

Secure Locator Holding

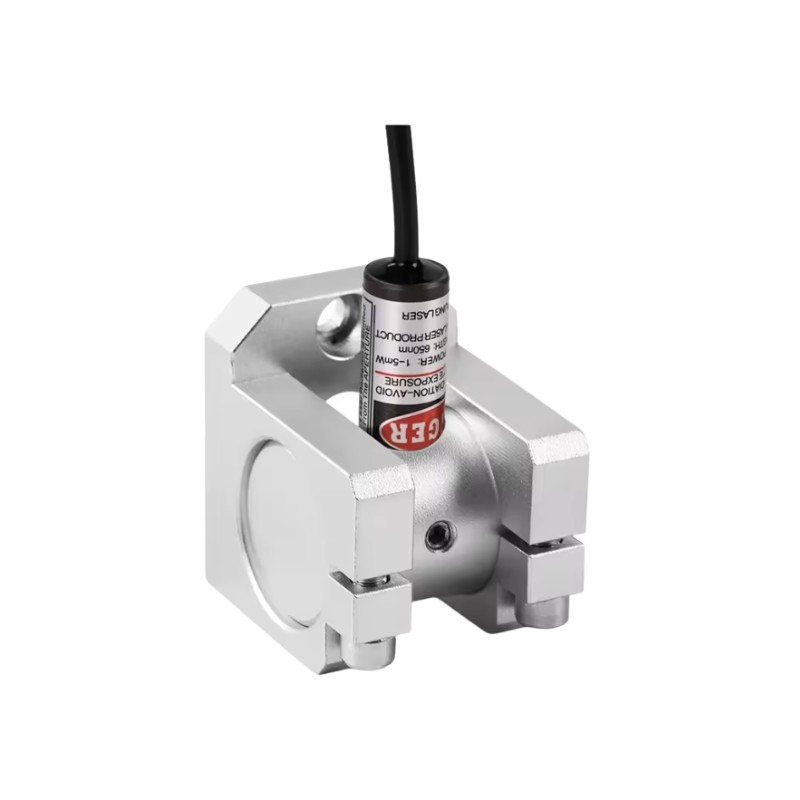

The mount is designed to hold a 12mm red laser locator module securely. A stable mount helps keep the locator aligned during machine operation, reducing the need for frequent adjustment.

Correct installation and alignment are important for accurate positioning, especially when using fixtures or working with repeated production jobs.

Useful for Machine Repair and Upgrades

This accessory is suitable for replacing a damaged locator mount, adding a red positioning guide to a compatible machine, or building a custom fiber laser marking setup.

It is a practical component for technicians, laser machine builders, and users maintaining laser marking equipment.

Technical Specifications

Applications

• Fiber laser marking machine alignment

• Red laser locator installation

• Laser marking machine repair

• Laser machine upgrade projects

• Workpiece positioning assistance

• Fixture setup and batch marking

• Nameplate marking alignment

• Tool and part marking alignment

• Jewellery and small item marking setup

• Custom laser marking machine assembly

Compatibility

• Compatible with suitable 12mm red laser locator modules

• Suitable for compatible fiber laser marking machines

• Mounting position and fitting should be checked before installation

• Final alignment depends on machine structure, locator type, and installation accuracy

Installation Note

This accessory should be installed by a user or technician familiar with fiber laser marking machine setup. After installation, the red locator should be aligned carefully with the actual laser marking position before production use.

Always follow laser safety procedures when working around laser marking machines. The red locator is only an alignment aid and does not replace proper focusing, fixture setup, or test marking.
