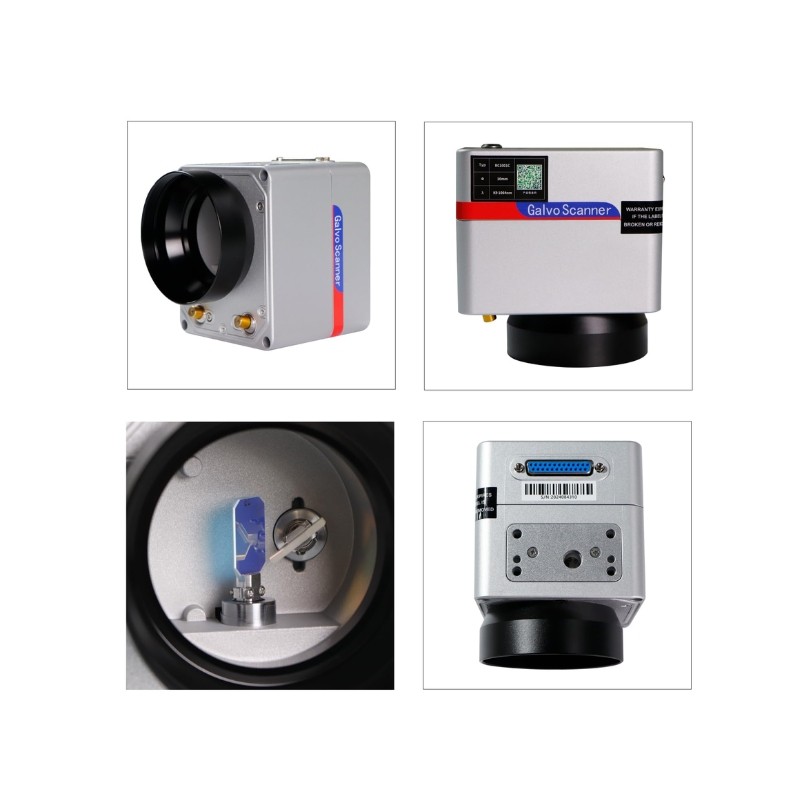

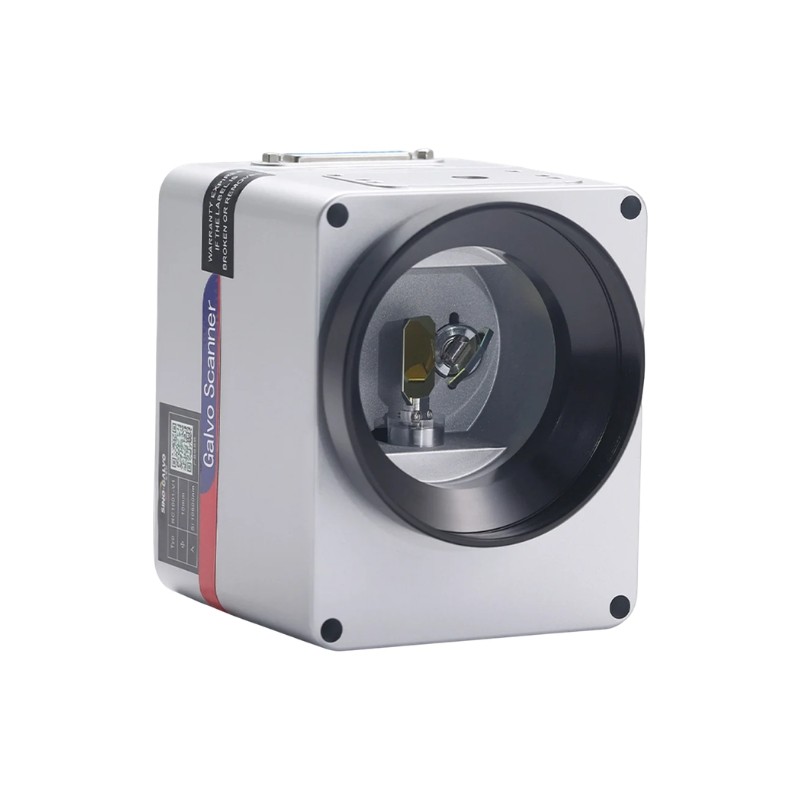

SINO RC1001 10mm K9 1064nm Galvo Scanner Head for Fiber Laser Marking Machine

The SINO RC1001 10mm K9 1064nm Galvo Scanner Head is designed for fiber laser marking machines that require fast, accurate, and stable beam positioning. It is suitable for laser marking, engraving, coding, and surface processing applications using compatible 1064nm fiber laser systems.

With a 10mm input aperture, digital XY2-100 interface, and high-speed galvanometer scanning performance, the RC1001 is a practical replacement or integration part for fiber laser marking machines. It is commonly used in marking systems for metals, coated materials, plastics, industrial labels, nameplates, tools, electronic components, and personalized products.

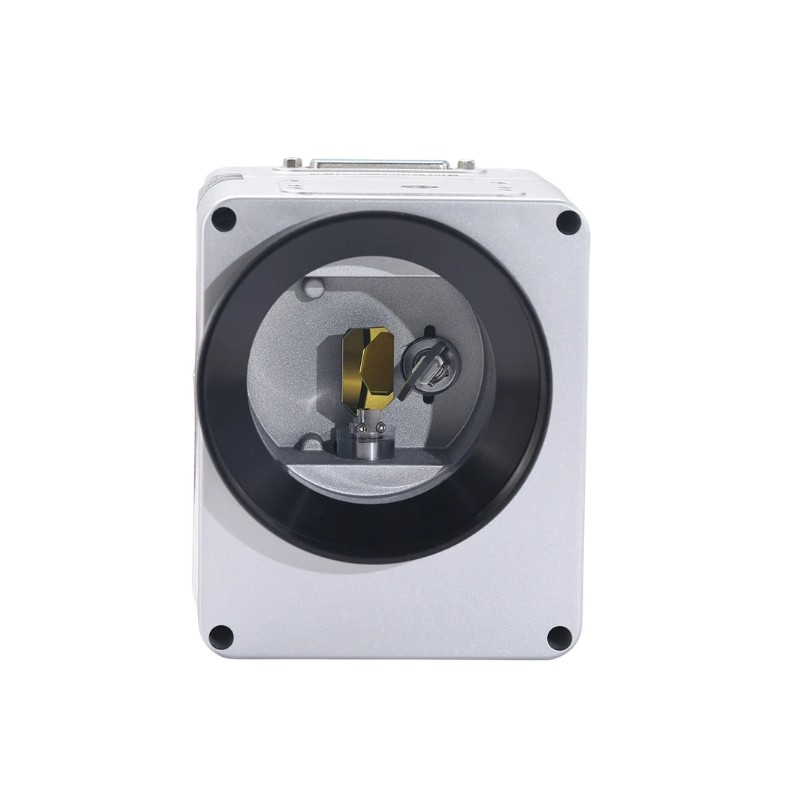

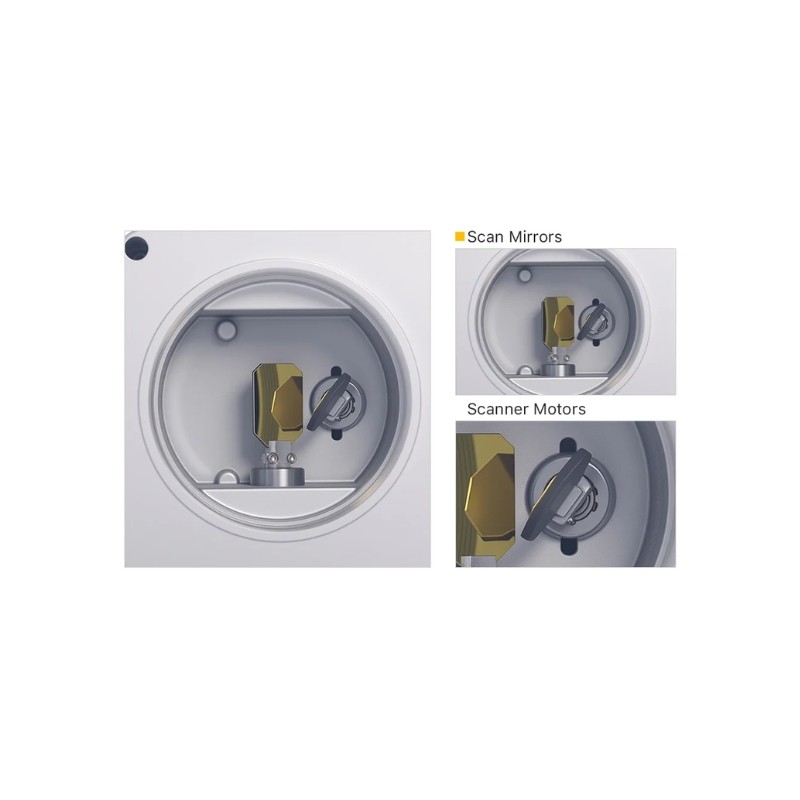

The 1064nm optical configuration is intended for fiber laser applications, while the K9 mirror setup helps direct the laser beam accurately across the marking field when paired with a compatible F-theta lens and laser controller.

Key Features

• SINO RC1001 galvo scanner head

• Designed for 1064nm fiber laser marking systems

• 10mm input aperture

• K9 optical mirror configuration

• Digital XY2-100 interface signal

• Marking speed up to 8000mm/s

• Positioning speed up to 10000mm/s

• Suitable for laser marking machine repair, upgrade, or integration

High-Speed Galvo Scanning

The RC1001 is designed to move the laser beam rapidly and accurately across the marking field. With marking speed up to 8000mm/s and positioning speed up to 10000mm/s, it is suitable for fast laser marking workflows where speed and repeatability are important.

This makes it useful for serial number marking, logo engraving, production coding, part identification, and repeated marking jobs.

1064nm Fiber Laser Compatibility

This version is configured for 1064nm fiber laser marking applications. The 1064nm wavelength is widely used for marking metals and many industrial materials when paired with the correct laser source, controller, lens, and marking parameters.

Material results depend on the full machine setup, including laser power, pulse settings, F-theta lens, focus height, marking speed, frequency, and surface condition.

10mm Input Aperture

The 10mm aperture makes the scanner suitable for common compact fiber laser marking machine configurations. It should be matched with compatible beam expanders, F-theta lenses, and laser optical paths according to the machine design.

Correct optical alignment is essential for achieving clean, accurate, and evenly focused marking results.

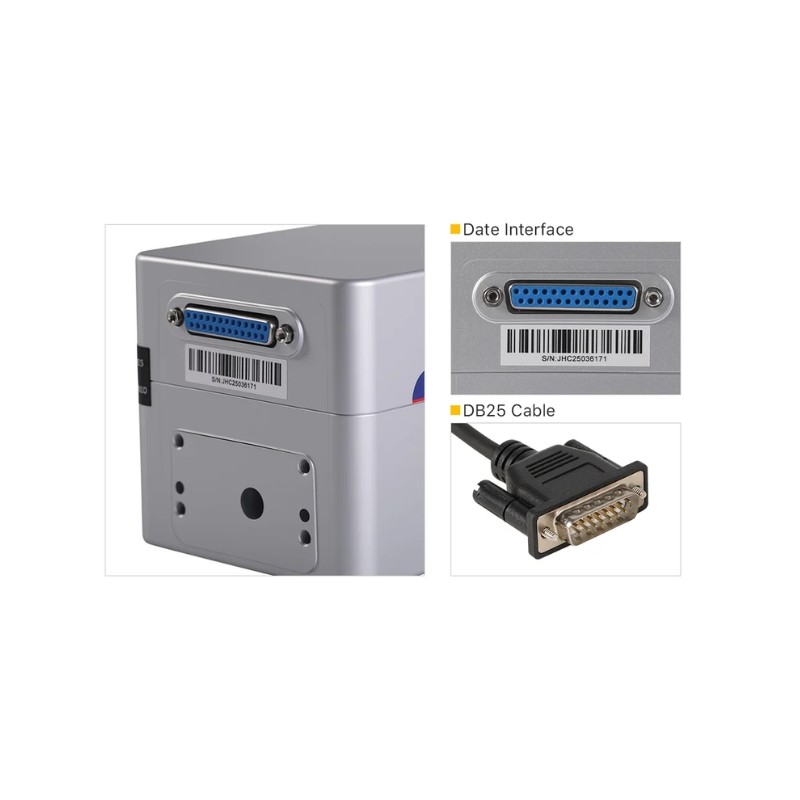

Digital XY2-100 Interface

The RC1001 supports a digital XY2-100 interface signal, which is commonly used in laser marking machine control systems. This allows the scanner head to work with compatible laser marking controllers and software workflows.

Before installation, the controller board, wiring, power supply, scanner signal type, and software configuration should be checked carefully.

Stable Marking Performance

The scanner is designed for good linearity, low drift, high resolution, and repeat positioning. These characteristics help improve marking accuracy and consistency, especially during repeated production jobs or fine-detail engraving.

Stable scanner performance is important when marking small text, barcodes, QR codes, logos, patterns, and detailed graphics.

Suitable for Machine Repair and Integration

This galvo scanner head is suitable for replacing a compatible scanner in a fiber laser marking machine or integrating into a new marking system. It is useful for repair technicians, laser machine builders, and users maintaining industrial marking equipment.

Professional installation is recommended because incorrect wiring, optical alignment, or controller configuration may damage the scanner, controller, laser source, or connected components.

Technical Specifications

Suitable Materials

Material compatibility depends on the complete fiber laser marking machine configuration. Suitable material categories may include:

• Stainless steel

• Carbon steel

• Aluminum

• Brass

• Copper

• Precious metals

• Coated metals

• Anodized aluminum

• Engineering plastics

• Industrial marking plates

• Electronic components

Applications

• Fiber laser marking machine repair

• Fiber laser marking machine assembly

• Product logo marking

• Serial number marking

• QR code and barcode marking

• Metal nameplate engraving

• Tool and part identification

• Electronic component marking

• Jewelry and accessory marking

• Industrial product coding

• Personalized metal engraving

Compatibility

• Compatible 1064nm fiber laser marking systems

• Compatible laser controllers with digital XY2-100 scanner output

• Suitable F-theta lens and optical path setup

• Compatible laser marking software through the installed controller system

• Suitable for repair or replacement only when the original machine specifications match

Installation Note

This is a precision optical and electronic laser machine component. Installation should be performed by a qualified technician familiar with fiber laser marking machine wiring, scanner calibration, optical alignment, controller settings, and laser safety procedures.

Incorrect wiring, wrong voltage, incompatible controller signals, or poor optical alignment may cause scanner failure or poor marking results.

Package Includes

• 1 × SINO RC1001 Galvo Scanner Head

• 1 x Free SMPS
