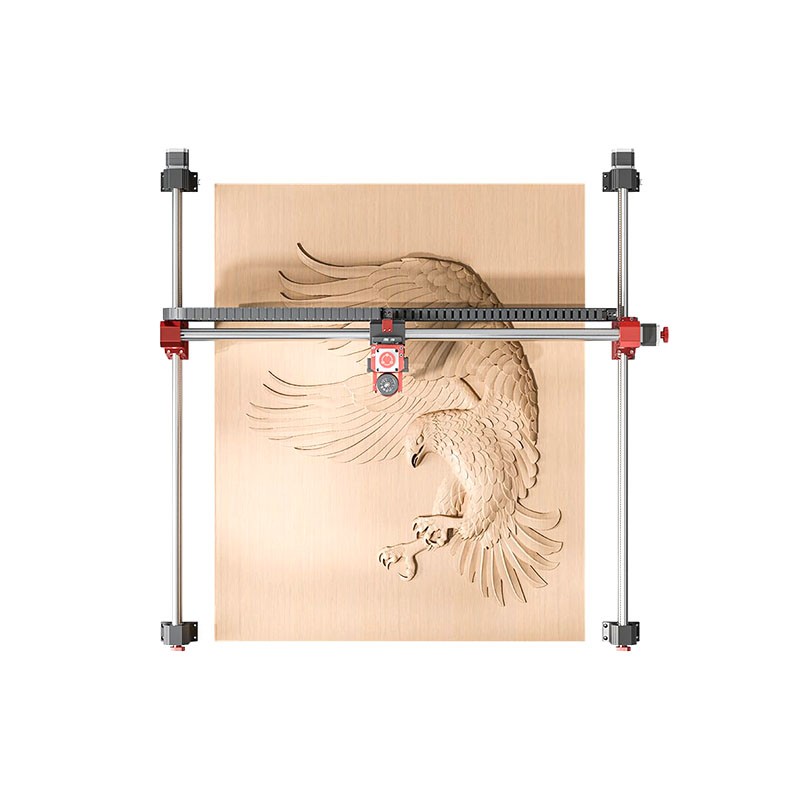

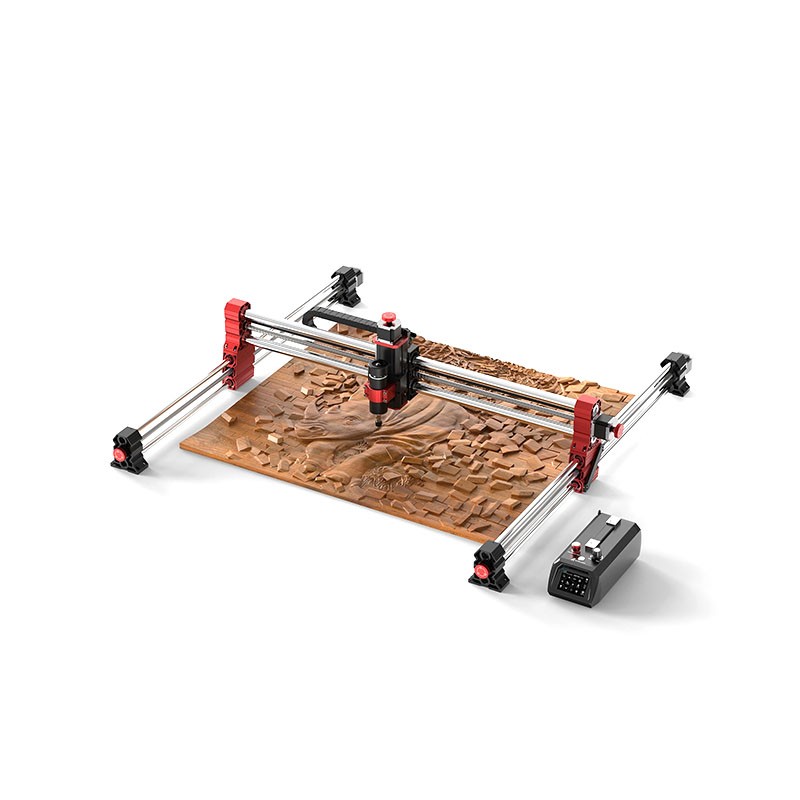

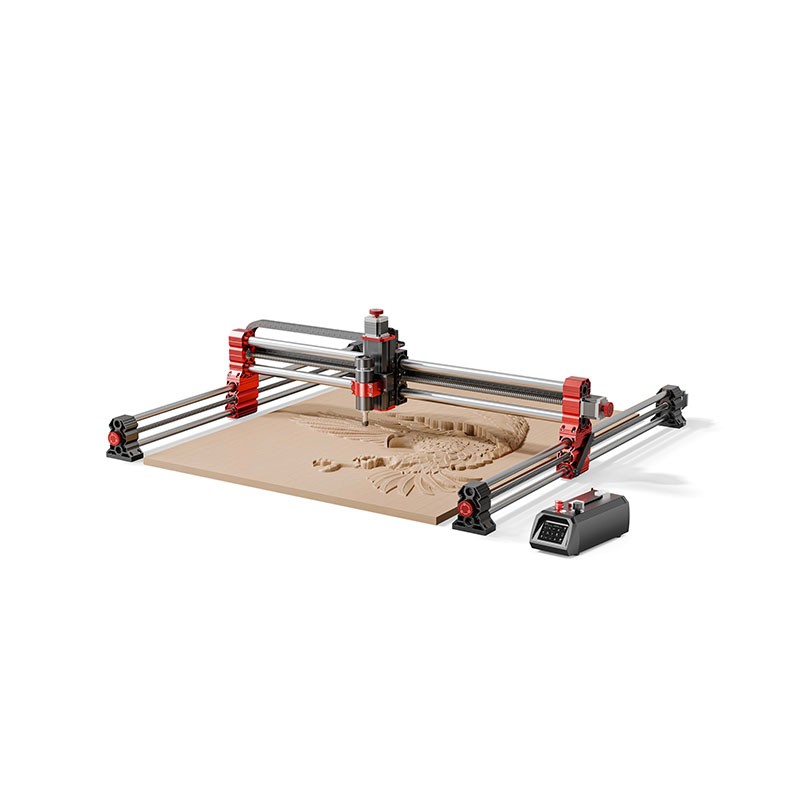

TWO TREES TTC-H40 CNC Router DIY Kit

ZSP103026

New product

  • TWO TREES Authorized Reseller
  • 12 Month Warranty
  • Free Islandwide Delivery

More details

Rs 350,000.00

Estimated Delivery: 1 to 3 days

Add to wishlist

More info

The TWO TREES TTC-H40 is a large-format CNC router DIY kit designed for woodworking, sign making, furniture projects, prototyping, engraving, and light machining applications. With a generous 1000 × 1000 × 100mm working area, it provides substantially more machining space than compact desktop CNC routers while retaining a workshop-friendly open-frame design.

The TTC-H40 combines an aluminum-alloy structure, screw-driven motion system, 500W standard spindle, ER11 tooling, GRBL control, and a dedicated 3.5-inch touchscreen. It can operate from a connected computer or from a TF card, making it suitable for both workshop production and standalone CNC jobs.

Its large working area makes it particularly useful for projects such as signs, furniture components, decorative panels, relief carvings, templates, jigs, and other parts that may be too large for typical 3018- or 400mm-class desktop CNC machines.

Key Features

  • Large 1000 × 1000 × 100mm CNC working area

  • 500W spindle supplied as the standard TTC-H40 configuration

  • ER11 collet system for a wide range of CNC cutting tools

  • Maximum engraving speed up to 1800mm/min

  • 3.5-inch standalone touchscreen controller

  • Open-source GRBL firmware

  • USB and TF-card machining workflows

  • Expandable platform with optional spindle and laser upgrades

Large 1000 × 1000mm Working Area

The TTC-H40 provides a usable working range of:

1000 × 1000 × 100mm

This large XY area allows users to work on significantly larger material than conventional compact desktop CNC routers.

It is particularly useful for:

  • Large wooden signs

  • Furniture components

  • Cabinet parts

  • Decorative wall panels

  • Relief carvings

  • Templates and jigs

  • Large acrylic components

  • Prototype panels

  • Custom woodworking projects

The 100mm Z-axis working range also provides useful clearance for thicker workpieces and three-dimensional carving.

500W Standard Spindle

The standard TTC-H40 configuration uses a 500W spindle suitable for general CNC engraving, routing, and cutting work.

Depending on the installed spindle configuration, Two Trees specifies spindle speeds ranging from approximately 8,000 to 30,000RPM.

The 500W spindle is suitable for applications such as:

  • Wood engraving

  • Wood cutting

  • MDF machining

  • Acrylic routing

  • Plastic machining

  • PCB and composite work

  • Light non-ferrous metal machining with appropriate tooling and parameters

Cutting capability depends heavily on cutter type, spindle speed, feed rate, depth of cut, material, and workholding.

ER11 Tooling System

The TTC-H40 uses an ER11 collet system.

ER11 provides access to a wide range of commonly available:

  • Flat end mills

  • Ball nose cutters

  • V-bits

  • Engraving cutters

  • Straight cutters

  • Spiral cutters

  • PCB engraving tools

  • Small metal-cutting end mills

The supported cutter diameter depends on the ER11 collet installed.

This makes the machine flexible for both detailed engraving and larger routing operations.

Screw-Driven XY Motion

The TTC-H40 uses trapezoidal screw transmission on its X and Y axes.

A screw-driven system provides positive mechanical positioning and is particularly useful where controlled cutting motion and repeatability are more important than extremely high travel speeds.

The large frame and screw-driven architecture are intended for CNC routing and engraving rather than lightweight laser-only movement.

Maximum Engraving Speed up to 1800mm/min

Two Trees specifies a maximum engraving speed of up to:

1800mm/min

with maximum acceleration up to:

500mm/s²

Actual machining speed should always be selected according to:

  • Workpiece material

  • Cutter diameter

  • Number of cutter flutes

  • Spindle speed

  • Depth of cut

  • Required surface finish

  • Machine rigidity

  • Workholding

Maximum travel or engraving speed should not automatically be used as the cutting feed rate for every material.

3.5-Inch Touchscreen Controller

The TTC-H40 includes a 3.5-inch resistive touchscreen with a resolution of 480 × 320.

The touchscreen provides direct access to important machine functions including:

  • Motion control

  • Emergency stop

  • Speed control

  • CNC / laser function selection

  • Language selection

  • Online help functions

This allows many machine operations to be performed without constantly returning to a computer.

GRBL Open-Source Control

The TTC-H40 runs GRBL-based open-source firmware.

GRBL is widely used throughout the desktop CNC industry and is supported by a large range of CNC control, CAD, and CAM workflows.

The controller supports both CNC and compatible laser operation without requiring the user to replace the complete control system.

USB and TF Card Operation

Machining jobs can be transferred and operated through:

  • USB connection

  • TF card

TF-card operation is particularly useful for running prepared G-code files without keeping a computer permanently connected beside the machine.

CAM Software Compatibility

Two Trees lists compatibility with popular CAM solutions including:

  • Fusion 360

  • Vectric software

  • Easel

  • Carveco Maker

These programs can be used to convert designs into toolpaths and G-code suitable for the CNC router.

The correct post processor and machine configuration should be selected when generating CNC files.

Windows, macOS and Linux Support

The TTC-H40 control ecosystem supports:

  • Windows

  • macOS

  • Linux

This provides flexibility for users working with different CAD, CAM, and G-code control environments.

Wide Material Capability

Two Trees lists the TTC-H40 for machining materials including:

  • Plywood

  • MDF

  • Solid wood

  • Acrylic

  • Plastics

  • Carbon fiber

  • Aluminum

  • Copper

  • Stainless steel

Material capability should be interpreted according to the spindle, tooling, depth of cut, feed rate, rigidity, and machining strategy.

For metals, particularly harder metals such as stainless steel, conservative cutting parameters, suitable cutters, shallow passes, and proper workholding are required. The TTC-H40 should not be considered equivalent to a heavy industrial metal milling machine.

Ideal for Woodworking

The large work area makes the TTC-H40 particularly well suited to woodworking applications.

Typical projects include:

  • Furniture panels

  • Custom signs

  • Decorative carvings

  • Door and cabinet components

  • Relief artwork

  • Wooden lettering

  • Jigs and templates

  • Personalized gifts

  • Instrument components

  • Product prototypes

The 1000 × 1000mm machining area allows many projects to be completed without dividing the design into multiple smaller sections.

Optional Laser Capability

The TTC-H40 controller also supports compatible laser operation.

An optional laser module can convert the platform into a large-format laser engraving system for suitable materials.

This allows one machine platform to support both:

  • CNC routing

  • Laser engraving

A laser module is not included with the standard CNC kit unless specifically stated in the selected package.

Expandable Spindle Platform

Two Trees currently lists the 500W spindle as the standard configuration and also offers higher-power spindle/router options for selected TTC-H40 packages.

This provides an upgrade path for users who later require greater machining capacity.

Higher-power spindle installation may require additional electrical hardware, mounting components, and configuration.

Aluminum-Alloy Frame

The TTC-H40 uses an aluminum-alloy machine structure designed to provide a stable platform across its large working area.

A rigid frame is particularly important on a CNC router because cutting forces can affect:

  • Dimensional accuracy

  • Surface finish

  • Tool life

  • Vibration

  • Cutting consistency

Correct machine assembly and squaring are therefore important before initial calibration.

Technical Specifications

SpecificationDetails
Product TypeLarge-Format CNC Router DIY Kit
BrandTWO TREES
ModelTTC-H40
Working Area1000 × 1000 × 100mm
Frame MaterialAluminum Alloy
Standard Spindle500W
Spindle TypeBLDC4475 Brushless Motor
Spindle SpeedApprox. 8,000–30,000RPM depending on configuration
Collet SystemER11
Maximum Engraving Speed1800mm/min
Maximum Acceleration500mm/s²
XY TransmissionTrapezoidal Screw
Controller FirmwareGRBL Open Source
Touchscreen3.5-inch Resistive
Touchscreen Resolution480 × 320
Job TransferUSB / TF Card
Input VoltageAC 100–240V
Power Supply216W Dual-Channel Switching Power Supply
Controller / Machine Rated Power150W
Machine DimensionsApprox. 1292.5 × 1290.5 × 404.5mm
Control Box SizeApprox. 300 × 137 × 131mm
Net WeightApprox. 38.3kg
Recommended Operating Temperature0–40°C

Supported Software

Compatible CAM workflows include:

  • Autodesk Fusion 360

  • Vectric

  • Easel

  • Carveco Maker

  • Other compatible GRBL CNC software

G-code should always be checked before machining to confirm the correct:

  • Work origin

  • Tool

  • Feed rate

  • Spindle speed

  • Cutting depth

  • Travel limits

Applications

  • CNC woodworking

  • Furniture manufacturing

  • Sign making

  • Relief carving

  • Decorative panels

  • Acrylic machining

  • Plastic machining

  • Large-format engraving

  • Templates and jigs

  • Product prototypes

  • Educational CNC projects

  • Small-business production

  • Customized gifts

  • Guitar and instrument projects

  • Light non-ferrous metal machining

  • DIY CNC projects

DIY Kit Assembly

The TTC-H40 is supplied as a DIY CNC router kit and requires assembly, setup, squaring, wiring, and calibration before use.

Because of its large working area, correct mechanical assembly is especially important.

During setup:

  • Assemble the frame on a flat surface

  • Check the frame for squareness

  • Verify axis alignment

  • Check screw and coupling alignment

  • Route cables correctly

  • Secure all connectors

  • Install the spindle correctly

  • Check limit and control functions

  • Set the correct work origin

  • Test movement before installing a cutter

Do not begin machining until all axes move smoothly throughout their full travel.

Workholding

Workpieces must be firmly secured to the machine before cutting.

Suitable workholding methods may include:

  • CNC clamps

  • T-slot clamps

  • Side-pressure clamps

  • Screws into a sacrificial spoilboard

  • Double-sided machining tape for appropriate light work

  • Custom fixtures and jigs

Loose material can damage the cutter, workpiece, or machine and may create a safety hazard.

CNC Safety Note

CNC routers use high-speed rotating cutting tools and can generate sharp chips, dust, noise, and flying debris.

Always use suitable:

  • Eye protection

  • Hearing protection

  • Dust extraction

  • Workholding

  • Cutter guards where applicable

Never leave the machine unattended until the cutting program, feeds, speeds, workholding, and toolpath have been proven safe.

Package Note

Package contents can vary between TTC-H40 configurations.

The standard current Two Trees configuration uses a 500W spindle, while optional packages may include higher-power router/spindle systems, laser modules, software licenses, or additional cutters.

Check the selected ZENIX product variant for the exact accessories included with the machine.
