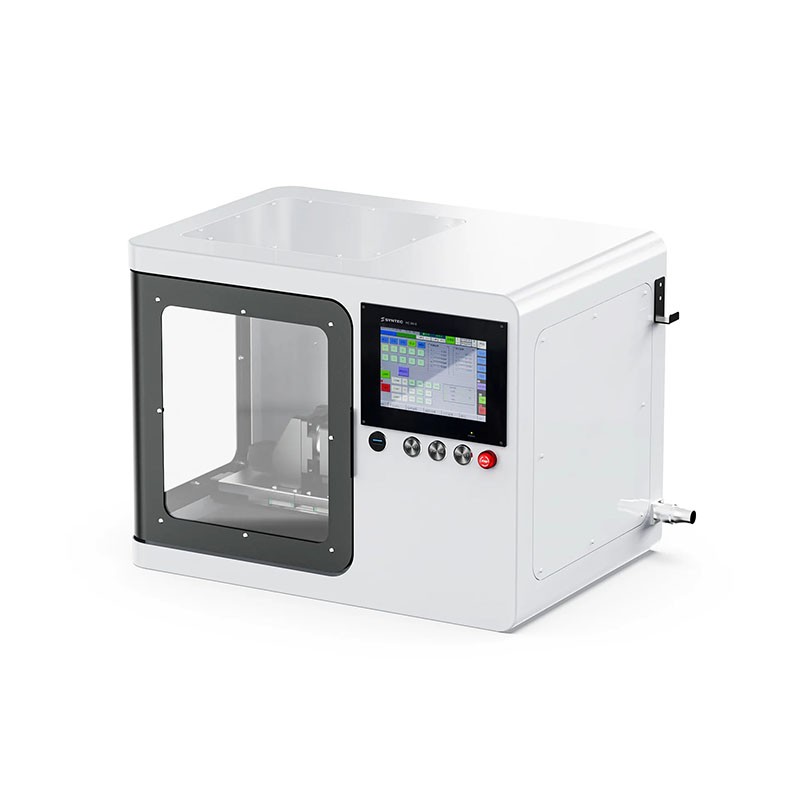

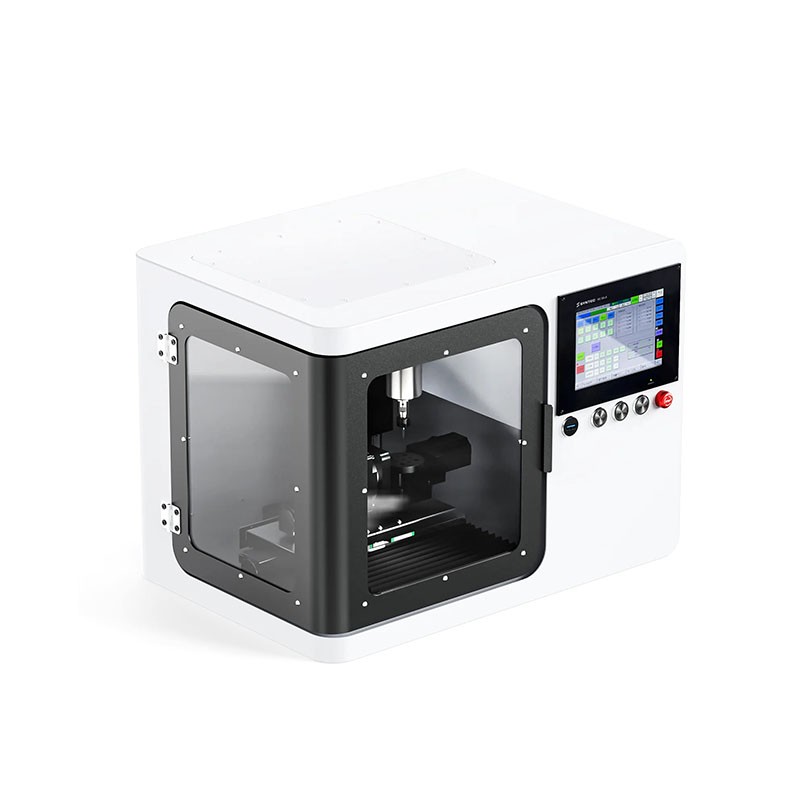

TWO TREES X5 5-Axis CNC Router Machine

The TwoTrees X5 is a compact desktop 5‑axis CNC router engineered for makers and professionals who require advanced machining in a small footprint. With simultaneous 5‑axis motion and a stable C‑type cradle bed, it enables high‑precision multi‑surface processing on wood, plastic, and wax.

Key Features

• 5‑Axis Motion: Supports simultaneous XYZ movement with dual rotary axes for true 5‑axis carving, sculpting, and multi‑face machining.

• Stable Structure: Built from sheet metal, aluminum alloy, and plastic, the X5 maintains rigidity while remaining compact.

• C‑Type Cradle Bed: Designed for stability and precision, ideal for small intricate parts.

• Servo Motors: Smooth, accurate motion control for all axes.

• Ball Screws & Linear Guides: Equipped with 1204 ball screws and 12H linear guide rails for tight tolerance machining.

• New Generation Control System: Intuitive interface for efficient 5‑axis workflow and file control.

• High Compatibility: Works with a range of CAM software for detailed 3D toolpaths.

Technical Specifications

• Machine Size: 650 × 450 × 480 mm

• Packing Size: 770 × 580 × 580 mm

• Gross Weight: 75 kg

• Workbench Diameter: ⌀ 60 mm

• XYZ Travel: 80 × 80 × 80 mm

• Materials Supported: Wood, Plastic, Wax

• Power System: Servo motors with high-precision control

• Structure: Compact frame with reinforced chassis for low vibration

Best For

• 3D carving, mold making, wax prototyping

• Jewelry design, micro part fabrication

• Detailed engraving and custom part creation across curved or angled surfaces

More Details

Note:
This machine is supplied as semi-assembled kits. Assembly is straightforward and typically takes only a few minutes, depending on the user's experience.
The customer is responsible for assembling the printer. However, the we will provide technical assistance and guidance whenever required.
