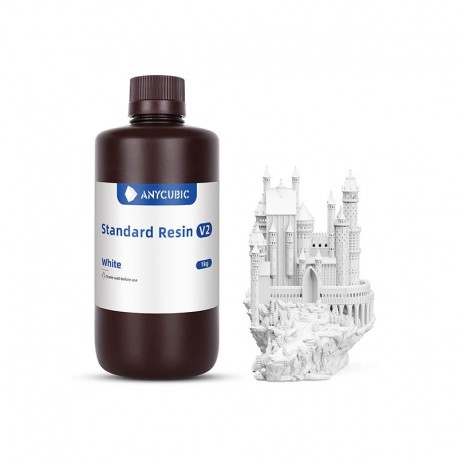

Anycubic Standard Resin V2 LCD 405nm UV Sensitive Resin 1kg

New product

Rs 6,200.00

Estimated Delivery: 1 to 3 days

Add to wishlist

More info

Product Features
● High Strength & High Toughness
● High Precision with Minimal Shrinkage
● Impact Resistance & High Compatibility

Resin Parameters

UV wavelength

365-405nm

Elongation at break

25-30%

Density

1.05-1.25g/cm³

Molding shrinkage

4.3-5.6%

Viscosity

250-350 cP·mPa·s

Flexural strength

40-50 MPa

Hardness

80-83D

Flexural modulus

1500-2100 MPa

Bottom exposure time

20-40s

Normal exposure time

1.5-3s

Heat deflection temp

60-65℃

Resin wash

Alcohol

Tensile strength

35-45 MPg

Conservation period

1.5 year

Instructions for Use

(1) Before use:
Shake the liquid resin before use;
Clean the resin tank and the molding platform to keep the bottom of the resin tank in light
transmission.(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements;
Select the correct print parameters and settings for printing.(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal
pliers,tweezers,containers,gloves;
ethanol(≥95%),lactate or isopropyl alcohol cleaning solution;(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then taken
out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.

Precautions

  1. The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light
    to avoid high temperature or sunlight.
  2. Suggested operating temperature is 18-35'c, and a low temperature may affect the printing effect, thus, the
    resin can be properly preheated before use (not more than 60°C).
  3. If the resin pigment settles, it can be used after stirring or shaking.
  4. In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
  5. To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
  6. To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the
    light source after curing.Therefore, the following steps are recommended:
    (1) The intensity of mercury lamp or LeD light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
    (2)The exposure time in the sun (summer) is around 1 hour;
    (3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury
    lamps is prohibited.
    (4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive
    material
