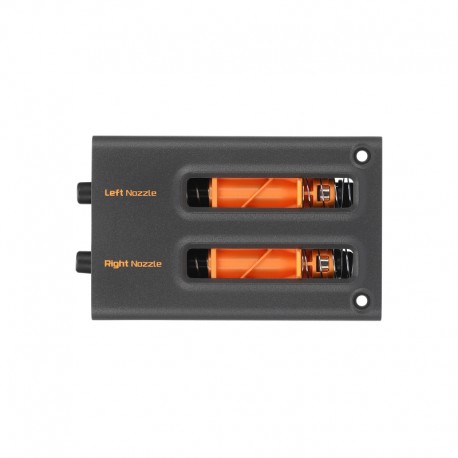

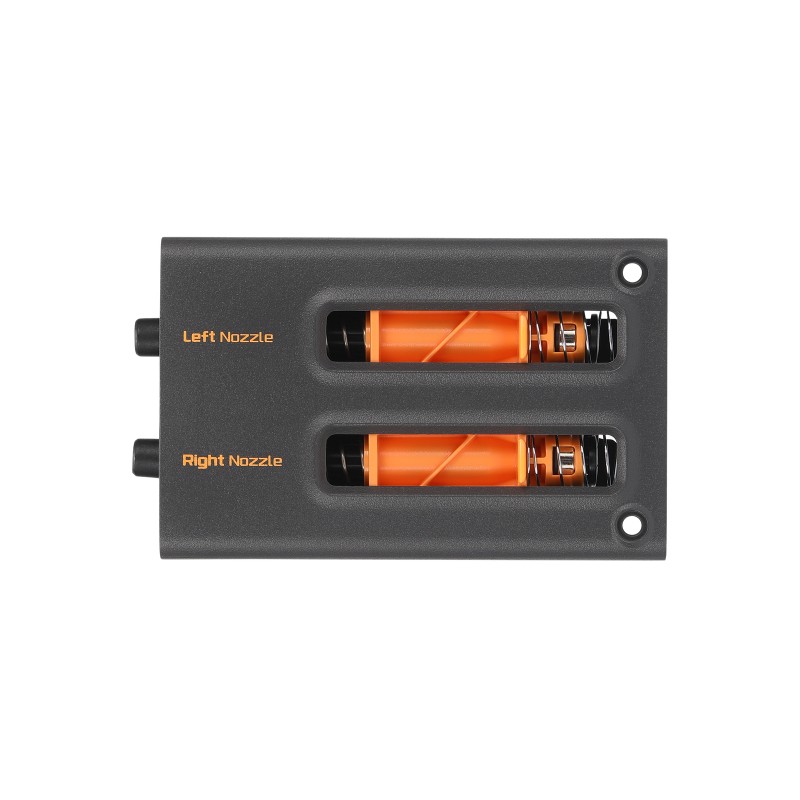

Bambu Lab Filament Buffer for X2D

The Bambu Lab Filament Buffer for X2D is a dedicated filament-management component designed to monitor filament tension variations during loading and feeding. Installed on the rear of the printer, it helps maintain smooth and consistent filament delivery between the material system and the X2D toolhead.

As filament is loaded, unloaded, or automatically switched, tension can change along the PTFE path. The buffer helps accommodate these changes so the filament can move more reliably without excessive pulling or slack.

It is suitable as an original replacement part for a damaged or worn X2D filament buffer and is also an important component of the printer's automatic filament-management workflow.

Key Features

• Original filament buffer for Bambu Lab X2D

• Part number SA015

• Monitors filament tension during loading and feeding

• Helps maintain smooth and consistent filament delivery

• Rear-mounted design integrates with the X2D filament path

• Metal and plastic construction

• Suitable for replacement and maintenance

• Includes the required mounting shoulder screws

Filament Tension Management

During printing and filament changes, the material path can experience temporary variations in tension.

The filament buffer helps compensate for these changes by monitoring filament movement between the feeding system and printer.

This supports smoother operation during:

• Filament loading

• Filament unloading

• Automatic material changes

• Multicolor printing

• Multi-material printing

• Long print jobs

• Repeated filament switching

Designed Specifically for X2D

The SA015 buffer is designed for the Bambu Lab X2D filament-routing system.

Its mounting position, mechanical structure, and filament path are designed around the X2D, so the correct X2D-specific buffer should be used when replacing the original component.

Buffers designed for other Bambu Lab printer generations should not be assumed to be interchangeable.

Supports Smooth AMS Feeding

When the X2D is used with a compatible Bambu Lab automatic material system, filament may be repeatedly pushed and pulled through the PTFE path.

The buffer helps manage changes in tension during this process, supporting more reliable filament feeding and reducing unnecessary stress on the material path.

This is particularly useful during complex multicolor prints where many automatic filament changes may occur within a single job.

Useful Replacement Part

A damaged or malfunctioning filament buffer can contribute to feeding resistance, loading problems, repeated retries, or unreliable filament movement.

Replacing the buffer with the correct X2D-compatible unit can restore the intended filament-management function.

It is a useful spare part for:

• Regular X2D users

• Print farms

• Schools

• Workshops

• Service centres

• Businesses operating multiple printers

Rear-Mounted Installation

The filament buffer installs on the rear of the X2D and connects directly into the printer's filament-routing system.

The included shoulder screws secure the buffer in its correct mounting position.

After installation, the PTFE tubes should be routed without sharp bends or unnecessary resistance.

Technical Specifications

Applications

• Filament tension management

• Automatic filament feeding

• Filament loading and unloading

• Multicolor printing

• Multi-material printing

• AMS filament switching

• Replacement of damaged original buffer

• X2D printer maintenance

• Print farm spare-part inventory

Compatibility

• Bambu Lab X2D

• X2 Series compatible filament-routing system

• Compatible Bambu Lab automatic material system workflows

Package Includes

• 1 × Bambu Lab Filament Buffer for X2D

• 2 × ST3×23 Shoulder Screws

Installation Note

Install the buffer at the designated rear mounting position and follow the correct X2D filament-routing arrangement.

After installation, make sure all PTFE tubes are fully inserted and that the filament can travel smoothly through the complete path without sharp bends, excessive friction, or obstruction.

Usage Note

This product is the filament buffer only. It does not include an AMS, PTFE tubing set, or other automatic material system accessories unless specifically stated separately.
