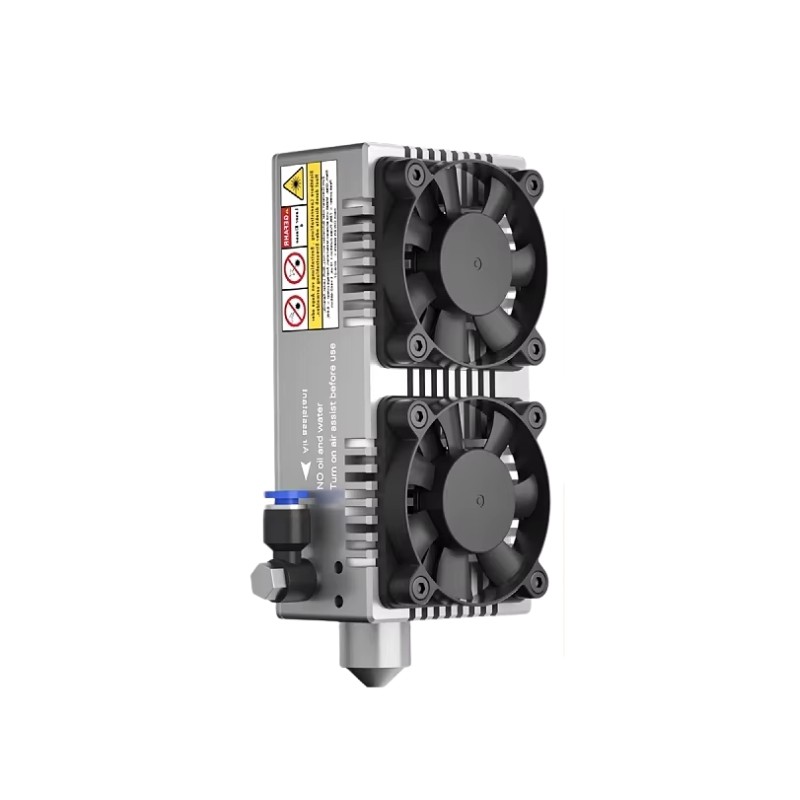

NEJE E80 NEJE01174 80W Diode Laser Module Kit

The NEJE E80 NEJE01174 80W Diode Laser Module Kit is a high-performance blue diode laser module designed for laser engraving, cutting, carving, and CNC laser machine upgrade applications. It is suitable for users who need stronger cutting ability, fine engraving detail, and reliable long-term performance from a compact laser module.

The E80 uses a multi-diode optical system with 24W optical output power and an 80W input power class. Its fine compressed focus helps produce detailed engraving and cleaner cutting results on suitable materials such as wood, plywood, MDF, leather, cardboard, painted metal, stainless steel marking surfaces, slate, ceramics, and selected plastics.

With built-in driver design, temperature feedback, efficient heat dissipation, and PWM control support, this module is suitable for compatible NEJE laser machines and selected CNC laser engraving machines that can support the required power input and signal connection.

Key Features

• NEJE E80 NEJE01174 diode laser module kit

• 80W input power class with 24W optical laser output

• 450nm class blue diode laser

• Fine compressed focus for detailed engraving and cutting

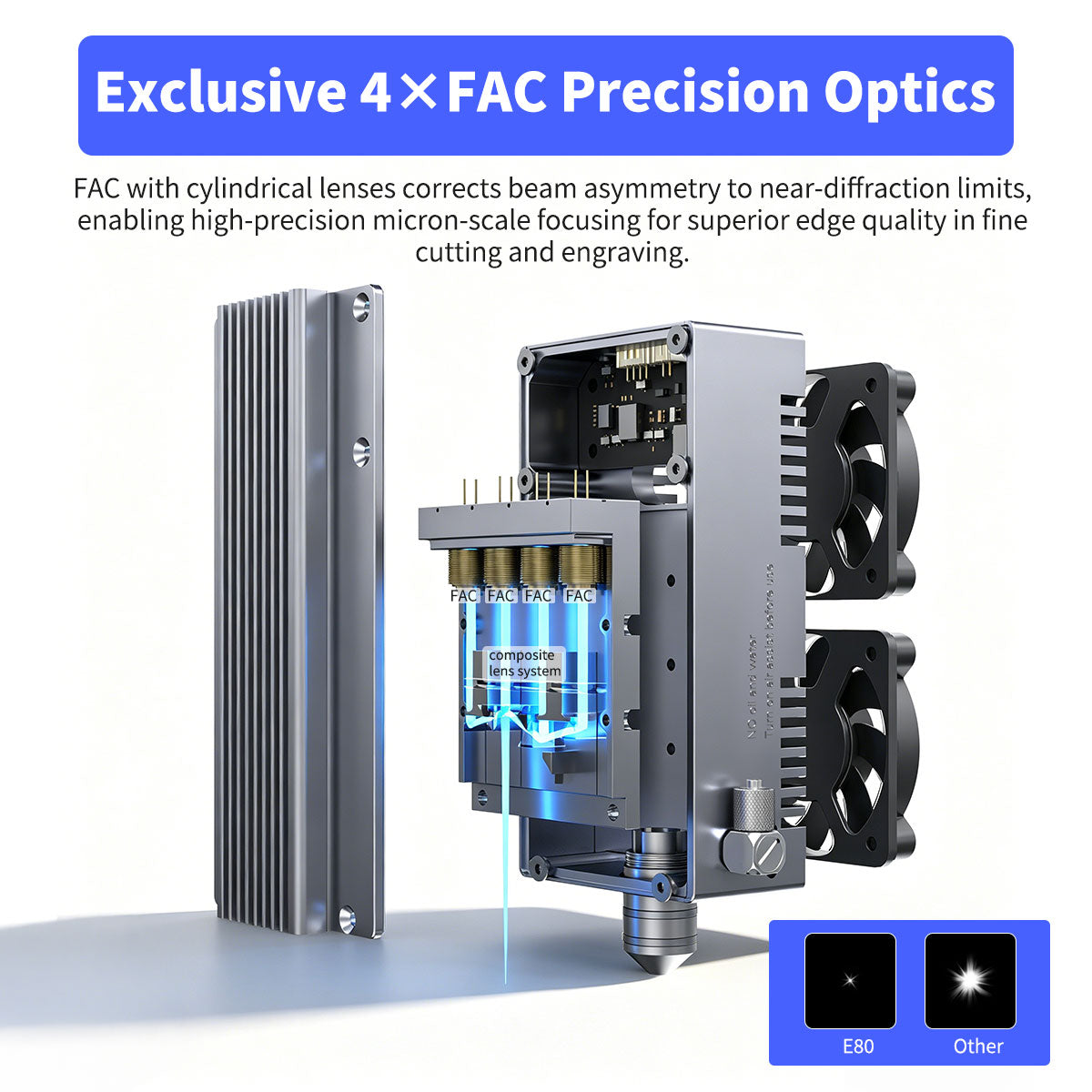

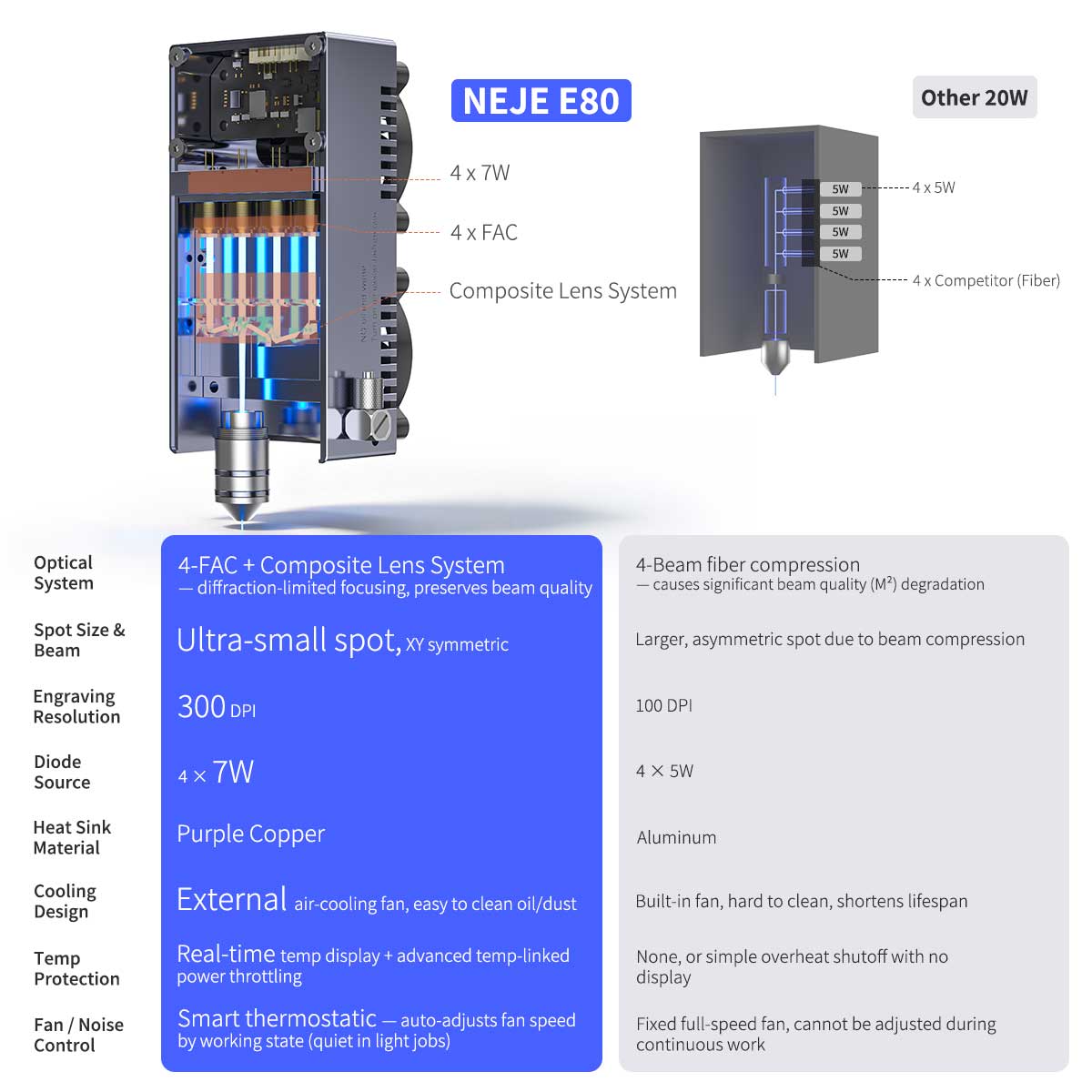

• 4-diode optical design

• Built-in driver design

• 24V input power requirement

• Suitable for wood, MDF, plywood, leather, acrylic marking, stainless steel marking, ceramics, slate, and selected plastics

High-Power Diode Laser Module

The NEJE E80 is designed for users who need stronger cutting and engraving performance than lower-power diode modules. Its 24W optical output allows it to handle deeper engraving, faster material processing, and cleaner cutting on suitable materials when proper settings and air assist are used.

It is suitable for laser hobbyists, workshops, sign makers, craft businesses, and CNC users upgrading an existing compatible laser engraving machine.

Fine Focus for Detailed Engraving

The E80 uses a fine compressed laser spot, helping produce sharper engraving detail and more controlled cutting lines. This is useful for photo engraving, text marking, decorative artwork, logos, patterns, signs, and detailed craft work.

A smaller focus helps improve edge quality and engraving accuracy, especially on wood, MDF, coated surfaces, slate, ceramics, and painted metal surfaces.

Suitable for Cutting and Carving

The module can be used for cutting suitable wood, plywood, MDF, cardboard, leather, fabric, and selected dark plastic materials. For thicker or denser materials, correct focusing, air assist, multiple passes, and suitable speed settings are important.

Cutting performance depends heavily on material type, thickness, density, surface color, air assist, focus accuracy, and machine rigidity.

Built-In Driver and PWM Control

The laser module includes a built-in driver and supports PWM/TTL control input. This allows compatible controller boards to adjust laser output for engraving, grayscale work, cutting, and marking applications.

Before installation, users should confirm that their machine supports the required 24V power input and PWM signal connection.

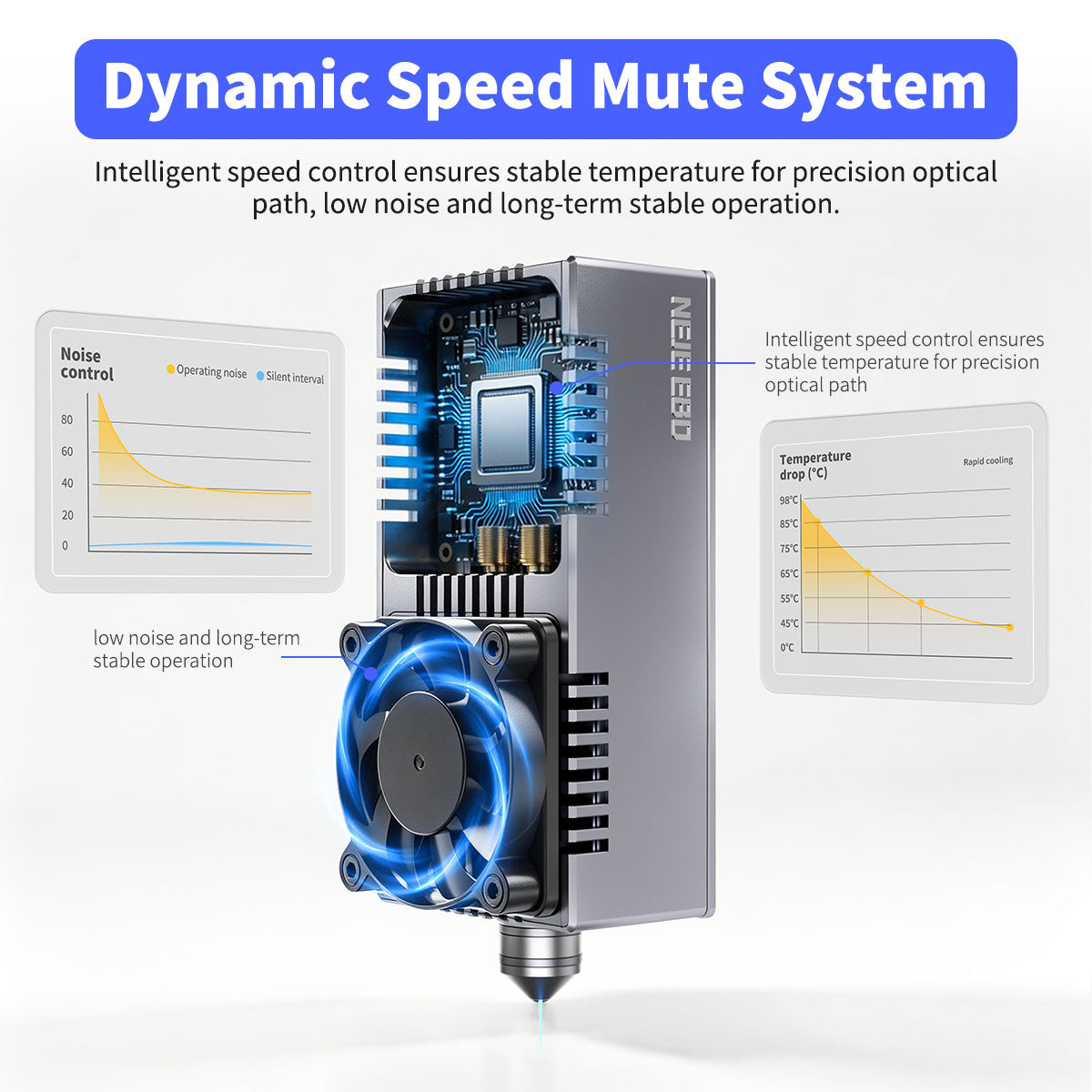

Improved Cooling and Maintenance Design

The NEJE E80 is designed with an efficient heat dissipation structure to support stable operation during engraving and cutting work. The module also uses replaceable protection parts and requires regular lens cleaning, especially when cutting smoke-producing materials such as MDF, plywood, leather, or dense wood.

Keeping the lens clean and using suitable air assist helps protect the module and maintain laser performance.

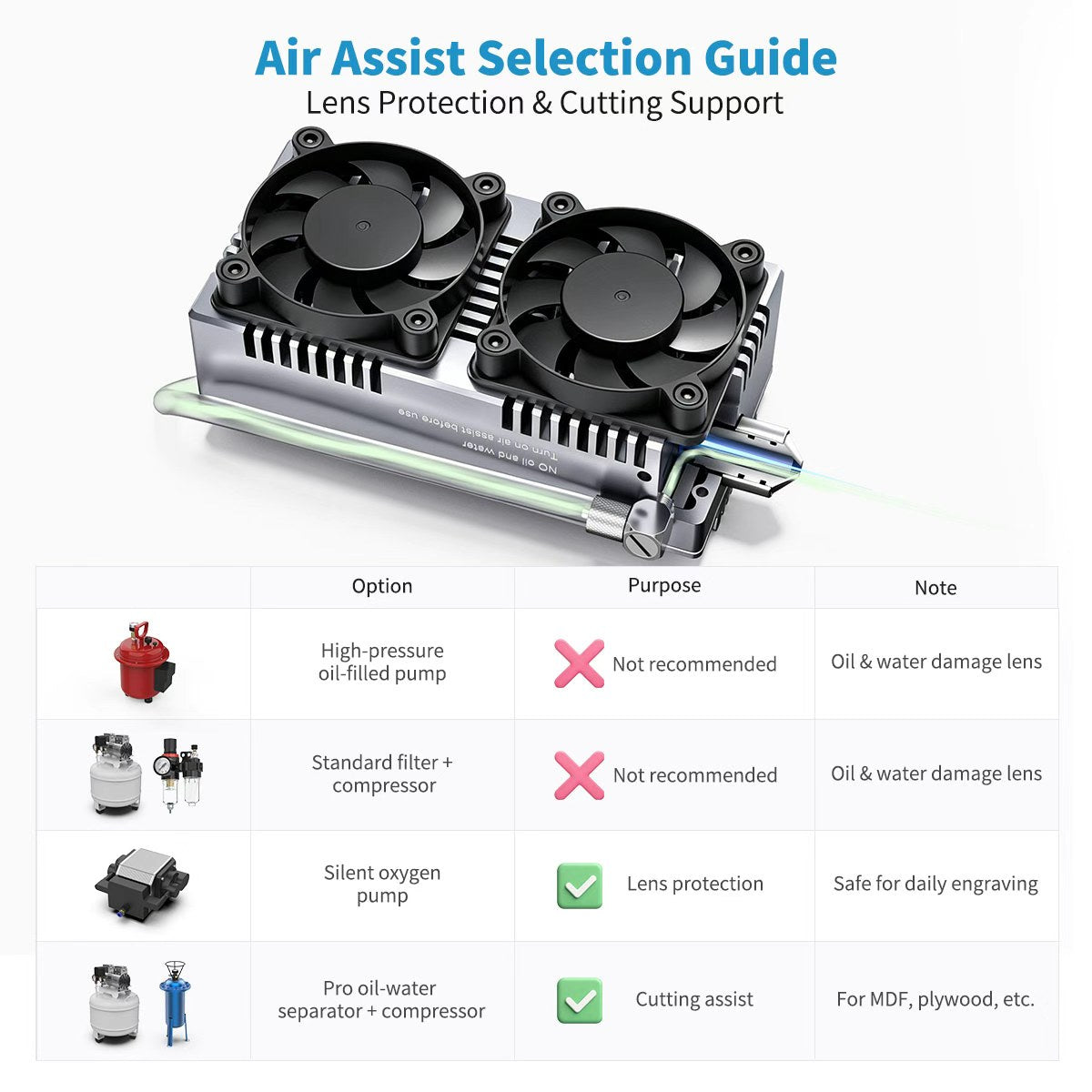

Air Assist Recommended for Cutting

For cutting MDF, plywood, leather, and dense materials, air assist is strongly recommended. Air assist helps remove smoke and carbonized material from the cutting path, improving cut quality and reducing lens contamination.

For photo engraving or fine surface engraving, air assist may not always be suitable because strong airflow can affect fine visual detail depending on the material and process.

Technical Specifications

Suitable Materials

• Wood

• Plywood

• MDF

• Bamboo

• Cardboard

• Leather

• PU/PVC leather

• Fabric

• Painted metal

• Stainless steel marking surfaces

• Slate

• Ceramics

• Glass marking with suitable coating/method

• PCB marking

• Selected plastics

• Dark acrylic or coated acrylic surfaces

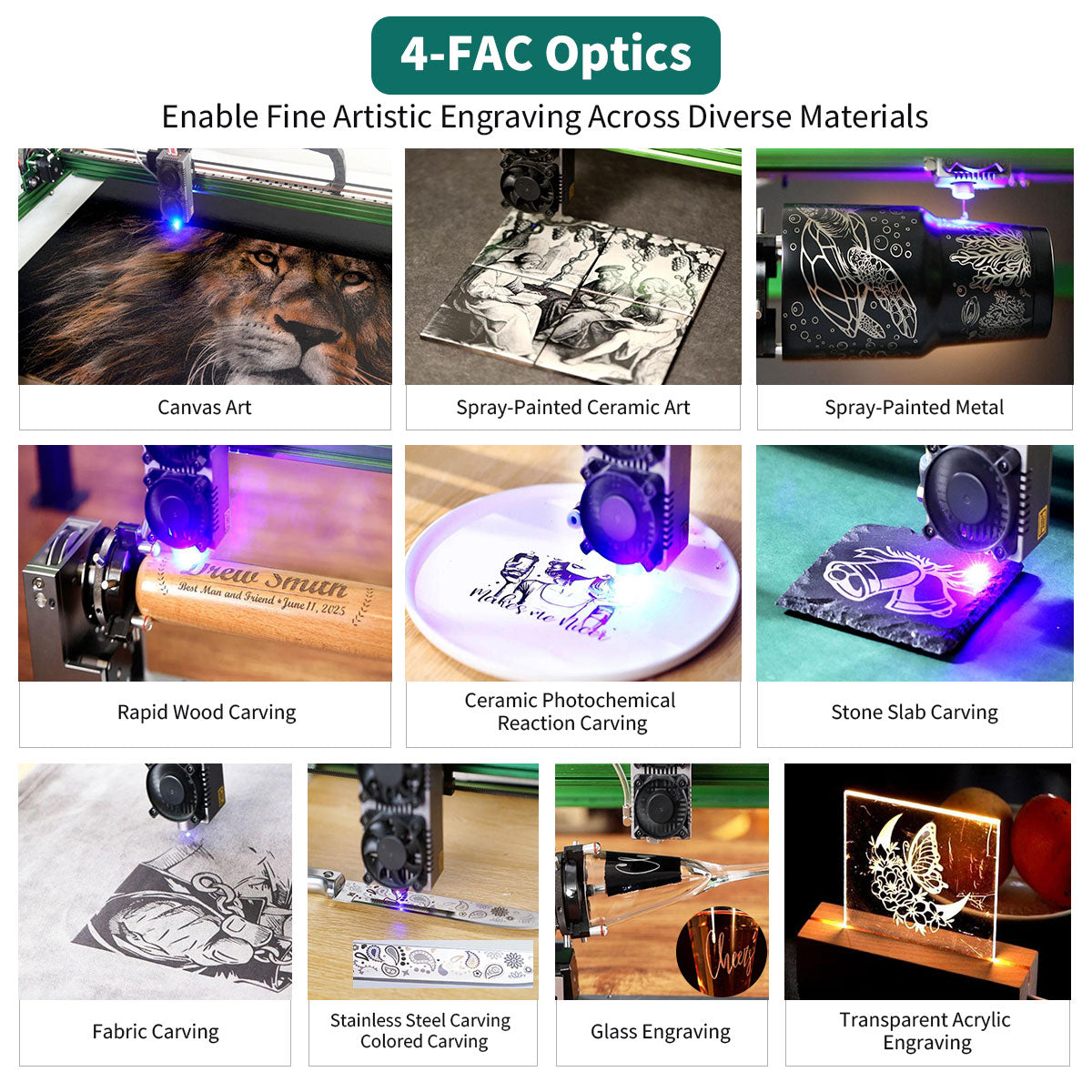

Applications

• Wood engraving

• Plywood and MDF cutting

• Laser carving

• Photo engraving

• Logo marking

• Stainless steel surface marking

• Painted metal engraving

• Leather cutting and engraving

• Craft production

• Sign making

• Decorative panels

• Personalized gifts

• CNC laser module upgrades

• Workshop and small business laser production

Compatibility

• Compatible NEJE laser engraving machines supporting E80 module installation

• Compatible CNC laser engravers with suitable 24V power and PWM/TTL signal support

• Suitable for LightBurn and LaserGRBL workflows when supported by the machine controller

• Machine compatibility should be confirmed before purchase, especially mounting size, power supply rating, and wiring interface

Usage Note

This is a Class 4 laser module and must be used with proper laser safety protection. Always use suitable laser safety goggles, enclosure protection, ventilation, and fire safety precautions. Do not look directly at the beam or reflected light. Before cutting or engraving final workpieces, test settings on sample material and confirm focus, speed, power, air assist, and material compatibility.
