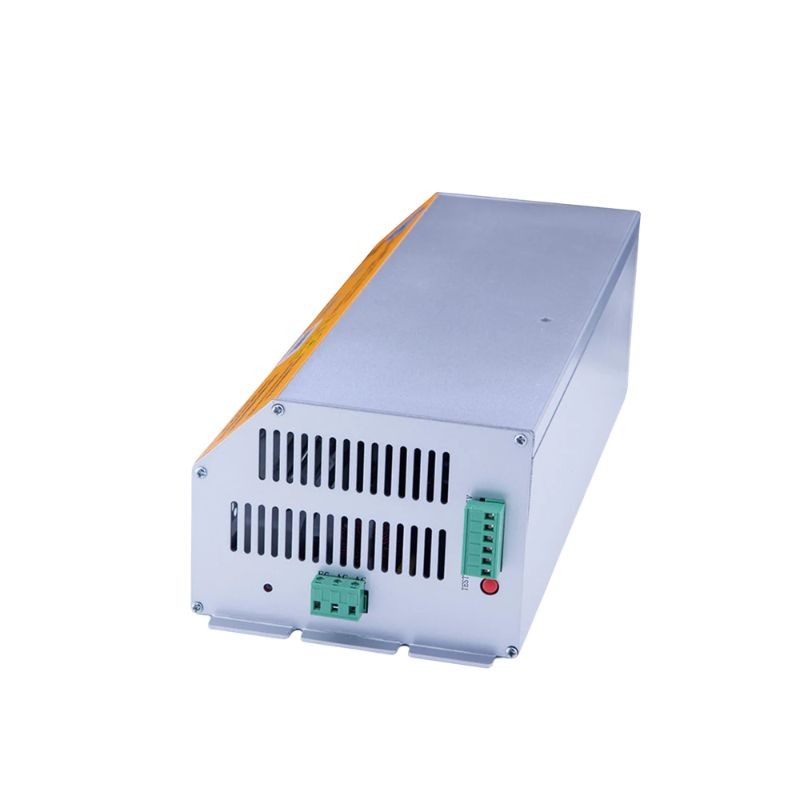

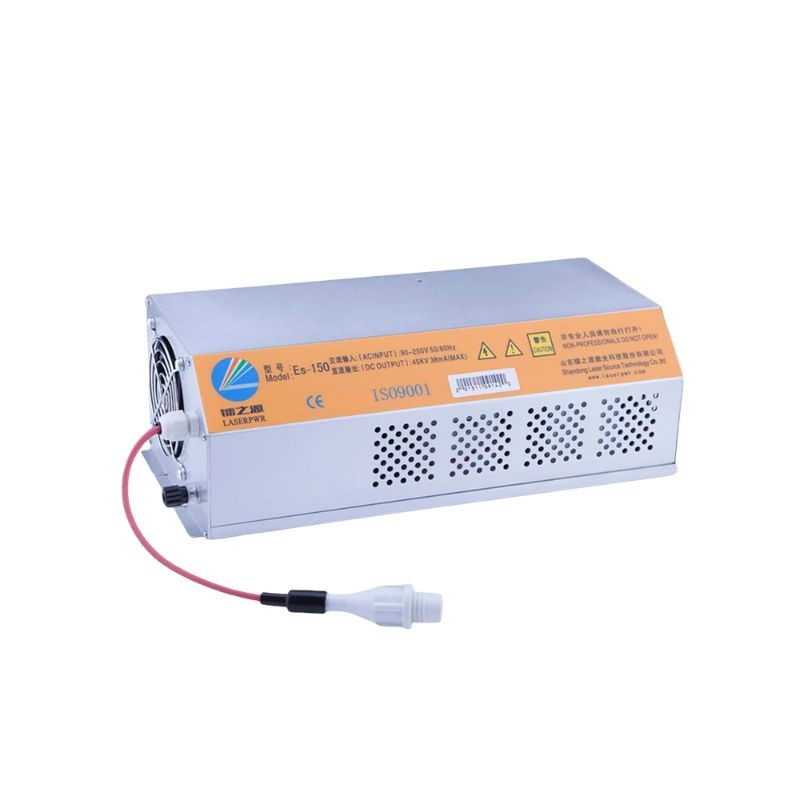

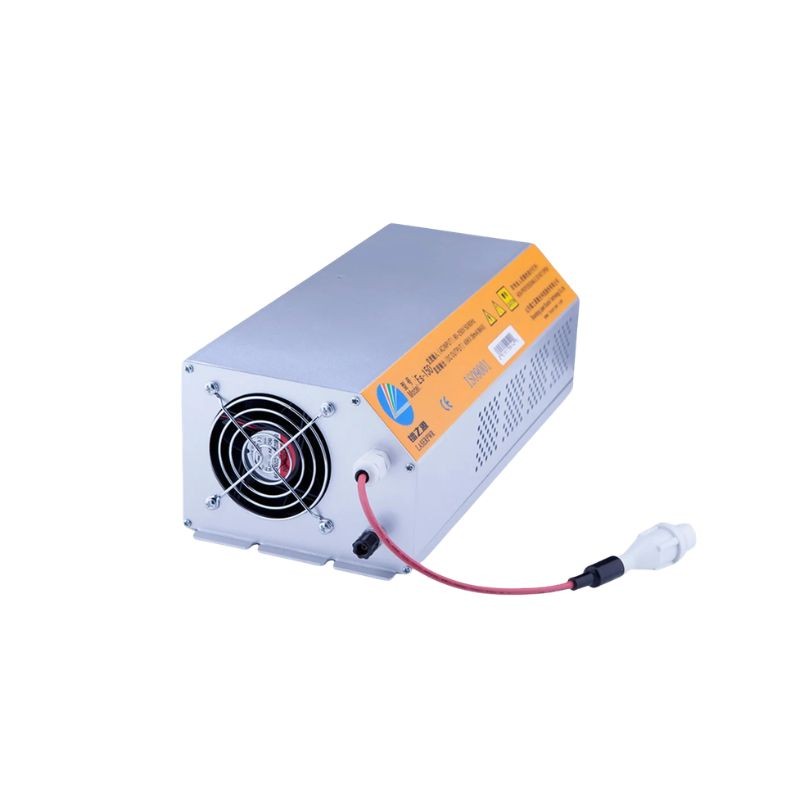

LASERPWR ES150 ESA150 130-180W CO2 Laser Power Supply

The LASERPWR ES150 / ESA150 is a high-voltage CO2 laser power supply designed for 130W to 180W glass CO2 laser tubes. It is suitable for laser engraving, laser cutting, marking, and die-cutting machines that require stable high-voltage output and reliable tube ignition.

Built for industrial laser machine applications, this power supply supports a wide AC input voltage range and uses active PFC technology to help maintain stable performance even when input power conditions vary. Its fast response speed, strong output capability, and built-in protection functions make it a practical replacement or upgrade power supply for compatible CO2 laser systems.

The ESA150 model also includes display and control features that help with setup, testing, and maintenance. With digital current display, light output indication, water protection signal display, built-in potentiometer, and manual test button support, it gives technicians clearer visibility when checking machine operation.

Key Features

• Designed for 130W to 180W CO2 laser tubes

• Wide AC90–264V input voltage range

• Maximum output voltage up to 55kV

• Maximum output current up to 38mA

• Active PFC circuit for improved input power stability

• Supports 0–5V analog and 5V PWM laser power control

• Built-in display, potentiometer, and manual test function

• Forced air cooling for stable operation

Stable Power for CO2 Laser Tubes

The ES150 / ESA150 is designed to drive high-power glass CO2 laser tubes in the 130W to 180W range. Stable output is important for consistent cutting depth, engraving quality, and laser tube performance during long production jobs.

It is suitable for CO2 laser cutting machines, engraving machines, marking machines, portable cutting beds, and similar equipment using compatible glass laser tubes.

Wide Input Voltage Compatibility

The power supply supports AC90–264V input with 47–63Hz frequency compatibility. This wide input range allows it to work in different electrical environments while helping reduce issues caused by unstable input voltage.

The active PFC circuit improves power factor and helps the unit operate more efficiently under load.

Fast Response and Accurate Control

With a response speed of ≤1ms, the power supply can react quickly to laser control signals. This is important for engraving and cutting applications where the laser output must start, stop, and adjust rapidly according to the machine controller.

Laser power can be controlled using a 0–5V analog signal or 5V PWM signal, making it compatible with many common CO2 laser machine control systems.

Built-In Display and Manual Adjustment

The ESA150 version includes display and control features for easier monitoring and maintenance. The digital display can show current value, light output status, and water protection signal status, helping users identify whether key operating signals are normal.

The integrated potentiometer allows manual current adjustment, while the test button provides a convenient way to check laser output and power supply function during servicing.

Protection and Cooling

The power supply includes open-circuit protection to help protect both the power supply and laser tube. Forced air cooling helps manage internal temperature during operation, supporting more stable performance in workshop and production environments.

Correct installation, grounding, wiring, water protection connection, and cooling airflow are essential for safe and reliable operation.

Technical Specifications

Applications

• CO2 laser cutting machines

• CO2 laser engraving machines

• Laser marking machines

• Laser die-cutting machines

• Portable cutting beds

• Replacement power supply for compatible CO2 laser systems

• Maintenance and repair of 130W to 180W CO2 laser machines

Compatibility

• Suitable for compatible 130W to 180W glass CO2 laser tubes

• Compatible with CO2 laser machines using 0–5V analog control

• Compatible with CO2 laser machines using 5V PWM control

• Suitable for controllers and machines requiring matching ES150 / ESA150 power supply specifications

Safety Note

This is a high-voltage laser power supply. Installation and replacement should be performed only by qualified technicians familiar with CO2 laser machine wiring, grounding, water protection circuits, and high-voltage safety procedures.

Always disconnect power before installation or servicing, confirm correct wiring before operation, and ensure the laser tube, cooling system, controller, and grounding are properly connected.

Note: This machine supports LASERPWR Digital Current Meter
