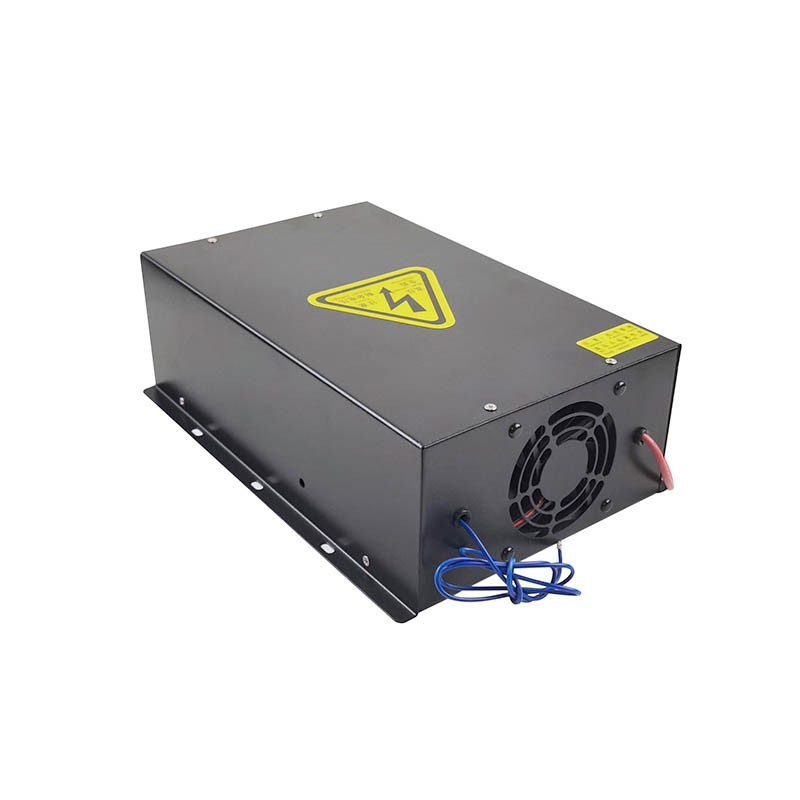

LASERPWR HY-TA100 80-100W CO2 Laser Power Supply

New product

6 Months Warranty

More details

This product is no longer in stock

Rs 57,000.00

Estimated Delivery: 3 to 6 weeks

Add to wishlist

More info

Application

HY-TA100 Laser power supply is used for 80W-100W Laser Cutting and Engraving Acrylic, Fabric, Double Color Sheet Rubber, etc.

Main Features

1) Good compatibility: It can be applicable to 80W-100W Laser tubes of a number of manufacturers.
2) Cutting Type and Sculpting Type: The cutting type has good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect.
3) Dramatically lengthen the service life of the laser.
4) Easy Control: The start and stop of the laser can be easily controlled by the TTL level. And there is a protection switch to test the external water, ventilation, etc.
5) Easy control of laser power: Both 0-5V analogue signal and PWM signal can control the laser power.
6) The power supply has the function of open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit condition for a short time, which could avoid the damage of Laser power supply because of the bursting Laser tube, thereby enhancing the life of power supply.
7) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of the laser.
8) The power supply adds a new function, which is timely scene judging which part is damaged, Laser tube or laser power.
9) Application: Acrylic sculpture, cut; fabric sculpture, cut; Double-color plate engraving, cut; rubber sheet sculpture, cut, etc.

Specification

InputInput VoltageAC220V or AC110V（to be specified when placing order）
AC frequency47—440HZ
Cold Surge Current≤60A(AC220V Input)≤30A(AC110 Input)
Current Leakage≤0.7mA（AC220V Input）≤0.4mA(AC110V Input)
OutputMax Output VoltageDC 40KV
Max Output CurrentDC 30mA
Efficiency≥90﹪（full load）
Mean Time Between Failure (MTBF)≥10000H
Response Speed≤1ms（from the switch Signal is given to the output current up to 90% of the setting current）
Control InterfaceTTL level switch control; high or low effective level can be chosen (details refer to the terminal control specification)
Pressure-proofInput-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell.
Protectioncan work in open-circuit condition for a short time（Require a good protective earthing and avoid arc between the positive and the machine shell）
EnvironmentalOperating Temperature：-10~40℃， Relative Humidity (RH)：≤90﹪
Cooling WayForce-Air Cooling (FAC)
DimensionL×W×H=280*173*97(mm)

​

Note: This machine supports LASERPWR Digital Current Meter
